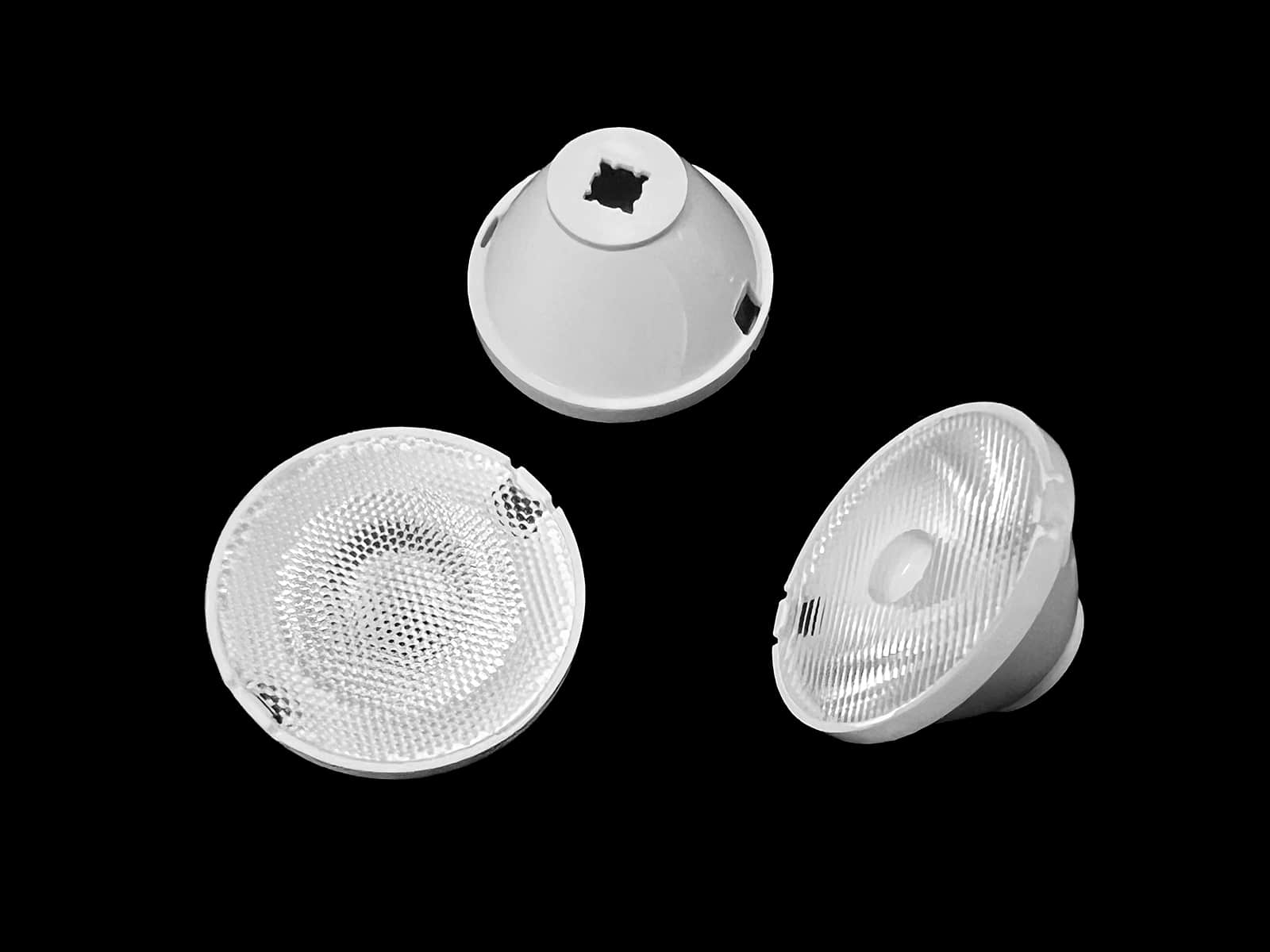

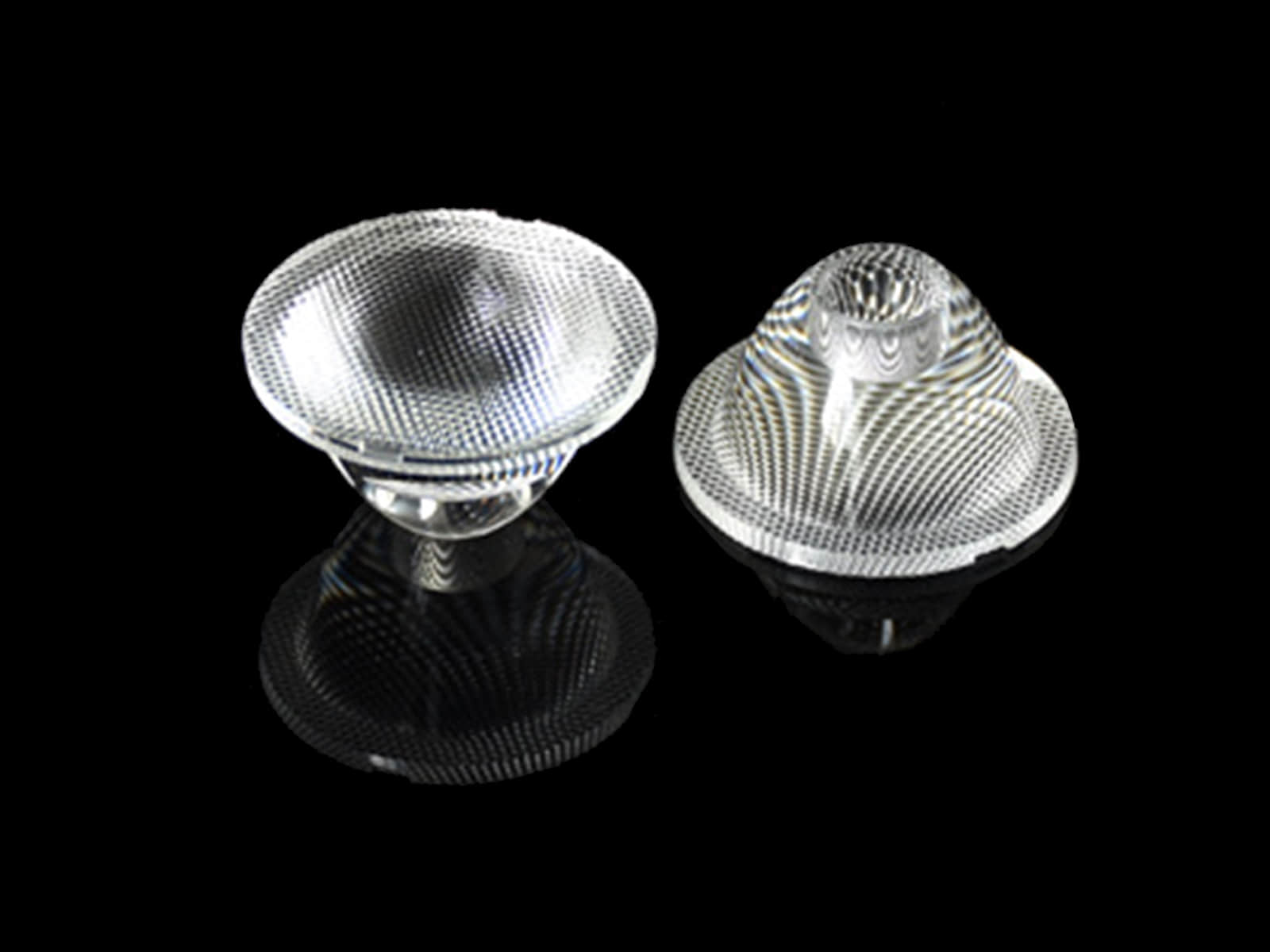

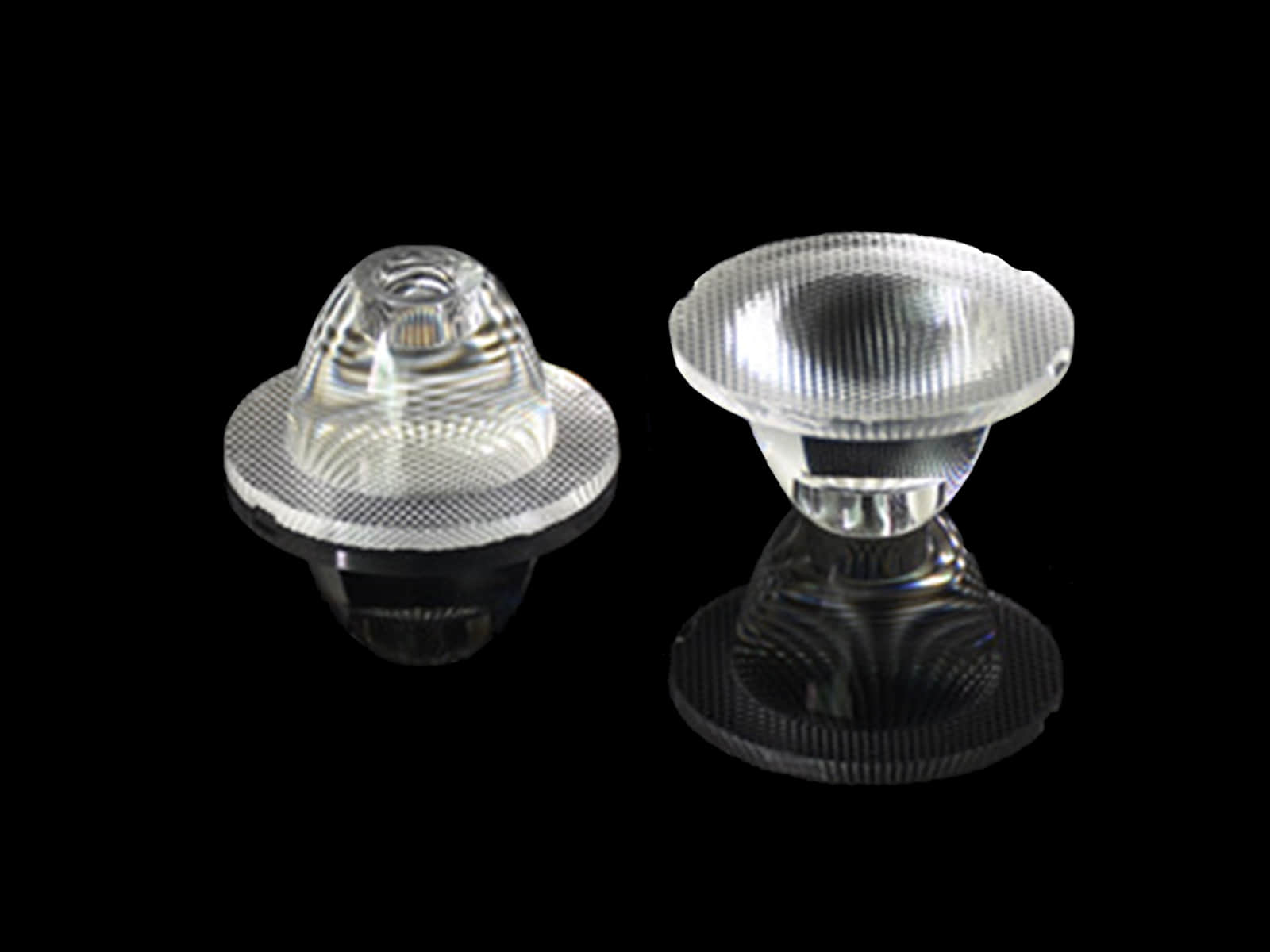

Model: ASHR35D19H24G/36G/60G
Size: Ø35mm
Height: 17.9mm
Angle: 24°,36°,60°
Material: PMMA (Lens) + PC (Holder)
Transmittance: >93%
LED Type: 5050LED
Lighting Applications: Downlights, Spotlights, Signal lights
1. Precision Optical Design: Optimized specifically for mainstream 5050 LED chips to ensure efficient light output and a sharp beam cut-off, effectively reducing glare and enhancing lighting quality.
2. Flexible Angle Selection: Offers three beam angle options—24° (accent lighting), 36° (general lighting), and 60° (ambient lighting)—providing a one-stop optical solution for downlights, spotlights, track lights, and architectural lighting.
3. Plug-and-Play Reliability: As a mature standard optical lens, it simplifies luminaire development, significantly shortens project timelines, and serves as a dependable choice for rapid product launch.

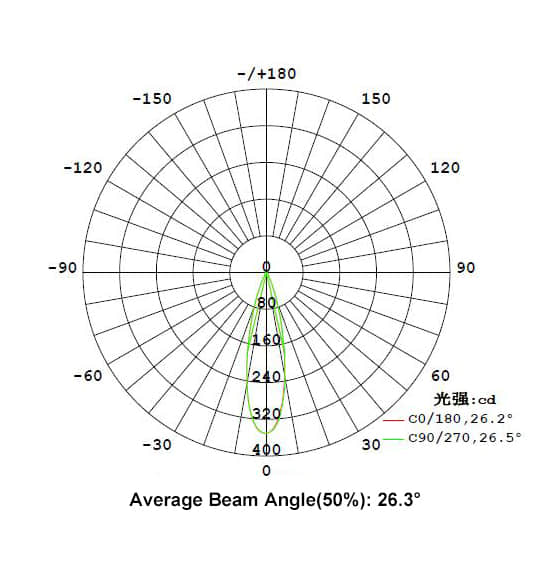

Distribution
Specifications
| Model: | ASHR35D19H24G/36G/60G |
| Size: | Ø35mm |
| Height: | 17.9mm |
| Angle: | 24°,36°,60° |
| Material： | PMMA (Lens) + PC (Holder) |
| Transmittance： | >93% |
| LED Type | 5050LED |
| Lighting applications | Downlights, Spotlights, Architectural lighting, Signal lights |
LED Type
JR5005C 6-V E
DURIS S 8
LUXEON 5050 Square
NVAW144AR
NVAW144AM
Xl5050LED
EMC5050LED
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
1. Precision Optical Design: Optimized specifically for mainstream 5050 LED chips to ensure efficient light output and a sharp beam cut-off, effectively reducing glare and enhancing lighting quality.
2. Flexible Angle Selection: Offers three beam angle options—24° (accent lighting), 36° (general lighting), and 60° (ambient lighting)—providing a one-stop optical solution for downlights, spotlights, track lights, and architectural lighting.
3. Excellent Compatibility and Consistency: Made from high-transmittance PMMA material with outstanding weather resistance and stability. While actual beam angles may vary slightly due to different LED chip structures across brands, the precise optical design of this series ensures stable, uniform lighting performance when paired with various LED brands.
4. Plug-and-Play Reliability: As a mature standard optical lens, it simplifies luminaire development, significantly shortens project timelines, and serves as a dependable choice for rapid product launch.

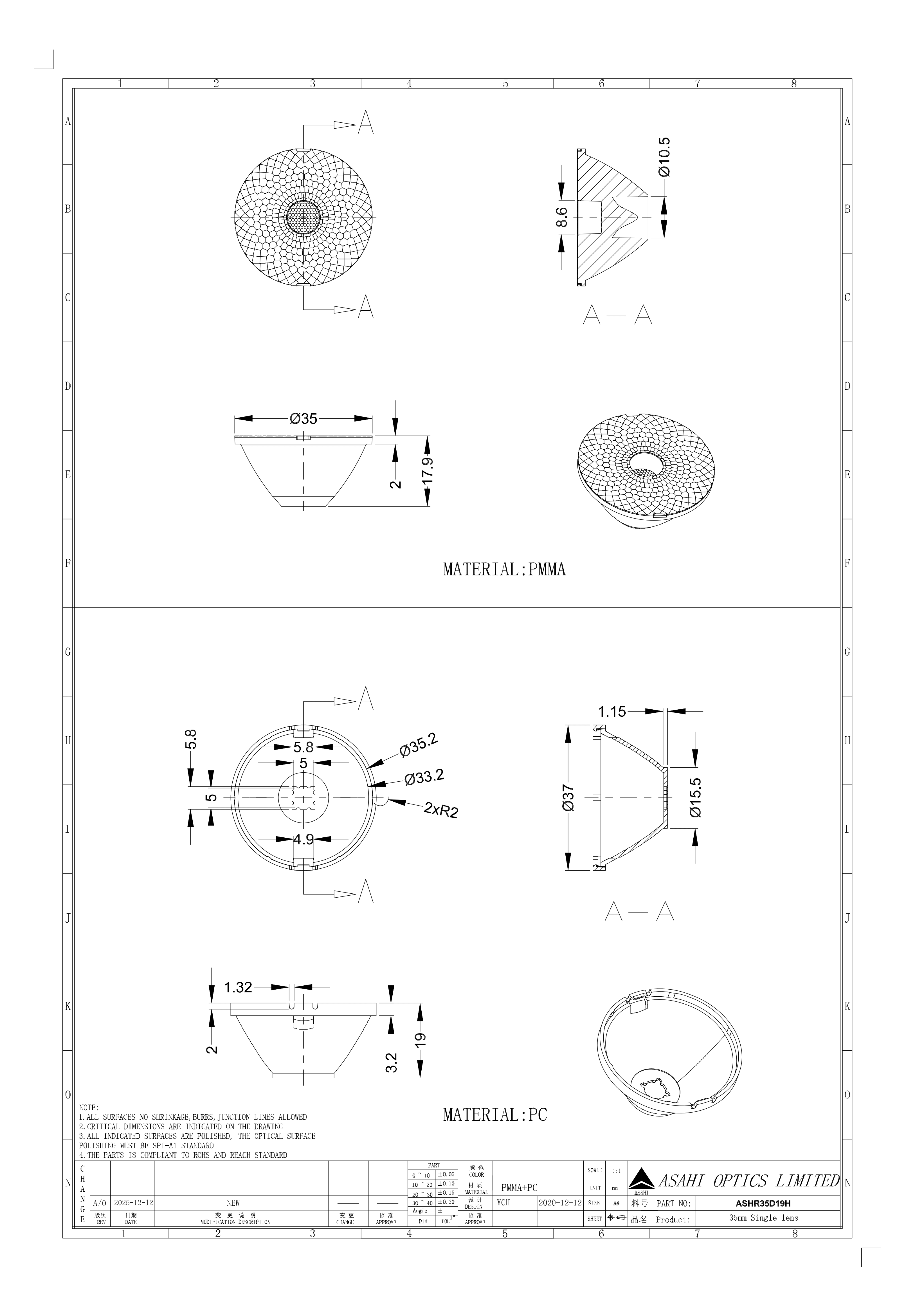

ASAHI Optics ASHR35D19H 2D Drawing.dwg
ASAHI Optics ASHR35D19H 2D Drawing.pdf
ASAHI Optics ASHR35D19H - Lens 3D Drawing .stp
ASAHI Optics ASHR35D19H -Holder 3D drawing .stp
ASHR35D19H24G/ 36G/ 60G Datasheet.pdf
