Model: AJHB50D4LED7070T30G
Diameter: 50x50mm
Height: 10.7mm
Angle: 30°
Material: PC
Transmittance: >93%
LED Type: 4x3030/5050/7070/LED
Lighting Applications: high bay Lighting
1. The 2x2 lens 30° is specifically designed for 7070 LEDs, offering a narrow 30° beam angle for precise and focused lighting.
2. Its advanced optical design ensures optimal light control, making it ideal for applications such as spotlights, and architectural accents.

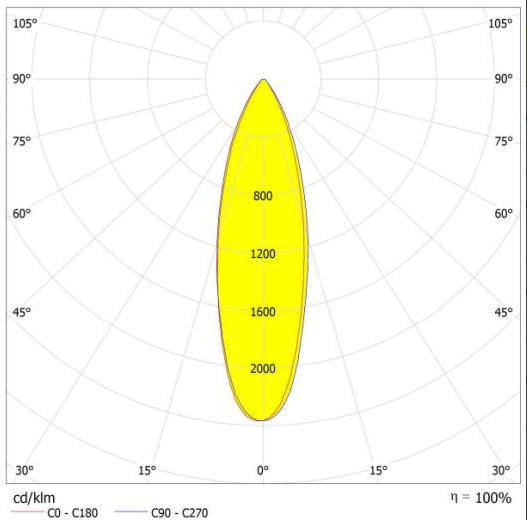

Distribution
Specifications
| Model: | AJHB50D4LED7070T30G |
| Diameter: | 50x50mm |
| Height: | 10.7mm |
| Angle: | 30° |
| Material： | PC |
| Transmittance： | ＞93% |
| LED Type | 4x3030/5050/7070/LED |
| Lighting applications | Street Lighting,high bay Lighting |
LED Type
JR5005C 6-V E
DURIS S 8
LUXEON 5050 Square
NVAW144AR
NVAW144AM
Xl5050LED
EMC5050LED
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
1. This series 2X2 lens can be compatible with high power “7070LED”.“5050LED”and “4X3030LED”
2. The design of the 2x2 Type 30° lens provides narrow illumination, suitable for high bay applications that require even light distribution.
3. Suitable for outdoor lighting applications, including high bay lighting or Equipment lighting and other areas.
