Model: AJHB275D35LED40110G
Diameter: 275mm
Height: 8.0mm
Angle: 10x110°
Material: PC
Transmittance: >88%
LED Type: 5050LED
Lighting Applications: Street Lighting
1.The 40x110° beam angle provides a more even light distribution. Constant and uniform illumination is required in tunnels to avoid dark areas and glare.
And this beam angle provides adequate coverage across the width of the tunnel (110°) while maintaining a moderate extension along the length (40°).

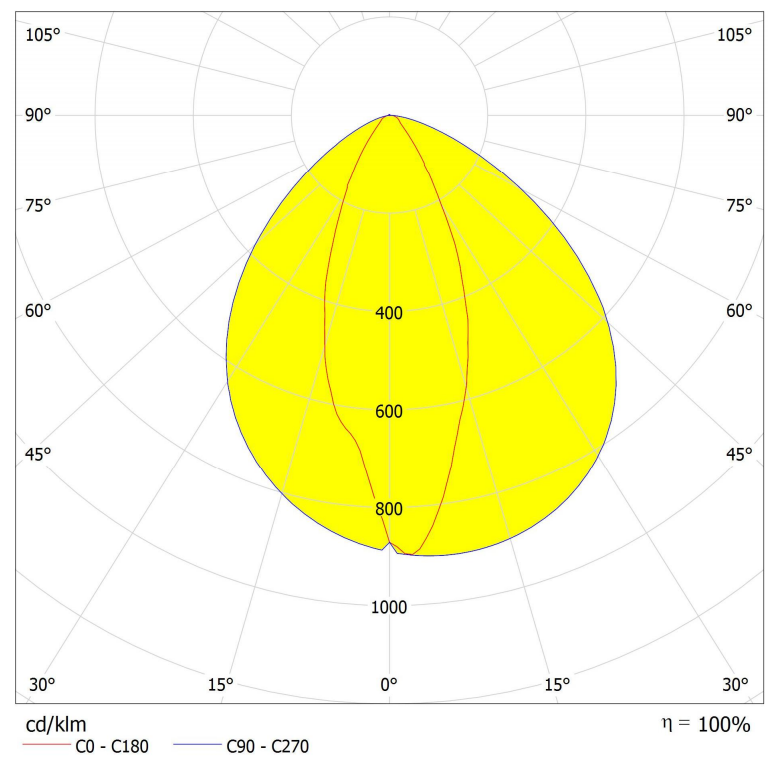

Distribution
Specifications
| Model: | AJHB275D35LED40110G |
| Diameter: | 275mm |
| Height: | 8.0mm |
| Angle: | 10x110° |
| Material： | PC |
| Transmittance： | >88% |
| LED Applications | 5050LED |
| Lighting applications | Street Lighting |
LED Type
JR5005C 6-V E
DURIS S 8
LUXEON 5050 Square
NVAW144AR
NVAW144AM
Xl5050LED
EMC5050LED
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
