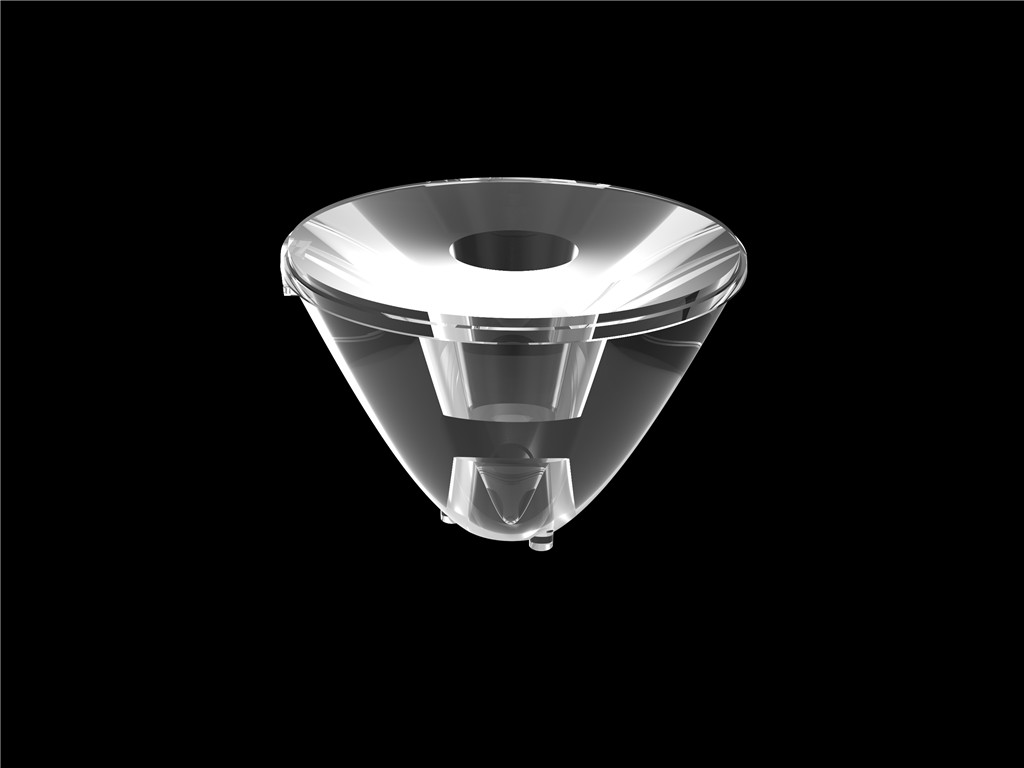

Model: AJYS56D38H1.9G

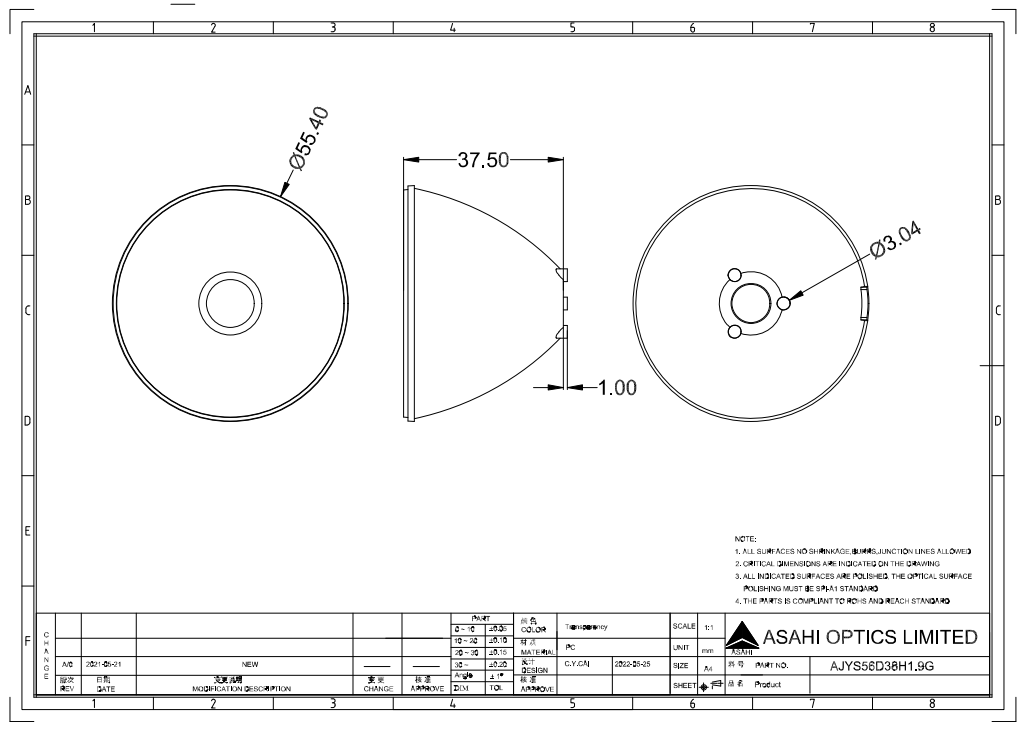

Diameter: 55.4mm
Height: 38.5mm

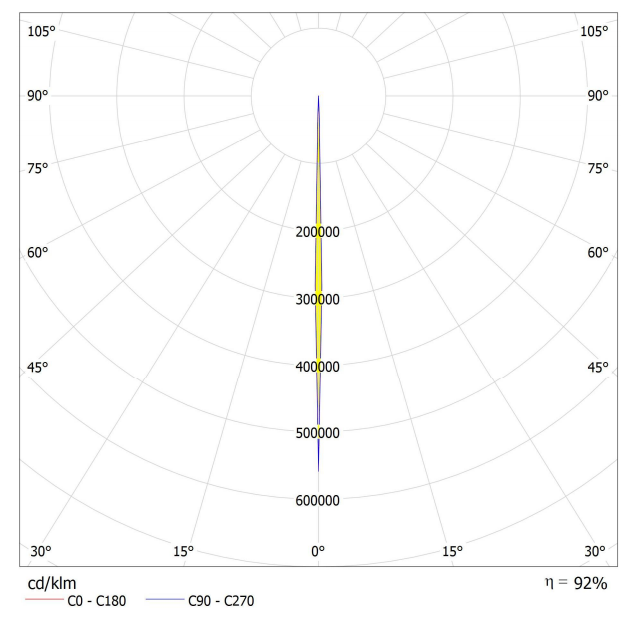

Angle: 1.9°
Material: PMMA
Transmittance: >93%
LED Type: XPE-2, XPG-2, XPG-3, XML, P8
Lighting Applications: Searchlights, Spotlights, theatrical, Stage Lighting, Aviation Obstruction Lighting
1, The 1.9° LED lens is an extremely narrow-angle or collimating lens. Its primary function is to take the light from an LED and project it as a near-parallel, highly concentrated beam over long distances.
2, The key application scenarios for a 1.9° LED lens: Long-Distance & High-Intensity Illumination, Specialized & Professional Equipment, Special Effects and Signaling, etc.
Specifications
| Model: | AJYS56D38H1.9G |
| Diameter: | 55.4mm |
| Height: | 38.5mm |
| Angle: | 1.9° |
| Material： | PMMA |
| Transmittance： | >93% |
| LED Applications | XPE-2, XPG-2, XPG-3, XML,P8 |
| Lighting applications | Searchlights, Spotlights, theatrical, Stage Lighting, Aviation Obstruction Lighting, etc |
LED Type
XPE2
XPG-2
XPG-3
XML
P8
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
