Model: AYS29DH17-5G
Diameter: 29.1mm
Height: 17.0mm
Angle: 5°
Material: PMMA
Transmittance: 90%
LED Type: "3535" "5050" LED standard

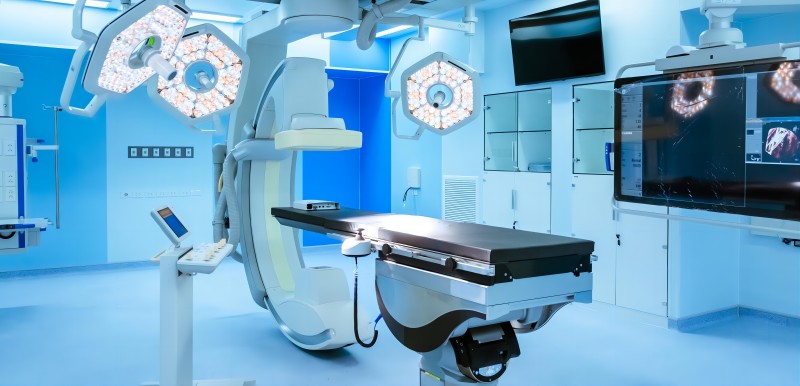

Lighting Applications: dental light, torch light, wallwasher light
1, Narrow beam LED lens is designed for surgery, dental light, torchlight, wall washer light, and other technical lighting requirements with a tight 5° beam.
2, LED Applications: "3535" "5050" LED standard
3, Lighting applications: Architecture light, flashlight, stage light
Specifications
| Model: | AYS29DH17-5G |
| Diameter: | 29.1mm |
| Height: | 17.0mm |
| Angle: | 5° |
| Material： | PMMA |
| Transmittance： | >90% |
| LED Applications | 3535LED, 5050LED |
| Lighting applications | dental light, torch light, wall washer light |
Narrow beam LED lens is designed for surgery, dental light, torch light, wallwasher lightand other technical lighting requirements with a tight 5° beam.
Asahi Optics welcomes your questions, inquires and feedback. Please use the form below or contact us at any of the addresses below. Our sales team will get back to you shortly.
Downloads
