Stadium lighting lens with 96LEDs featuring TIII very short throw

Model: ARHB520D96LEDT3VS

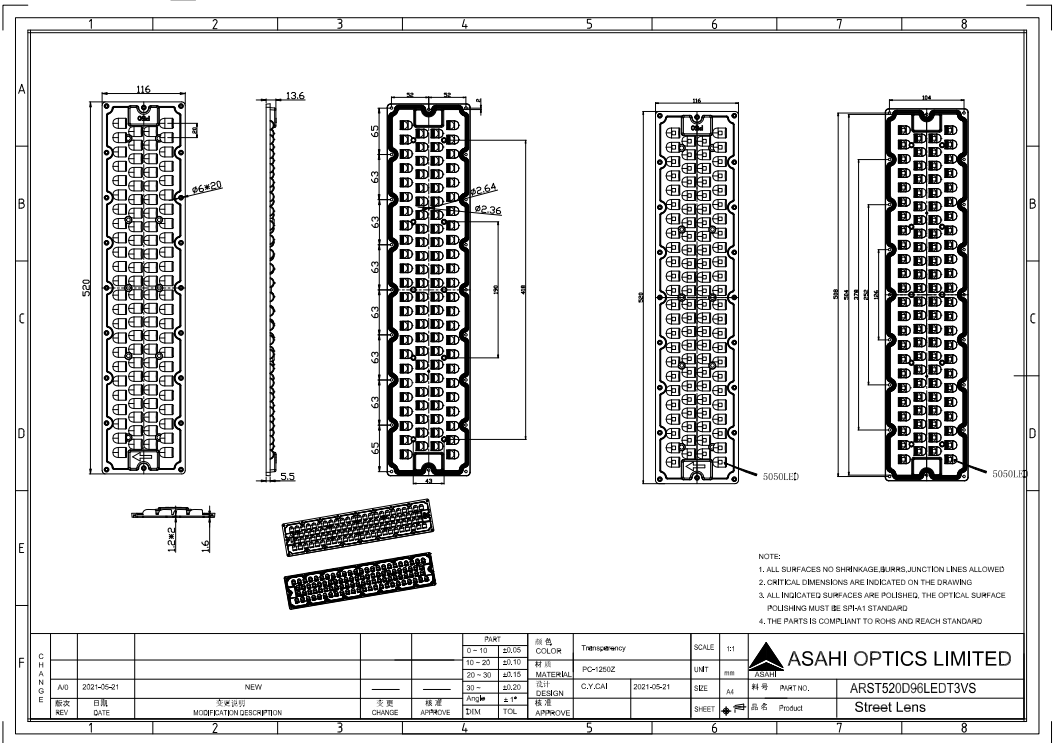

Diameter: 520mm

Height: 116mm

Angle: T3VS

Material: PC-1250Z

Transmittance: >90%

LED Type: 3535/ 5050LED

Lighting Applications: High Bay lighting, Stadium lighting

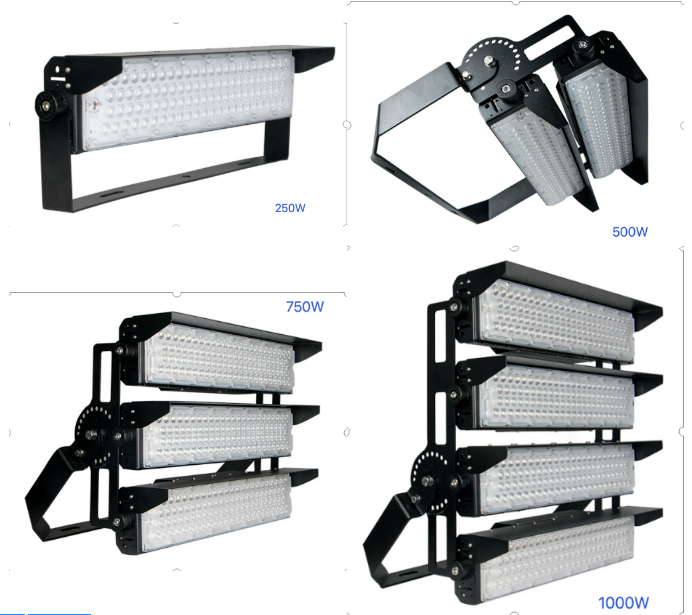

1.High Power lens module for Stadium lighting and Floodlight 250W/500W/up to 1500W with different optical beam angles T3VS, 20°, 40°，60°, 90°

2.The high-power lens modules are designed for 5050LED size with IP66 gasket waterproof and it can be reached to IK10 grade.

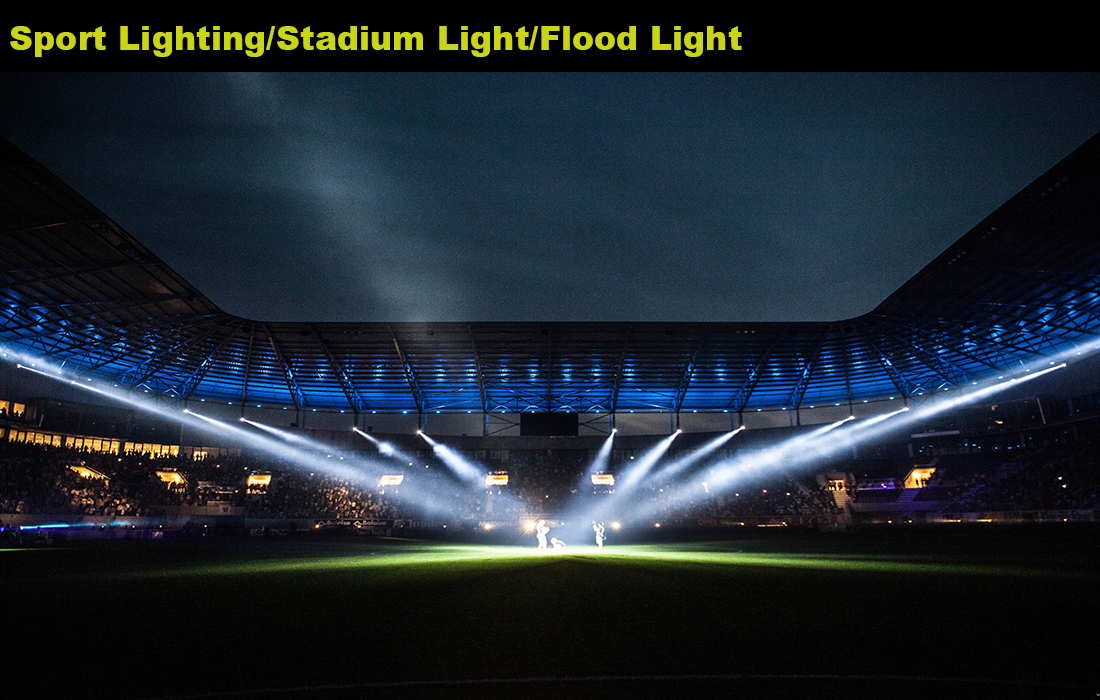

3.The high-power lens modules are widely used for large areas such as outdoor sports lighting, tower crane lighting, harbor terminal lighting, industrial lighting, etc.

4. TIII very short throw ensures that the light emitted from the 96 LEDs is directed accurately and efficiently, minimizing light loss and maximizing the lighting coverage.

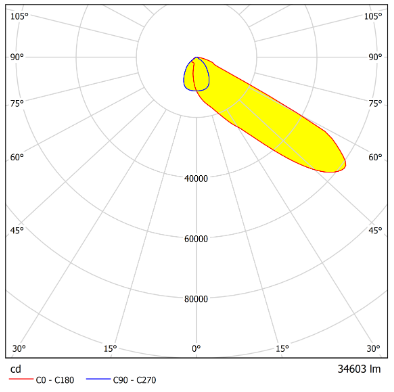

Distribution

Specifications

Model:	ARHB520D96LEDT3VS
Diameter:	520mm
Height:	116mm
Angle:	T3 Very short
Material：	PC-1250Z
Transmittance：	>90%
LED Applications	3535/ 5050LED
Lighting applications	High Bay lighting, Stadium lighting

LED Type

XPE

XPE2

XP-G2

XP-G3

OSLON SSL80

SQUARE

LUXEON HL4Z

NVSW219GL

PK2E-2LVE-B2R8N

PK2N-4LVE-SBVR8

Packaging

---

Material Information

Lens Material

L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature

PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability

PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec

PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate

400nm ~ 900nm>90%

If necessary, Clean lenses with mild soap, water and soft cloth.

Never use any commercial cleaning solvents on lenses, like alcohol.

Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.

High Power lens module for Stadium lighting and Floodlight 250W/500W/up to 1500W with different optical beam angles 10°, 20°, 40°，60°, 90°

The high-power lens modules are designed for 5050LED size with IP66 gasket waterproof and it can be reached to IK10 grade.
The high power lens modules are widely used for large areas such as outdoor sports lighting, tower crane lighting, harbor terminal lighting, industrial lighting, etc.
The optical beam angle is available from a narrow beam to a wide beam 10°, 20°, 40°, 60°, 90°to match the different heights of lighting installation.

10°
