Model: AHCOB4111D35G
Diameter: 41.36mm
Height: 11.0mm
Angle: 35°
Material: PMMA
Transmittance: 90%
LED Type: COB LED

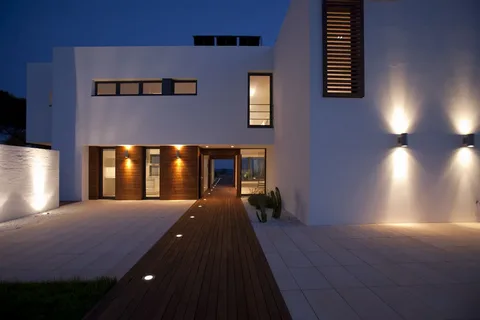

Lighting Applications: PAR lighting,Spot Light,Down Light
1, COB lens is an optical component specifically designed to control and shape the light output of a COB LED.
2, COB lenses are used in retail and display lighting to highlight products and create attractive visual displays. The lenses help shape the light beam and ensure uniform illumination of merchandise in showcases, shelves, or other display areas. The controlled lighting provided by COB lenses enhances the appearance of products and draws attention to specific areas.
3, COB lenses are designed with precision optics to achieve specific beam characteristics and light control.

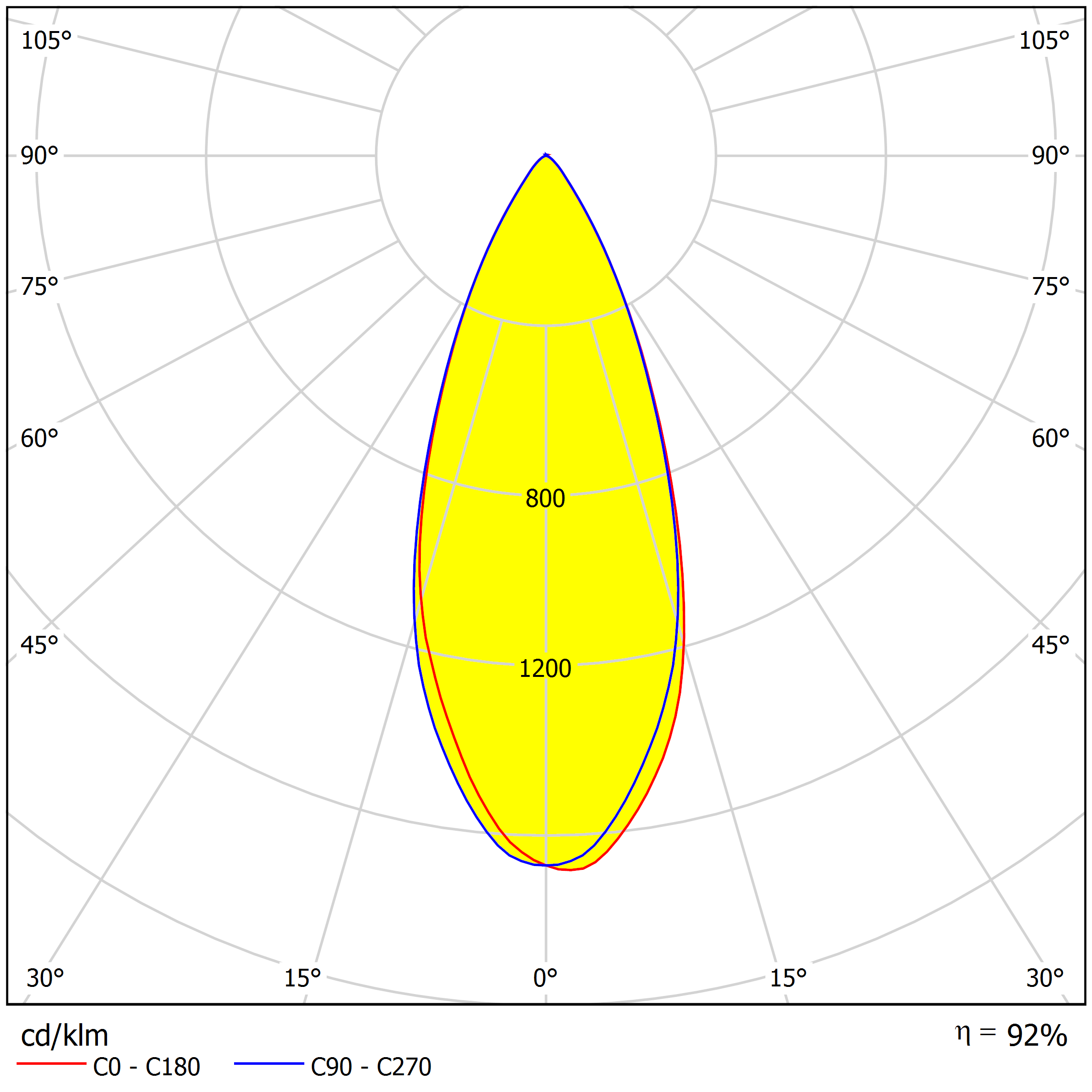

Distribution
Specifications
| Model: | AHCOB4111D35G |
| Diameter: | 41.36mm |
| Height: | 11.0mm |
| Angle: | 35° |
| Material： | PMMA |
| Transmittance： | >93% |
| LED Applications | COB LED |
| Lighting applications | PAR lighting, Spot Light, Down Light |

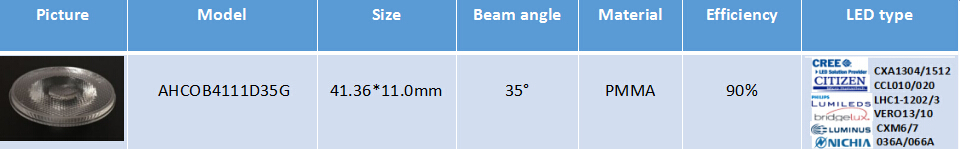

LED Type
CXA1304/1512
CCL010/020
LHC1-1202/3
036A
066A
CXM6/7
VERO13/10
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
