2x6 Lens TypeII-M Excellent Cutoff Street Lamp Lens

2x6 Lens TypeII-M Excellent Cutoff Street Lamp Lens

Model: ALST173D12LED5050T2M-cutoff

Diameter: 173.0mm+71.4mm

Height: 9.65mm

Angle: T2M-Cutoff

Material: PMMA

Transmittance: >93%

LED Type: "5050" LED

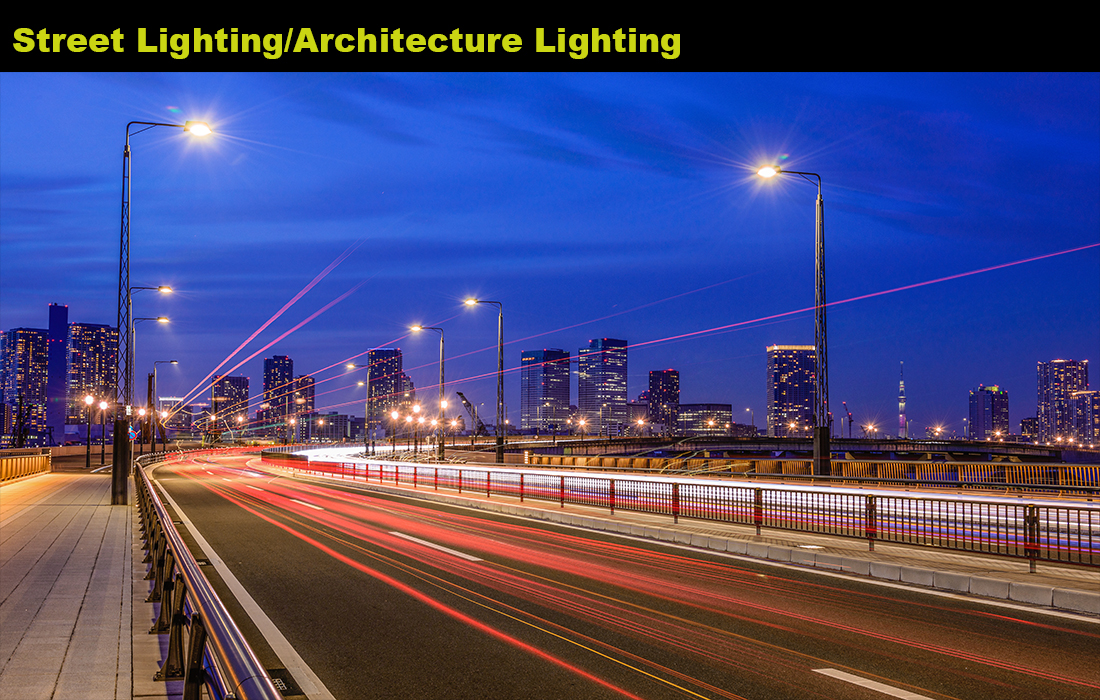

Lighting Applications: Street lighting,Architecture lighting

1. The 2x6 lens is developed for TYPEII-Medium(T2M) CUT-OFF and BUG standard, which ensures that the luminaires have a better road lighting effect.

2. The 2x6 T2M Cut-off optics is designed for a water-proof IP66 solution.

3. The 2x6 T2M Cut-off optics is compatible with different LEDs Brands such as OSRAM S8, NICHIA488, LUMILEDS5050, SEOUL5050

The 2x6 lens is developed for TYPEII-Medium(T2M) CUT-OFF and BUG standard, which ensures that the luminaires have a better road lighting effect.

The 2x6 T2M Cut-off optics is designed for a water-proof IP66 solution
The 2x6 T2M Cut-off optics is compatible with different LEDs Brands such as OSRAM S8, NICHIA488, LUMILEDS5050, SEOUL5050

Specifications

Model:	ALST173D12LED5050T2M-cutoff
Diameter:	173*71.4mm
Height:	9.65mm
Angle:	T2M-Cutoff
Material：	PMMA
Transmittance：	>93%
LED Applications	"5050" LED
Lighting applications	Street lighting

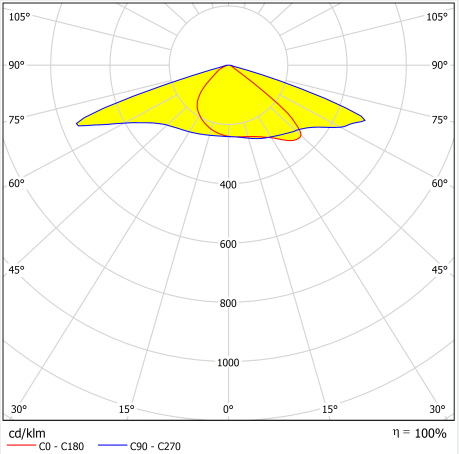

Light Distribution Curve

Street Lighting Lens 4 1

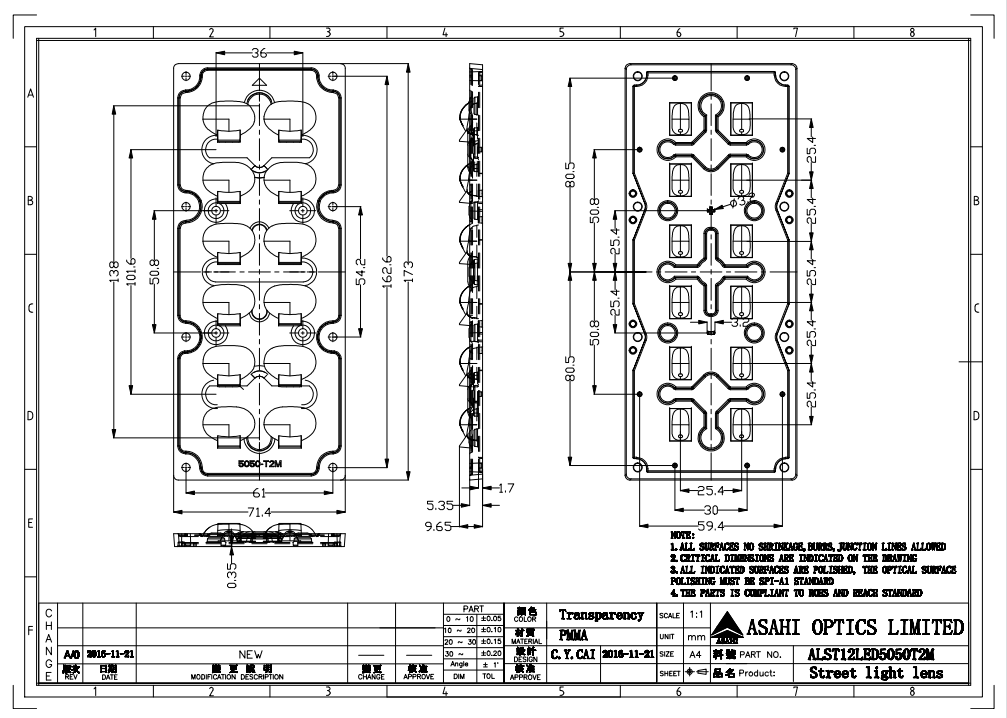

ALST173D12LED5050T2M cutoff

LED LENS Maintenance Instruction

1) If necessary, clean lenses with mild soap, water, and softening cloth.
2) Never use any industrial solvent to clean lens, such as cleaning Solvent, Alcohol Sulfuric acid, Ammonia, Urea, Mineral oil, Petrol
3) The lens operating Temperature range -40°to+120°C
4) Alternatively the following environment is recommended: Storage temperature: -40°C to +70°C, Humidity:30% to 95% HR mar.
5) The lens has concentrated function, and it’s made from transparent material, The functions will be affected once they were polluted, so please do not open the packages until you use them, in case of dust and other pollution.
6) Please handle or install lens with wearing gloves, skin oils may damage lens optical characteristic.
