Model: ALST50D24LEDT3M
Diameter: 50x50mm
Height: 3.79mm
Angle: T3M
Material: PC
Transmittance: >93%
LED Type: 3030LED

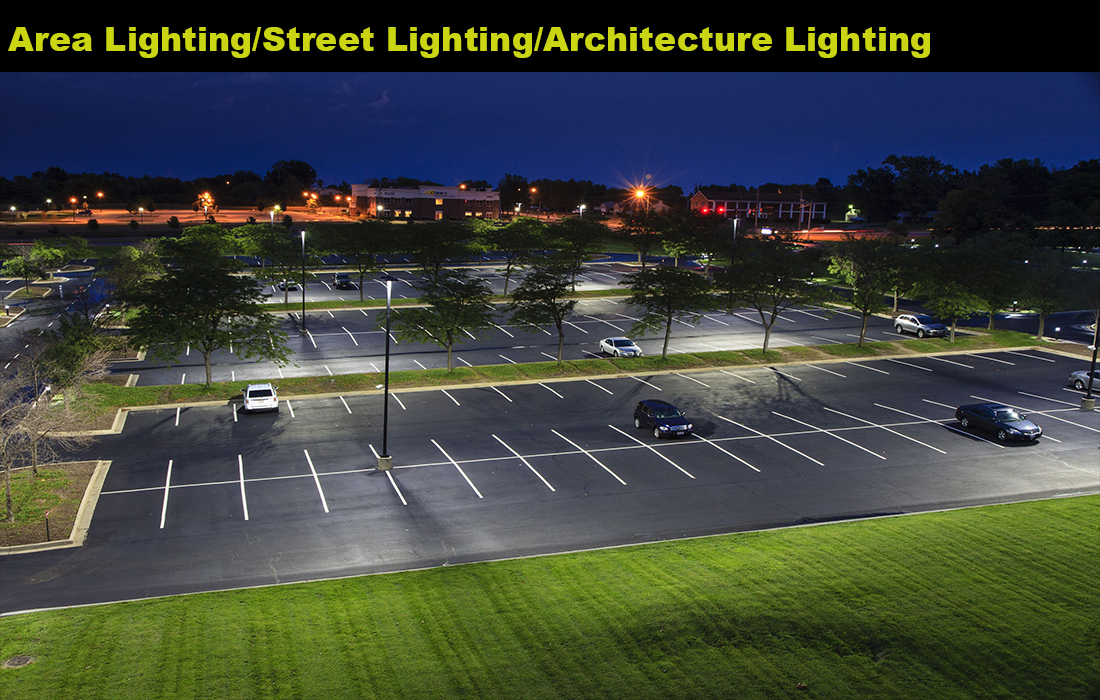

Lighting Applications:
1. ALHB50D24LEDT30/60/90/120 / T2S/T3M/T4VS were of the same series, They can be substituted for each other in arrangement.
2. This flexibility allows different lens models to be selected for different lighting needs without having to replace the entire lighting system. This makes lens selection and replacement more convenient and economical.
3. And T3M medium beam angle lenses typically have a wider angle and can provide a wider range of lighting.

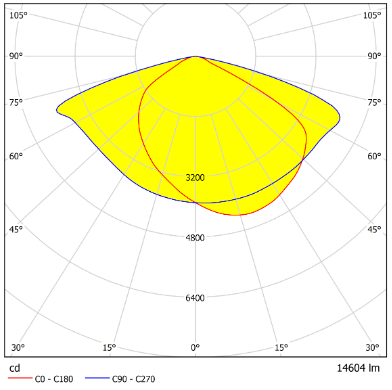

Distribution
Specifications
| Model: | ALST50D24LEDT3M |
| Diameter: | 50x50mm |
| Height: | 3.79mm |
| Angle: | T3M |
| Material： | PC |
| Transmittance： | >93% |
| LED Applications | 3030LED |
| Lighting applications | Street lighting |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
ASAHI OPTICS ALST50D24LEDT3M lens 3D Drawing.stp
ASAHI OPTICS ALST50D24LEDT3M Drawing.dwg
ASAHI OPTICS ALST50D24LEDT3M Drawing.pdf
ASAHI OPTICS ALST50D24LEDT3M lens IES
