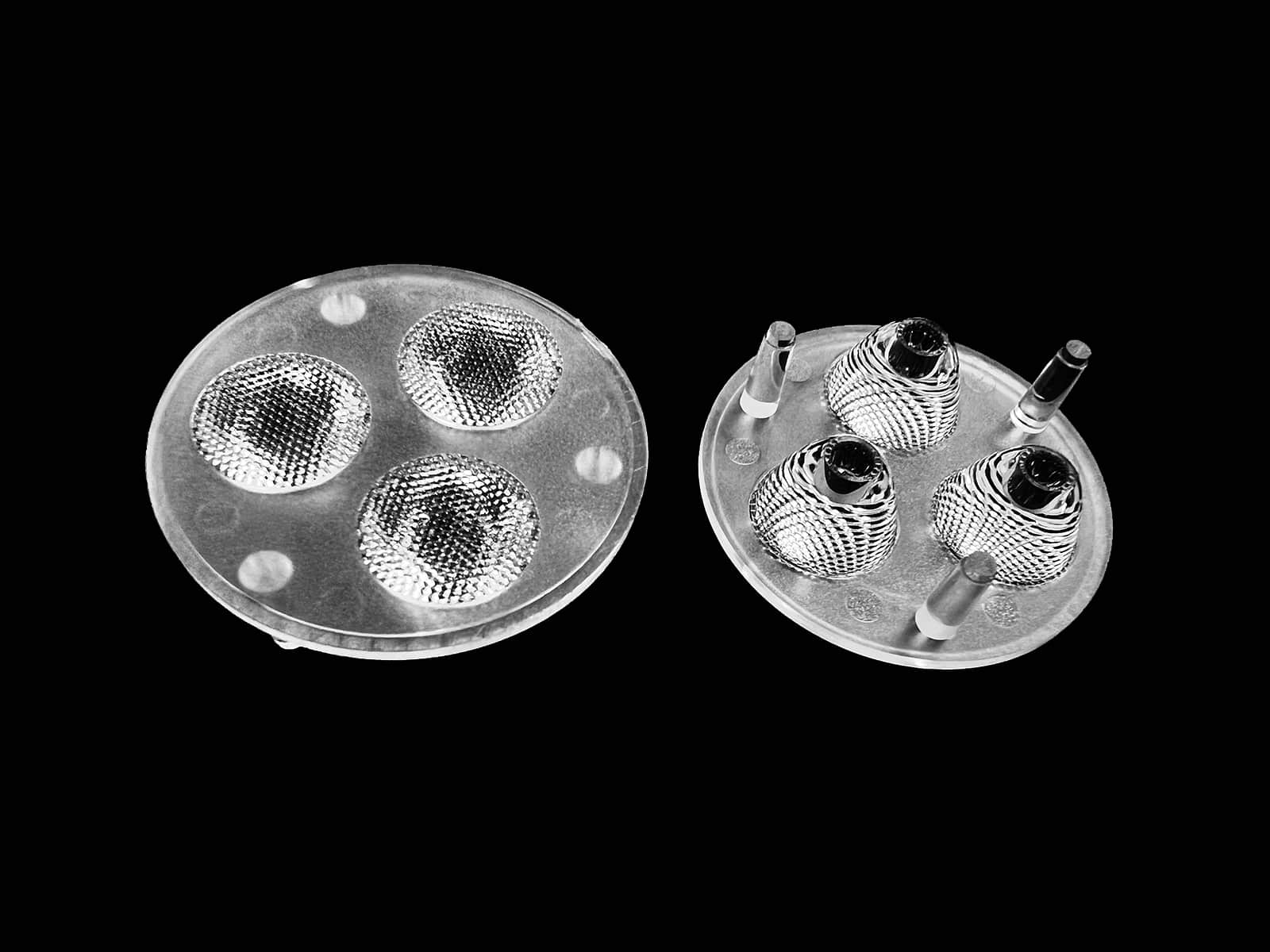

PAR lighting Track lighting 3 in 1 LED lens array

Model: ALUP50D11H3W

Size: Ø50mm

Height: 10.8mm

Angle: 10°, 15°, 20°,25°, 30°, 45°, 60°, 70°

Material: PMMA

Transmittance: >88%

LED Type: 2835/ 3535LED

Lighting Applications: Spotlight

1.3in1 arrays 50x10.8 diameter, suitable with projection LED lighting.

2.This series offers lenses with diameters spanning from 23 mm to 110 mm, available in configurations of 3 to 24 lens cones. Combined with a variety of beam modes, this creates a diverse and comprehensive product lineup to meet various needs

Distribution

---

Specifications

Model:	ALUP50D11H3W
Size:	Ø50mm
Height:	10.8mm
Angle:	10°, 15°, 25°, 30°, 45°, 60°, 70°
Material：	PMMA
Transmittance：	>88%
LED Applications	2835/ 3535LED
Lighting applications	PAR lights

LED Type

XPE

XPE2

XP-G2

XP-G3

OSLON SSL80

SQUARE

LUXEON HL4Z

NVSW219GL

PK2E-2LVE-B2R8N

PK2N-4LVE-SBVR8

Packaging

Material Information

Lens Material

L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature

PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability

PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec

PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate

400nm ~ 900nm>90%

If necessary, Clean lenses with mild soap, water and soft cloth.

Never use any commercial cleaning solvents on lenses, like alcohol.

Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.

3in1 arrays 50x10.8 diameter, suitable with projection LED lighting.

This series offers lenses with diameters spanning from 23 mm to 110 mm, available in configurations of 3 to 24 lens cones. Combined with a variety of beam modes, this creates a diverse and comprehensive product lineup to meet various needs

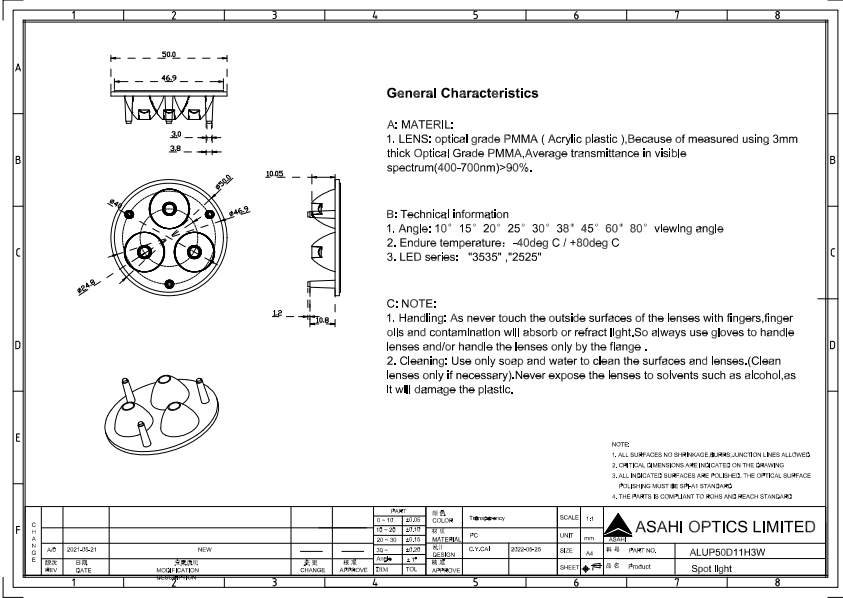

Asahi Optics ALUP50D11H3W 2D drawing.dwg

Asahi Optics ALUP50D11H3W 2D drawing.pdf

Asahi Optics ALUP50D11H3W Datasheet.pdf
