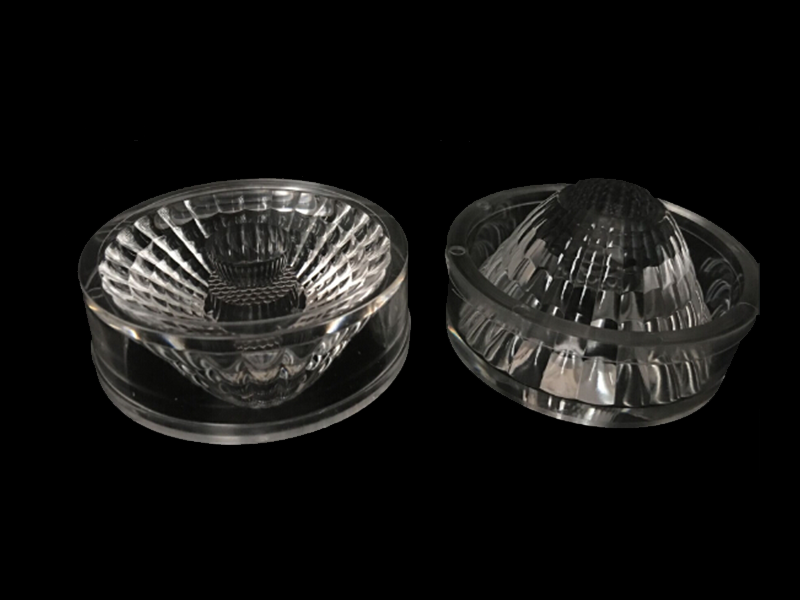

62mm PMMA Lens For COB Down Lights

Model: AHCOB6233D

Diameter: 62.14mm

Height: 33.46mm

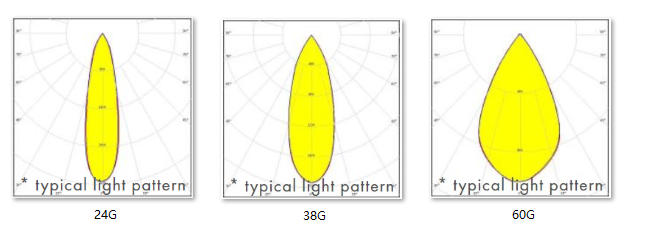

Angle: 24°; 38° ;60°

Material: PMMA

Transmittance: 90%

LED Type: COB LED

Lighting Applications: PAR lighting,Spot Light,Down Light

1, 62mm PMMA Lens For COB Down Lights. COB lenses are used to precisely control the light emitted by the COB LED.

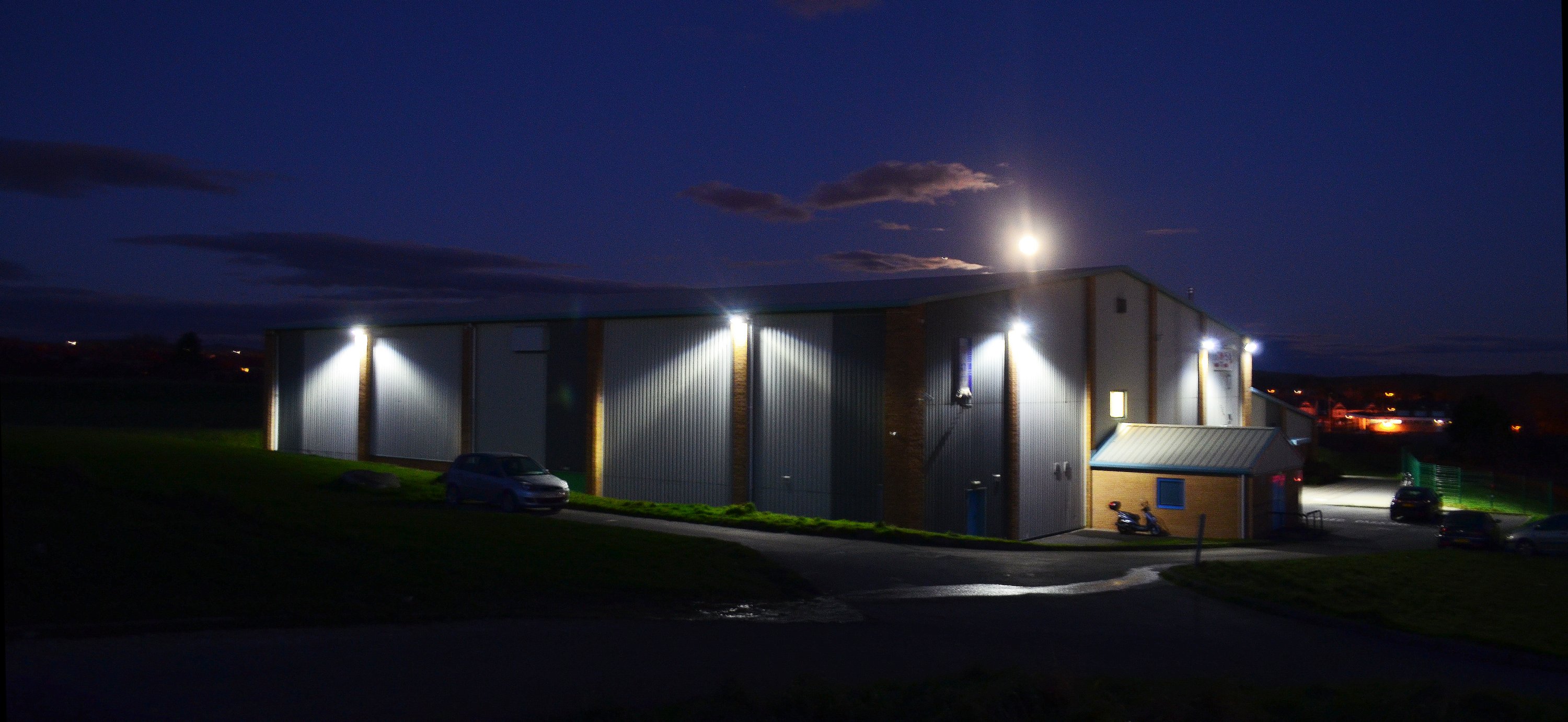

2, COB lenses are incorporated into various indoor and outdoor lighting fixtures, including downlights, spotlights, floodlights, and wall washers. These lenses help shape the light emitted by the COB LEDs, ensuring efficient light distribution and achieving desired lighting effects for different applications.

3, COB lenses are widely used in indoor lighting applications such as downlights, track lights, recessed lights, and pendant lights. The lenses help control the beam angle and light distribution, ensuring efficient and uniform illumination in residential, commercial, and hospitality spaces.

Specifications

Model:	AHCOB6233D
Diameter:	62.14mm
Height:	33.46mm
Angle:	24°,38°,60°
Material：	PMMA
Transmittance：	>93%
LED Applications	COB LED
Lighting applications	PAR lighting,Spot Light,Down Light

Specification Download

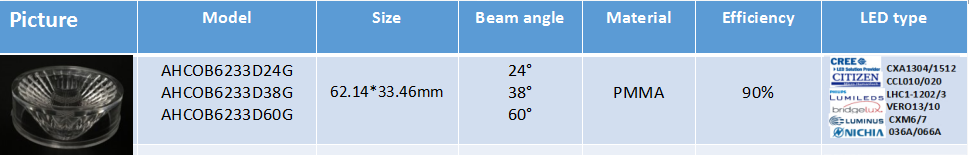

2016091914400138138

LED LENS Maintenance Instruction

1) If necessary, clean lenses with mild soap, water, and softening cloth.
2) Never use any industrial solvent to clean lens, such as cleaning Solvent, Alcohol Sulfuric acid, Ammonia, Urea, Mineral oil, Petrol
3) The lens operating Temperature range -40°to+120°C
4) Alternatively the following environment is recommended: Storage temperature: -40°C to +70°C, Humidity:30% to 95% HR mar.
5) The lens has concentrated function, and it’s made from transparent material, The functions will be affected once they were polluted, so please do not open the packages until you use them, in case of dust and other pollution.
6) Please handle or install lens with wearing gloves, skin oils may damage lens optical characteristic.
