Model: ALS21D30G

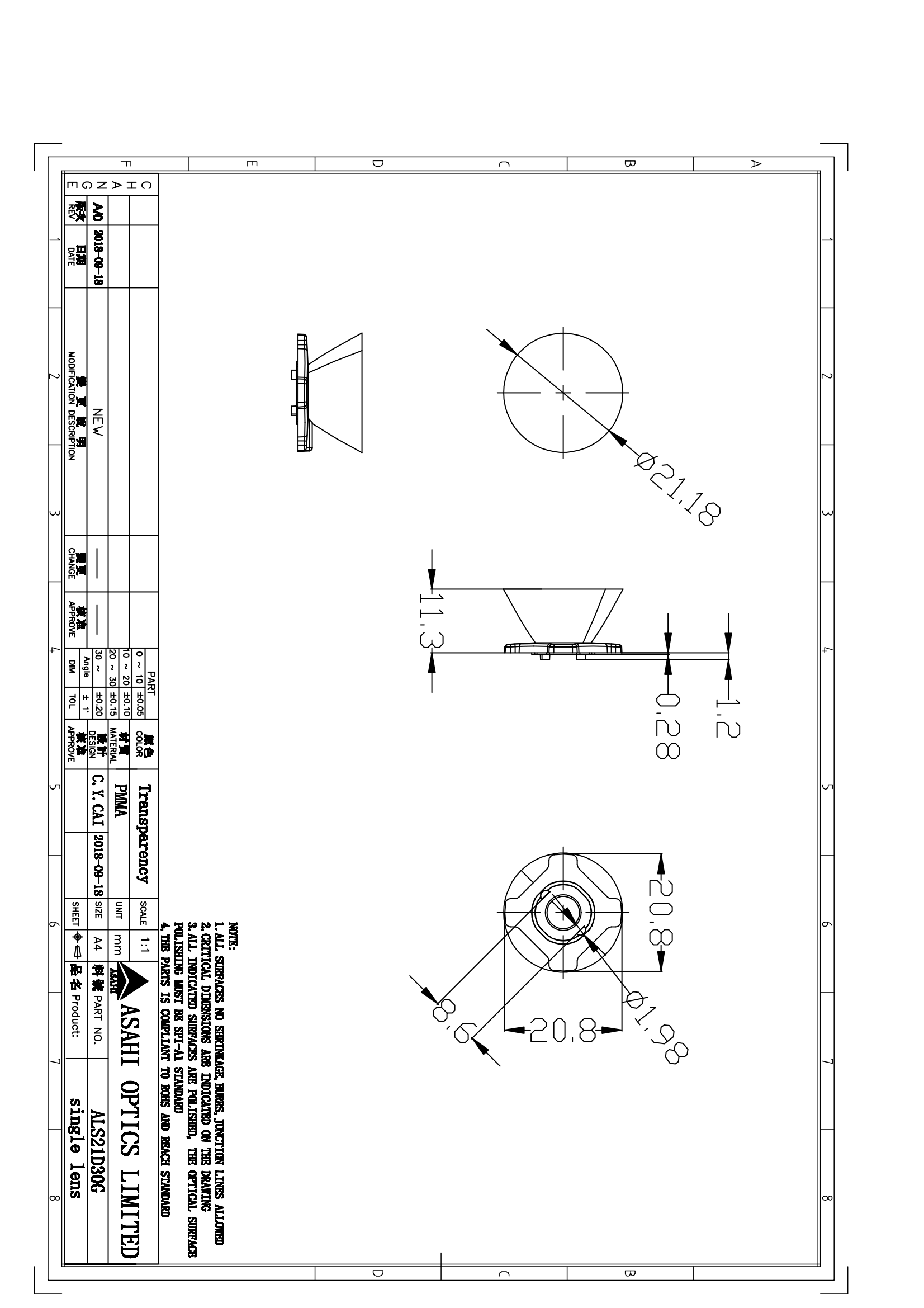

Diameter: 21.58mm
Height: 11.4mm
Angle: 30°
Material: PMMA
Transmittance: >93%
LED Type: 3535LED
Lighting Applications: Wall wash Light
1. Asahi ALS21D30G single lens, optimized for 3535LED, uses high-quality PMMA optical material to ensure excellent transmittance of over 93% and outstanding durability.

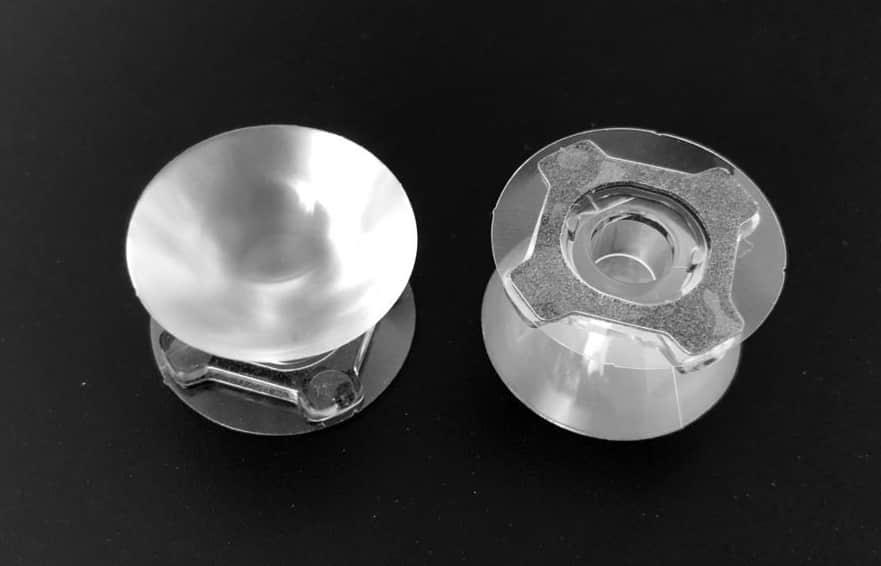

2. This lens has a precise 30 ° beam angle, combined with convenient 3M tape installation, making it an ideal choice for achieving efficient and uniform wall cleaning lighting effects.

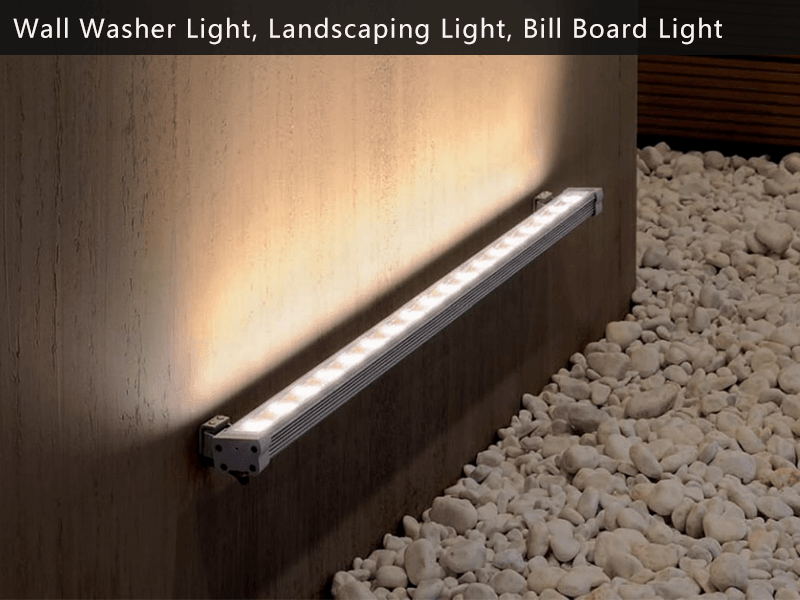

3. Its excellent optical properties and stability of PMMA material enable it to provide long-lasting and high-quality light distribution in various indoor and outdoor wall wash lamp applications.

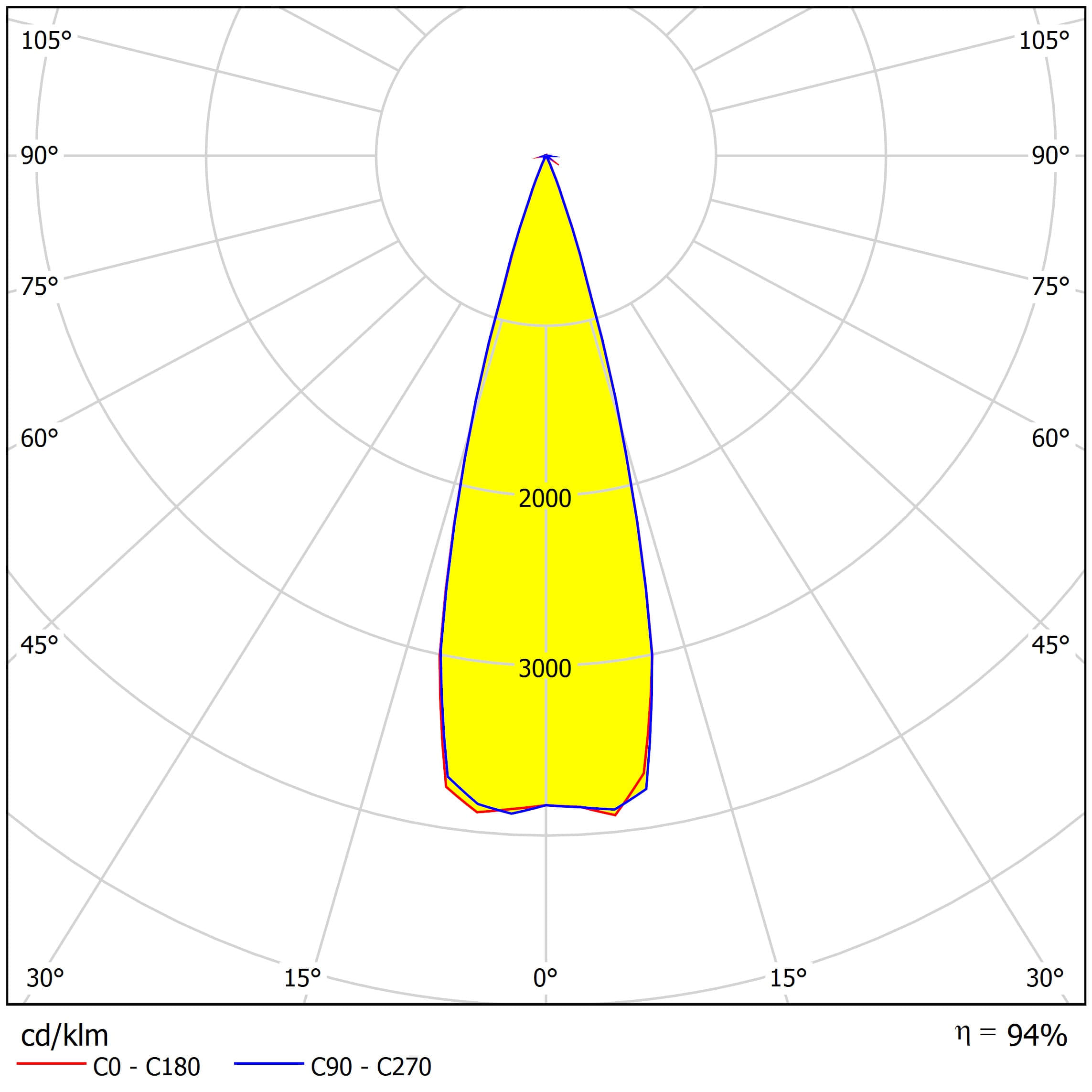

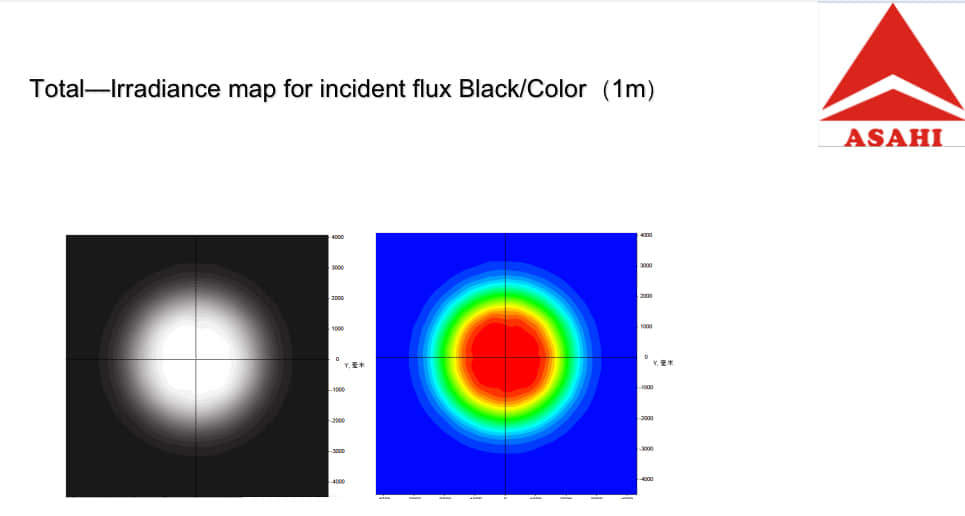

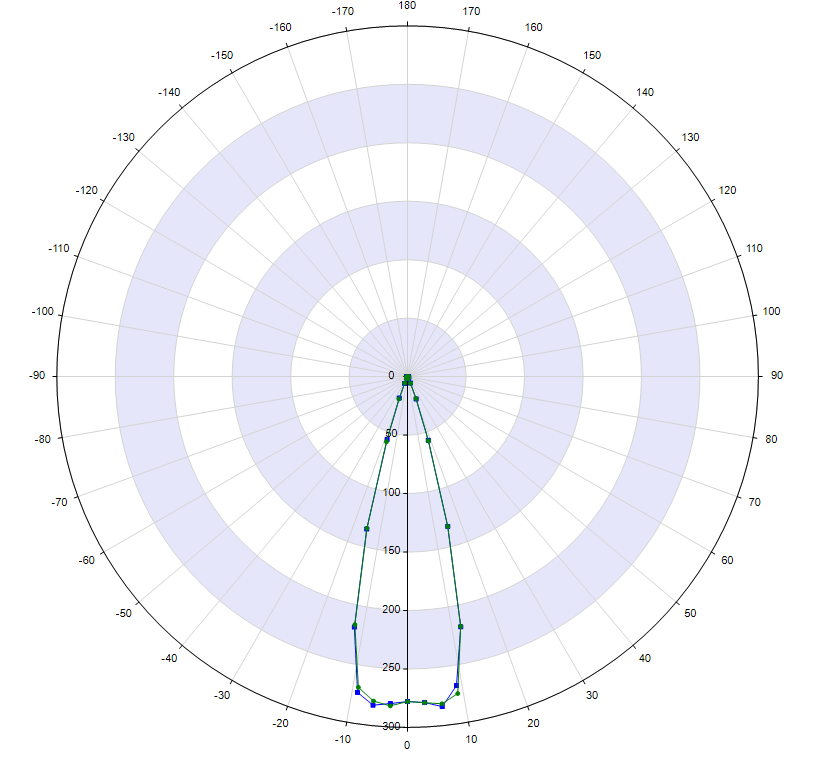

Distribution
Specifications
| Model: | ALS21D30G |
| Diameter: | 21.58mm |
| Height: | 11.4mm |
| Angle: | 30 ° |
| Material： | PMMA |
| Transmittance： | >90% |
| LED Applications | 3535LED |
| Lighting applications | Wall wash light |
LED Type
XPE
XPE2
XP-G2
XP-G3
OSLON SSL80
SQUARE
LUXEON HL4Z
NVSW219GL
PK2E-2LVE-B2R8N
PK2N-4LVE-SBVR8
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
