Model: ACN272DWM-ROUND
Diameter: 272mm
Height: 30.17mm
Angle: DLC-F
Material: PC
Transmittance: >88%
LED Type: 3030LED
Lighting Applications: Canopy light, parking lot light

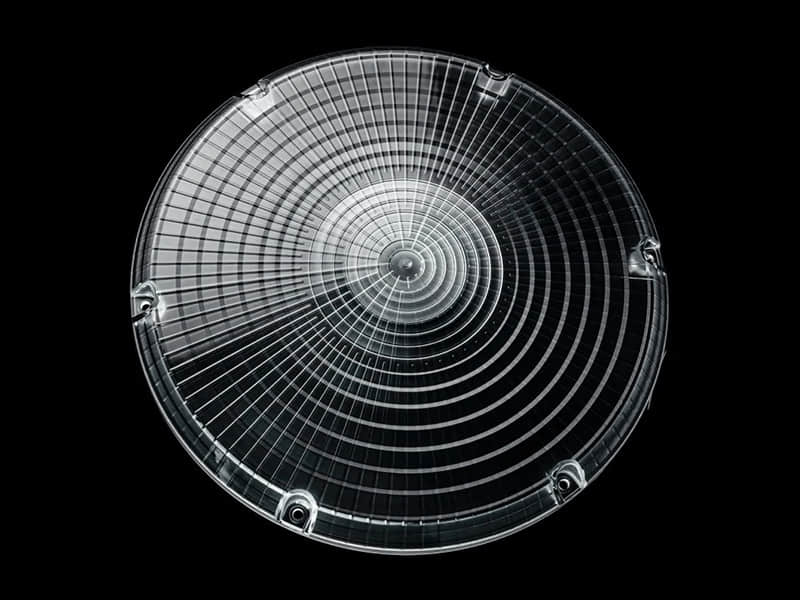

1.The Canopy lights we offer in a round design.
2.High brightness: usually uses high-brightness LED light sources to provide bright and uniform lighting effects to ensure good visibility.
3.Durability: waterproof, dustproof, and anti-corrosion, can adapt to harsh outdoor environments, and has a long service life.

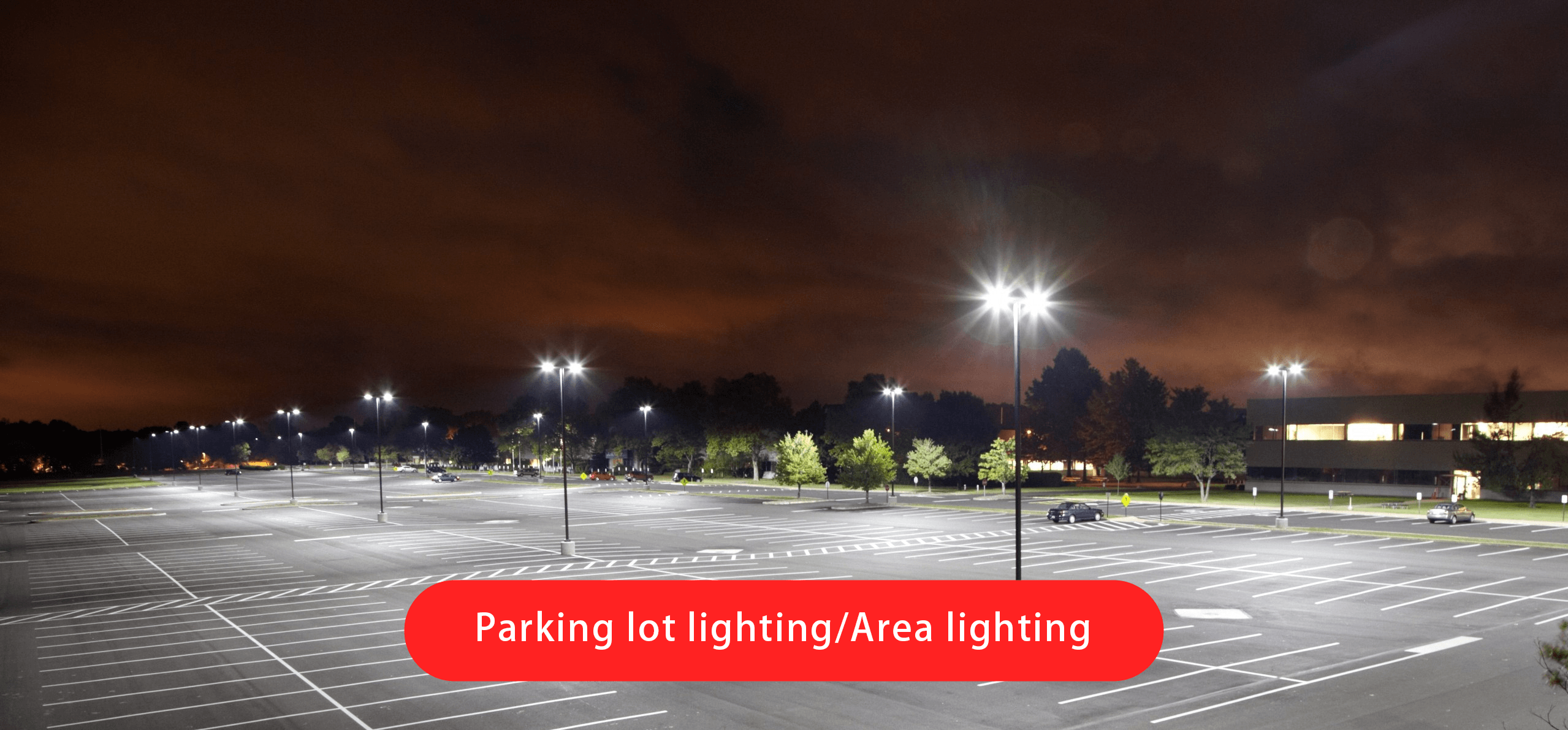

4.Application：Widely use in Parking lot lighting/gas station lighting/commercial building lighting/other outdoor place lighting.

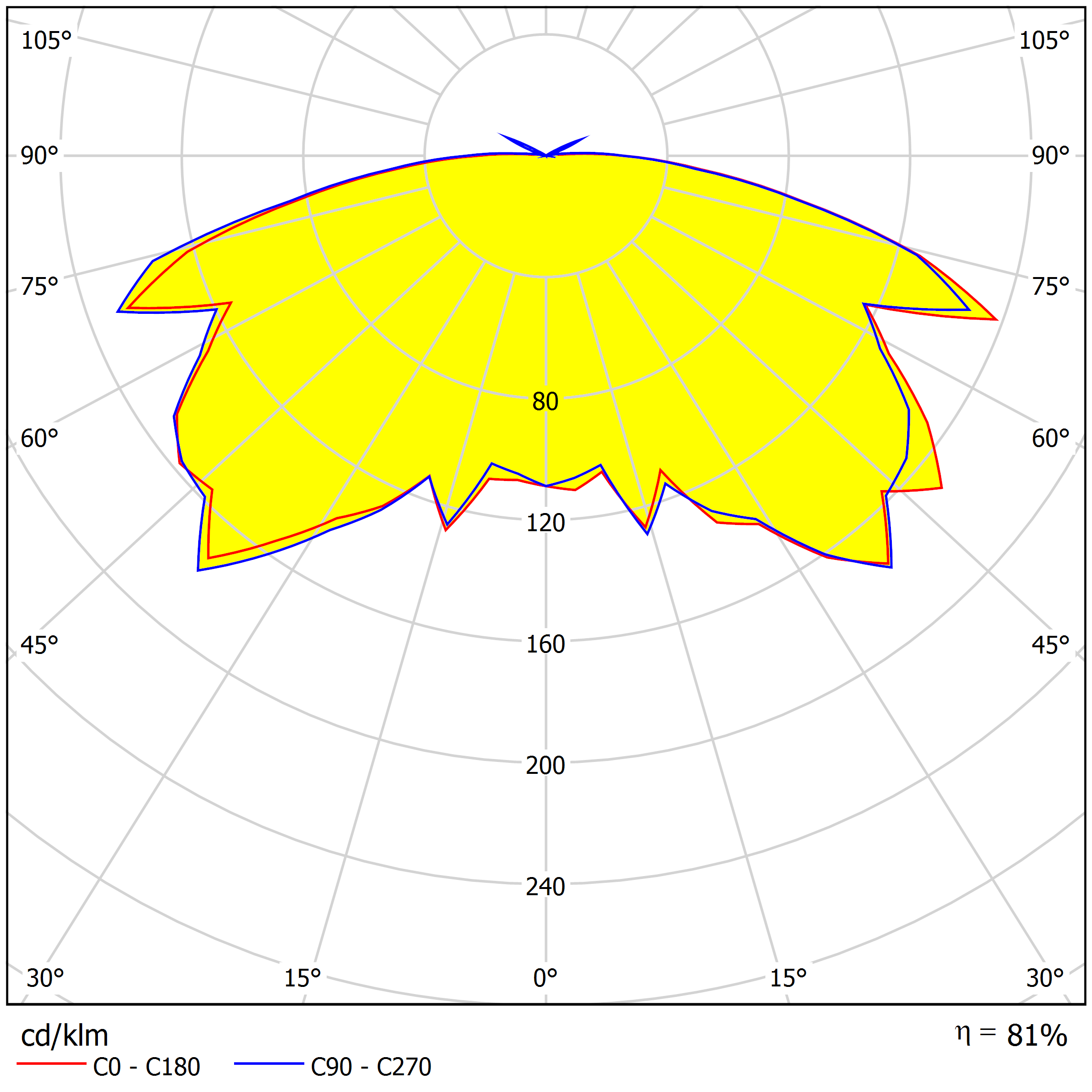

Distribution
Specifications
| Model: | ACN272DWM-ROUND |
| Diameter: | 272mm |
| Height: | 30.17mm |
| Angle: | DLC-F |
| Material： | PC |
| Transmittance： | >88% |
| LED Applications | 3030LED |
| Lighting applications | Canopy light, parking lot light |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
1.The Canopy lights we offer in a round design.
2.High brightness: usually uses high-brightness LED light sources to provide bright and uniform lighting effects to ensure good visibility.
3.Durability: waterproof, dustproof, and anti-corrosion, can adapt to harsh outdoor environments, and has a long service life.
4.Application：Widely use in Parking lot lighting/gas station lighting/commercial building lighting/other outdoor place lighting.
