Model: AJS45DRGBW25G

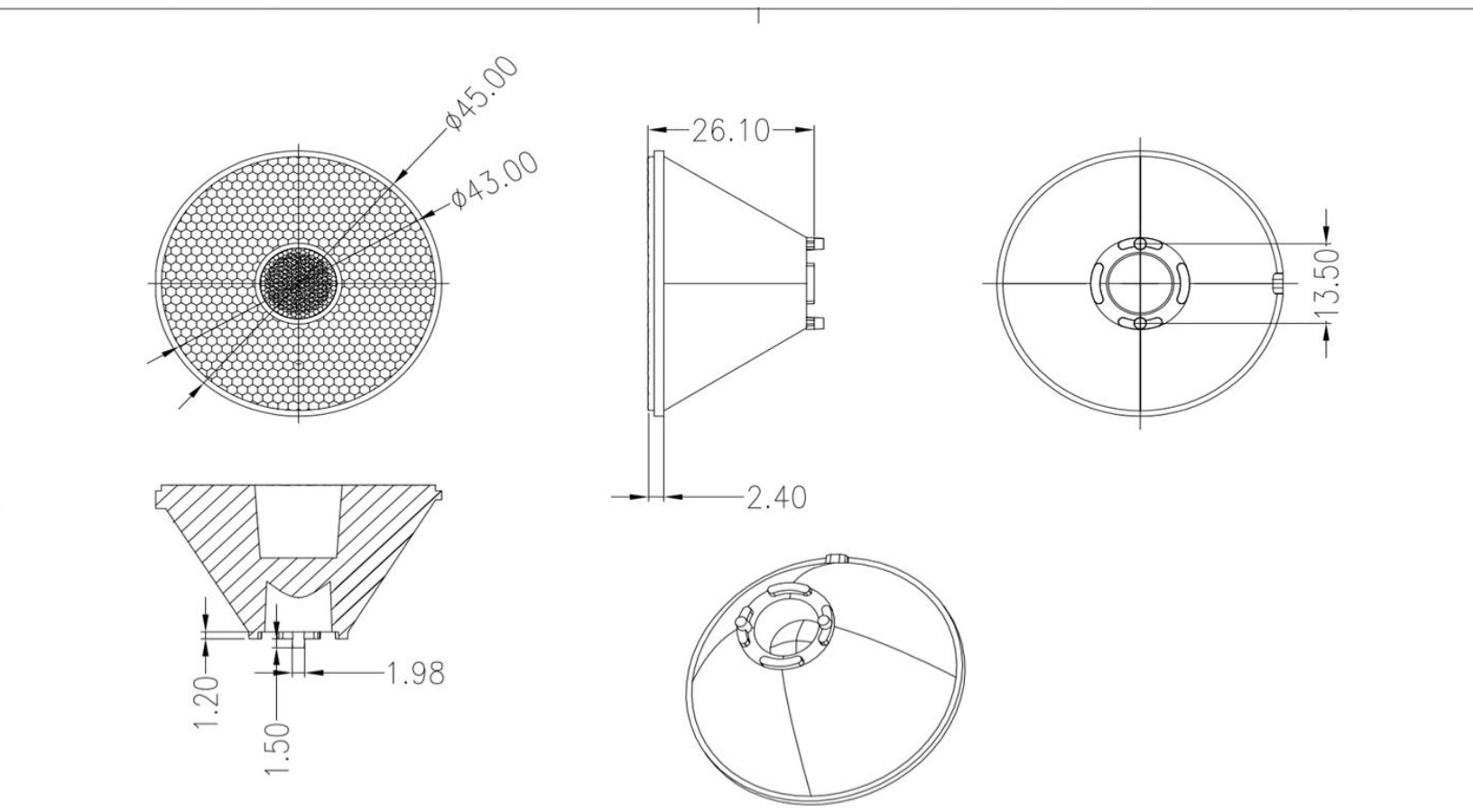

Size: Ø45mm
Height: 26.1mm
Angle: 25°
Material: PMMA
Transmittance: >93%
LED Type: CREE XML-RGBW,OSRAM-RGBW
Lighting Applications: stage light
1. The 45mm RGBW LED stage light lens with a 25° beam angle is designed for colorful decorative lighting purposes.
2. A stage light with a color mixing lens and RGBW LED technology offers versatility and flexibility in creating captivating visual displays for a variety of stage productions.

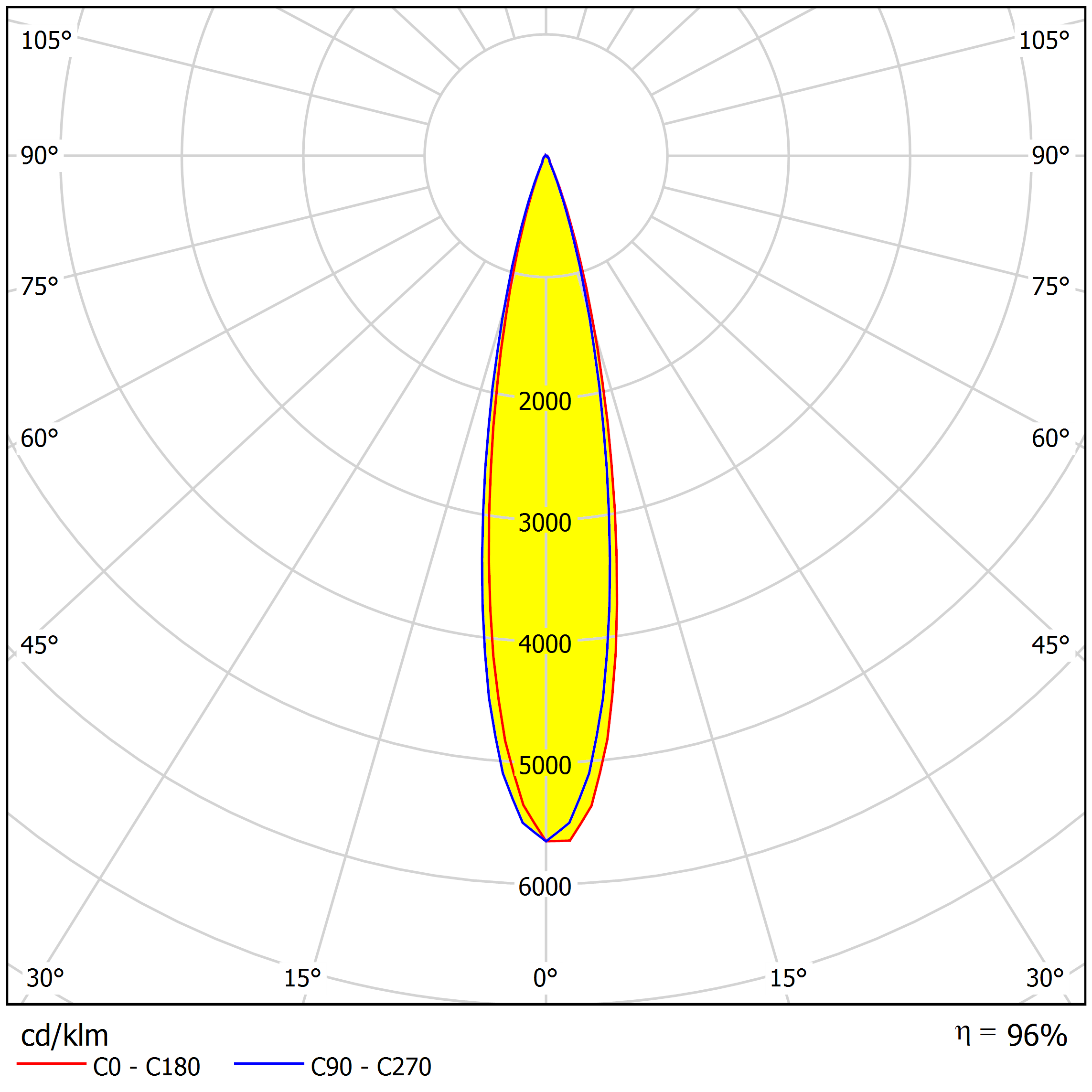

Distribution
Specifications
| Model: | AJS45DRGBW25G |
| Size: | Ø45mm |
| Height: | 26.1mm |
| Angle: | 25° |
| Material： | PMMA |
| Transmittance： | >93% |
| LED Applications | CREE XML-RGBW,OSRAM-RGBW |
| Lighting applications | stage light |
LED Type
XPE/XPG2
CLQ6
XML
S5/2835/3030
SSL 80/120/150
P3737
5050
C/CZ/4in1
RUBIX
SPB05F0D
SPFOAFOA
SZ5-M4
15W/40W/60W
PBLA
PBLD
PBEE
PBEB
PBEF
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
