Model: AR7541T

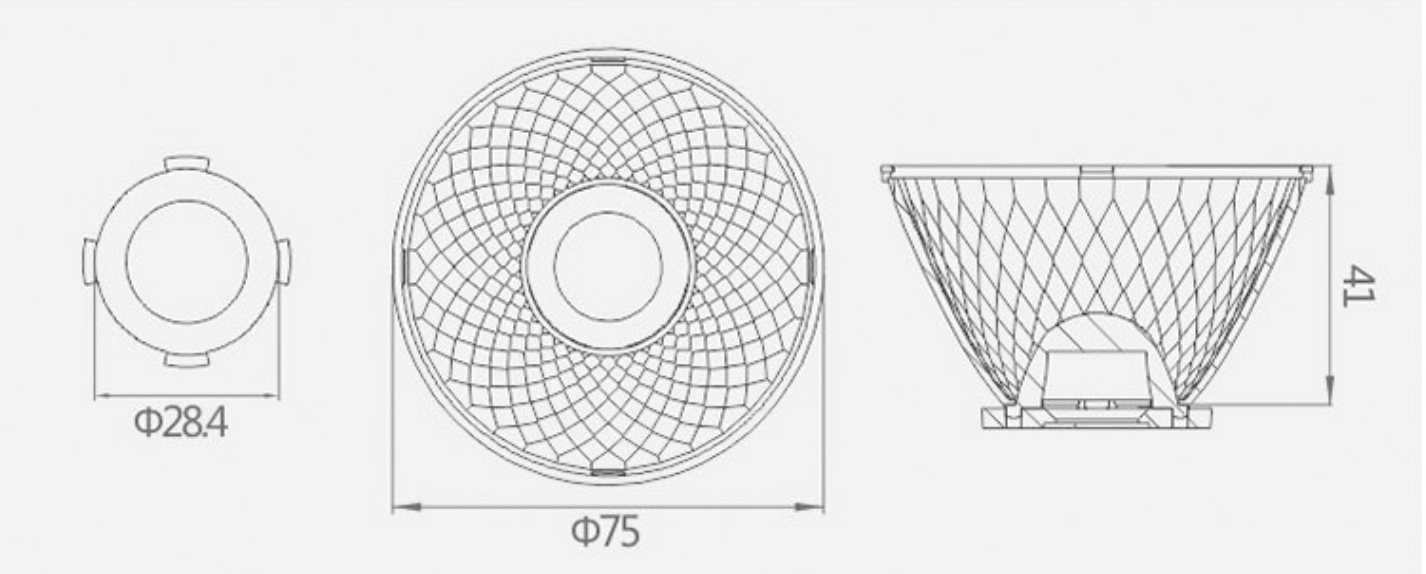

Diameter: 75mm, 28.4mm
Height: 41mm

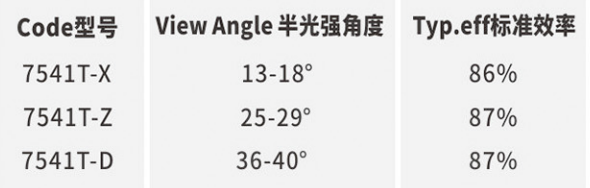

Angle: 15°, 25°, 38°
Material: PC + Aluminum Coating
Transmittance: 88%
LED Type: COB LED

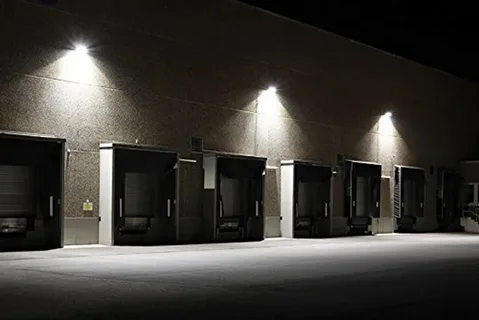

Lighting Applications: PAR lighting,Spot Light,Down Light

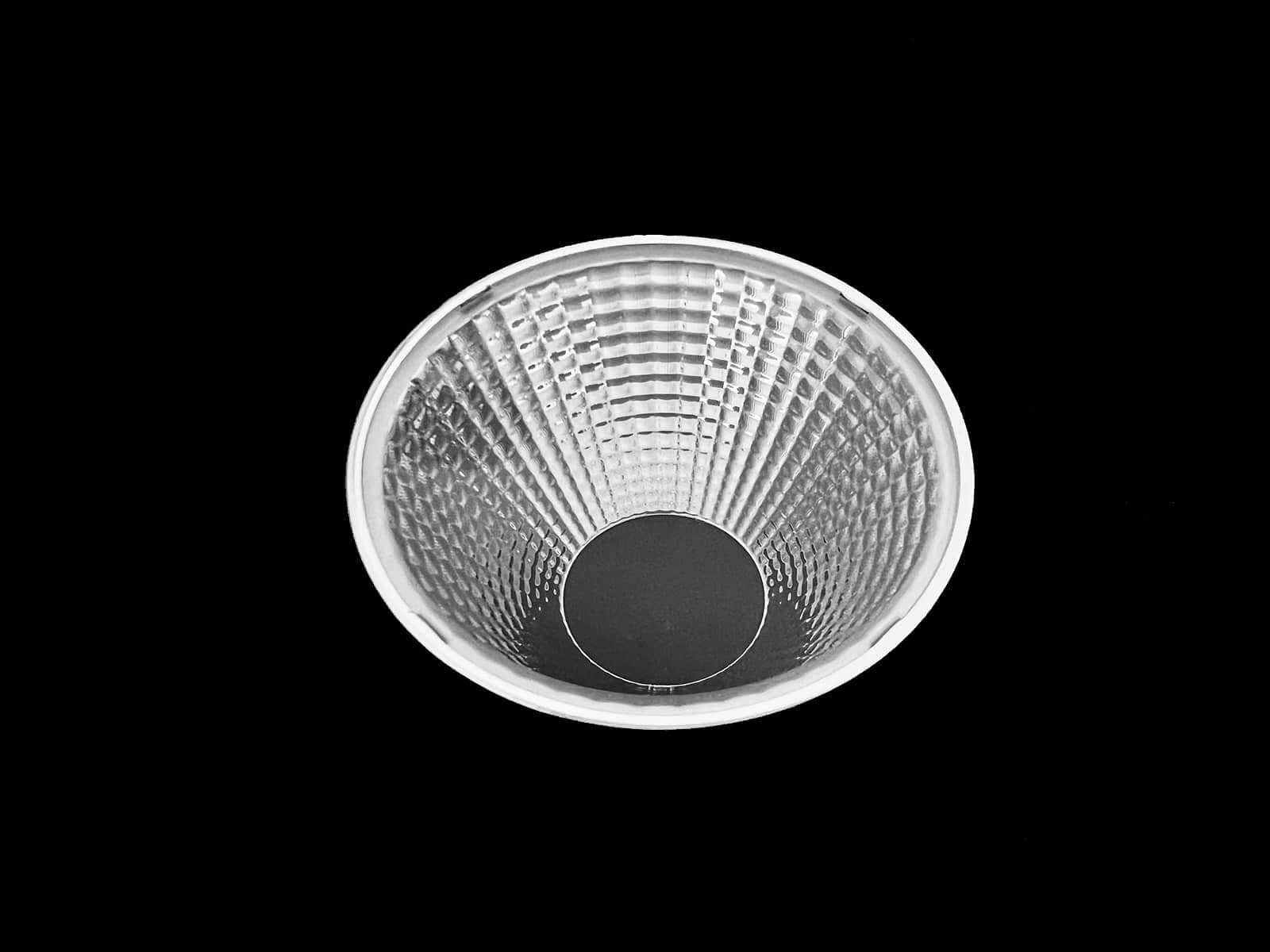

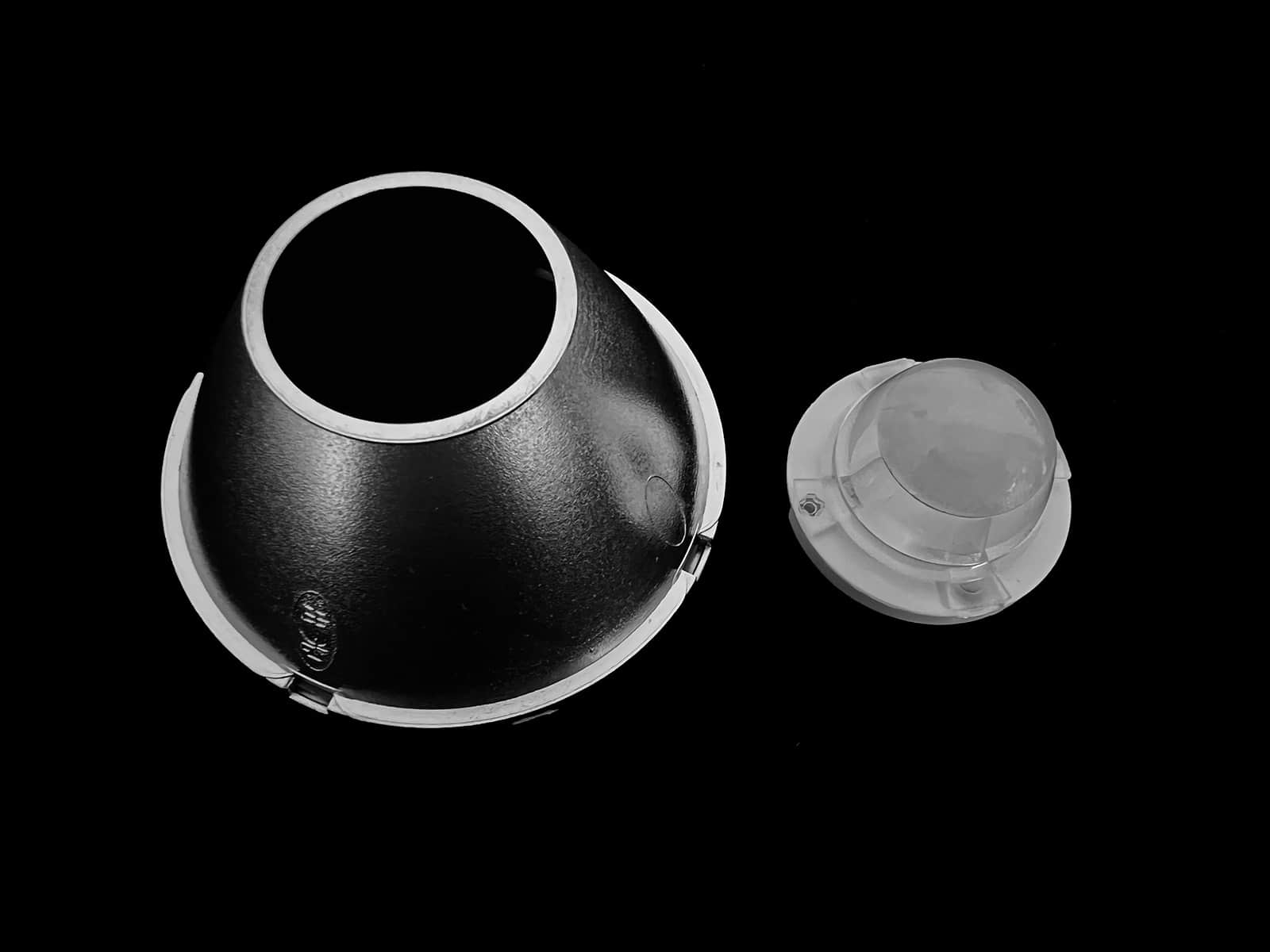

1, 75mm High Transmittance COB LED Reflector With Holder, The main purpose of a COB LED reflector is to enhance the efficiency and directionality of the light output.
2, The versatility, energy efficiency, and compact design of COB LEDs make them suitable for various lighting requirements across different industries and settings.

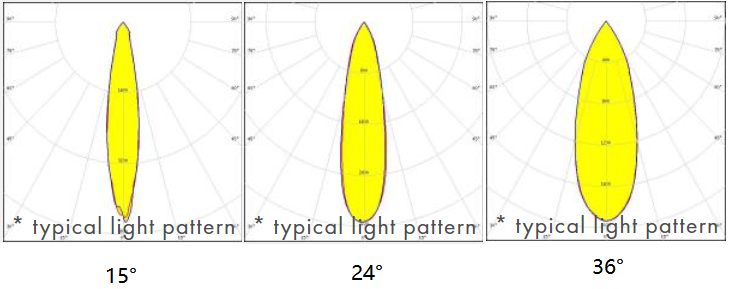

Distribution
Specifications
| Model: | AR7541T |
| Diameter: | 75mm, 28.4mm |
| Height: | 41mm |
| Angle: | 15°, 24°, 38° |
| Material： | PC + Aluminum Coating |
| Transmittance： | >88% |
| LED Applications | COB LED |
| Lighting applications | PAR lighting, Spot Light, Down Light |

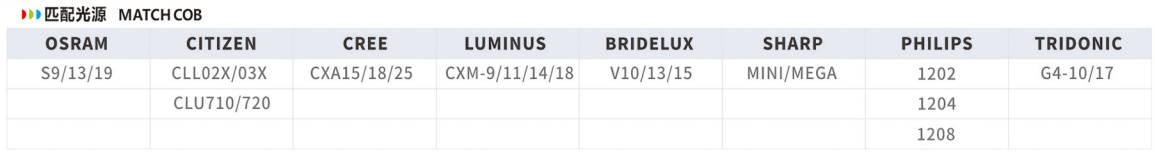

LED Type
CXA1304/1512
CCL010/020
LHC1-1202/3
036A
066A
CXM6/7
VERO13/10
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
