  3. ASL280D40HXXLED90G
Linear Lighting Optical Design With Round Beam Angle
Linear Lighting Optical Design With Round Beam Angle
280mm linear lens
202208_f2ddbbc0 0b94 4626 92e5 5c57c5433ee0.pdf

Linear Lighting Optical Design With Round Beam Angle

Model: ASL280D40HXXLED90G

Diameter: 280mm

Height: 40mm

Angle: 90°

Material: PC-1250Z TEIJIN

Transmittance: >90%

LED Type: 2835/ 3030/ 5630LED

Lighting Applications: Linear Lighting

1. It's compatible with Zhaga standard PCB.
2. PMMA material with 93% lighting efficiency.
3. Excellent lighting performance for indoor lighting.
4. Lower UGR to protect human eyes.
5.Indoor linear lighting lenses find extensive application in architectural lighting, where they can be used to illuminate hallways, corridors, and other linear spaces. The lenses help create a uniform and visually appealing lighting effect, enhancing the architectural features of the space.

Distribution

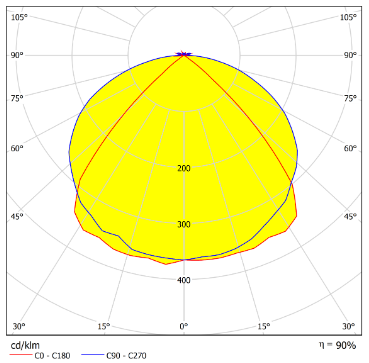

Linear Lighting Optical Design With Round Beam Angle 90° Distribution

Specifications

Model: ASL280D40HXXLED90G
Diameter: 280mm
Height: 40mm
Angle: 90°
Material： PMMA
Transmittance： 93%
LED Applications 2835/ 3030/ 5630LED
Lighting applications Linear Lighting

LED Type

OSRAM OSCONIQ® P 3030 osram

OSRAM OSCONIQ® P

Lumileds LUXEON 3030 HE lumileds

LUXEON 3030 HE

Nichia NFSW 3030 series nichia

NFSW 3030 series

EVERLIGHT XI3030 C0150 everlight_logo

XI3030 series

HONGLIZHIHUI EMC 3030 series honglizhihui

EMC 3030 series

Packaging

---

Material Information

pmma temperature
pc temperature
pmma rti
pc rti
glove 1
no chemical

  • Lens Material

    L06: PMMA 8N/ L46: PC 1250Z

  • Operating Temperature

    PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C

  • UL Flammability

    PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm

  • UL RTI Elec

    PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]

  • Light Transmission Rate

    400nm ~ 900nm>90%

If necessary, Clean lenses with mild soap, water and soft cloth.

Never use any commercial cleaning solvents on lenses, like alcohol.

Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.





This linear lens adopts a snap-on type, which makes the assembly of the luminaire more simple and elegant.

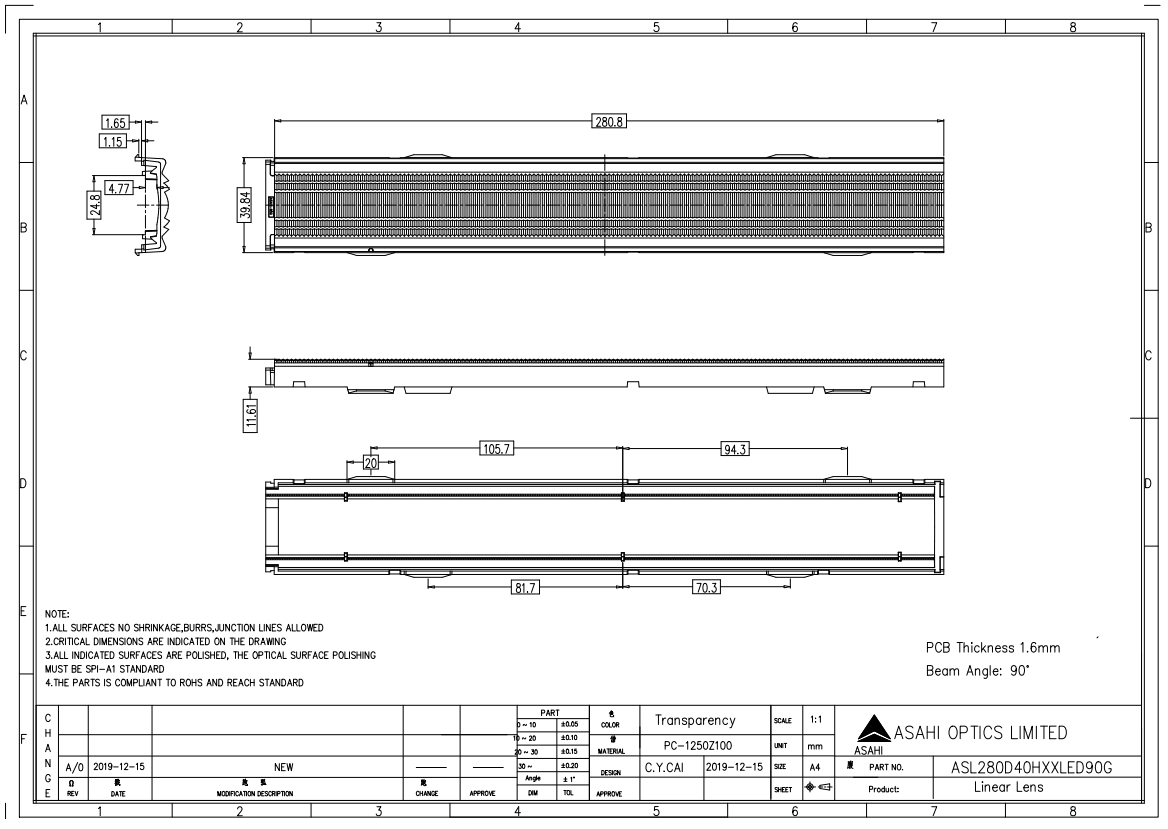

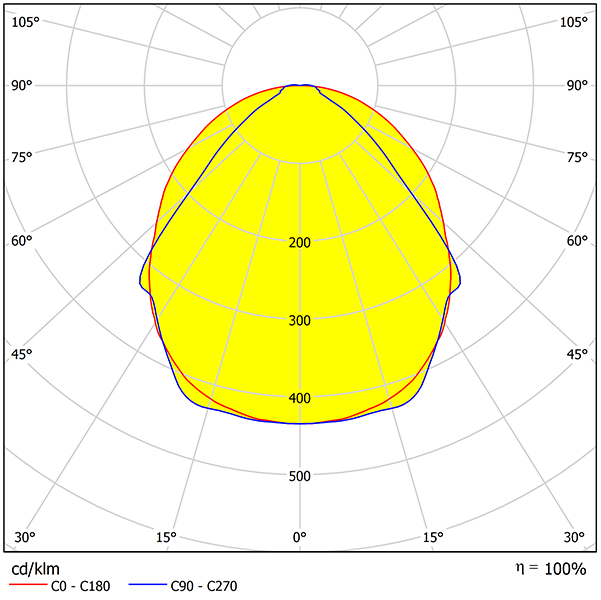

Linear Lighting Optical Design With Round Beam Angle 90° DistributionLinear Lighting Optical Design With Round Beam Angle DrawingLinear Lighting Optical Design With Round Beam Angle Application
