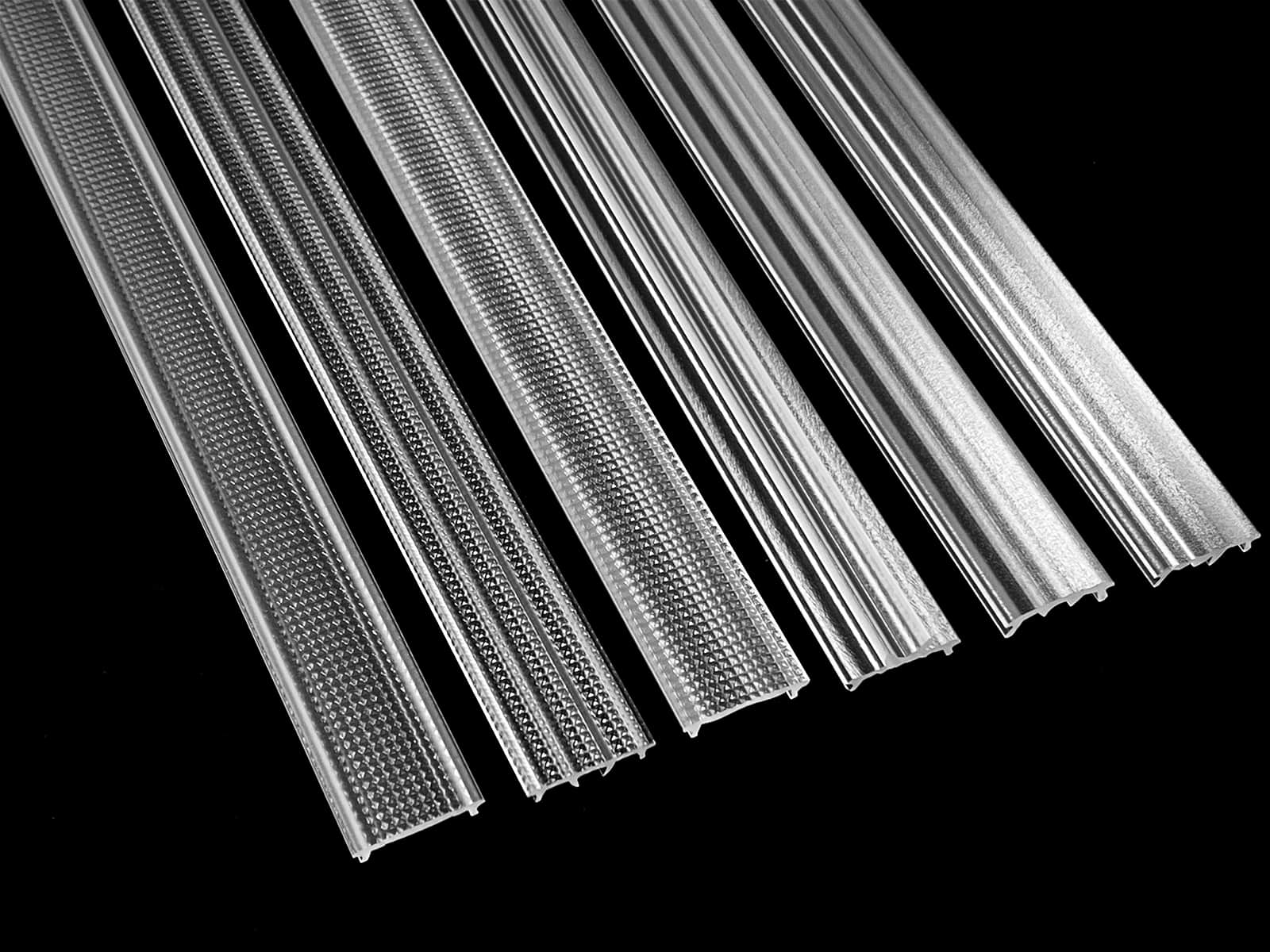

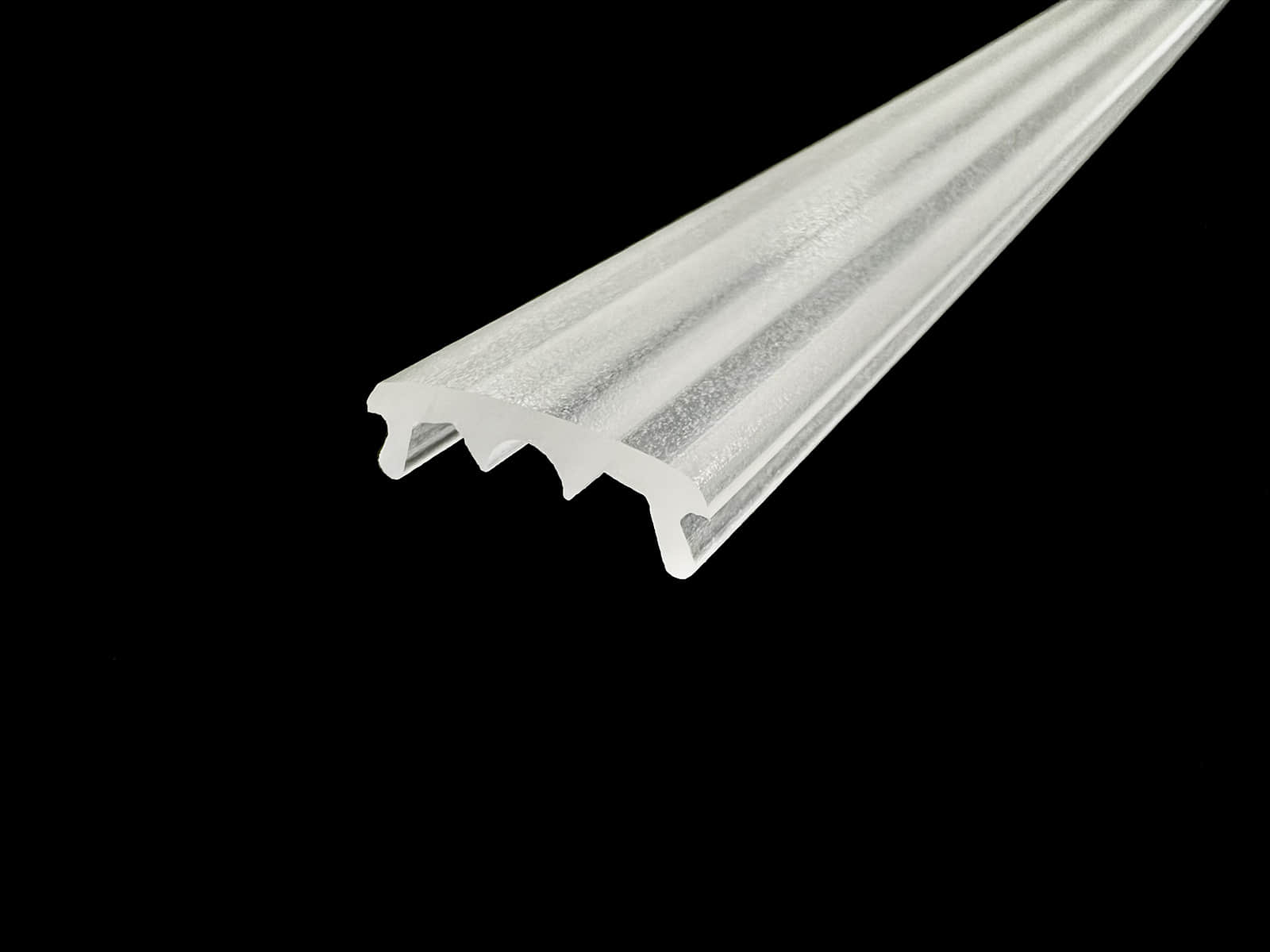

Model: ASEL26D
Size: 26mm Width
Height: -

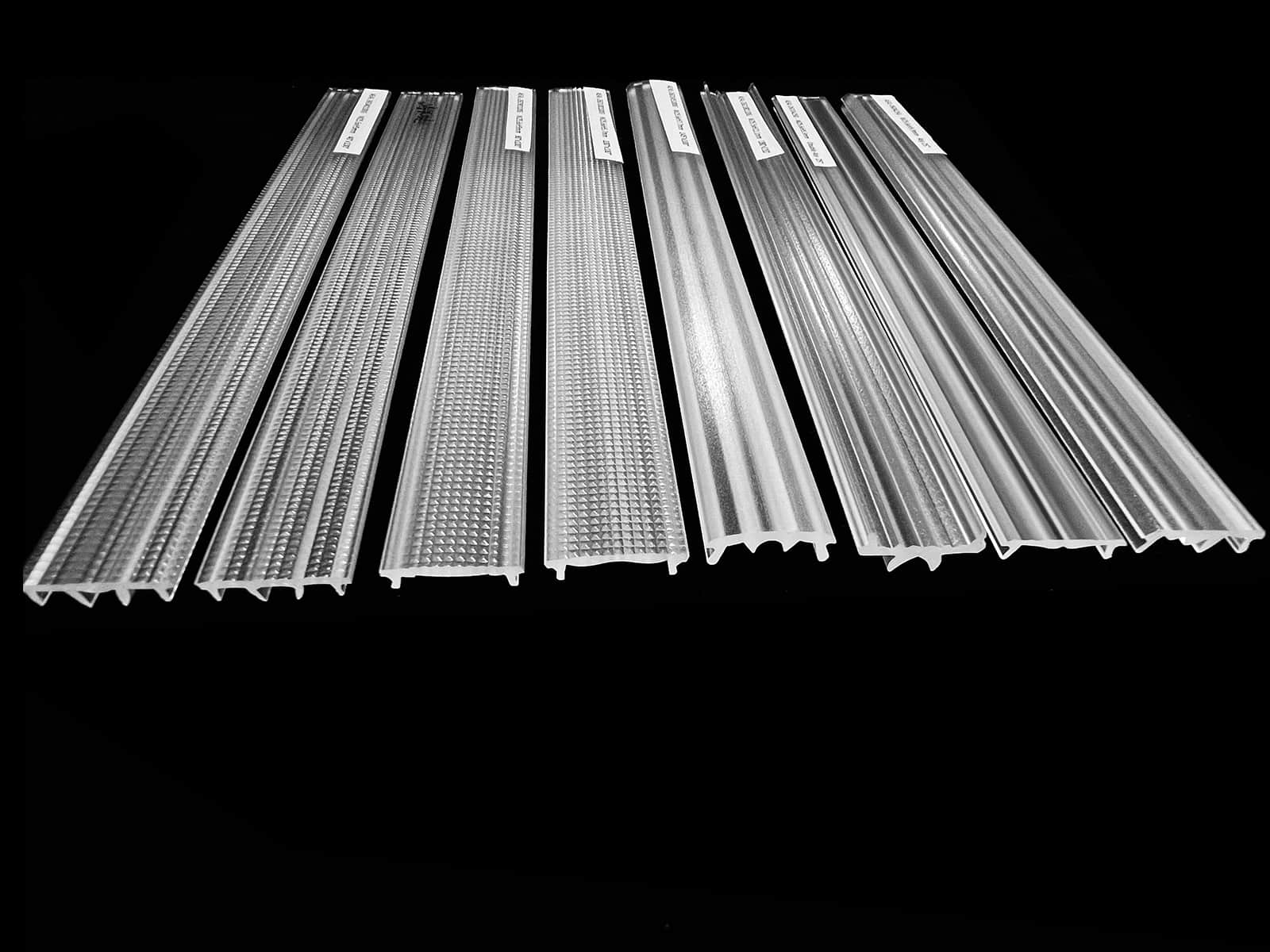

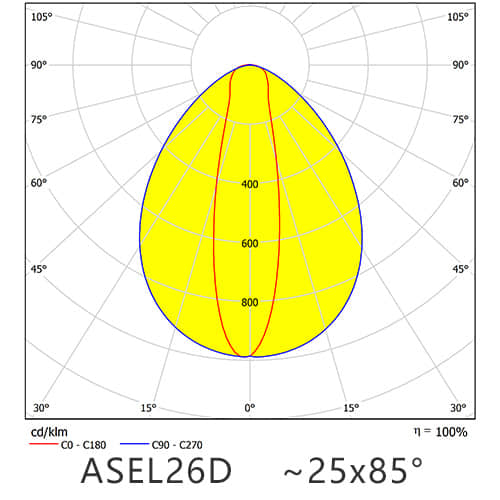

Angle: ~25x85°,~40x100°,~70x90°,~90x100°,~100x100°,~145x100°,~180x110°,A25°,DA25°
Material: PMMA
Transmittance: >90%
LED Type: 2835/3030/3535LED
Lighting Applications: Linear Lighting, Office lighting
1. Guaranteed compatibility with the widely-adopted Zhaga standard (up to 22mm single-row PCBs), cutting down your development time.
2. Crafted from high-quality PMMA for outstanding clarity and robust, long-lasting performance.
3. Efficiency: over 90% light efficiency to achieve brighter output and lower energy consumption.
4. is available in 26mm widths to provide design flexibility for various applications.

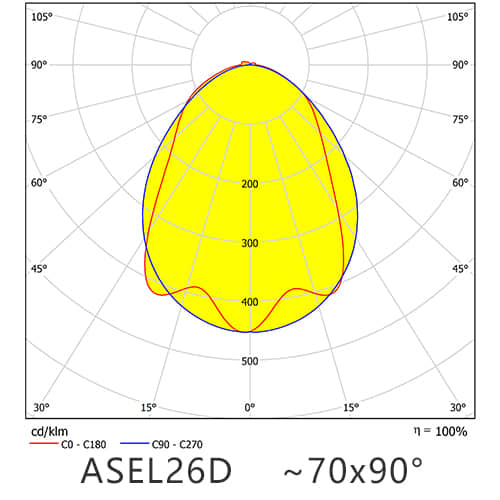

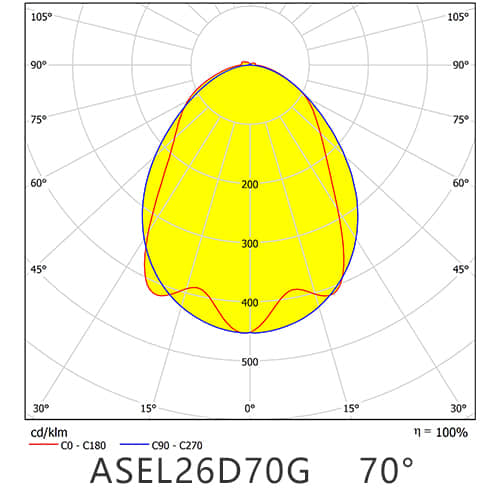

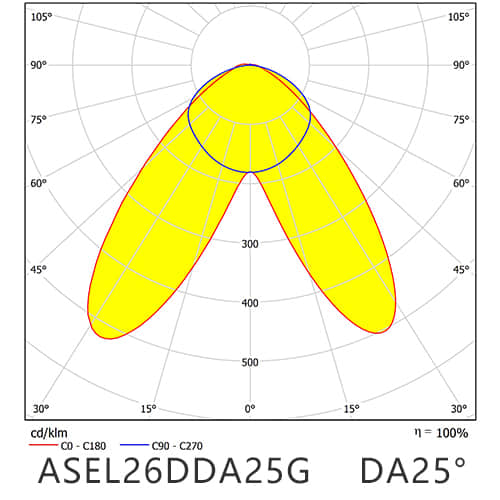

Distribution
Specifications
| Model: | ASEL26D |
| Size: | 26mm Width |
| Height: | - |
| Angle: | ~25x85°,~40x100°,~70x90°,~90x100°,~100x100°,~145x100°,~180x110°,A25°,DA25° |
| Material： | PMMA |
| Transmittance： | 90% |
| LED Applications | 2835/3030/3535LED |
| Lighting applications | Linear Lighting, Office lighting |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.

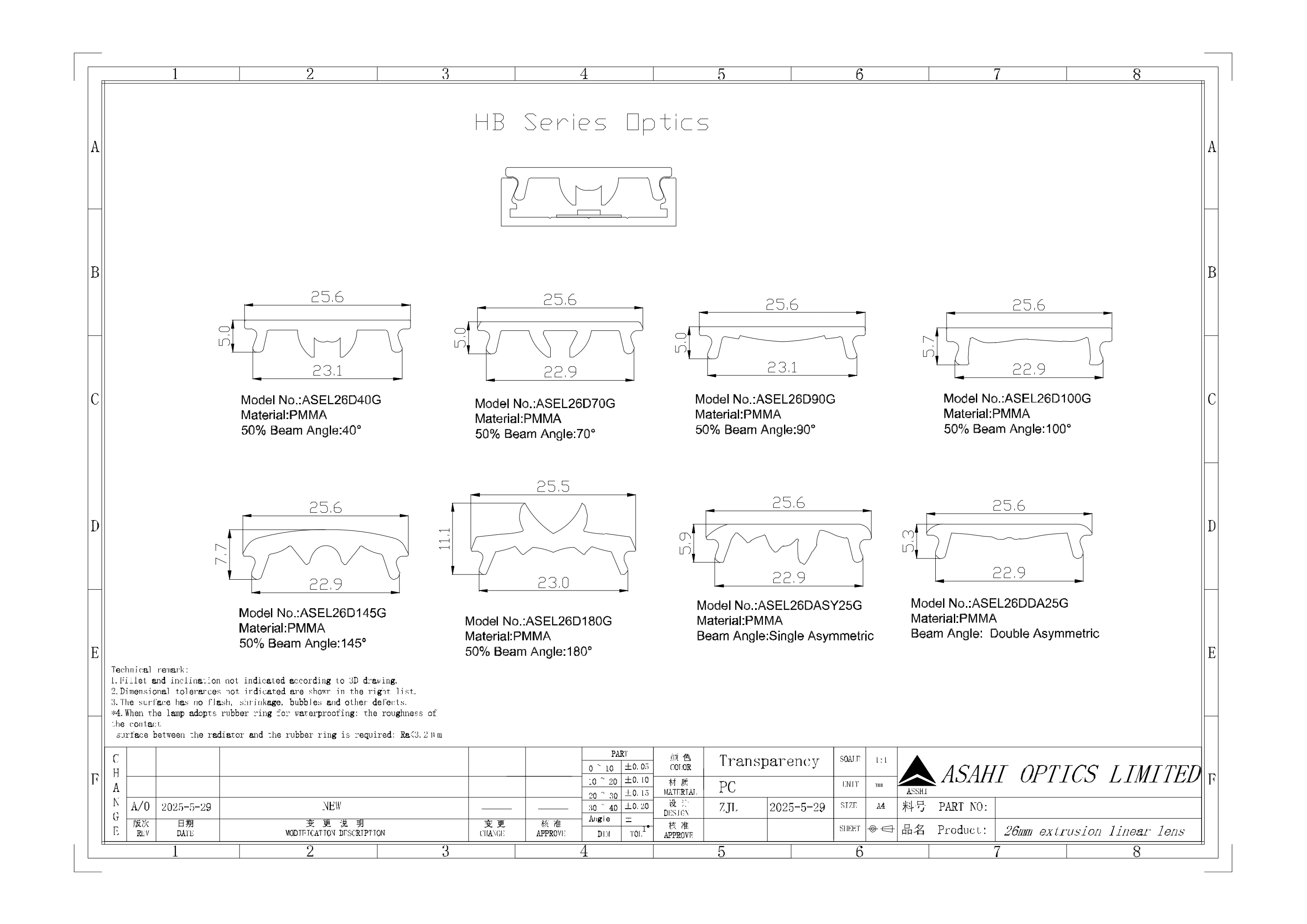

ASAHI OPTICS ASEL26D Extrusion linear lens Drawing.dwg

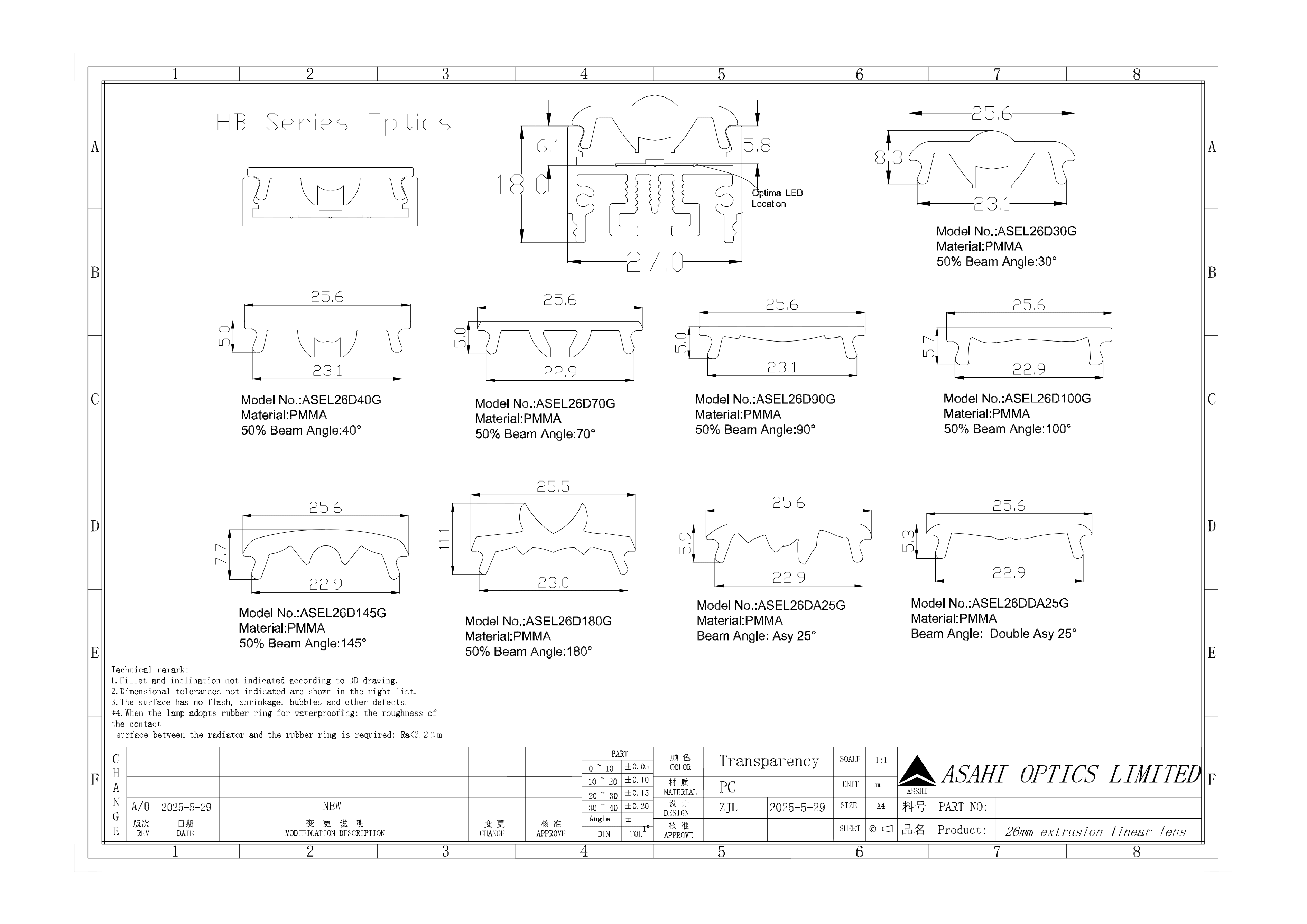

ASAHI OPTICS ASEL26D Extrusion linear lens Drawing.pdf

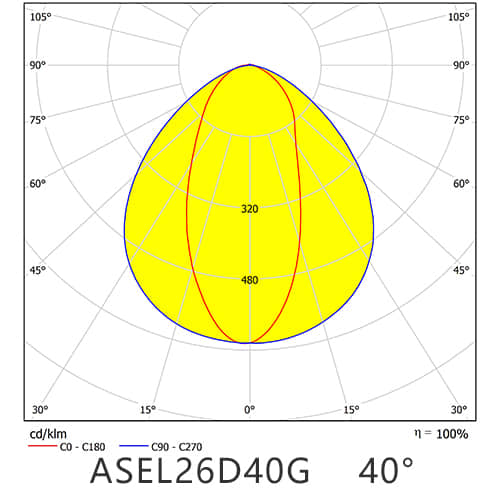

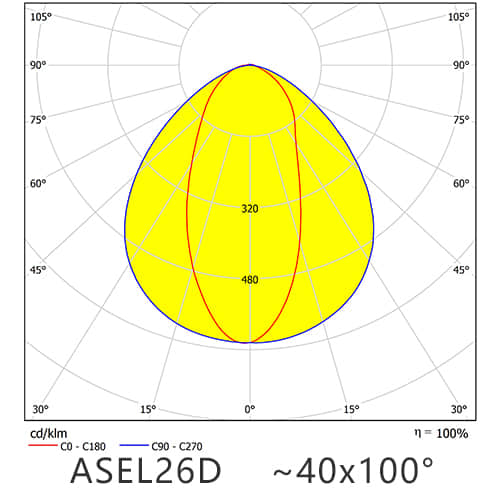

ASAHI OPTICS ASEL26D40100G.IES

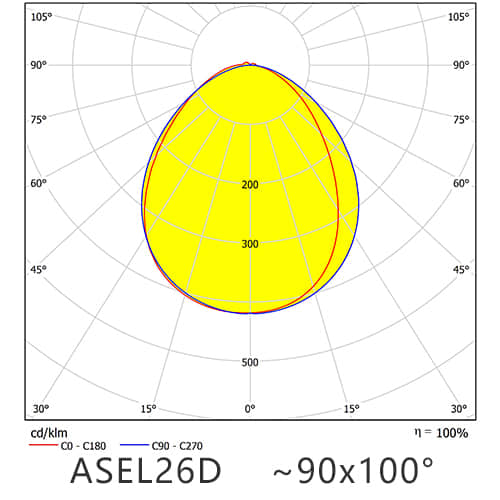

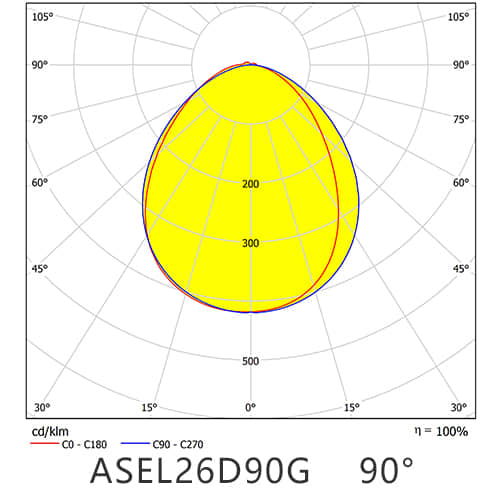

ASAHI OPTICS ASEL26D90100G.IES

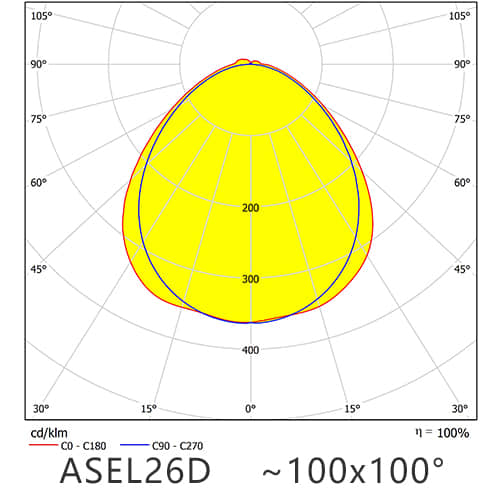

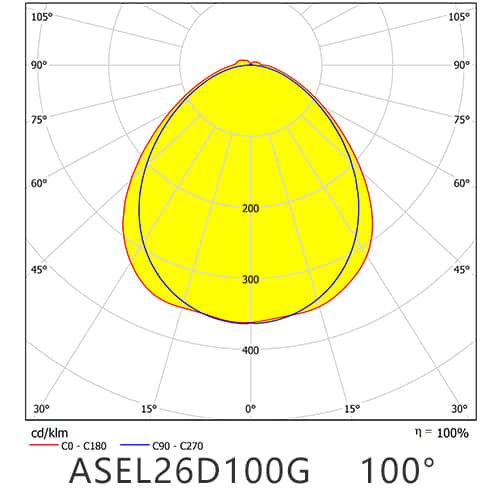

ASAHI OPTICS ASEL26D100100G.IES

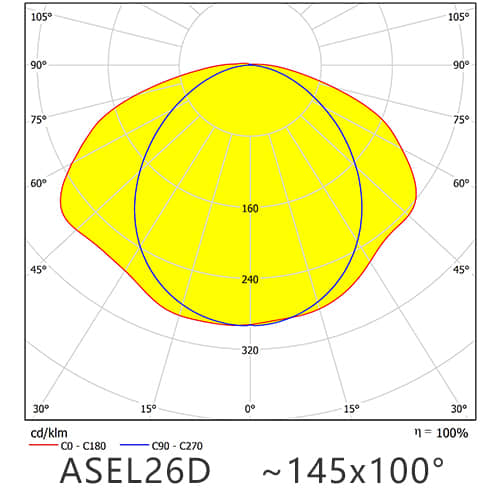

ASAHI OPTICS ASEL26D145100G.IES

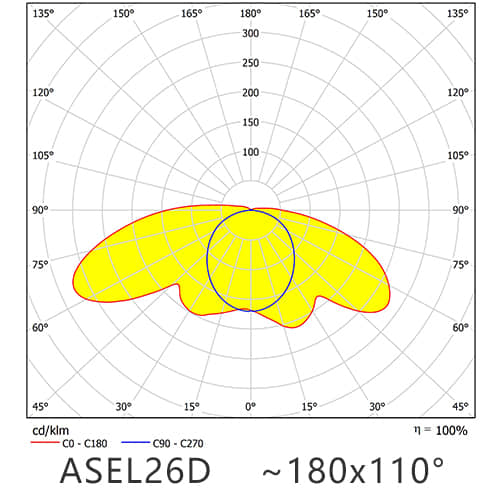

ASAHI OPTICS ASEL26D180110G.IES

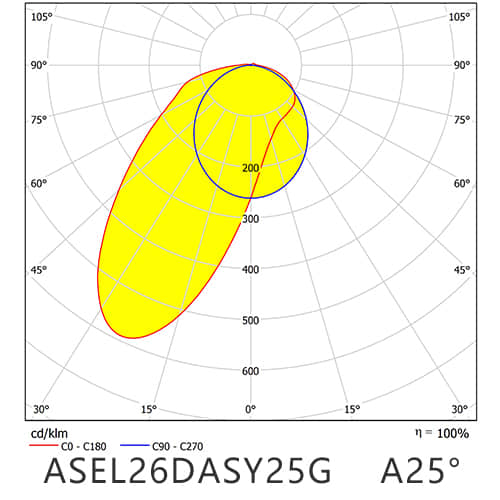

ASAHI OPTICS ASEL26DASY25G.IES
