Model: ALHB255D64LED3090G
Diameter: 255x75mm
Height: 11.4mm
Angle: 30X90°
Material: PC-1250Z
Transmittance: >90%
LED Type: 3030 LED

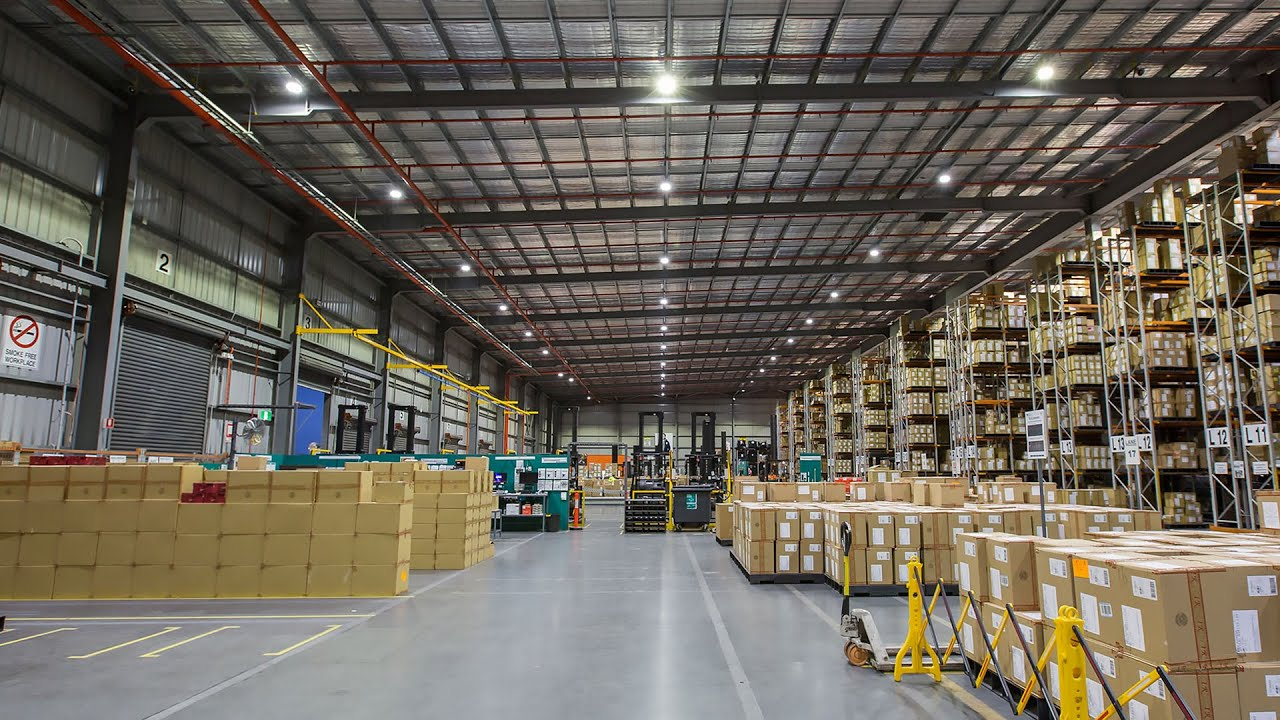

Lighting Applications: High Bay lighting
1. This particular beam angle 30x90° is often used for applications where both general and accent lighting are required, such as wall washing or high lighting architectural features.
2. The 30-degree beam angle provides a narrower, more focused light beam for accent lighting, while the 90-degree beam angle offers a wider, more diffuse beam for general illumination. This combination allows for a versatile lighting solution that can cater to different lighting requirements within the same fixture.
3. LED lenses with a 30x90° beam angle are commonly used in commercial and residential settings, including retail spaces, art galleries, restaurants, and homes.

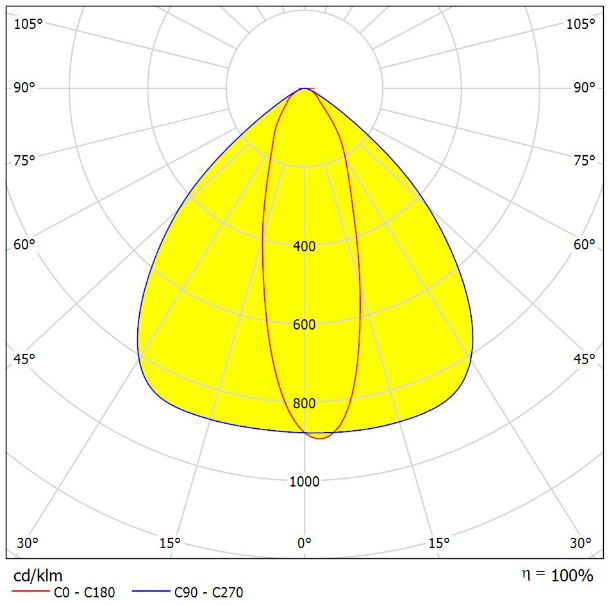

Distribution
Specifications
| Model: | ALHB255D64LED3090G |
| Diameter: | 255x75mm |
| Height: | 11.4mm |
| Angle: | 30X90° |
| Material： | PC-1250Z |
| Transmittance： | >90% |
| LED Applications | 3030 LED |
| Lighting applications | high bay lighting |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
ASAHI OPTICS ALHB255D64LED3090G.ies

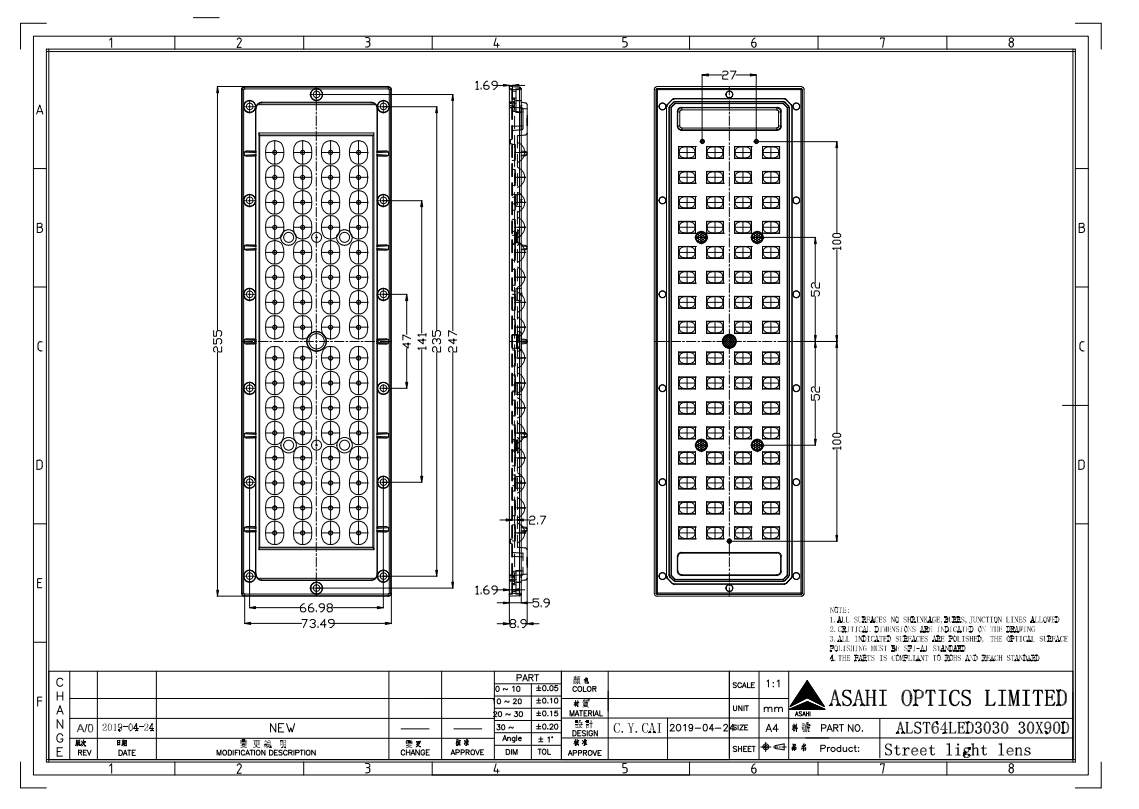

ALHB255D64LED3090G Drawing.pdf
ALHB255D64LED3090G Drawing.dwg
ALHB255D64LED3090G.pdf PCB Drawing
