Model: ALST173D12LEDT2NB
Diameter: 173x71.4mm
Height: 9.10mm
Angle: T2M Asymmetric No Back light
Material: PMMA
Transmittance: >93%
LED Type: 5050LED
Lighting Applications: Street lighting,Architecture lighting,High Bay lighting
1. 2x6 TypeII-Medium street light lens without backlight design,provides excellent horizontal illumination, making it suitable for streetlight applications that require even light distribution along roads or sidewalks.
2. With an IP66 rating,well suited for challenging outdoor enviroments.
3. Constructed from PMMA material with high light transmittance,exceed 93%.

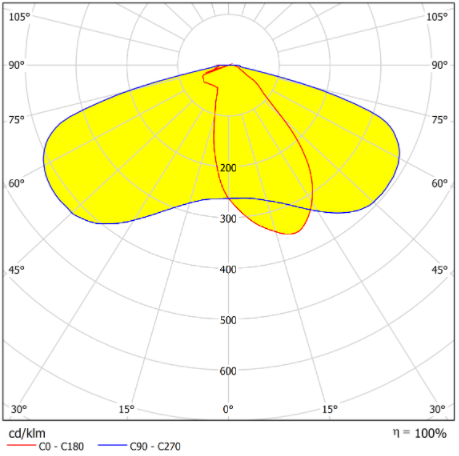

Distribution
Specifications
| Model: | ALST173D12LEDT2NB |
| Diameter: | 173x71.4mm |
| Height: | 9.10mm |
| Angle: | T2M Asymmetric No Back light |
| Material： | PMMA |
| Transmittance： | >93% |
| LED Applications | 5050LED |
| Lighting applications | Street lighting |
LED Type
JR5005C 6-V E
DURIS S 8
LUXEON 5050 Square
NVAW144AR
NVAW144AM
Xl5050LED
EMC5050LED
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.

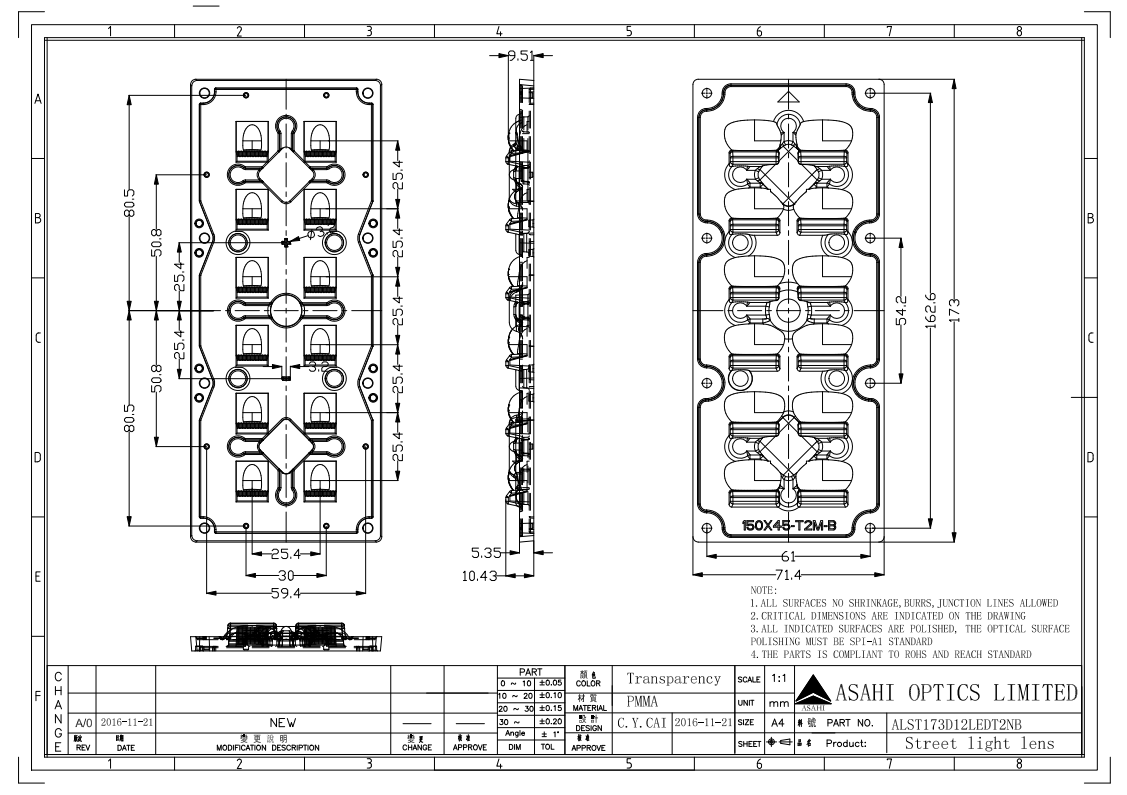

ASAHI OPTICS ALST173D12LEDT2NB Drawing.dwg
ASAHI OPTICS ALST173D12LEDT2NB Drawing.pdf
ASAHI OPTICS ALST173D12LEDT2NB DIALux.pdf
