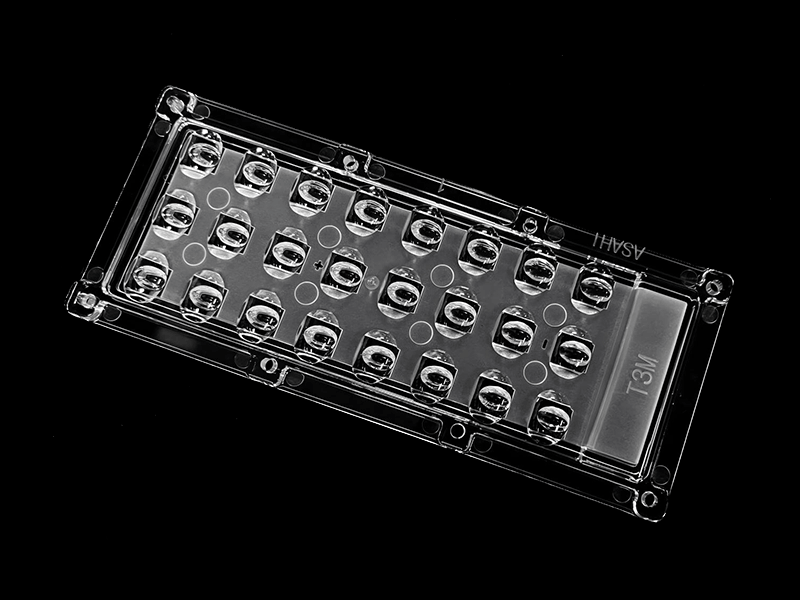

Model: ALST173D24LEDT3M
Diameter: 173x71.4mm
Height: -
Angle: T3M
Material: PC
Transmittance: >88%
LED Type: 5050LED
Lighting Applications: Street lighting, Area Lighting
1. The 3X8 lens with TypeIII-Medium beam angle provides uniform coverage on roadways and public spaces, enhancing visibility and safety.
2. 3x8 T3M lens with an IP66 rating, providing excellent protection against dust and water ingress, making it suitable for various challenging environments.

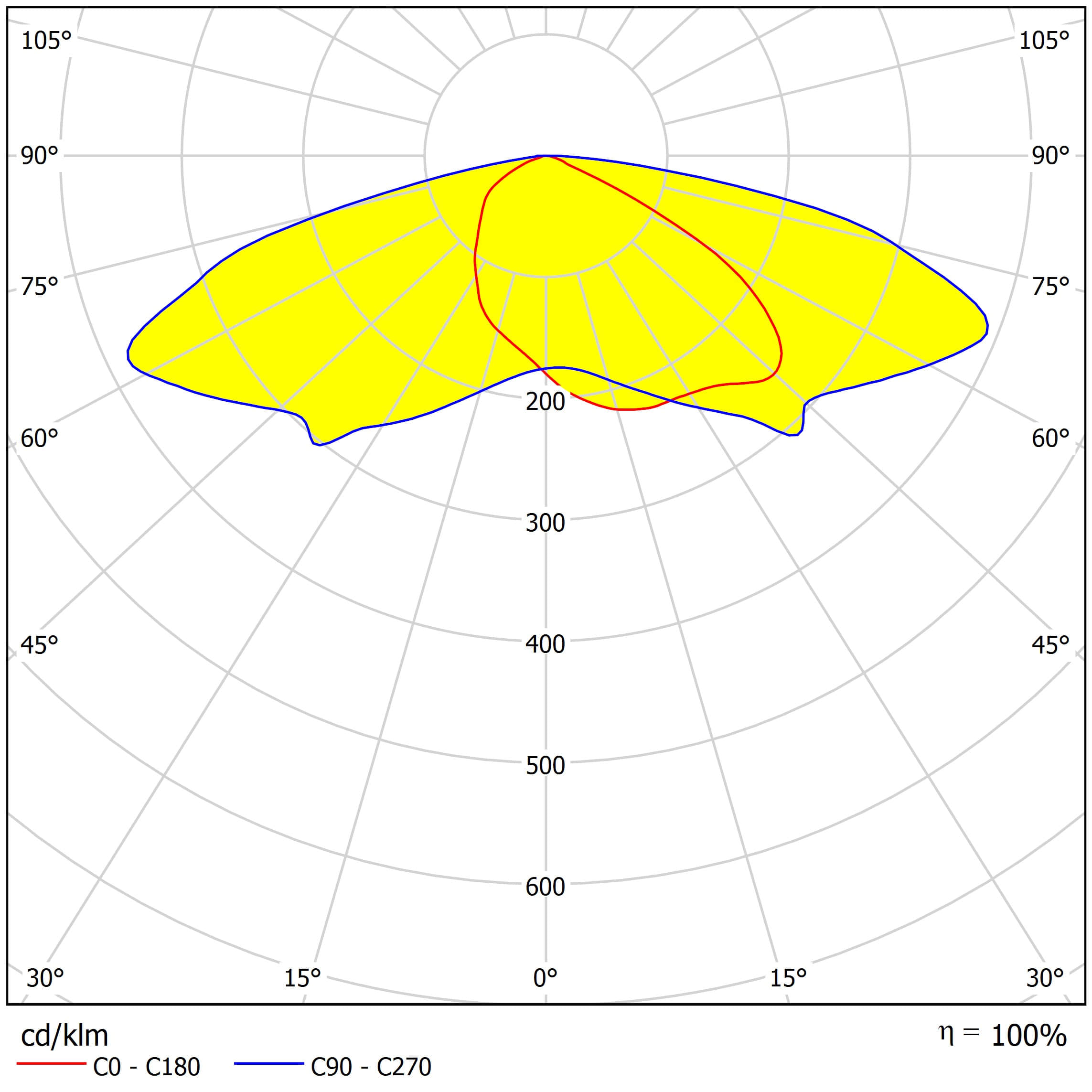

Distribution
Specifications
| Model: | ALST173D24LEDT3M |
| Diameter: | 173x71.4mm |
| Height: | - |
| Angle: | T3M |
| Material： | PC |
| Transmittance： | >88% |
| LED Applications | 5050LED |
| Lighting applications | Street lighting, Area Lighting |
LED Type
JR5005C 6-V E
DURIS S 8
LUXEON 5050 Square
NVAW144AR
NVAW144AM
Xl5050LED
EMC5050LED
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
1. The 3X8 lens with TypeIII-Medium beam angle provides uniform coverage on roadways and public spaces, enhancing visibility and safety.
2. 3x8 T3M lens with an IP66 rating, providing excellent protection against dust and water ingress, making it suitable for various challenging environments.
