Model: ALHB50D4LED5050T60G
Diameter: 50x50mm
Height: 8.5mm
Angle: 60°
Material: PC
Transmittance: >90%
LED Type: 5050LED
Lighting Applications: High Bay Lighting
1. The 2x2 lens design, coupled with the 60° medium beam angle, provides versatile lighting distribution.

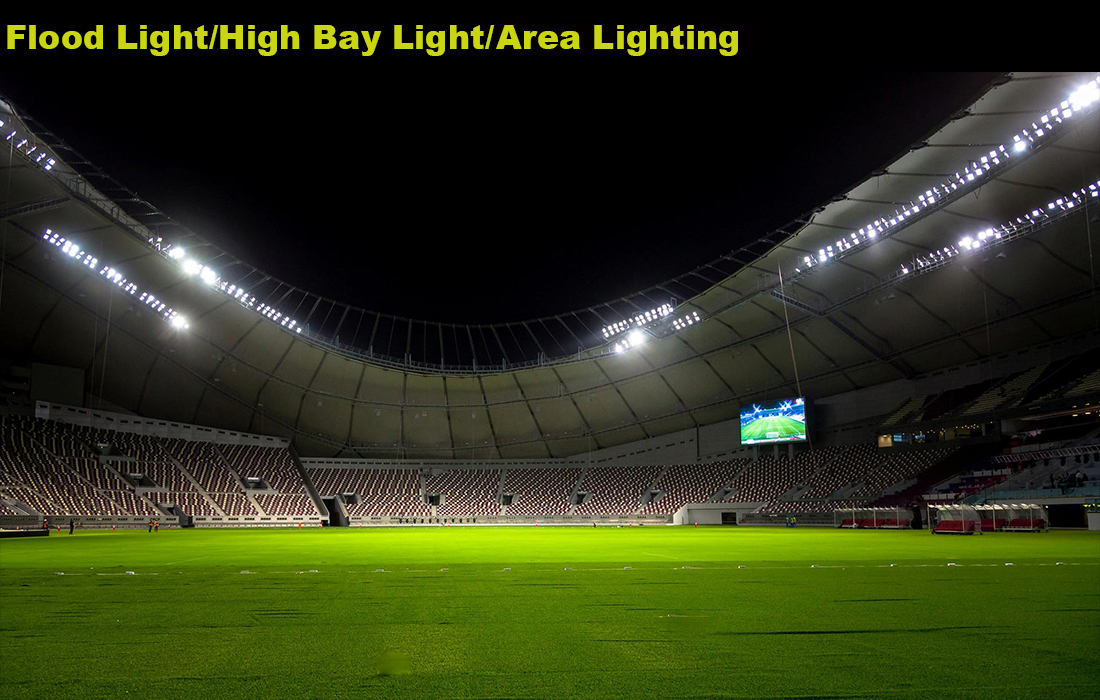

2. It is suitable for wide range of applications, offering balanced coverage for flood lighting, high bay lighting, and stadium lighting.
3. The lens ensures even distribution of light across the illuminated area, minimizing dark spots and hotspots.

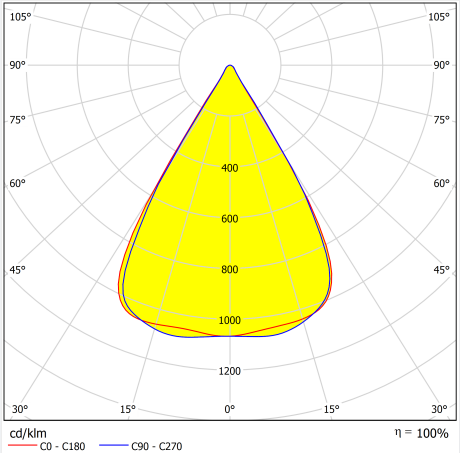

Distribution
Specifications
| Model: | ALHB50D4LED5050T60G |
| Diameter: | 50x50mm |
| Height: | 8.5mm |
| Angle: | 60° |
| Material： | PC |
| Transmittance： | >90% |
| LED Type | 5050LED |
| Lighting applications | High Bay Lighting |
LED Type
JR5005C 6-V E
DURIS S 8
LUXEON 5050 Square
NVAW144AR
NVAW144AM
Xl5050LED
EMC5050LED
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
1. The 2x2 lens design, coupled with the 60° medium beam angle, provides versatile lighting distribution.
2. It is suitable for wide range of applications, offering balanced coverage for flood lighting, high bay lighting, and stadium lighting.
3. The lens ensures even distribution of light across the illuminated area, minimizing dark spots and hotspots.
