Model: UFO233D90G-100W-K70
Diameter: 233mm
Height: 8.8mm
Angle: 90°
Material: PC-1250Z TEIJIN
Transmittance: >88%
LED Type: 2835/ 3030LED
Lighting Applications: High Bay Lighting, Area Lighting
1.The lens with 233diameter UFO lens particularly in high bay lights designed for industrial or commercial spaces.
2.Industrial flood lamps are usually used for indoor and outdoor large area lighting, with good durability and high efficiency.
3.The 90 degree Angle provides a wide range of light and is suitable for lighting large areas such as workshops.

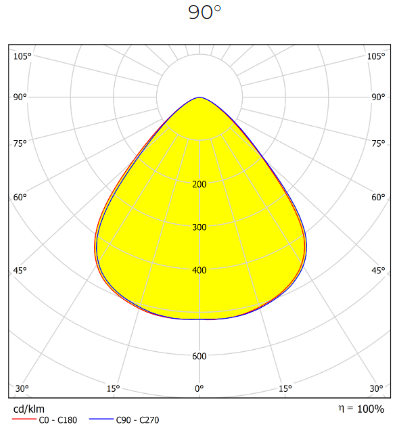

Distribution
Specifications
| Model: | UFO233D90G-100W-K70 |
| Diameter: | 233mm |
| Height: | 8.8mm |
| Angle: | 90° |
| Material： | PC-1250Z TEIJIN |
| Transmittance： | >88% |
| LED Applications | 2835/ 3030LED |
| Lighting applications | High Bay Lighting |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
ASAHI OPTICS UFO233D90G-100W-K70 lens 3D drawing.STP

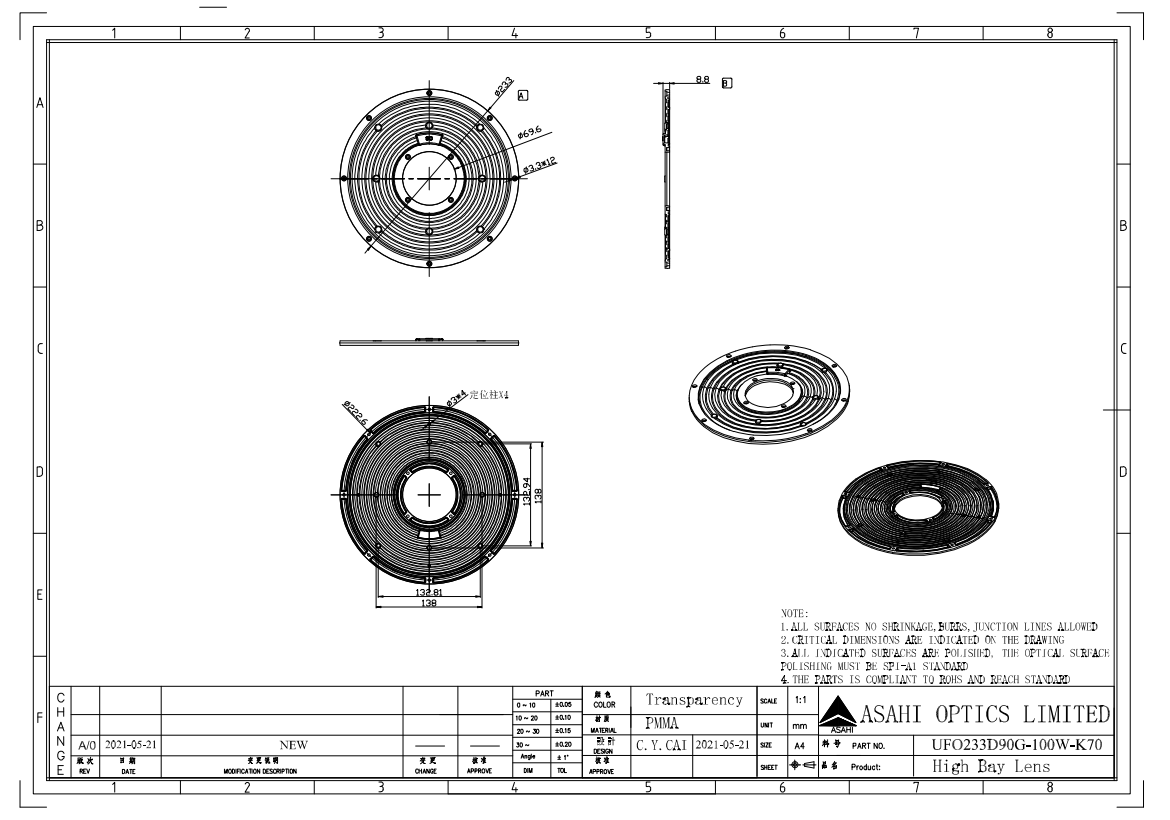

ASAHI OPTICS UFO233D90G-100W-K70 Drawing.dwg
ASAHI OPTICS UFO233D90G-100W-K70 Drawing.pdf
ASAHI OPTICS UFO233D90G-100W-K70 lens IES.ies
