Model: AJST50D8LEDT3
Diameter: 50x50mm
Height: 4.79mm
Angle: T3M
Material: PC
Transmittance: >88%
LED Type: 3030/ 5050LED

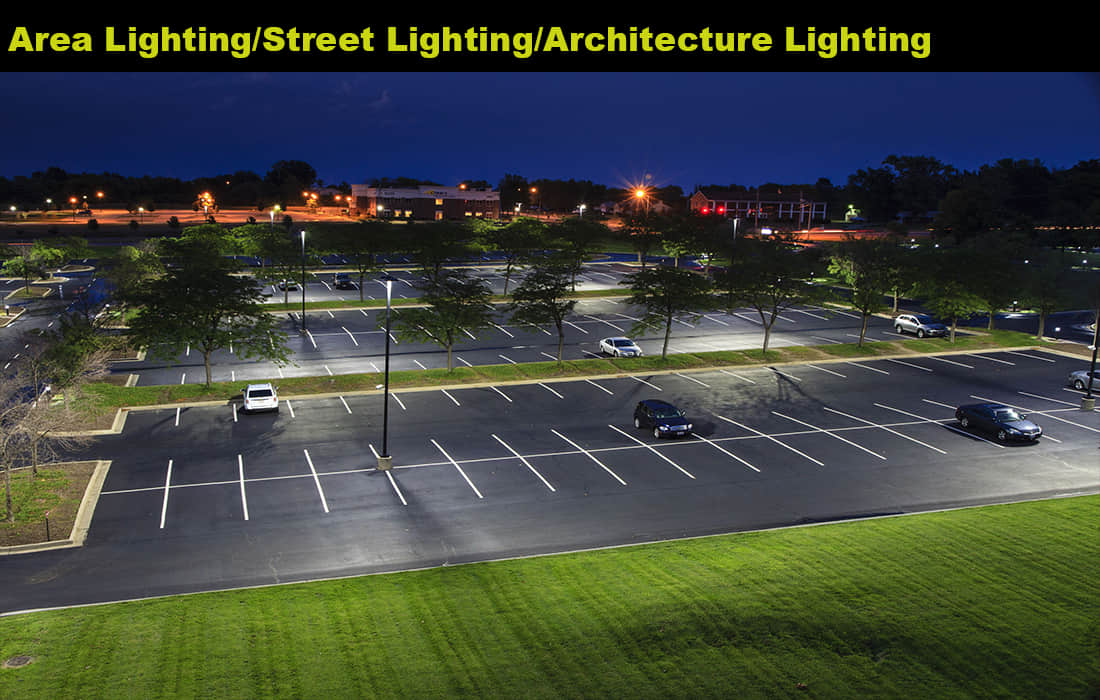

Lighting Applications: Street Lighting
1. The 50x50mm 8LED Lens T3 is engineered with advanced optical technology to deliver superior light distribution and efficiency to meet wide road lighting requirements.
2.The 50x50mm 8LED Lens ensures consistent brightness and minimal light loss, making it a reliable choice for high-intensity lighting needs.

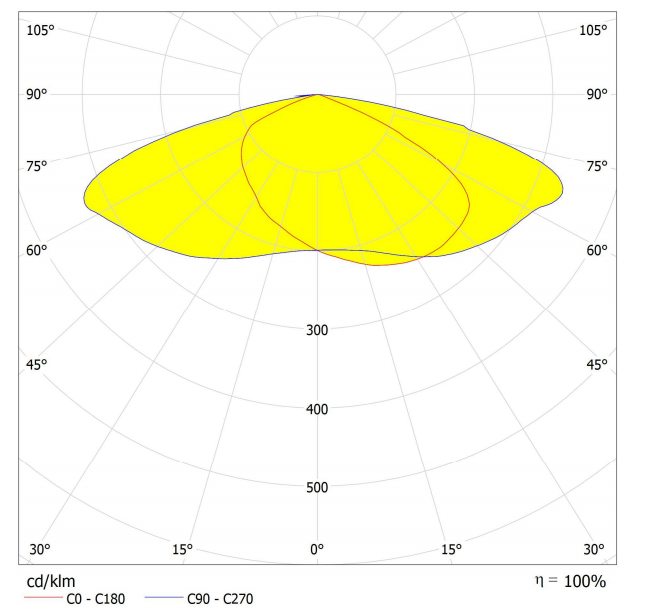

Distribution
Specifications
| Model: | AJST50D8LEDT3 |
| Diameter: | 50x50mm |
| Height: | 4.79mm |
| Angle: | T3M |
| Material： | PC |
| Transmittance： | ＞88% |
| LED Type | 3030/ 5050LED |
| Lighting applications | Street Lighting |
LED Type
JR5005C 6-V E
DURIS S 8
LUXEON 5050 Square
NVAW144AR
NVAW144AM
Xl5050LED
EMC5050LED
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
1. The 50x50mm 8LED Lens T3 is engineered with advanced optical technology to deliver superior light distribution and efficiency to meet wide road lighting requirements.
2.The 50x50mm 8LED Lens ensures consistent brightness and minimal light loss, making it a reliable choice for high-intensity lighting needs.

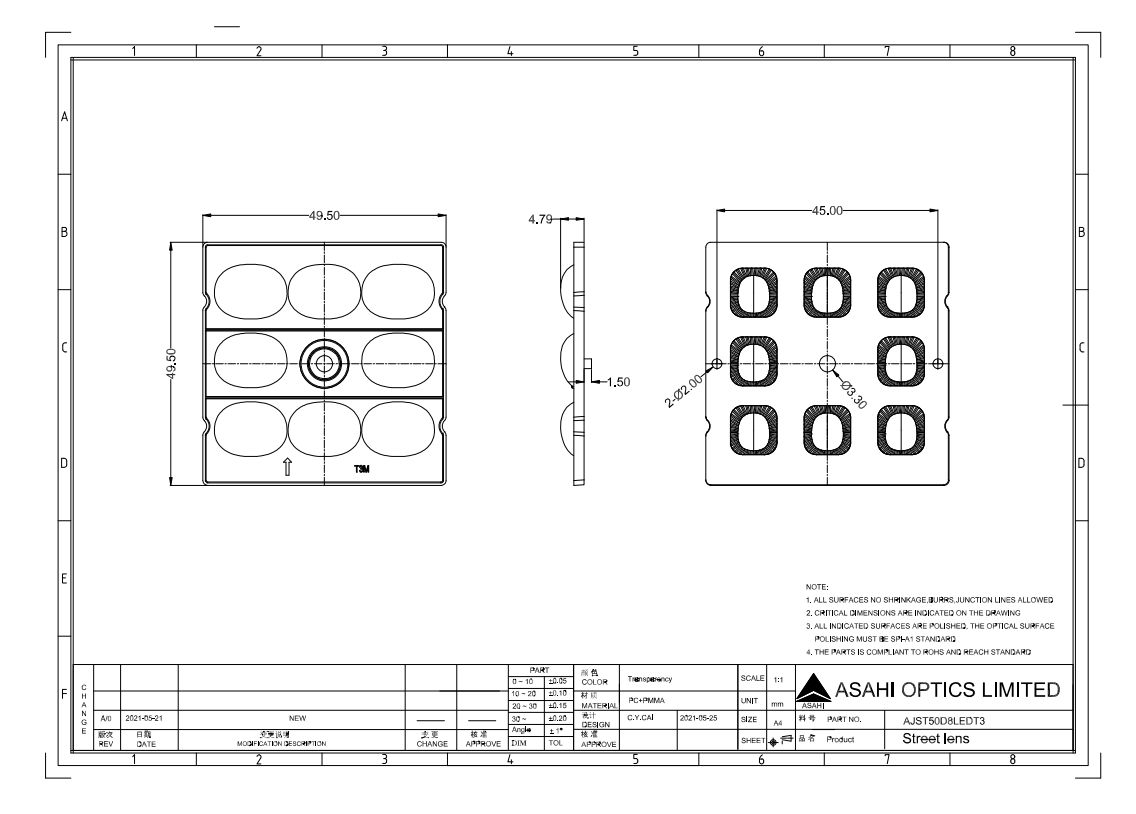

Asahi Optics AJST50D8LEDT3 Drawing.dwg
Asahi Optics AJST50D8LEDT3 Drawing.pdf

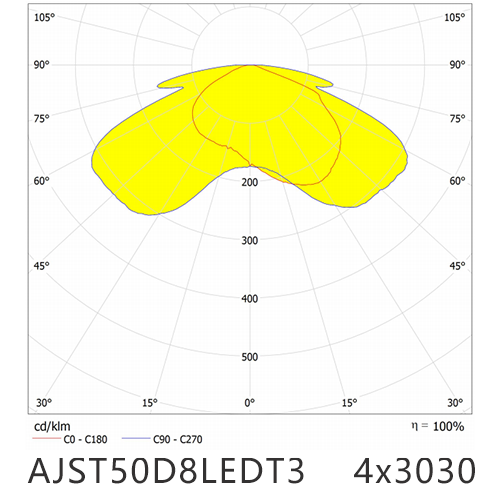

Asahi Optics AJST50D8LEDT3 4x3030LED.ies

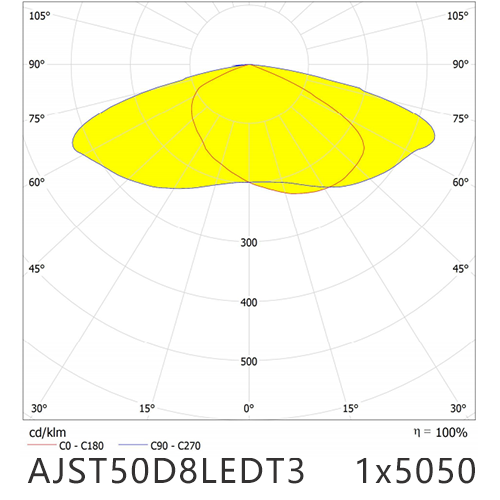

Asahi Optics AJST50D8LEDT3 5050LED.ies
