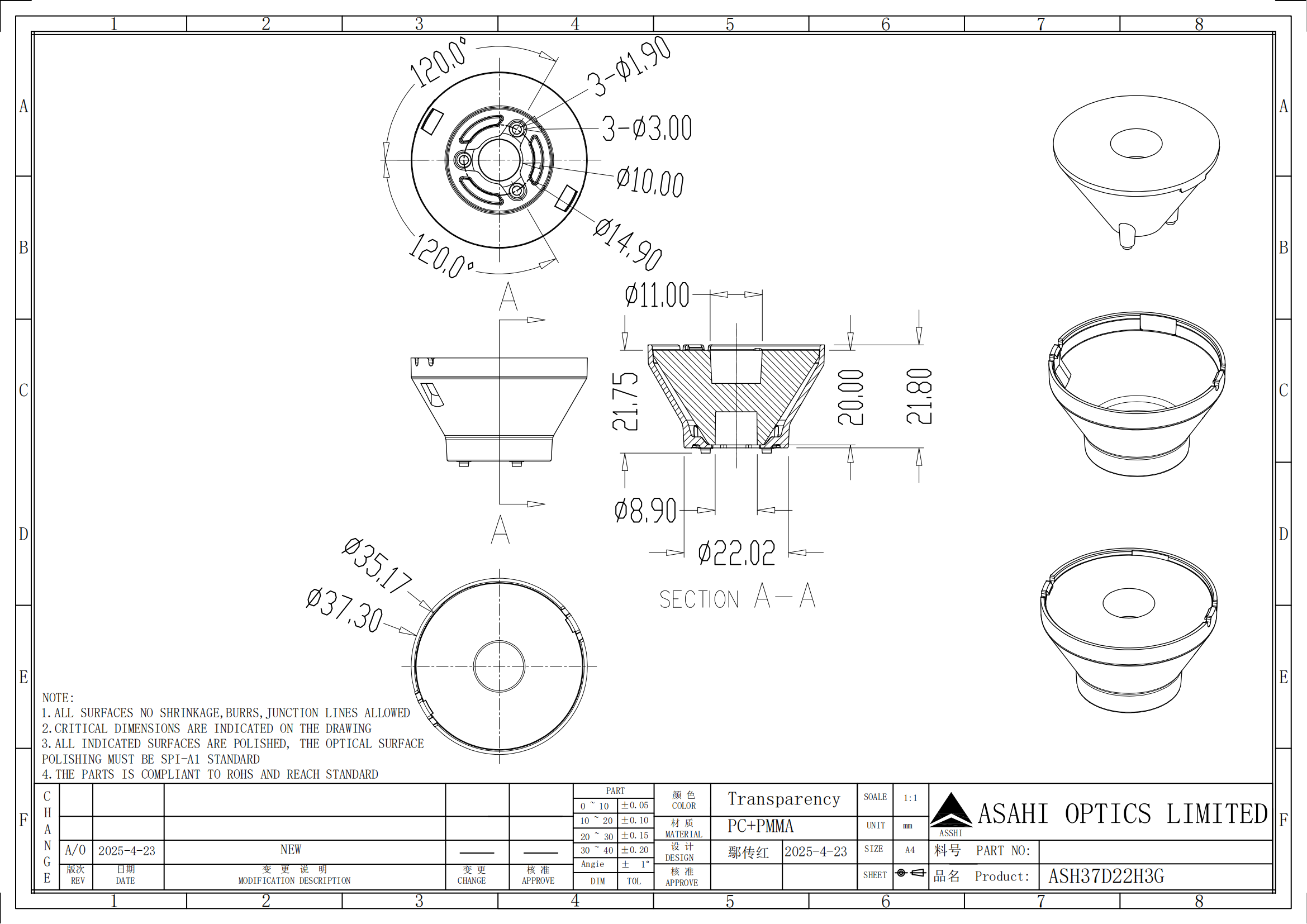

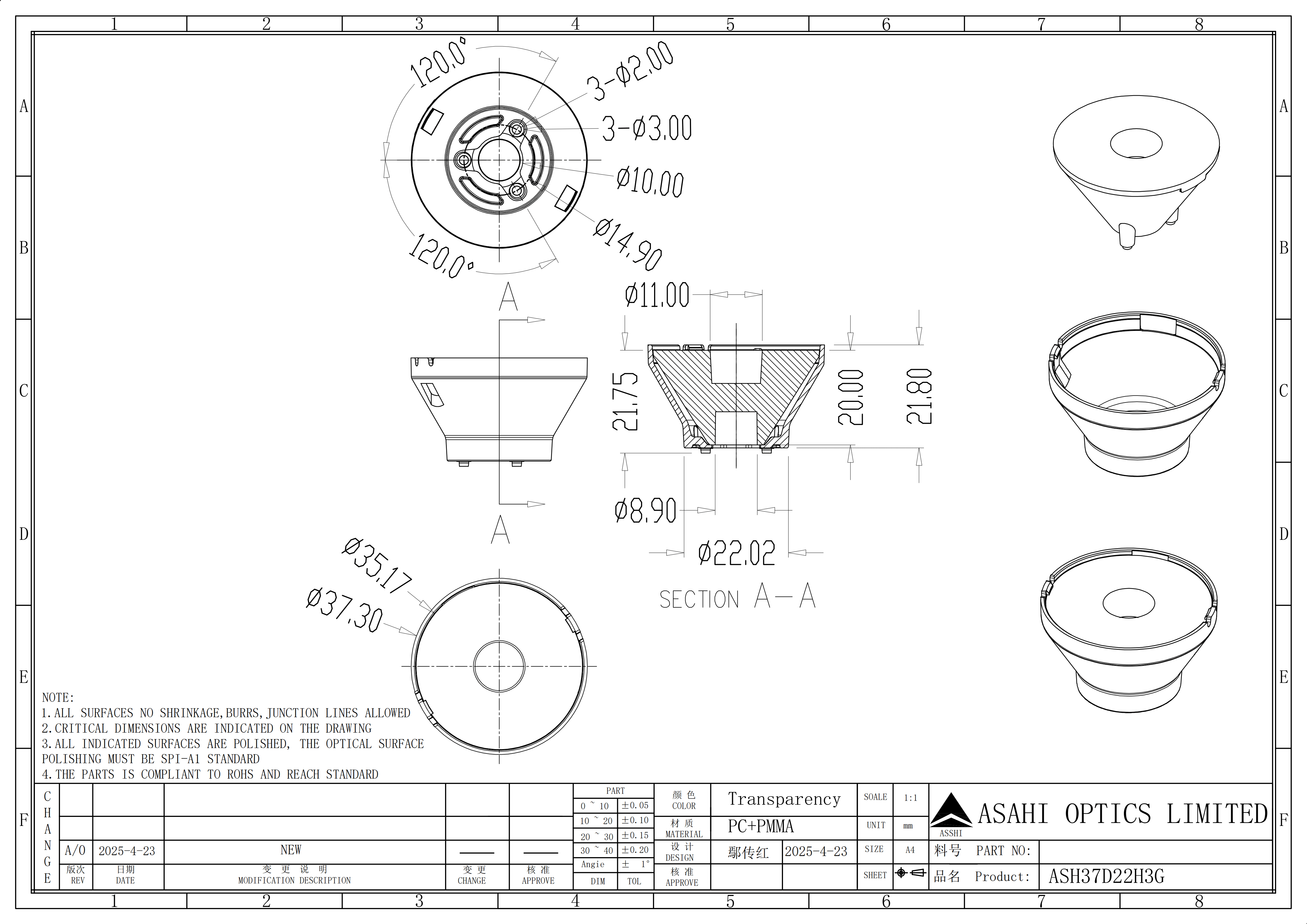

Model: ASH37D22H3G
Diameter: 37mm
Height: 22mm
Angle: 3°
Material: PMMA+PC
Transmittance: >93%
LED Type: 3535LED/ Cree XML
Lighting Applications: surgical light

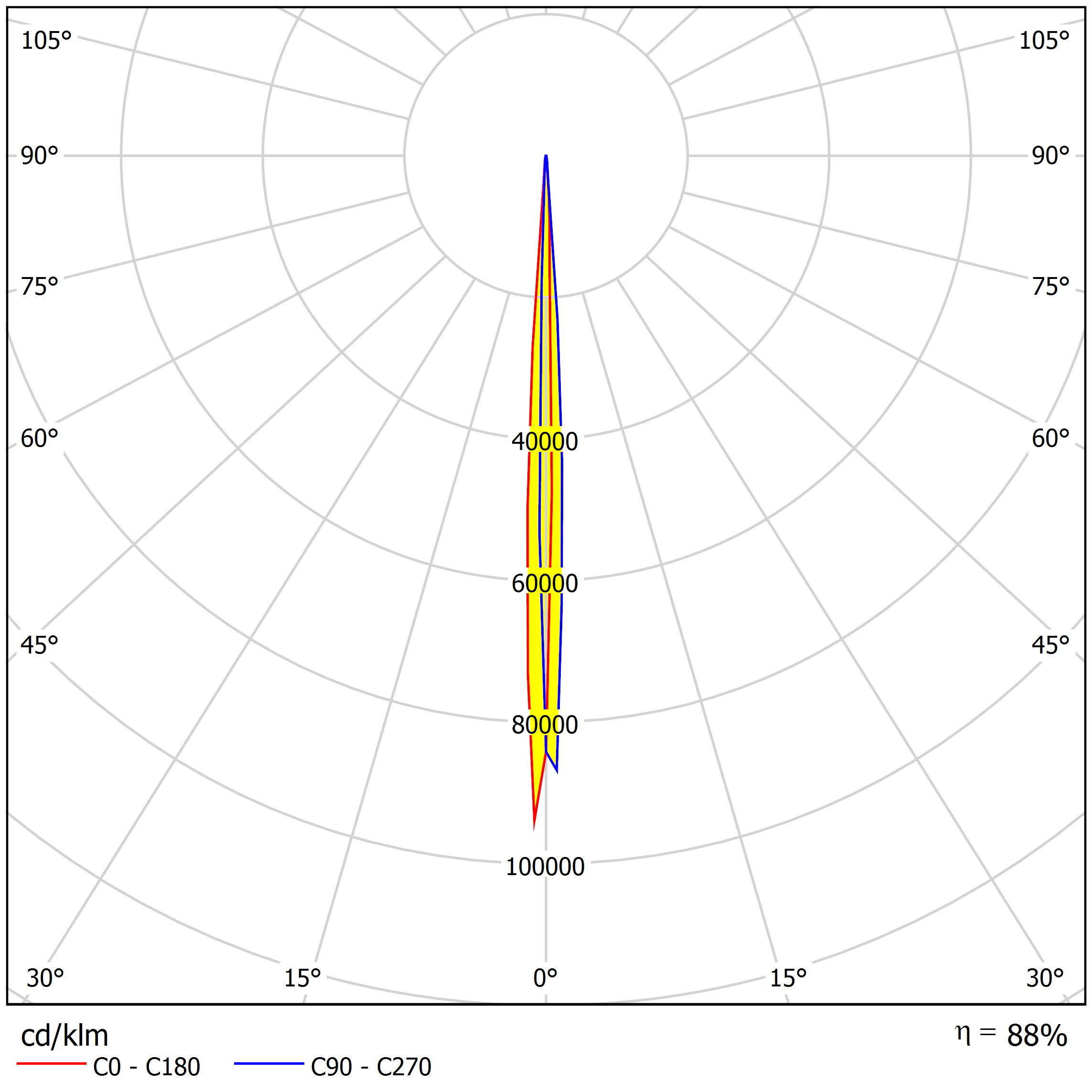

Distribution
Specifications
| Model: | ASH37D22H3G |
| Diameter: | 37mm |
| Height: | 22mm |
| Angle: | 3° |
| Material： | PMMA+PC |
| Transmittance： | >93% |
| LED Applications | 3535LED/ Cree XML |
| Lighting applications | surgical light |
LED Type
XPE
XPE2
XP-G2
XP-G3
OSLON SSL80
SQUARE
LUXEON HL4Z
NVSW219GL
PK2E-2LVE-B2R8N
PK2N-4LVE-SBVR8
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
