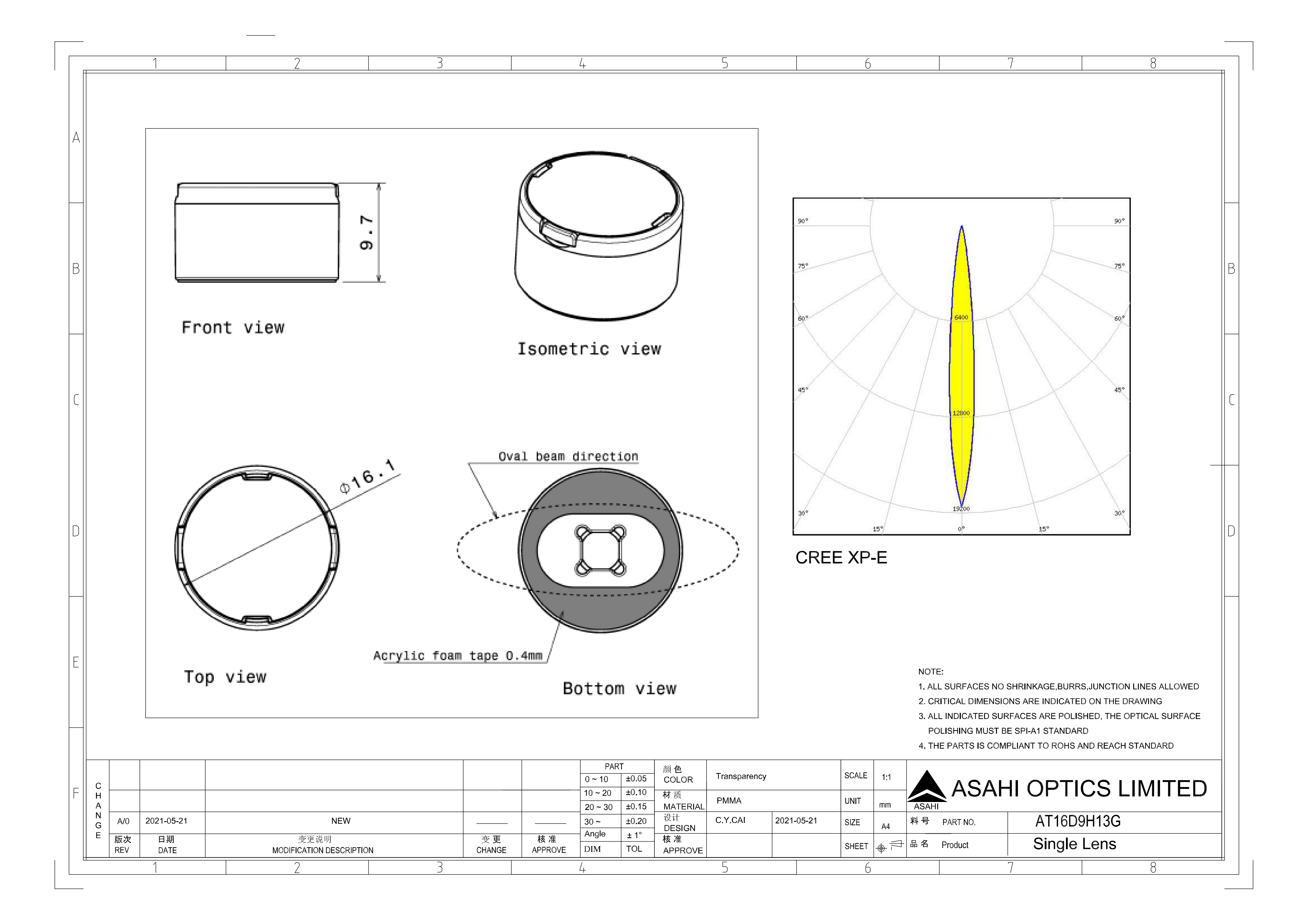

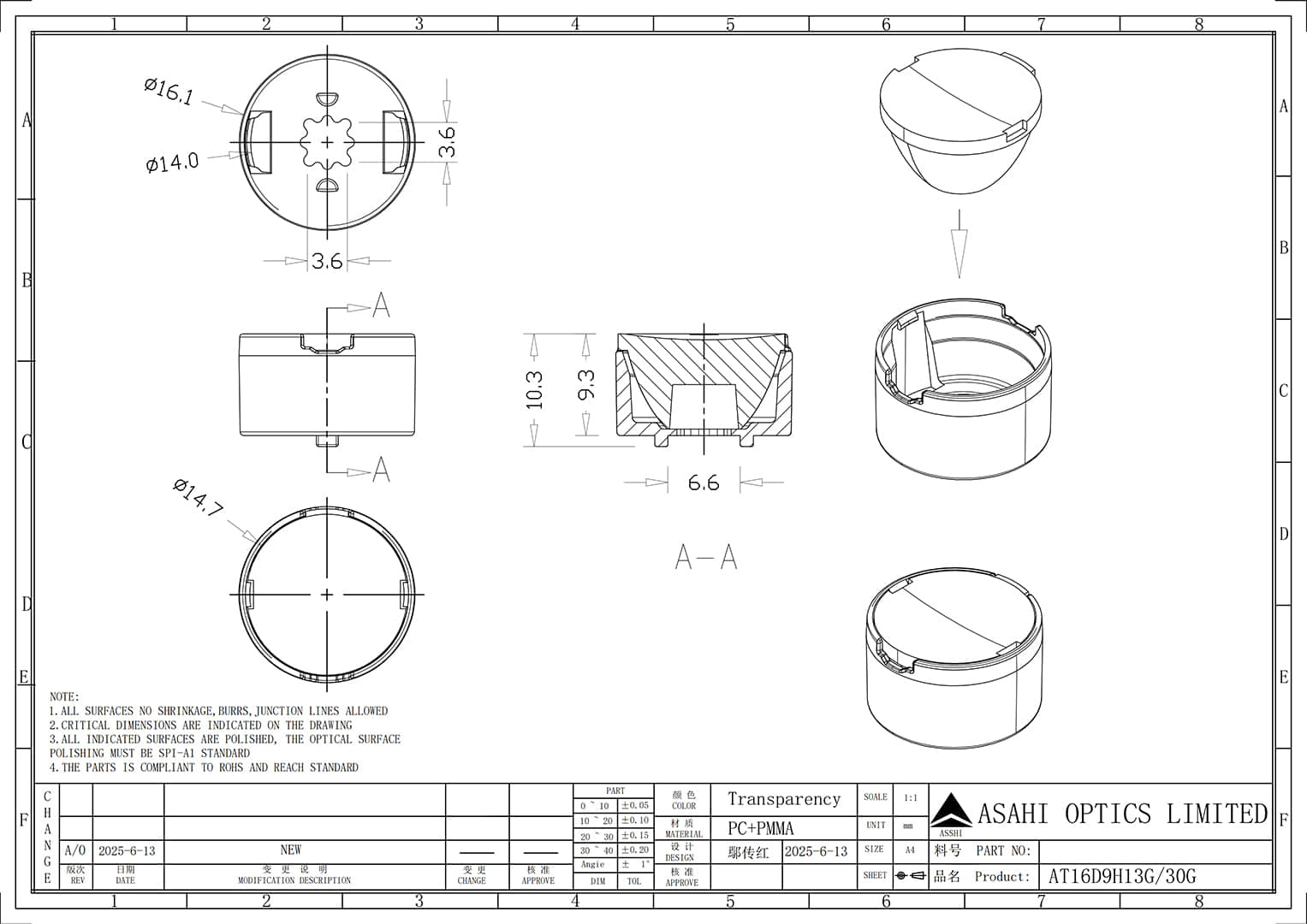

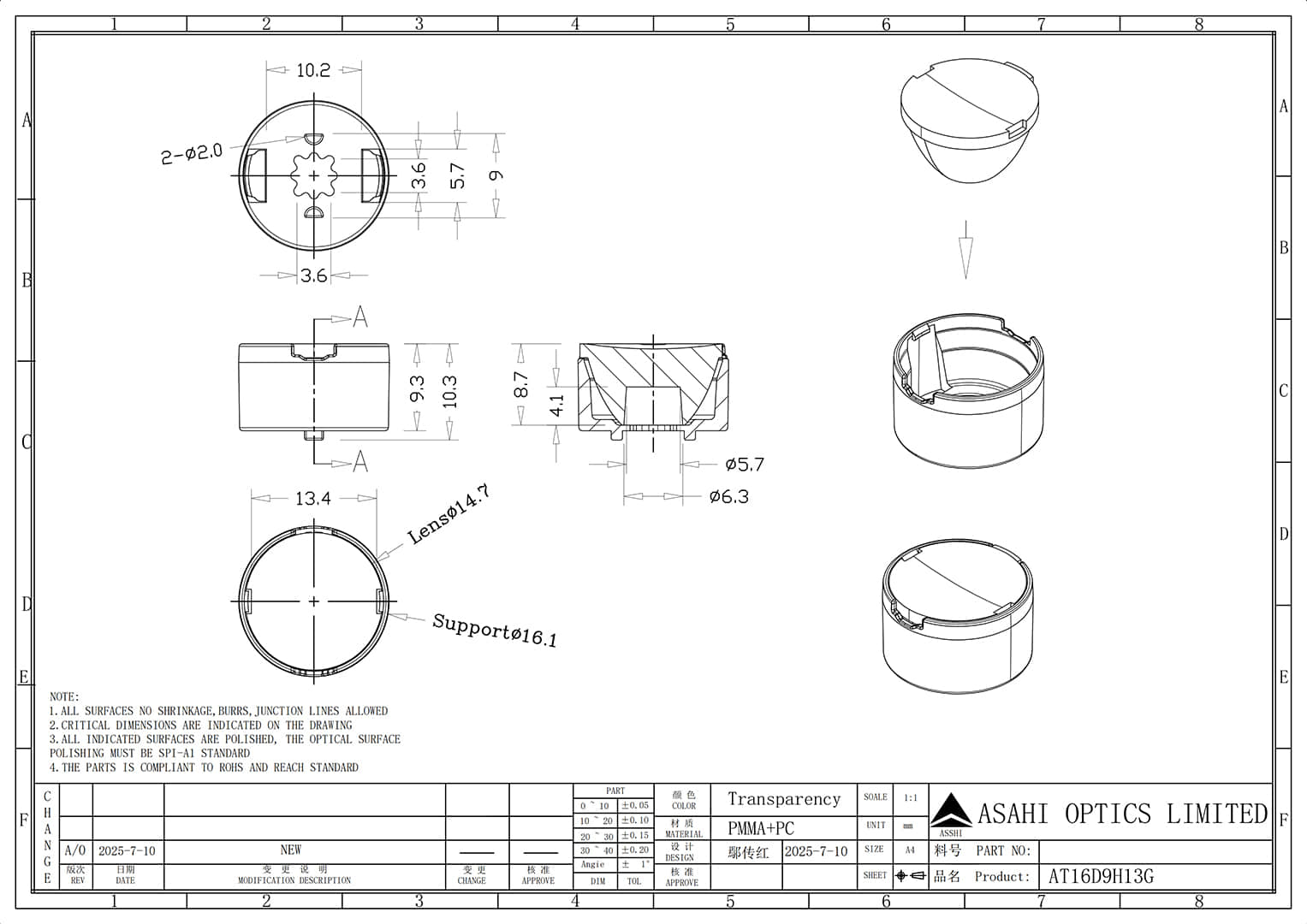

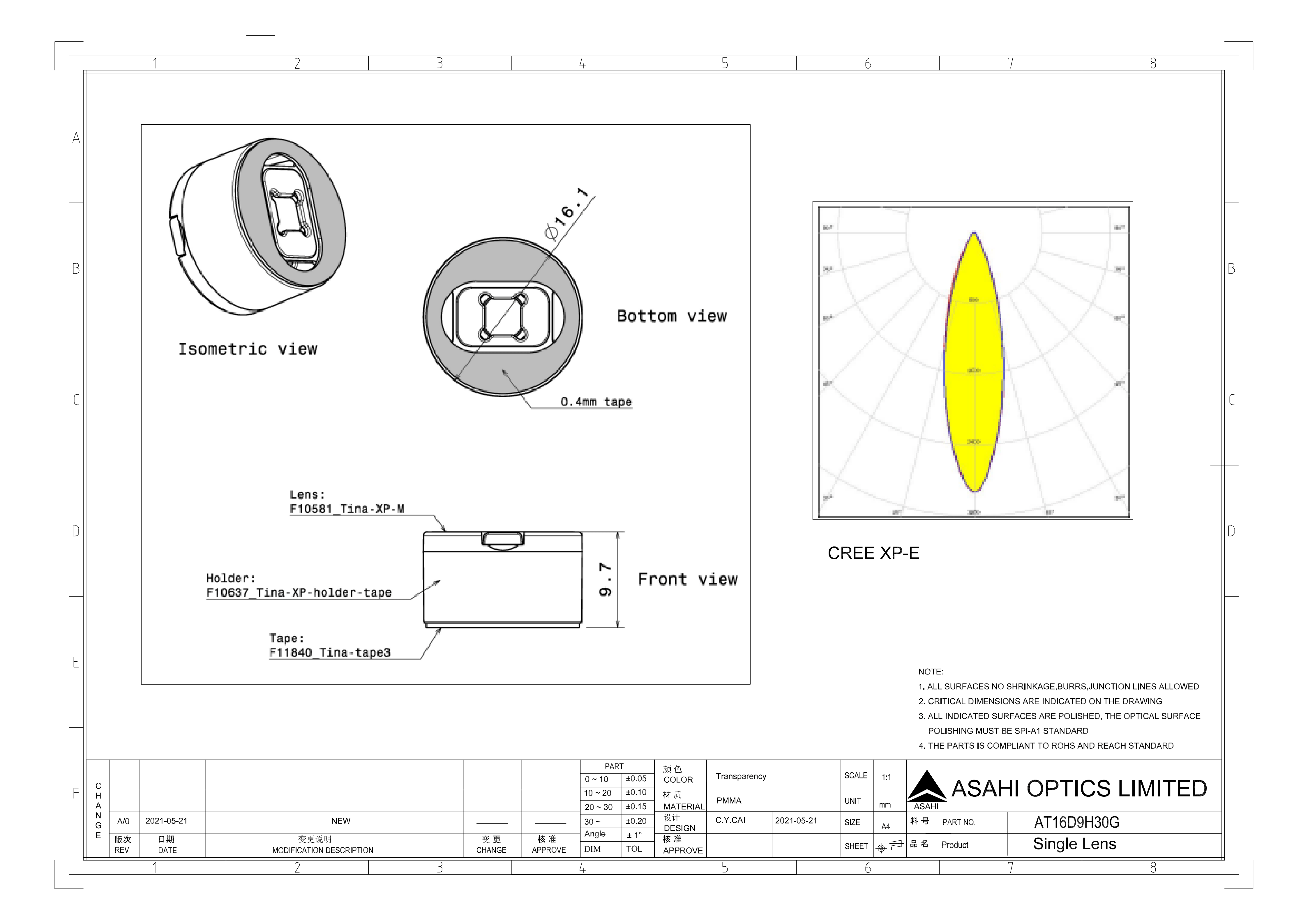

Model: AT16D9H13G/30G/60G/1535G

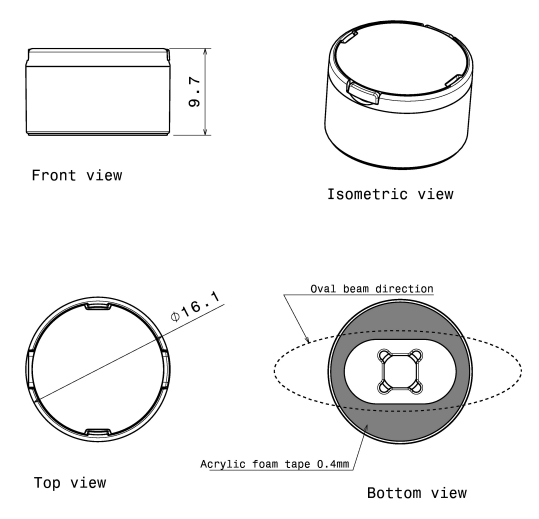

Diameter: 16.1mm
Height: 9.7mm
Angle: 13°,30°,60°,15x35°
Material: PMMA
Transmittance: >93%
LED Type: 3535LED,CREE XP-E
Lighting Applications: Wall Washer Light, Landscaping Light, Architecture Lighting
1. The AT series 16mm lens is suitable for 3535LED and CREE XP-E types, using PMMA optical material with a transmittance of over 93%.
2. This series offers various beam angles such as 13 °, 30 °, 60 °, and 15x35 °, with a diameter of 16.1mm and a height of 9.7mm.
3. It is perfect for wall washers, landscape lighting, and architectural lighting, achieving precise light control and excellent light efficiency.

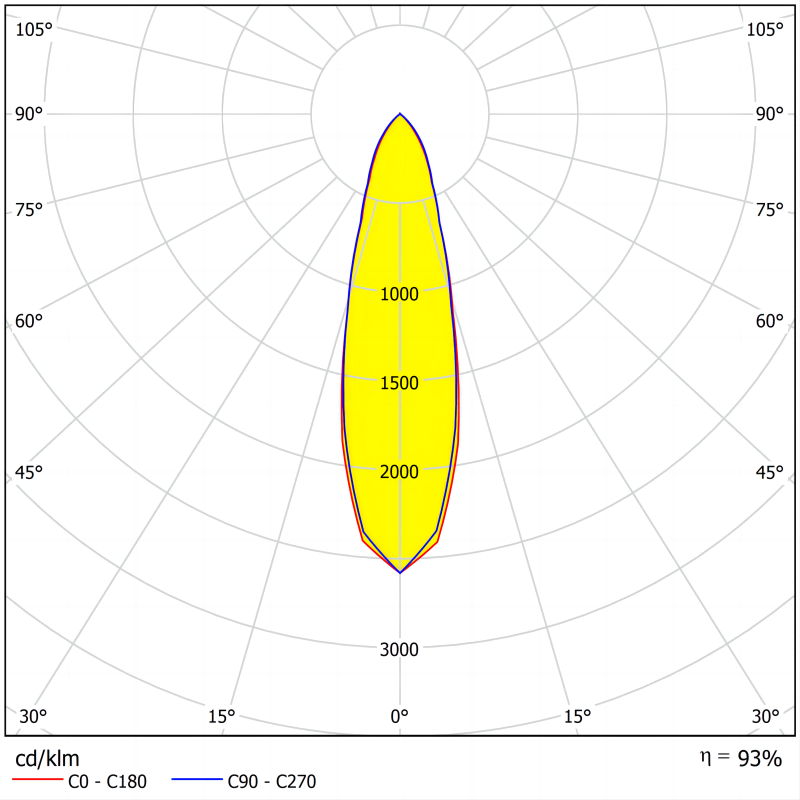

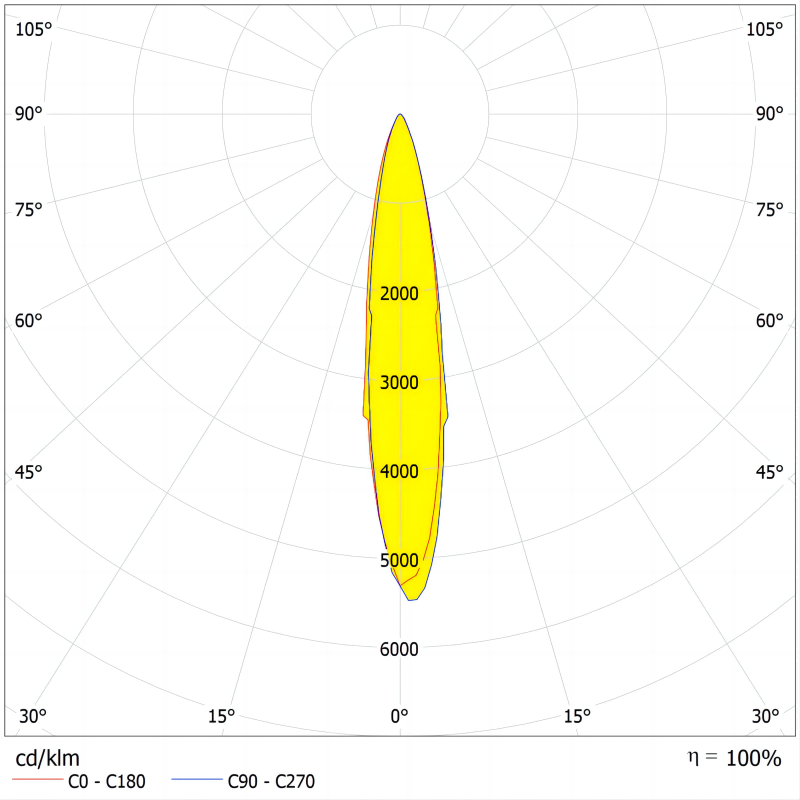

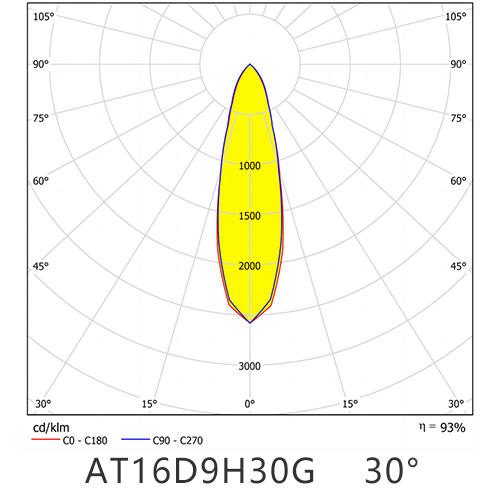

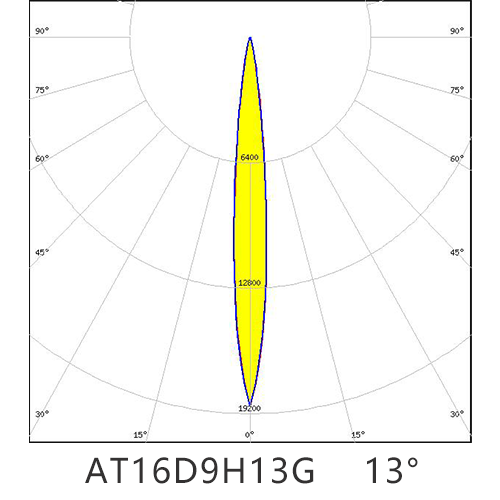

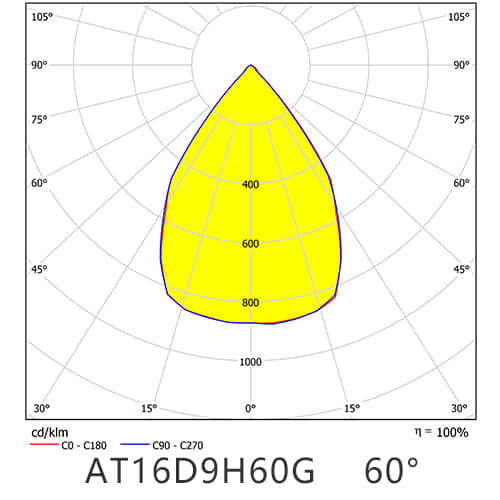

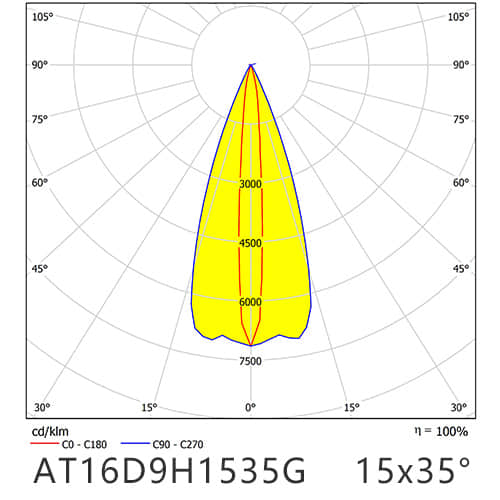

Distribution
Specifications
| Model: | AT16D9H13G/30G/60G/1535G |
| Diameter: | 16.1mm |
| Height: | 9.7mm |
| Angle: | 13°,30°,60°,15x35° |
| Material： | PMMA |
| Transmittance： | >93% |
| LED Type | 3535LED,CREE XP-E |
| Lighting applications | Wall Washer Light, Landscaping Light, Architecture Lighting |
LED Type
XPE
XPE2
XP-G2
XP-G3
OSLON SSL80
SQUARE
LUXEON HL4Z
NVSW219GL
PK2E-2LVE-B2R8N
PK2N-4LVE-SBVR8

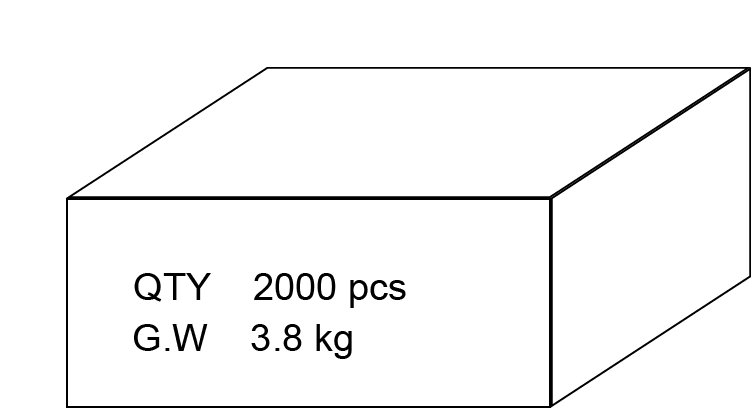

Packaging
Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
