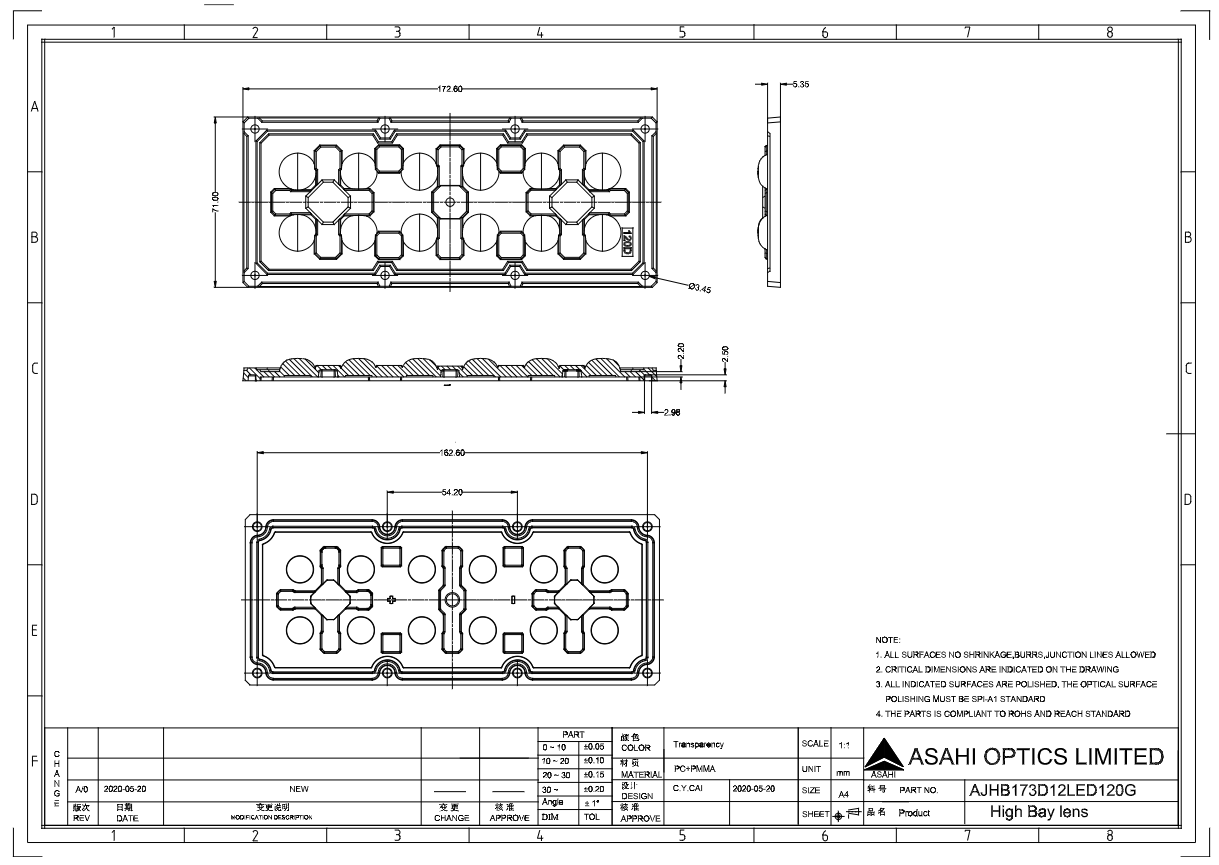

173mm 2x6 LED lens 120° desgined for High Bay Lights

Model: AJHB173D12LED120G

Diameter: 173*71.4mm

Height: 5.35mm

Angle: 120°

Material: PC

Transmittance: >88%

LED Type: "3535""5050" LED

Lighting Applications: High Bay Lighting

1. 2x6 lens with 120° beam angle is commonly used in high bay lighting applications to provide wide and even lighting distribution in large spaces.

2. This lens configuration provides a good balance between light coverage and intensity, ensuring sufficient illumination for tasks while minimizing shadows and dark spots.

3. The LED lens with 120° is typically used in applications such as warehouses, factories, gymnasiums, and other industrial or commercial spaces where high ceilings and high light output are required.

Specifications

Model:	AJHB173D12LED120G
Diameter:	173.0mm+71.4mm
Height:	5.35mm
Angle:	120°
Material：	PC
Transmittance：	>88%
LED Applications	"3535""5050" LED
Lighting applications	High Bay Lighting

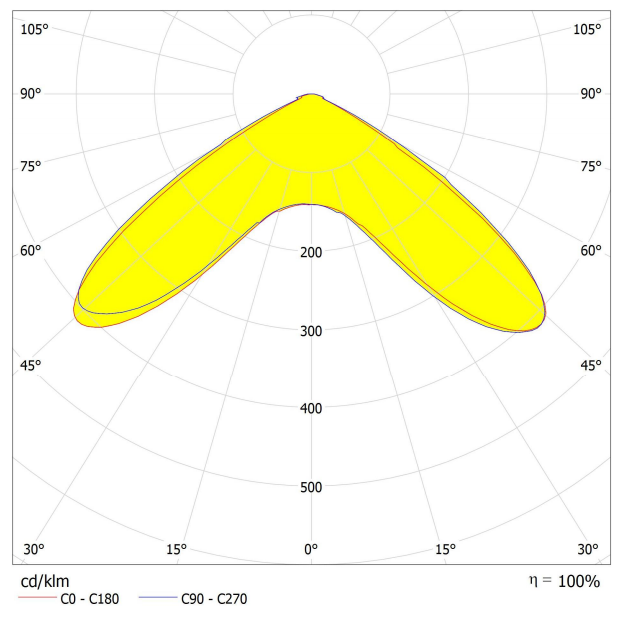

Light Distribution Curve

Asahi Opitcs AJHB173D12LED120G Distribution Curve.

LED LENS Maintenance Instruction

1) If necessary, clean lenses with mild soap, water, and softening cloth.
2) Never use any industrial solvent to clean lens, such as cleaning Solvent, Alcohol Sulfuric acid, Ammonia, Urea, Mineral oil, Petrol
3) The lens operating Temperature range -40°to+120°C
4) Alternatively the following environment is recommended: Storage temperature: -40°C to +70°C, Humidity:30% to 95% HR mar.
5) The lens has concentrated function, and it’s made from transparent material, The functions will be affected once they were polluted, so please do not open the packages until you use them, in case of dust and other pollution.
6) Please handle or install lens with wearing gloves, skin oils may damage lens optical characteristic.
