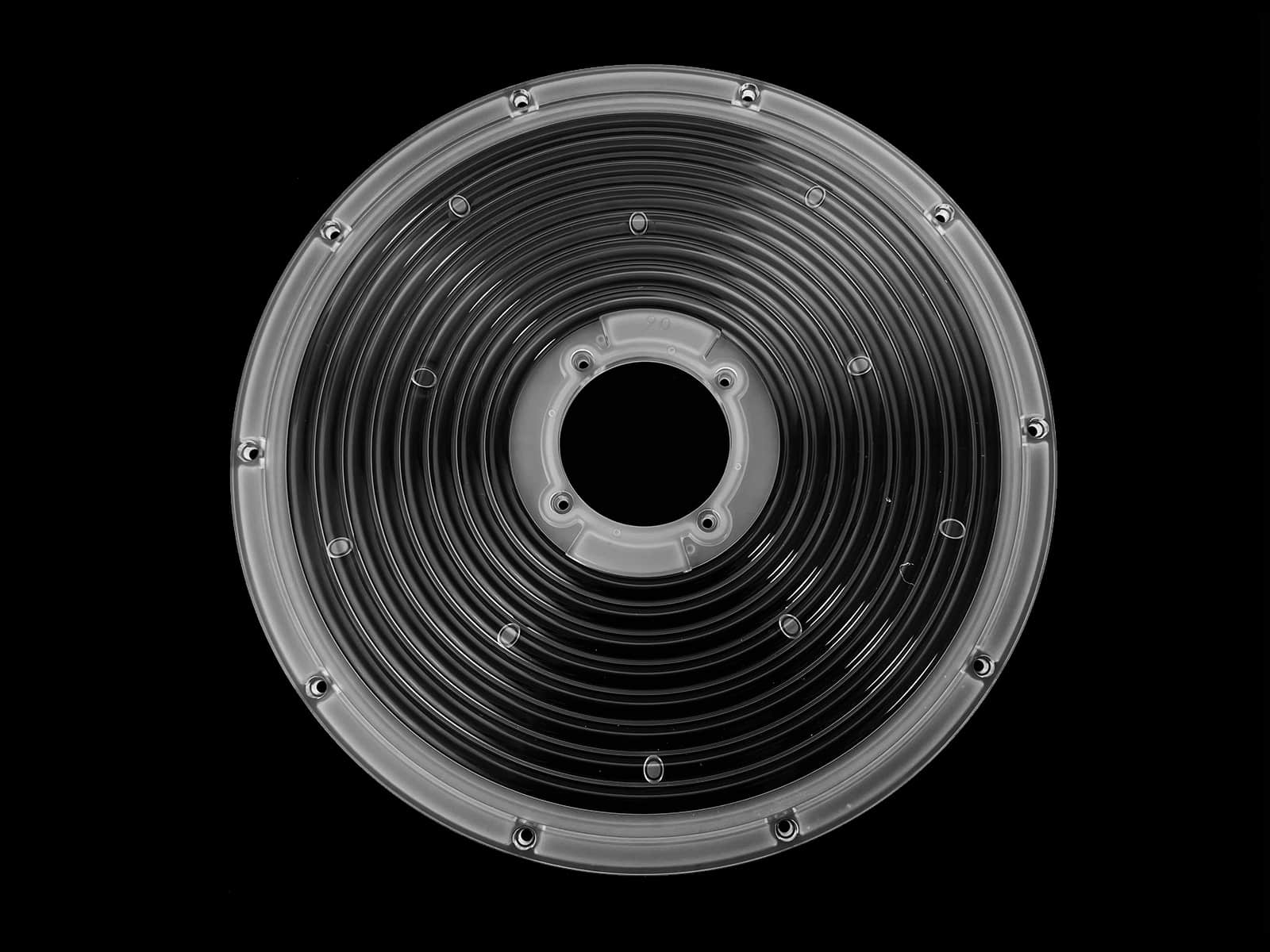

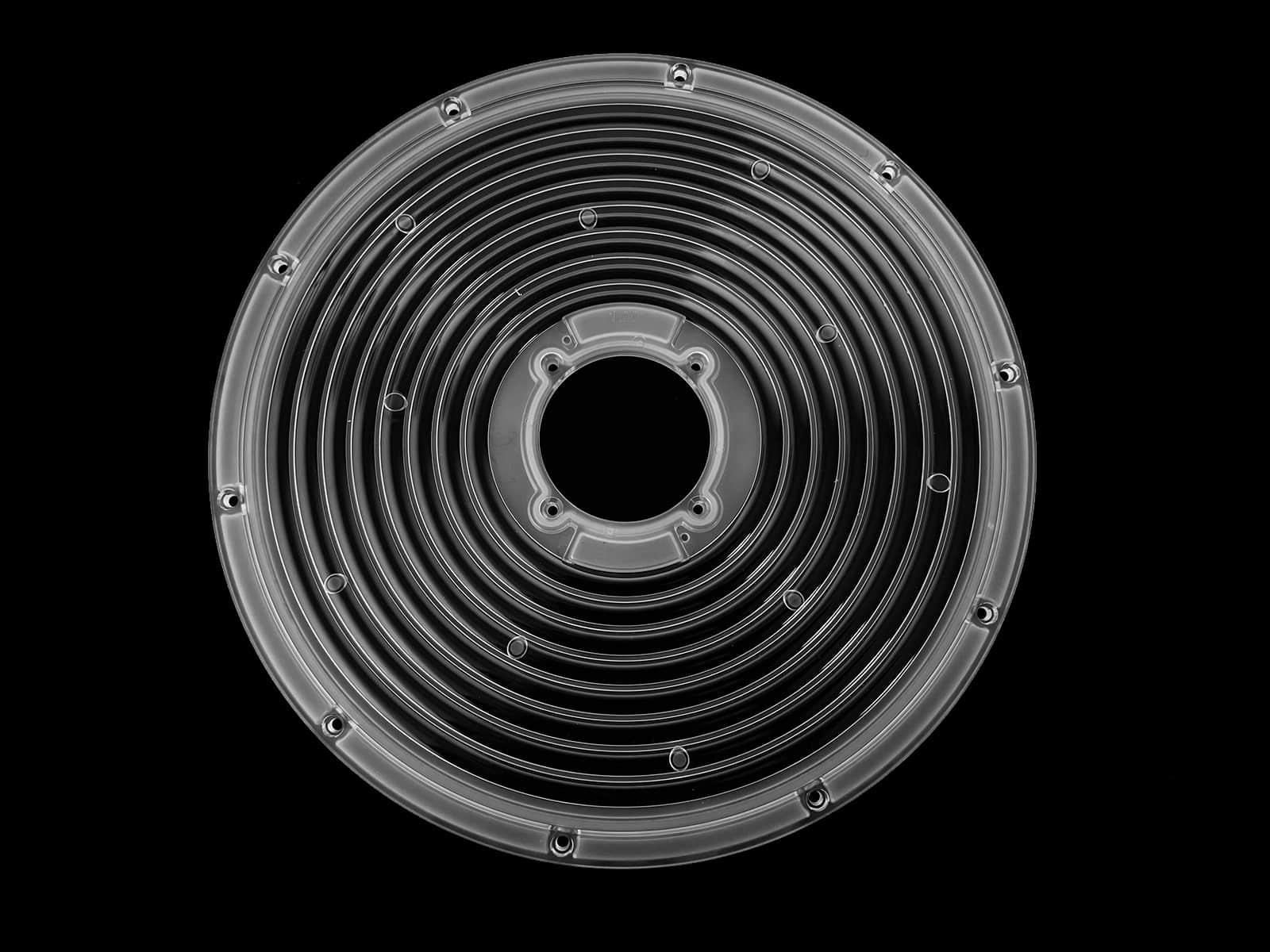

Model: UFO265D60G,90G,120G-200W-K56
Diameter: 265mm
Height: 7.69mm
Angle: 60°,90°,120°
Material: PC-1250Z TEIJIN
Transmittance: >88%
LED Type: 2835/ 3030LED

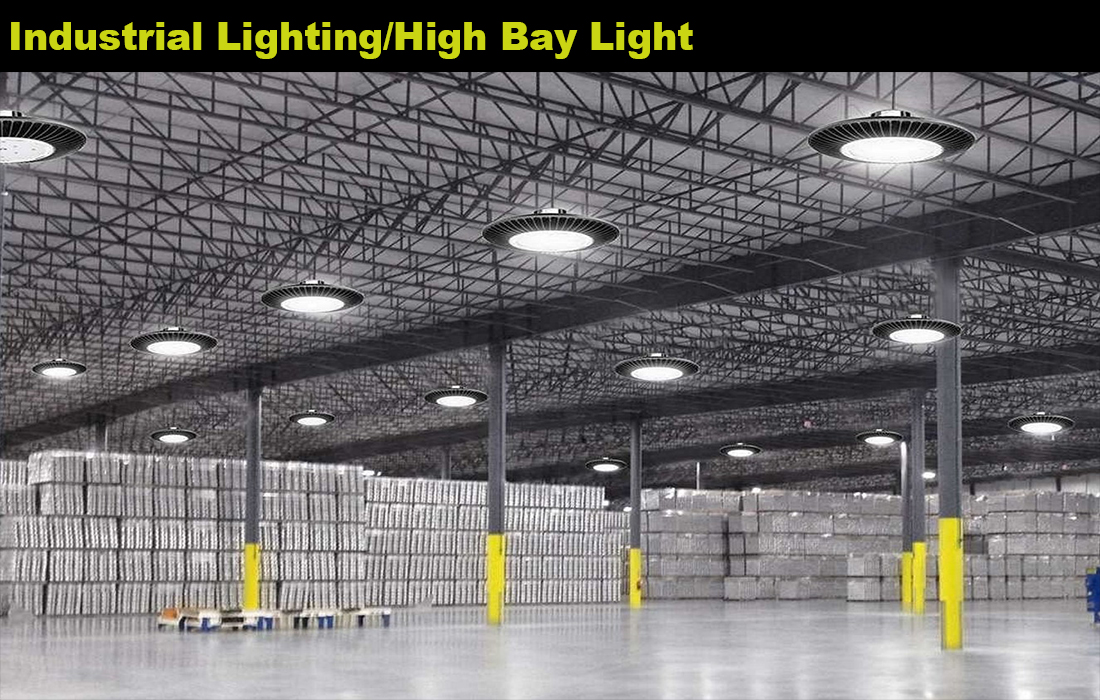

Lighting Applications: High Bay Lighting, Area Lighting
1.The 265mm diameter is one of the most popular sizes among our UFO high bay light lens.
2.Extremely applicability: 265mm UFO lenses apply to many different lighting application scenarios. Its size may be large enough to meet extensive lighting needs, including indoor and outdoor lighting, such as commercial buildings, industrial areas, parking lots, stadiums, etc.
3.With an IP66 waterproof rating, can be used in harsh environments

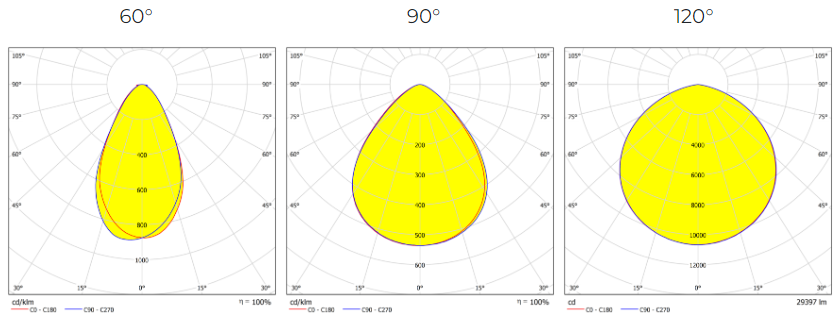

Distribution
Specifications
| Model: | UFO265D60G,90G,120G-200W-K56 |
| Diameter: | 265mm |
| Height: | 7.69mm |
| Angle: | 60°,90°,120° |
| Material： | PC-1250Z TEIJIN |
| Transmittance： | 88% |
| LED Applications | 2835/ 3030LED |
| Lighting applications | High Bay Lighting, Area Lighting |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
ASAHI OPTICS UFO265D60G,90G,120g-200W-K56 lens 3D drawing.STP

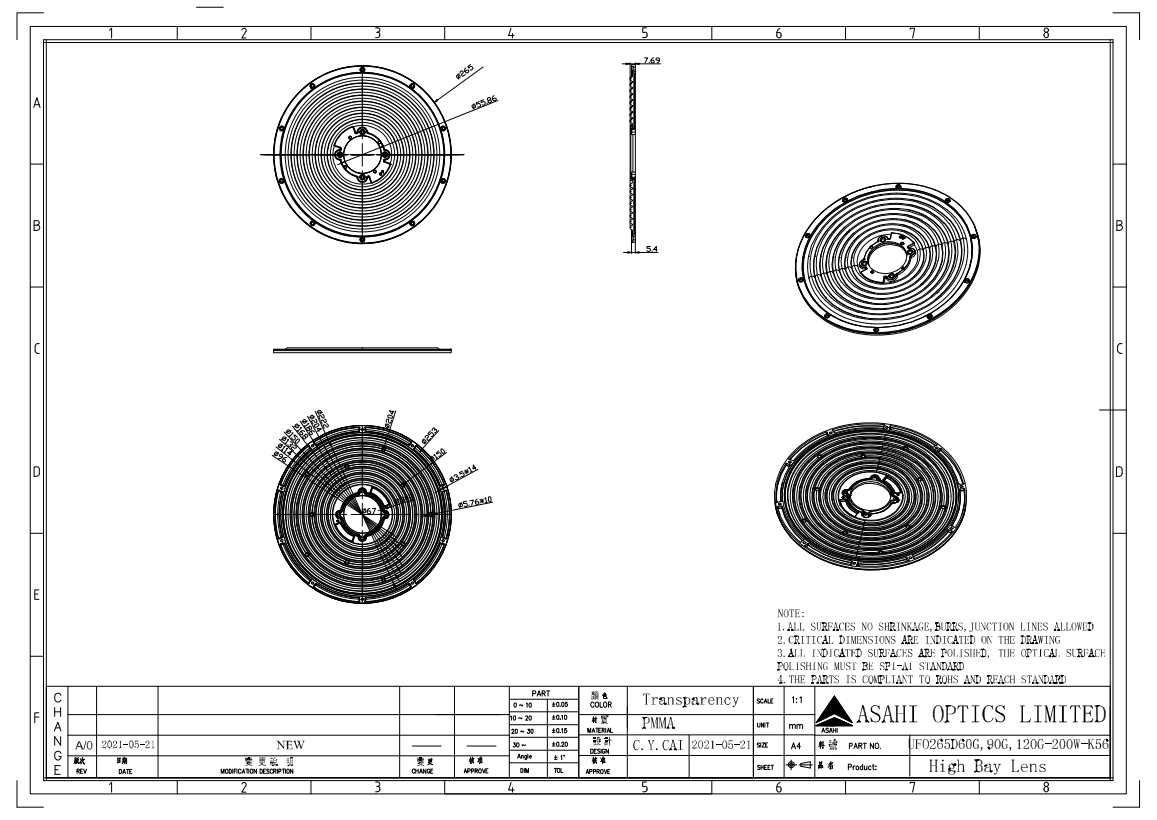

ASAHI OPTICS UFO265D60G,90G,120G-200W-K56 Drawing.dwg
