Model: ASL560D43H48LEDDA25G
Diameter: 560mm
Height: 43mm
Angle: Double Asymmetric 25°
Material: PMMA
Transmittance: >93%
LED Type: 2835/3030LED
Lighting Applications: Linear Lighting, Office Lighting
1. This lens is specifically designed to be compatible with linear lighting devices that can accommodate 48 LEDs. Its design matches the spacing and arrangement of LEDs to achieve optimal light distribution and performance.

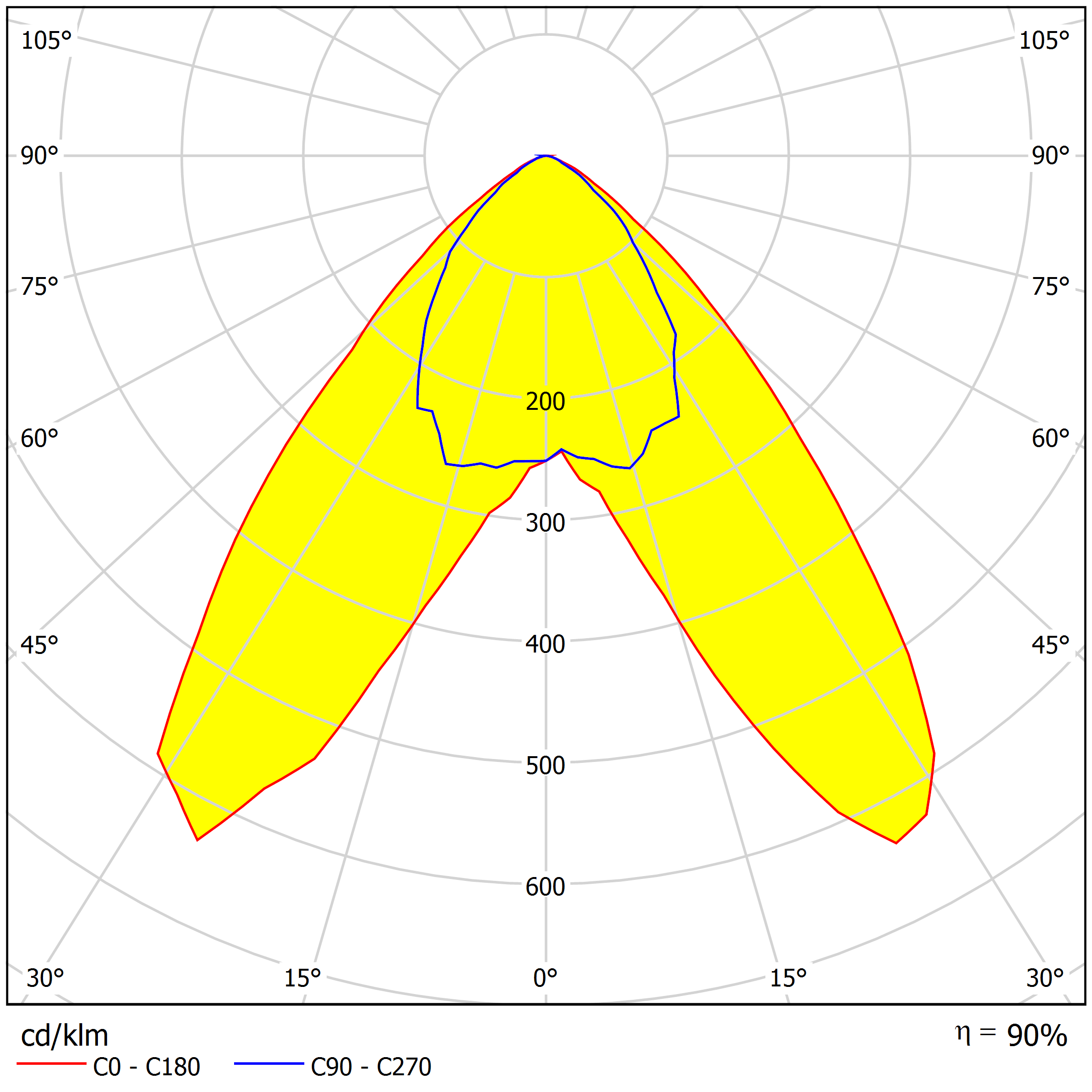

2. The lens provides a double symmetrical beam angle of 25 degrees for 560mm. To ensure the direction and propagation of light, this type of lens is typically used to guide light in a specific direction or produce a specific lighting effect.
Distribution
Specifications
| Model: | ASL560D43H48LEDDA25G |
| Diameter: | 560mm |
| Height: | 43mm |
| Angle: | Double Asymmetric 25° |
| Material： | PMMA |
| Transmittance： | 93% |
| LED Applications | 2835/3030LED |
| Lighting applications | Linear Lighting, Office Lighting |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
