Model: ALS20D1045G
Diameter: 20.7mm
Height: 11mm
Angle: 10°X45°
Material: PMMA
Transmittance: >93%
LED Type: 3535LED
Lighting Applications: Flash Light
1.The zoom lens is designed for LED display light, jewelry display cases,torches.
2.The zoom lens is adjustable beam angle from 10 °to 45 ° step-less

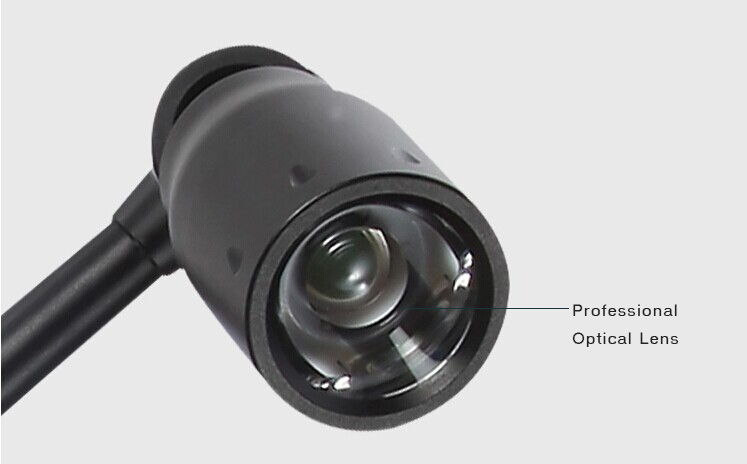

3.Use the lens fix into the spot light housing , Pull and push the head of light, adjust the beam angle from 10~45°
Use this light in glass display showcases and jewelry showcase is perfect.

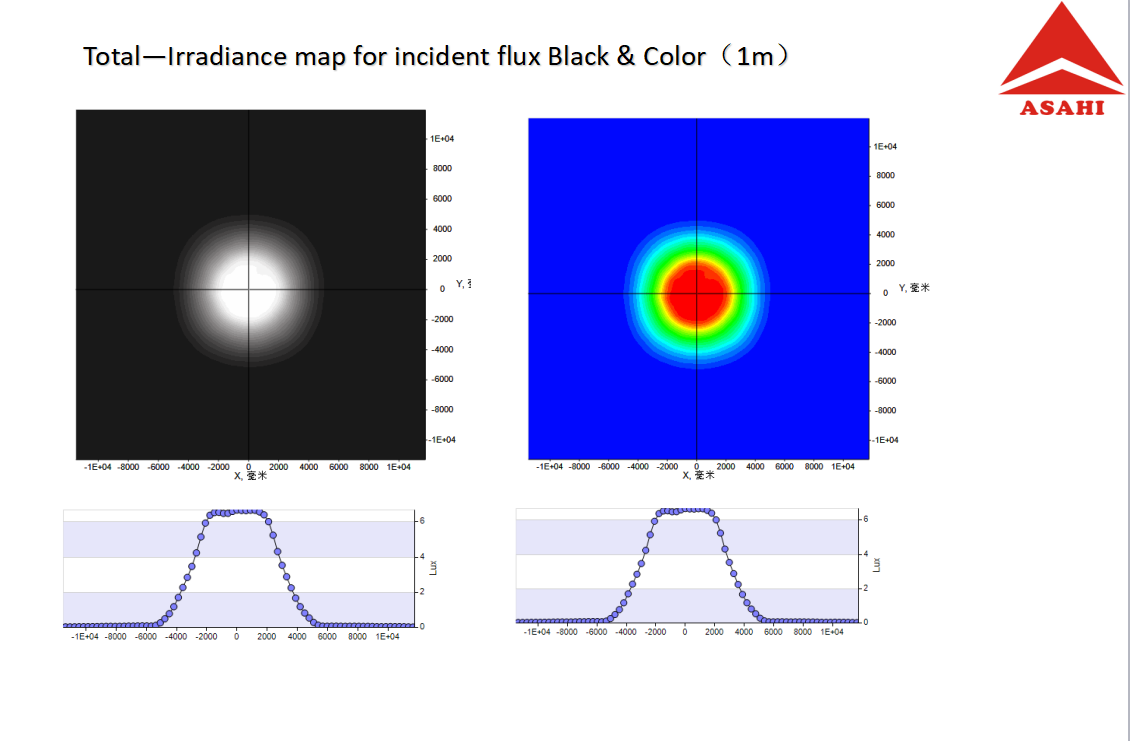

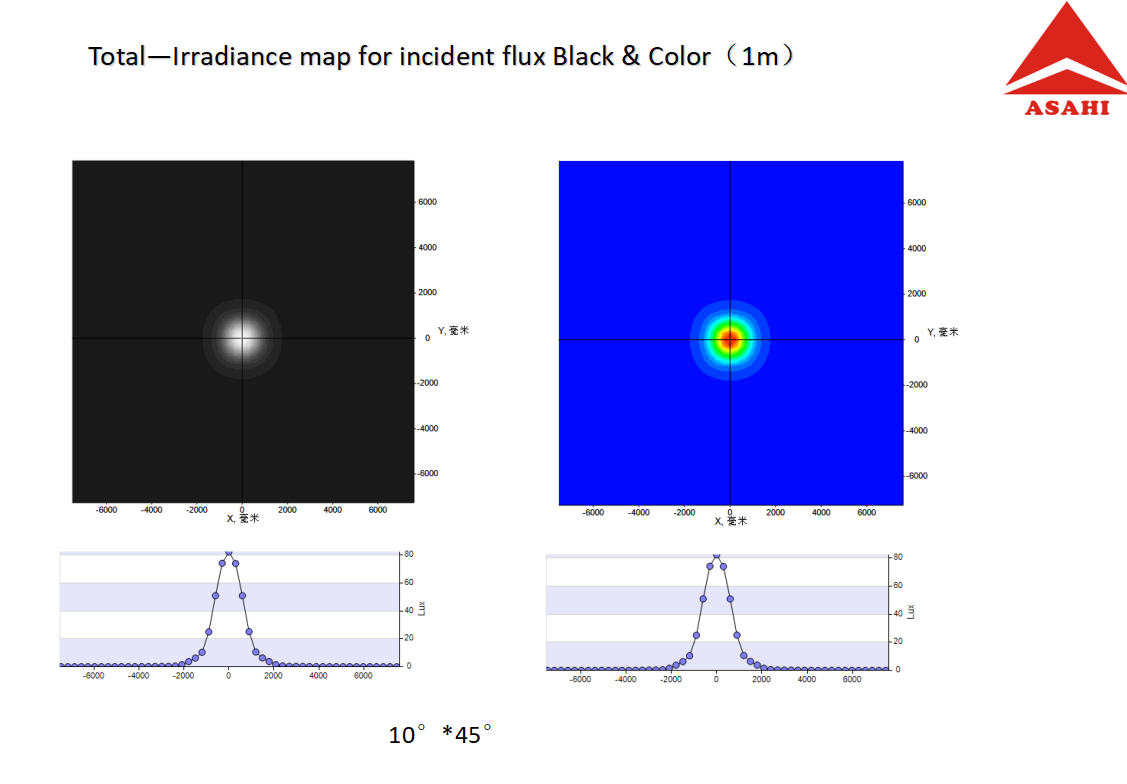

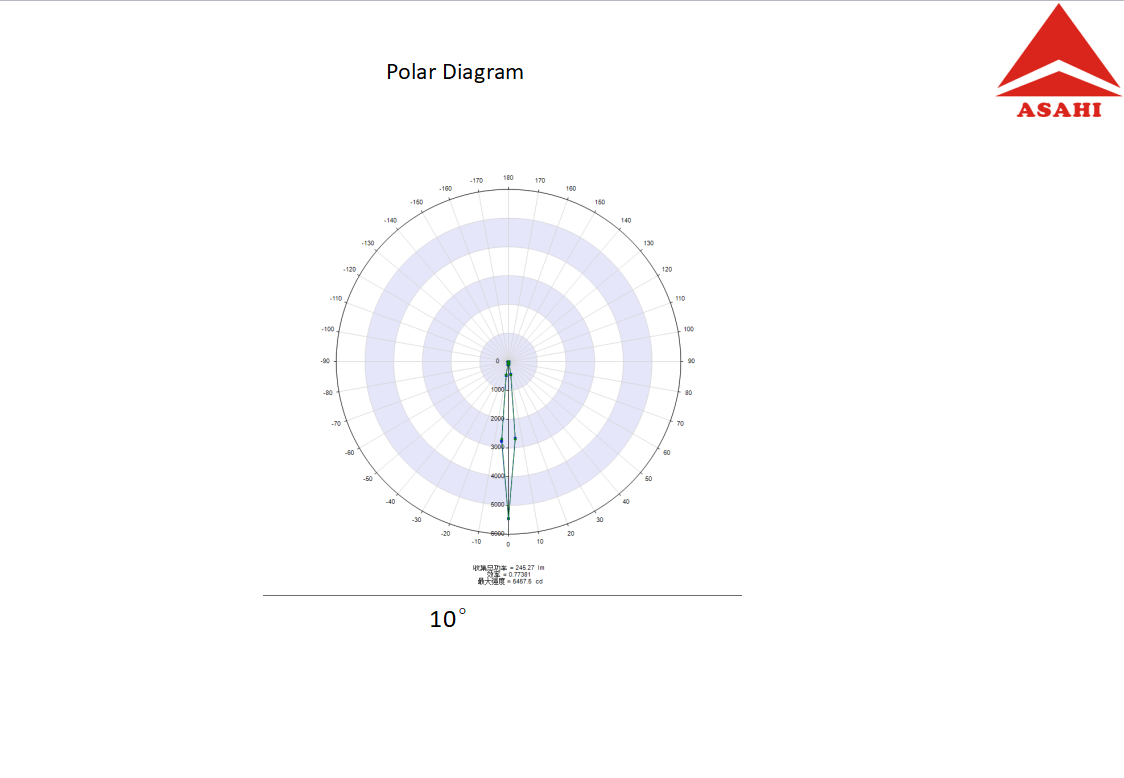

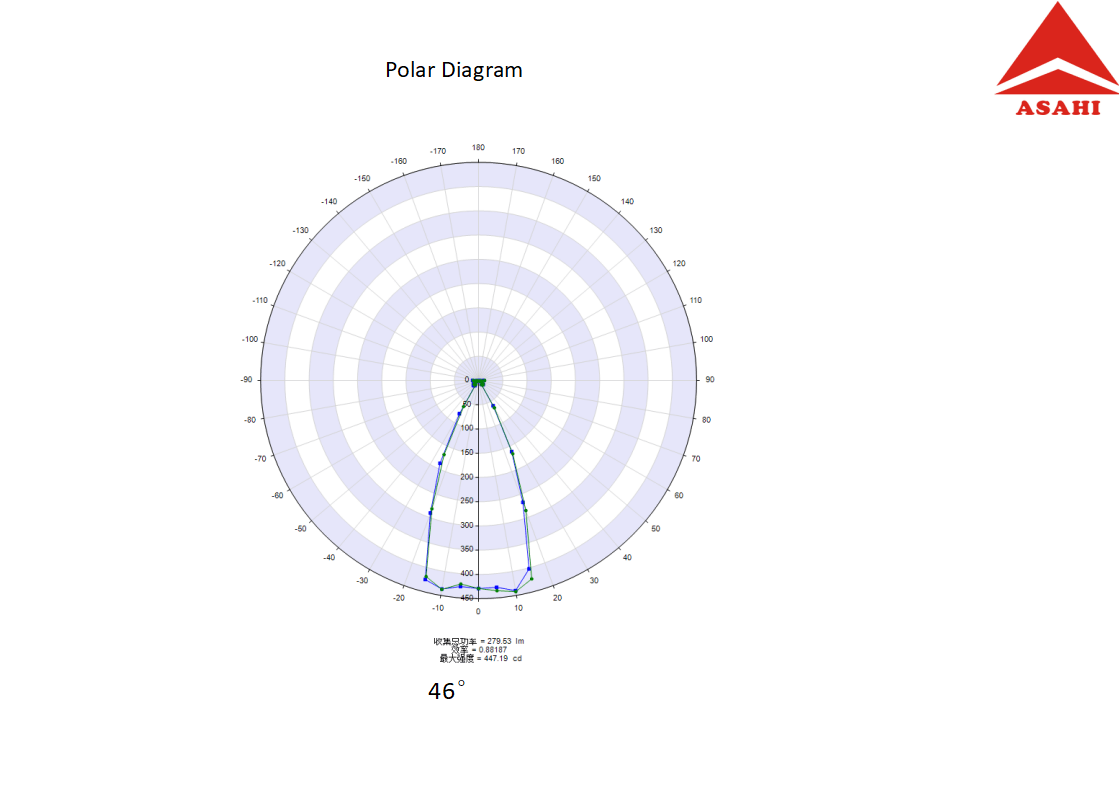

Distribution
Specifications
| Model: | ALS20D1045G |
| Diameter: | 20.7mm |
| Height: | 11mm |
| Angle: | 10X45° |
| Material： | PMMA |
| Transmittance： | >93% |
| LED Applications | 3535LED |
| Lighting applications | Flash Light |
LED Type
XPE
XPE2
XP-G2
XP-G3
OSLON SSL80
SQUARE
LUXEON HL4Z
NVSW219GL
PK2E-2LVE-B2R8N
PK2N-4LVE-SBVR8
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
The zoom lens is designed for led display light , it is zoomable for lighted jewelry display cases
The zoom lens is adjustable beam angle from 10 °to 45 ° step-less
Use the lens fix into the spot light housing , Pull and push the head of light, adjust the beam angle from 10~45°
Use this light in glass display showcases and jewelry showcase is perfect.
