Model: AZHB50D8LEDT60G
Diameter: 50x50mm
Height:
Angle: 60°
Material: PMMA
Transmittance: 93%
LED Type: 5050LED

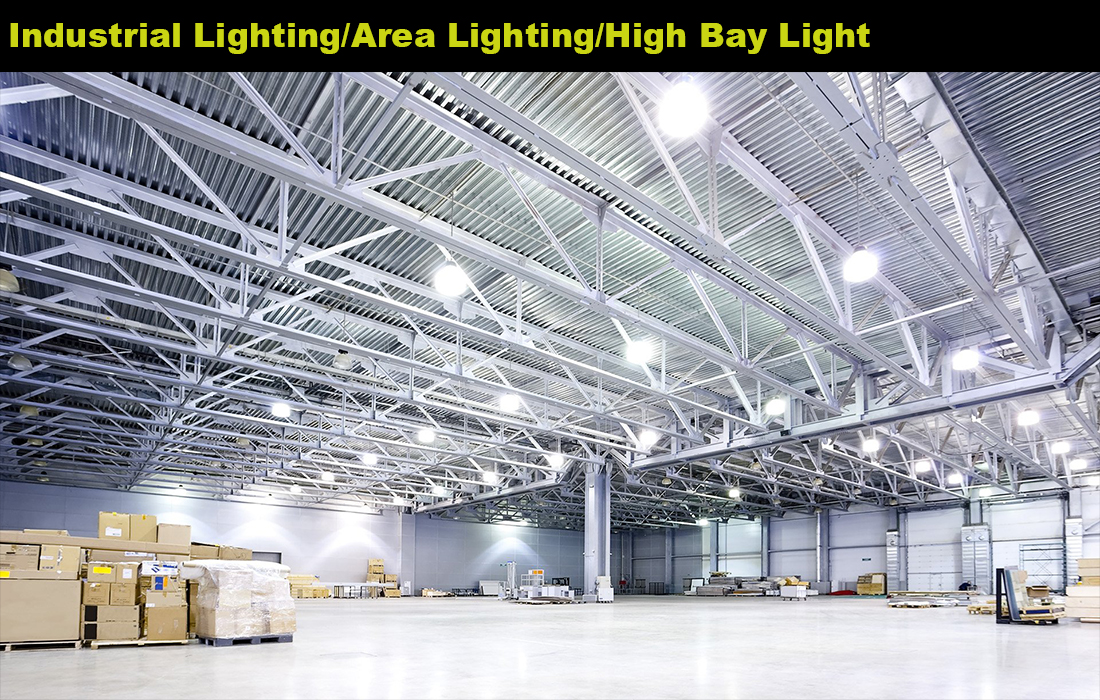

Lighting Applications: High bay lighting
1. Standard 2x4 lens layout designed by 5050LED with high lighting efficiency.
2. Standard 50mm 2x4 lens with beam angle 60° designed for area lighting.

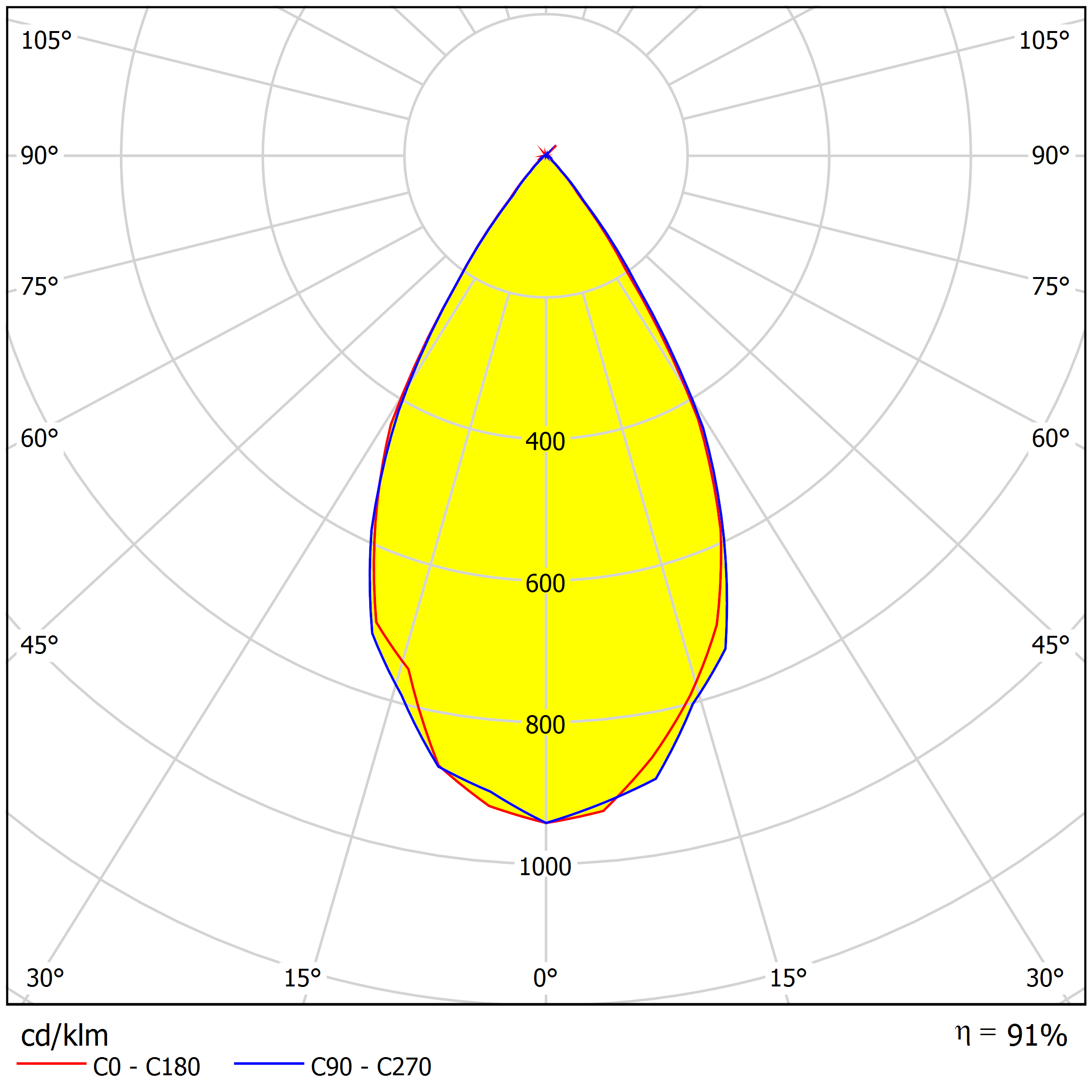

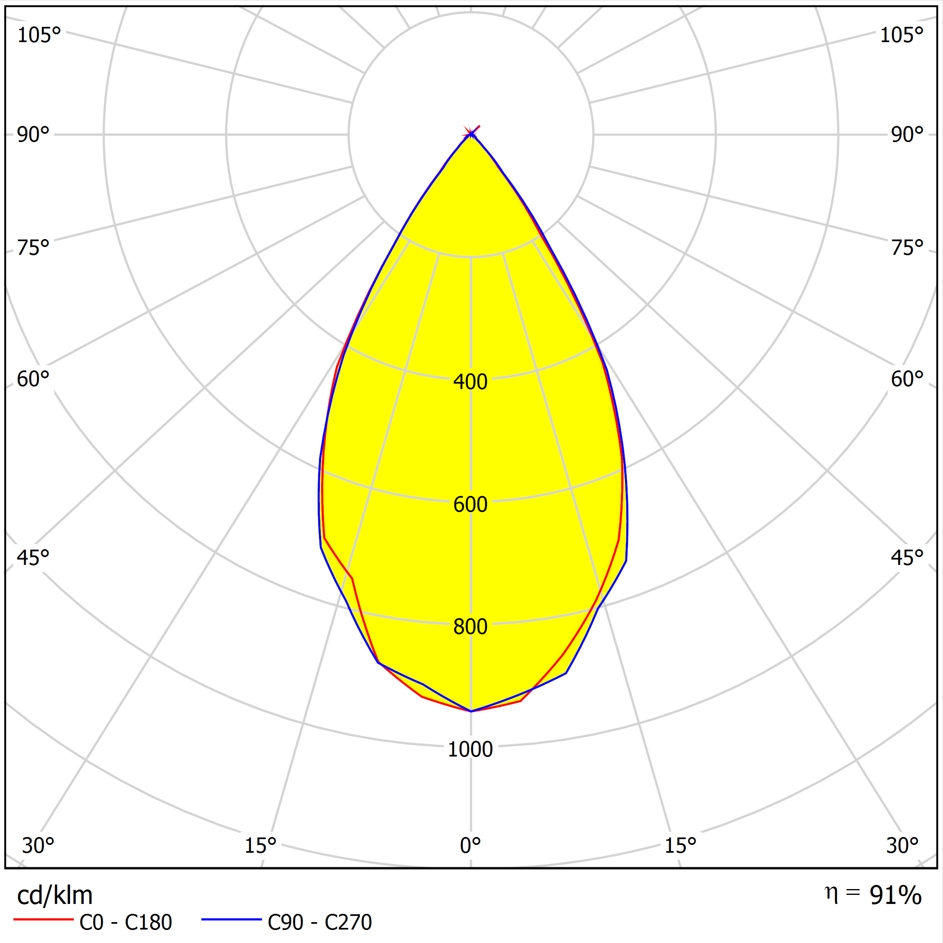

Distribution
Specifications
javascript:void(0)| Model: | AZHB50D8LEDT60G |
| Diameter: | 50x50mm |
| Height: | |
| Angle: | 60° |
| Material： | PMMA |
| Transmittance： | ＞93% |
| LED Type | 5050LED |
| Lighting applications | High bay lighting |
LED Type
JR5005C 6-V E
DURIS S 8
LUXEON 5050 Square
NVAW144AR
NVAW144AM
Xl5050LED
EMC5050LED
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
1. The 2x4 lens, coupled with the 60° medium beam angle, provides versatile lighting distribution suitable for a range of applications, offering balanced coverage for flood lighting, high bay lighting, and stadium lighting.
2. It is made of high-quality PC material, ensuring exceptional optical performance and durability.

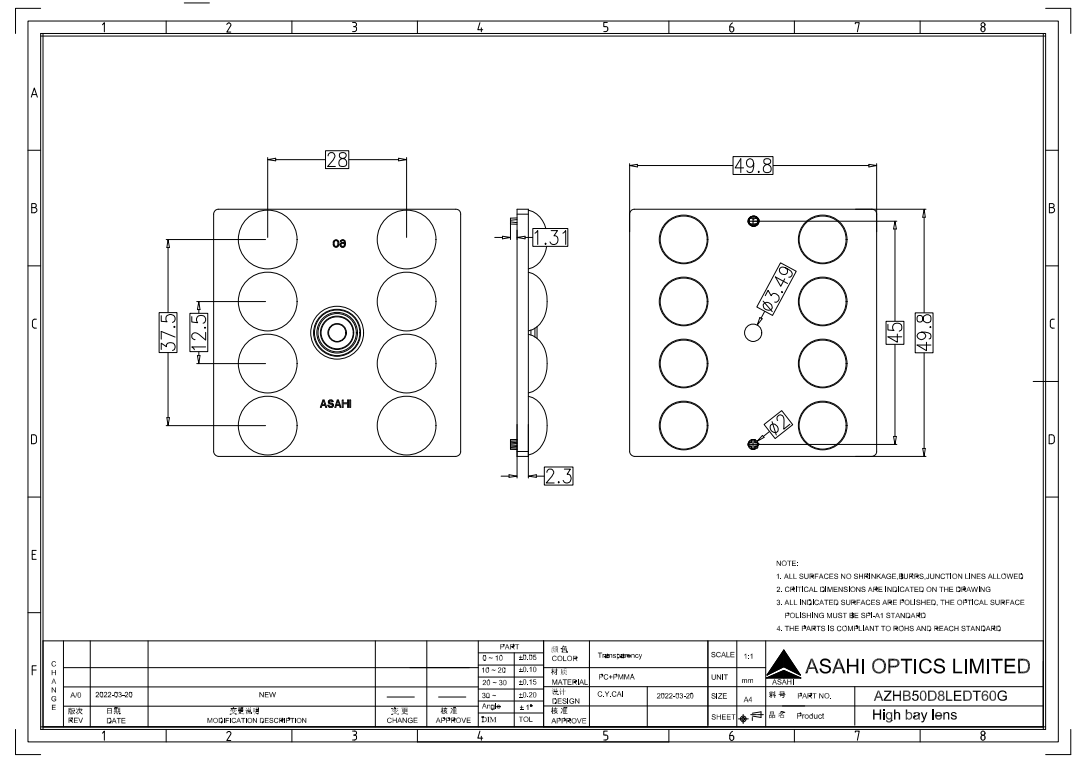

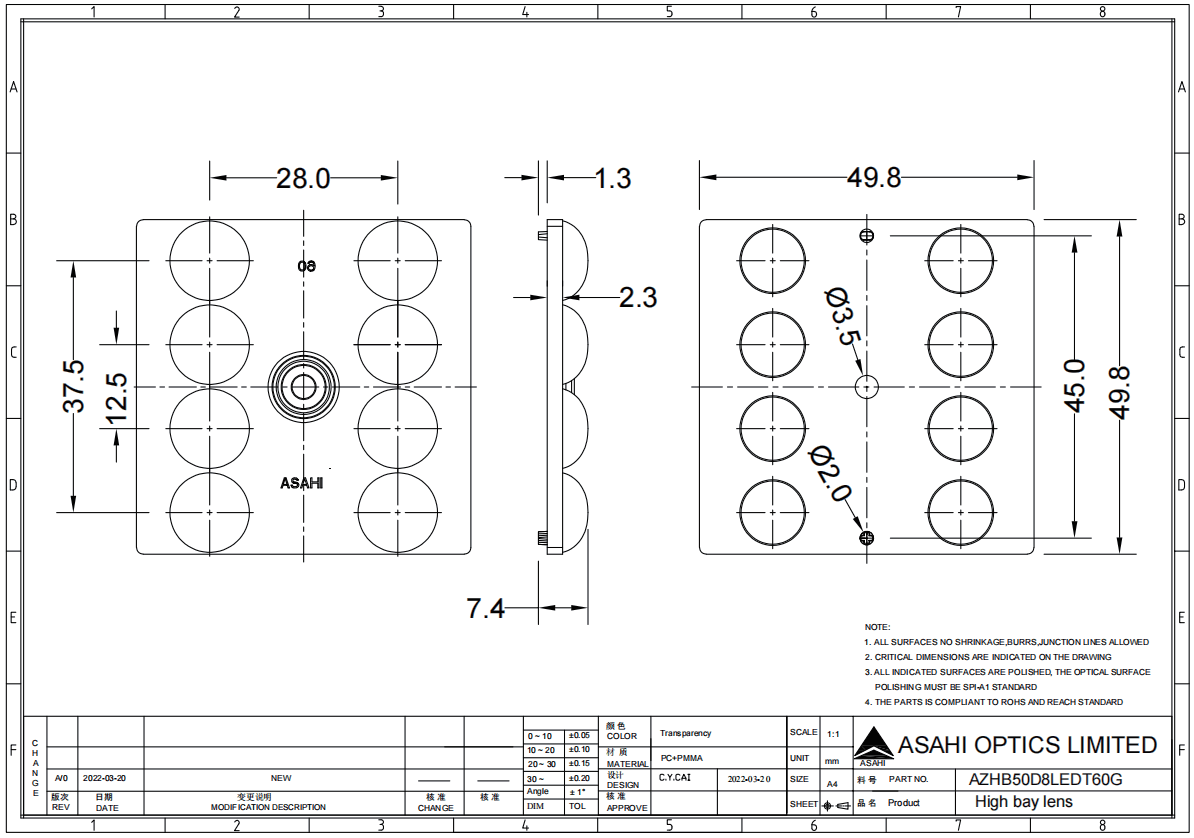

Asahi Optics AZHB50D8LEDT60G Drawing.dwg
Asahi Optics AZHB50D8LEDT60G Drawing.pdf
Asahi Optics AZHB50D8LEDT60G.ies
Asahi Optics AZHB50D8LEDT60G 3Drawing.stp
