Model: ATVH57-64-46W
Diameter: 15.65mm
Height: 5.9mm
Angle: 160°
Material: PMMA
Transmittance: >93%
LED Type: 2835/ 3030LED
Lighting Applications: AD Board, Light Bar

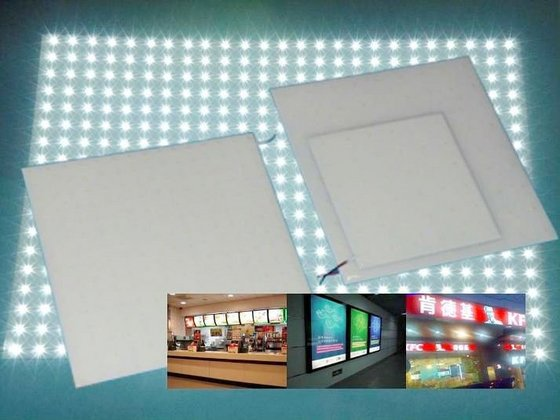

1. TV back light lens is a specialized lens that is placed behind the LED lights to diffuse and evenly distribute the light across the screen surface.It can be used for AD light box or light bar.
2. The TV lens helps to create a more uniform and visually appealing backlighting effect, enhancing the overall viewing experience.
3. The lens is typically made of high-quality PMMA materials that are designed to withstand heat and provide long-lasting performance.
Distribution
Specifications
| Model: | ATVH57-64-46W |
| Diameter: | 15.65mm |
| Height: | 5.9mm |
| Angle: | 160° |
| Material： | PMMA |
| Transmittance： | >93% |
| LED Applications | 2835/ 3030LED |
| Lighting applications | AD Board, Light Bar |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
