2x2 lens Type II medium compabtible with 7070LEDs

Model: AJST50D4LED7070T2M

Diameter: 50x50mm

Height: 4.2mm

Angle: Type II

Material: PC

Transmittance: >93%

LED Type: 4x3030/5050/7070LED

Lighting Applications: Street lighting

1. The 2x2 lens T2M is specifically engineered for 7070 LEDs, providing a balanced and efficient light distribution for medium-range lighting.

2. Its advanced optical design ensures uniform illumination, making it ideal for applications such as streetlights, parking lots, and outdoor area lighting.

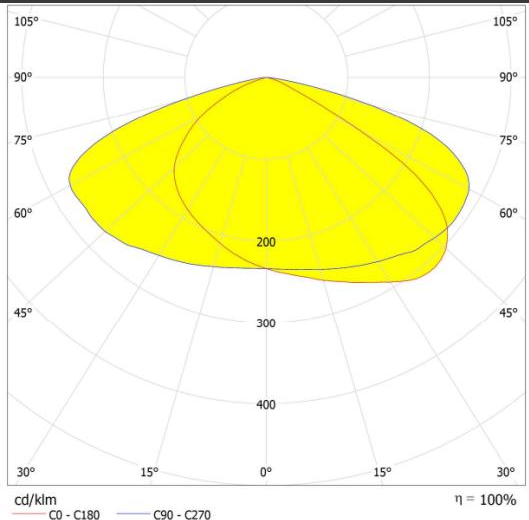

Distribution

Specifications

Model:	AJST50D4LED7070T2M
Diameter:	50x50mm
Height:	4.2mm
Angle:	Type II
Material：	PC
Transmittance：	＞93%
LED Type	4x3030/5050/7070LED
Lighting applications	Street Lighting

LED Type

JR5005C 6-V E

DURIS S 8

LUXEON 5050 Square

NVAW144AR

NVAW144AM

Xl5050LED

EMC5050LED

Packaging

---

Material Information

Lens Material

L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature

PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability

PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec

PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate

400nm ~ 900nm>90%

If necessary, Clean lenses with mild soap, water and soft cloth.

Never use any commercial cleaning solvents on lenses, like alcohol.

Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.

1. This series 2X2 lens can be compatible with high power “7070LED”.“5050LED”and “4X3030LED”

2. The design of the 2x2 Type II-Medium lens provides wide horizontal illumination, suitable for streetlight applications that require even light distribution on wider roads or squares.

ASAHI OPTICS AJHB50D4LED7070T2M.IES

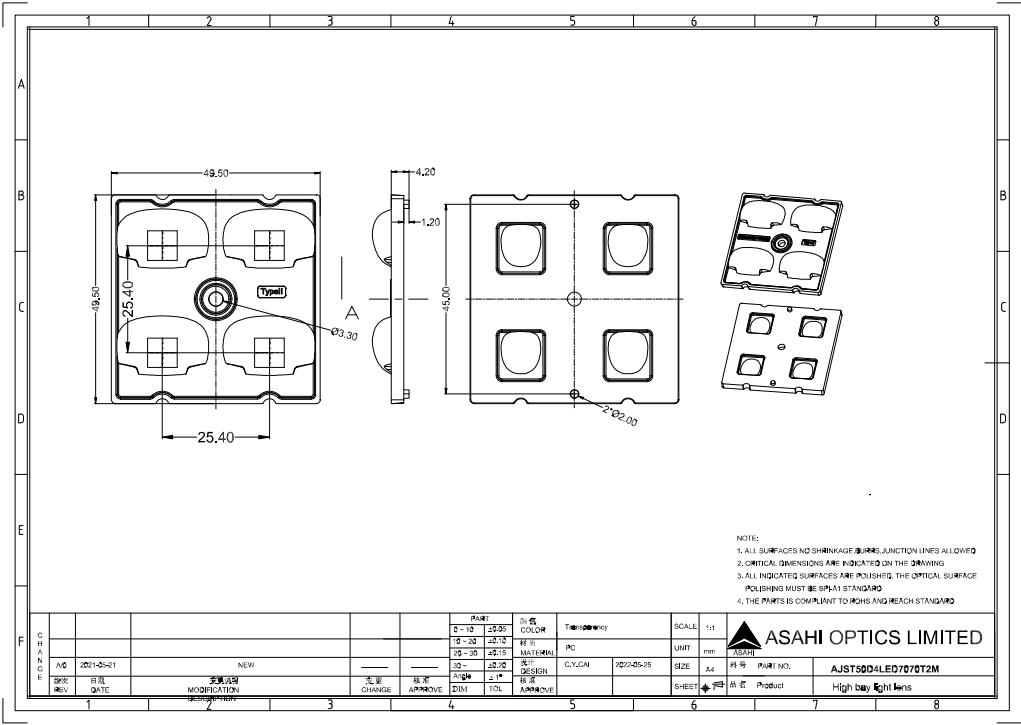

ASAHI OPTICS AJHB50D4LED7070T2M 2D drawing. dwg

ASAHI OPTICS AJHB50D4LED7070T2M 2D drawing.PDF
