Model: ALHB50D16LED90G
Diameter: 50x50mm
Height: 2.8mm
Angle: 90°
Material: PC-1250Z TEIJIN
Transmittance: >90%
LED Type: 3030LED
Lighting Applications: Architecture lighting,High Bay lighting,Stadium lighting

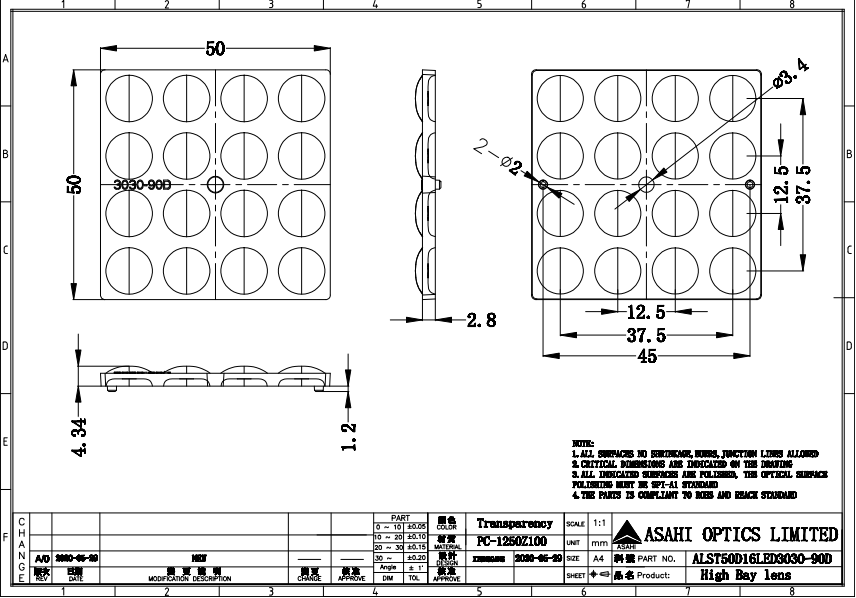

1. This is our ALHB series, which differs from the ALD series in that its LED pitch is 12.5mm. Pls refer to our drawings for details.

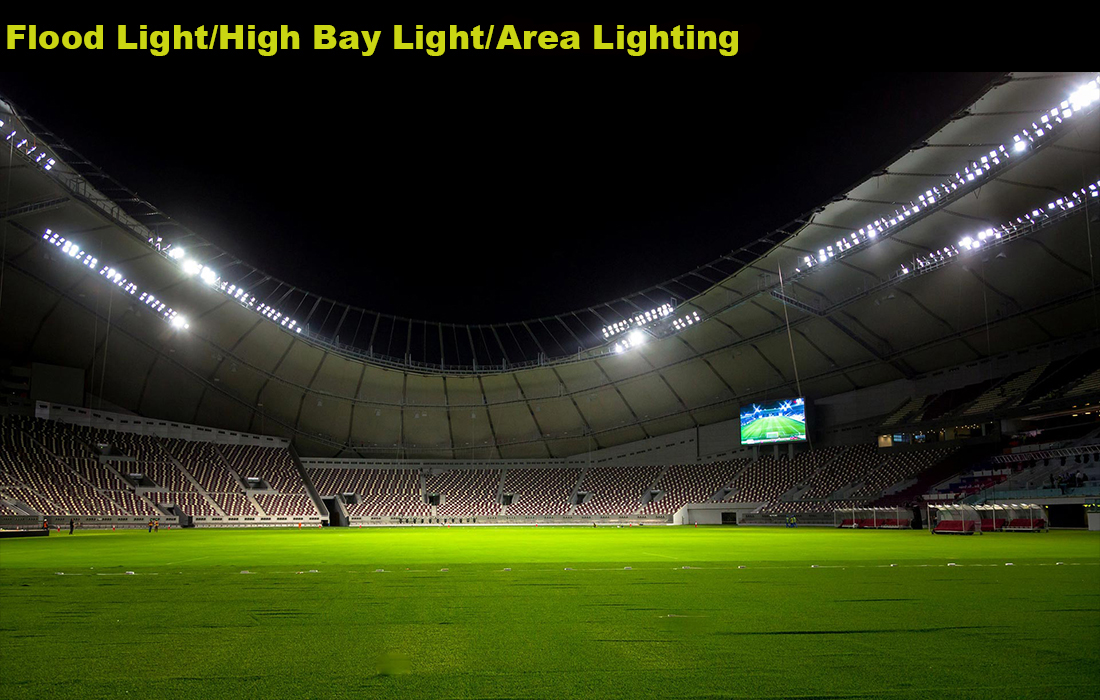

2. For 3030LED light source, with a 90-degree beam angle, and is used for high bay lighting needs, such as warehouses, factories, stadiums, etc.
3. The design of the lens array can provide a larger illumination area and disperse the light evenly in the target area.

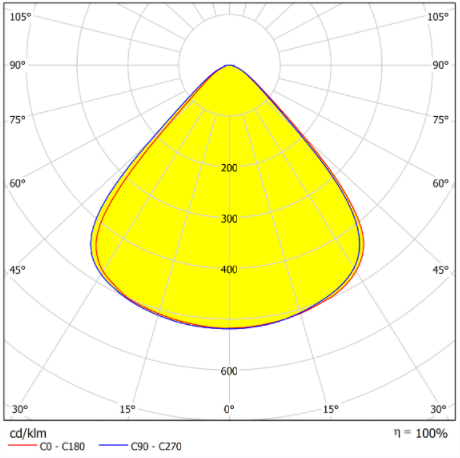

Distribution
Specifications
| Model: | ALHB50D16LED90G |
| Diameter: | 50x50mm |
| Height: | 2.8mm |
| Angle: | 90° |
| Material： | PC-1250Z TEIJIN |
| Transmittance： | >90% |
| LED Applications | 3030LED |
| Lighting applications | High Bay lighting, |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
ASAHI OPTICS ALHB50D16LED90G Drawing.pdf
ASAHI OPTICS ALHB50D16LED90G Test Report.pdf
ASAHI OPTICS ALHB50D16LED90G lens IES.ies
