Model: AGCOB3412D40G
Diameter: 34.4mm
Height: 12.2mm
Angle: 40°
Material: PMMA
Transmittance: 90%
LED Type: COB LED
Lighting Applications: PAR lighting,Spot Light,Down Light
1, COB lenses can be designed to produce a narrow spot, medium flood, or wide flood beam, depending on the desired application.
2, COB lenses can help create a smooth and uniform beam by reducing hotspots or uneven light distribution.
3, COB lenses are available in various beam angles, ranging from narrow spotlights to wide floods. The beam angle determines the spread of light emitted from the COB LED. By selecting the appropriate beam angle, the lighting designer can control the direction and coverage of the light to suit the application requirements in industrial settings.

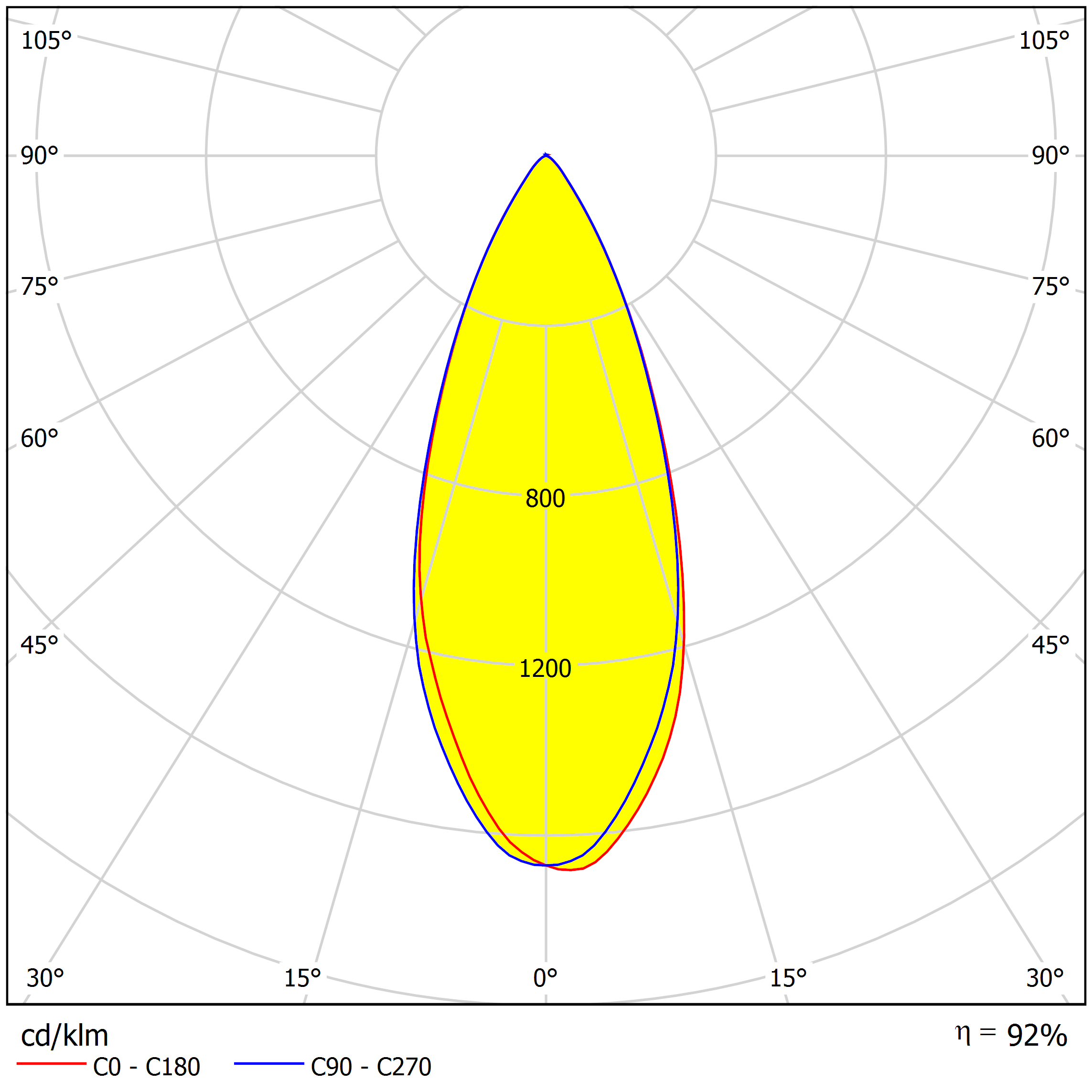

Distribution
Specifications
| Model: | AGCOB3412D40G |
| Diameter: | 34.4mm |
| Height: | 12.2mm |
| Angle: | 40° |
| Material： | PMMA |
| Transmittance： | >93% |
| LED Applications | COB LED |
| Lighting applications | PAR lighting, Spot Light, Down Light |

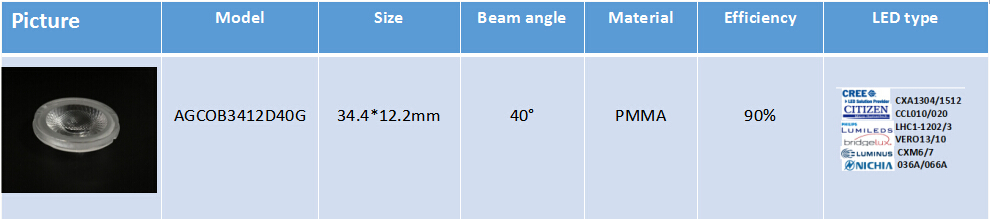

LED Type
CXA1304/1512
CCL010/020
LHC1-1202/3
036A
066A
CXM6/7
VERO13/10
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
