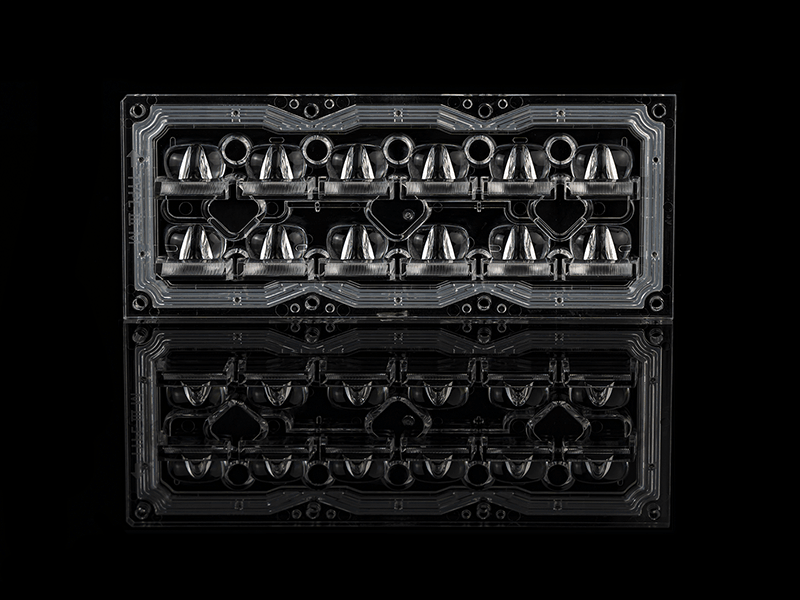

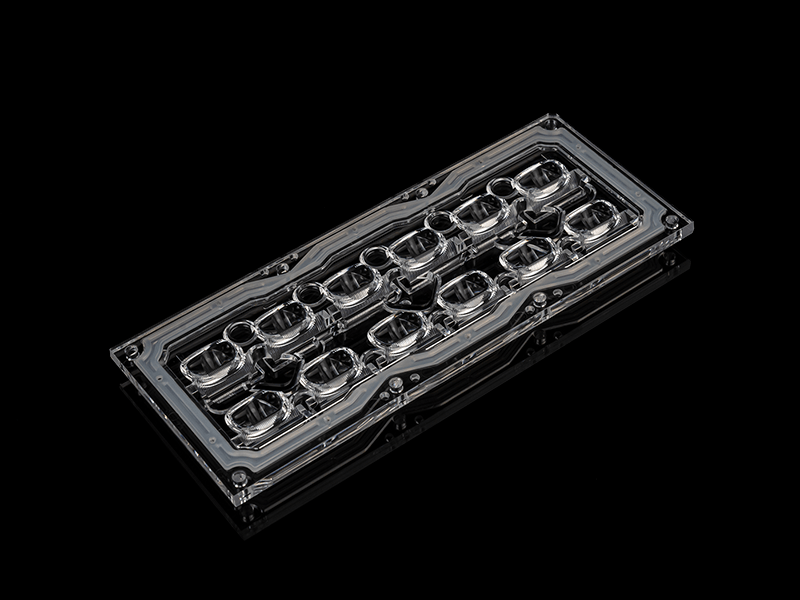

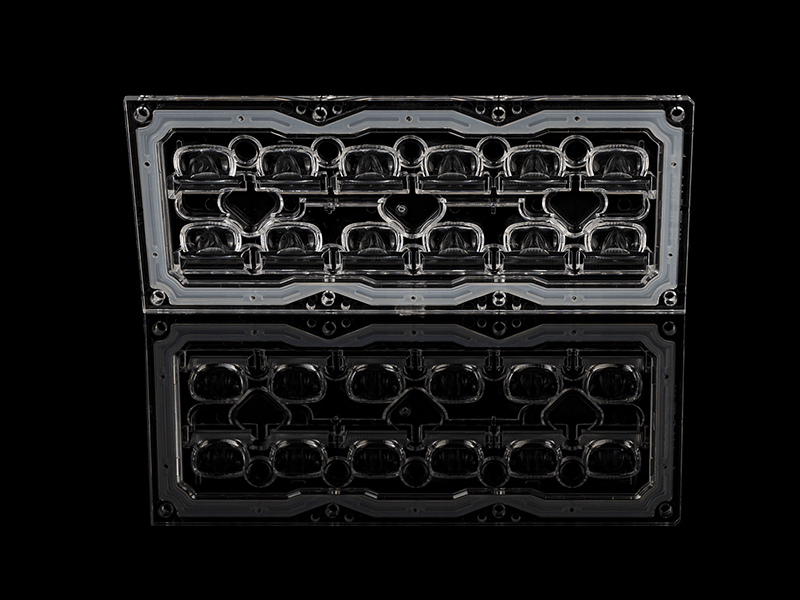

173mm 2x6 Area Illumination Optics 5050LED TYPEⅢ Medium

173mm 2x6 Area Illumination Optics 5050LED TYPEⅢ Medium

Model: ALD173D12LEDT3M

Diameter: 173.0mm+71.4mm

Height: 10.85mm

Angle: T3M Asymmetric

Material: PC

Transmittance: >90%

LED Type: "3535"l"5050" LED

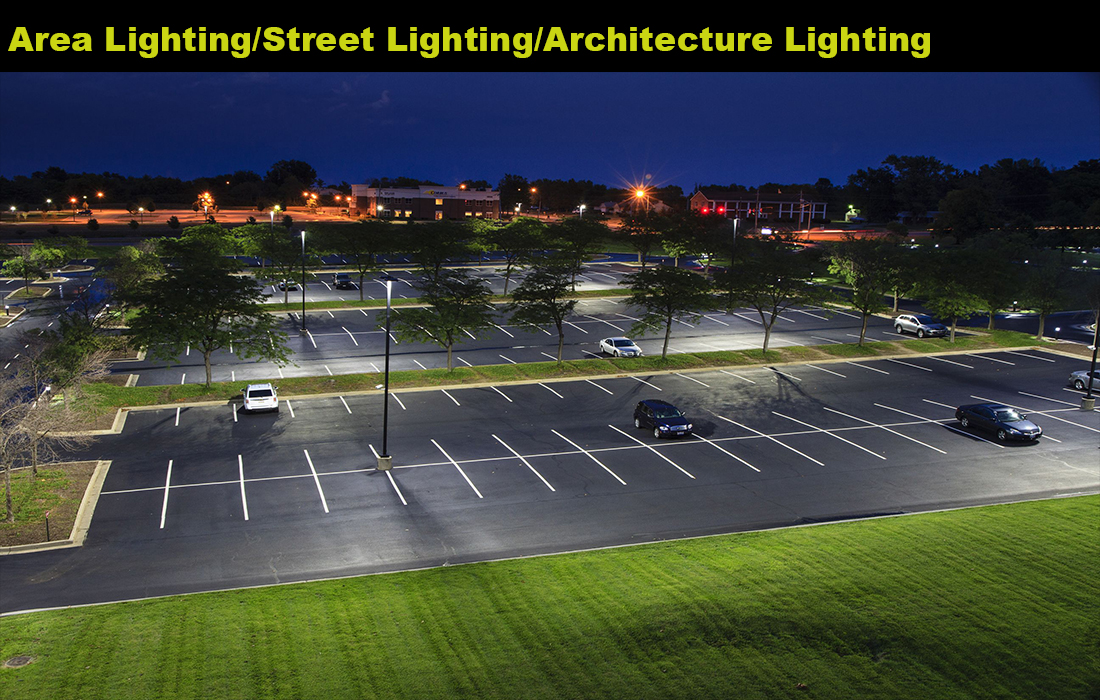

Lighting Applications: Street lighting, Architecture lighting,High Bay lighting

1. 2x6-TypeIII-Medium lens suitable for various outdoor lighting applications, including street lighting, parking lots, highways, and residential areas.

2. The design of the 2x6 Type III-Medium lens provides wide horizontal illumination, suitable for streetlight applications that require even light distribution on wider roads or squares,ensuring effective lighting coverage across the entire region.

3. Constructed from polycarbonate materials,offering durability and resistance to weather, UV radiation, and impact.

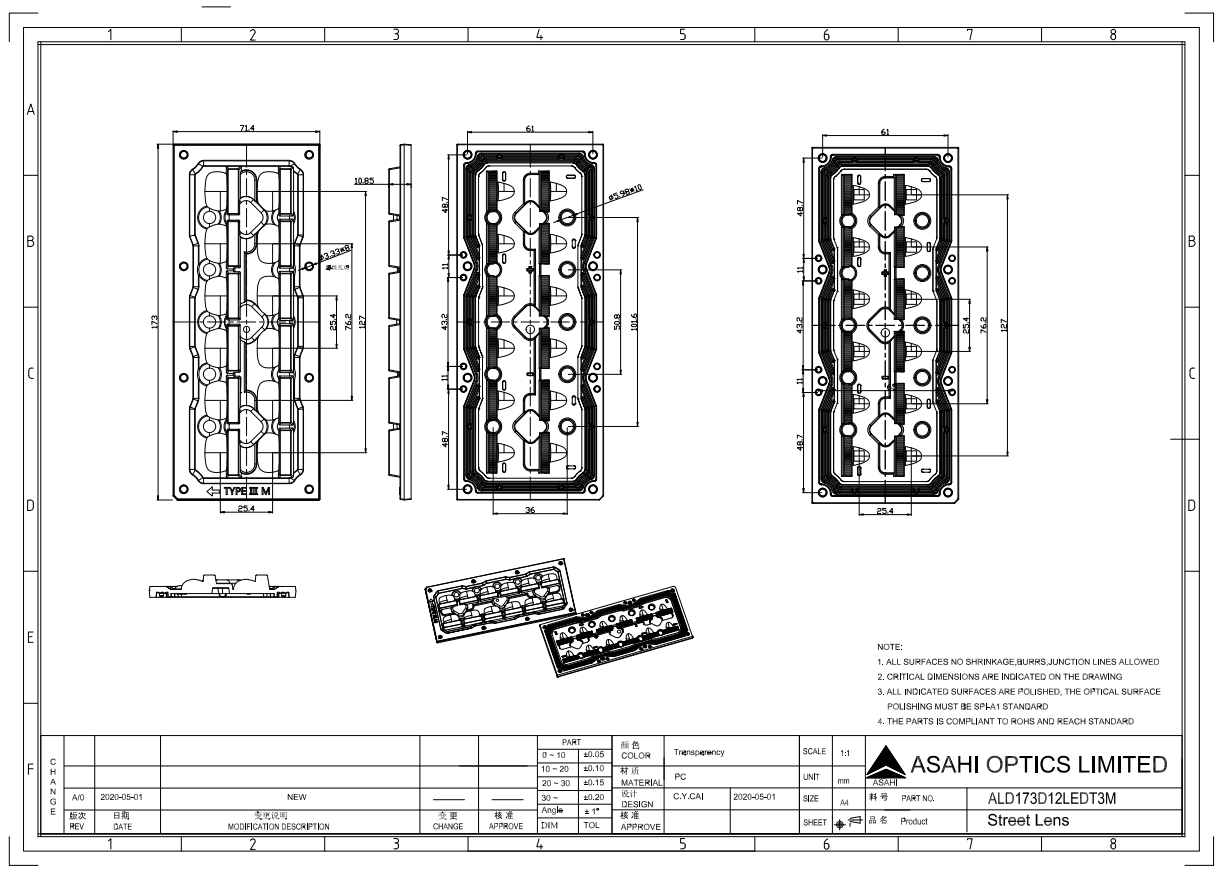

Specifications

Model:	ALD173D12LEDT3M
Diameter:	173*71.4mm
Height:	10.85mm
Angle:	TypeIII-Medium
Material：	PC
Transmittance：	>90%
LED Applications	"5050" LED
Lighting applications	Street lighting

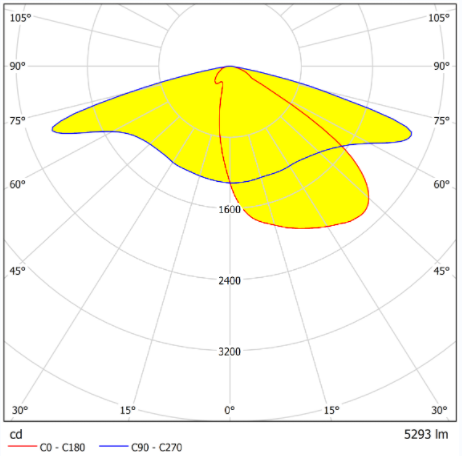

Light Distribution Curve

LED LENS Maintenance Instruction

1) If necessary, clean lenses with mild soap, water, and softening cloth.
2) Never use any industrial solvent to clean lens, such as cleaning Solvent, Alcohol Sulfuric acid, Ammonia, Urea, Mineral oil, Petrol
3) The lens operating Temperature range -40°to+120°C
4) Alternatively the following environment is recommended: Storage temperature: -40°C to +70°C, Humidity:30% to 95% HR mar.
5) The lens has concentrated function, and it’s made from transparent material, The functions will be affected once they were polluted, so please do not open the packages until you use them, in case of dust and other pollution.
6) Please handle or install lens with wearing gloves, skin oils may damage lens optical characteristic.
