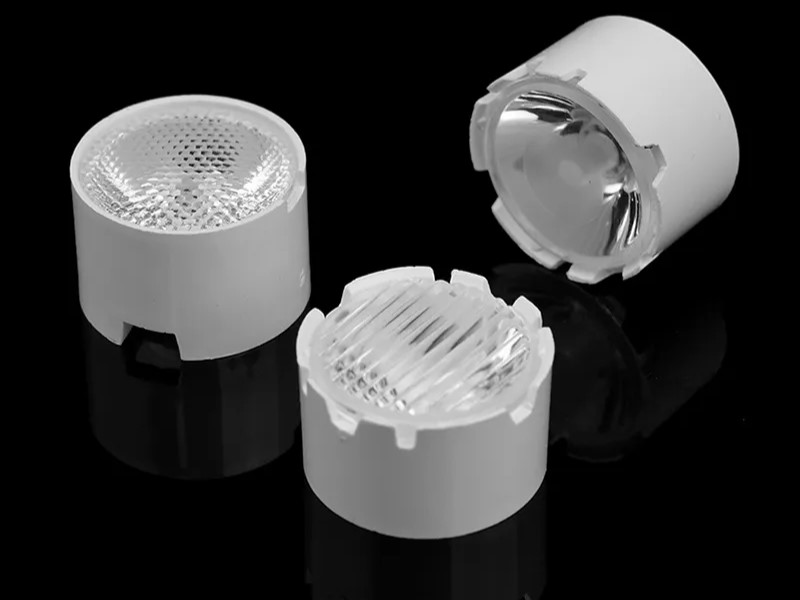

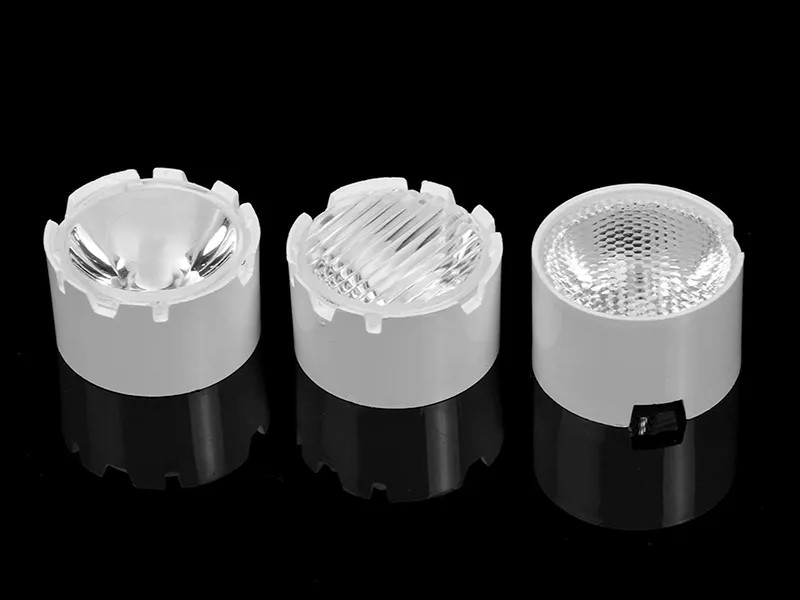

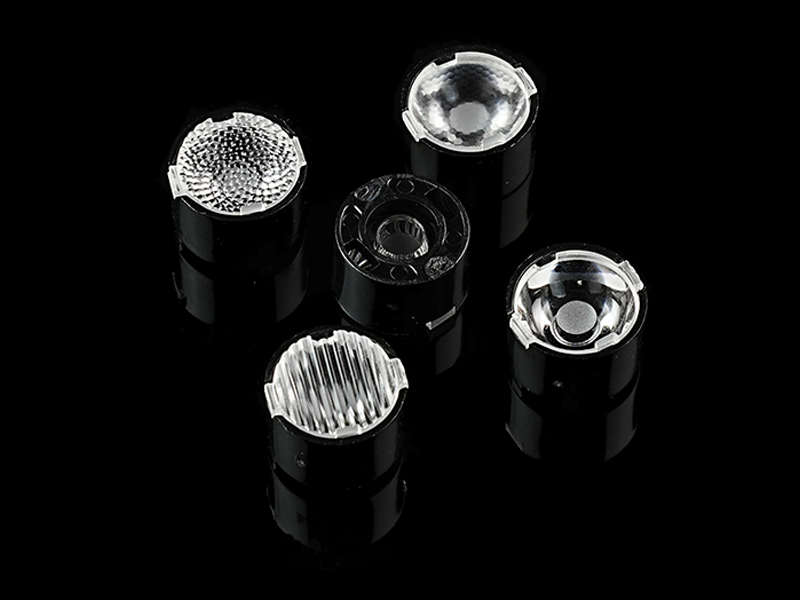

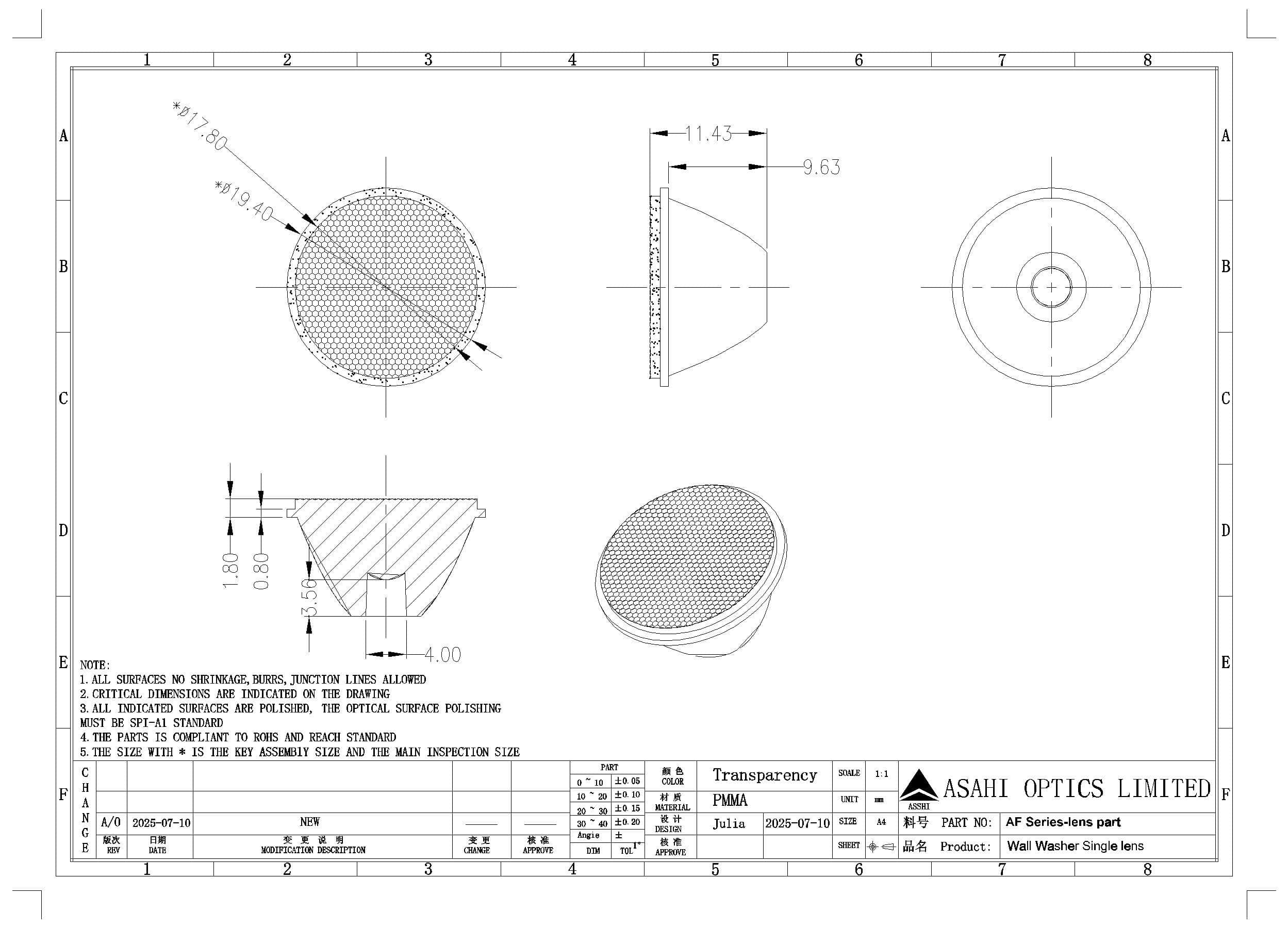

AF Series-22mm

Model: AF21D12H10G/15G/25G/30G/40G/60G/80G/1045G/1060G/3060G

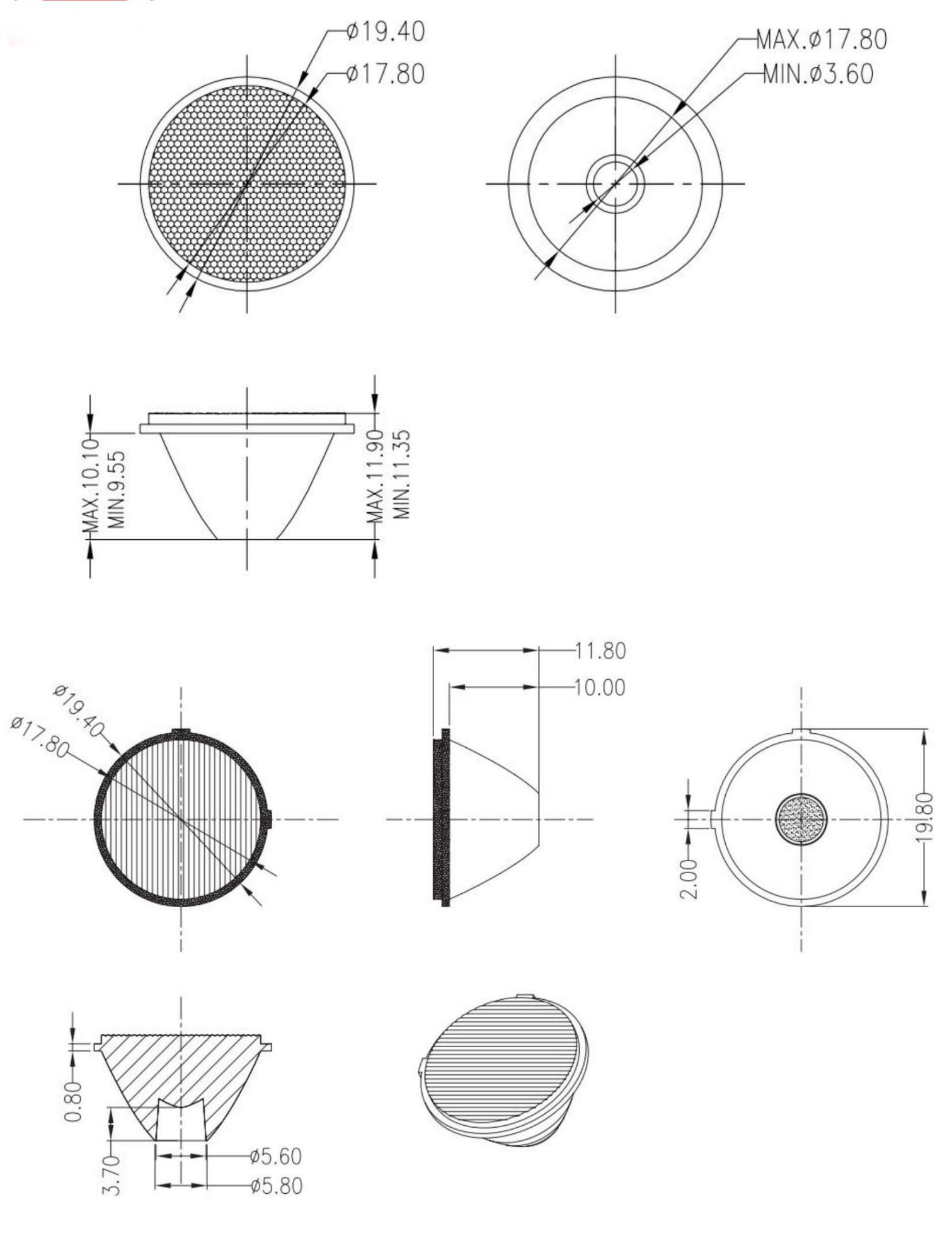

Diameter: 21.3mm

Height: 12.34mm

Angle: 10°,15°,25°,30°,40°,60°,80°,10x45°,10x60°,30x60°

Material: PC+PMMA

Transmittance: >93%

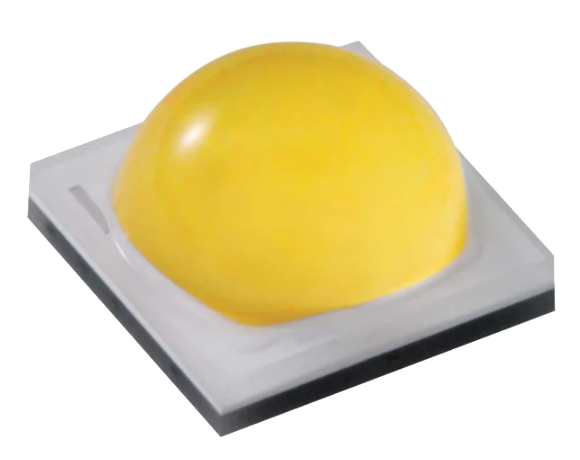

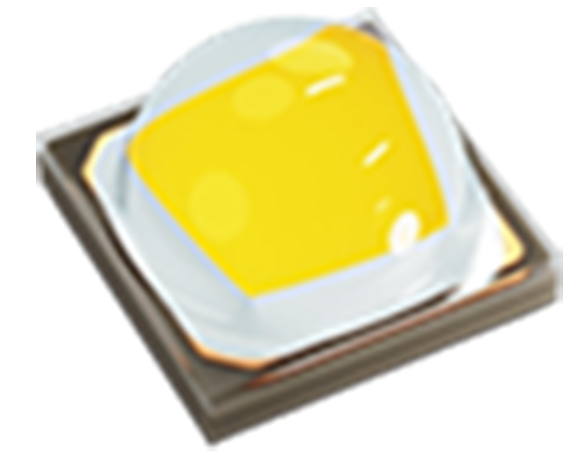

LED Type: 3030LED, 3535LED, 5050LED

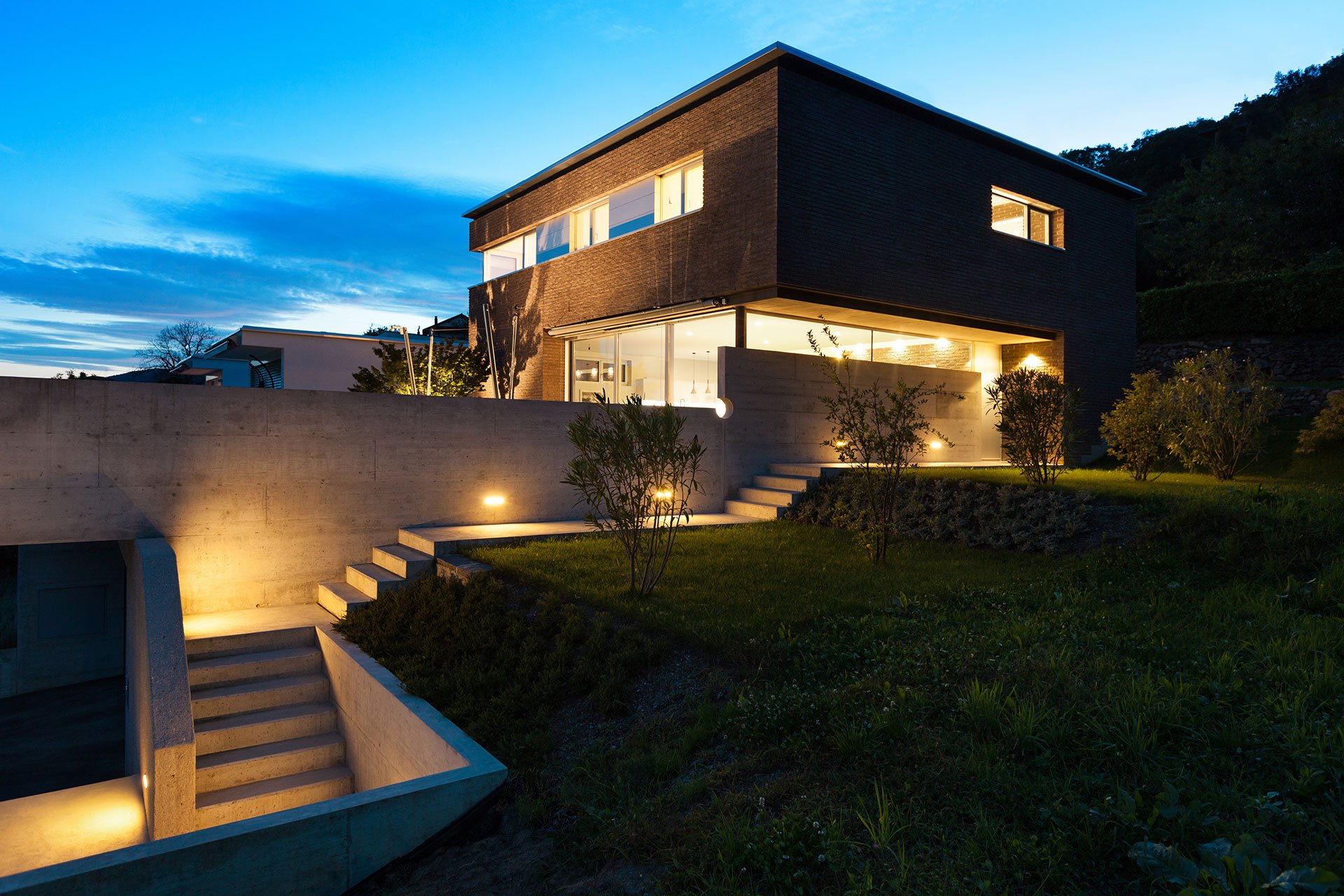

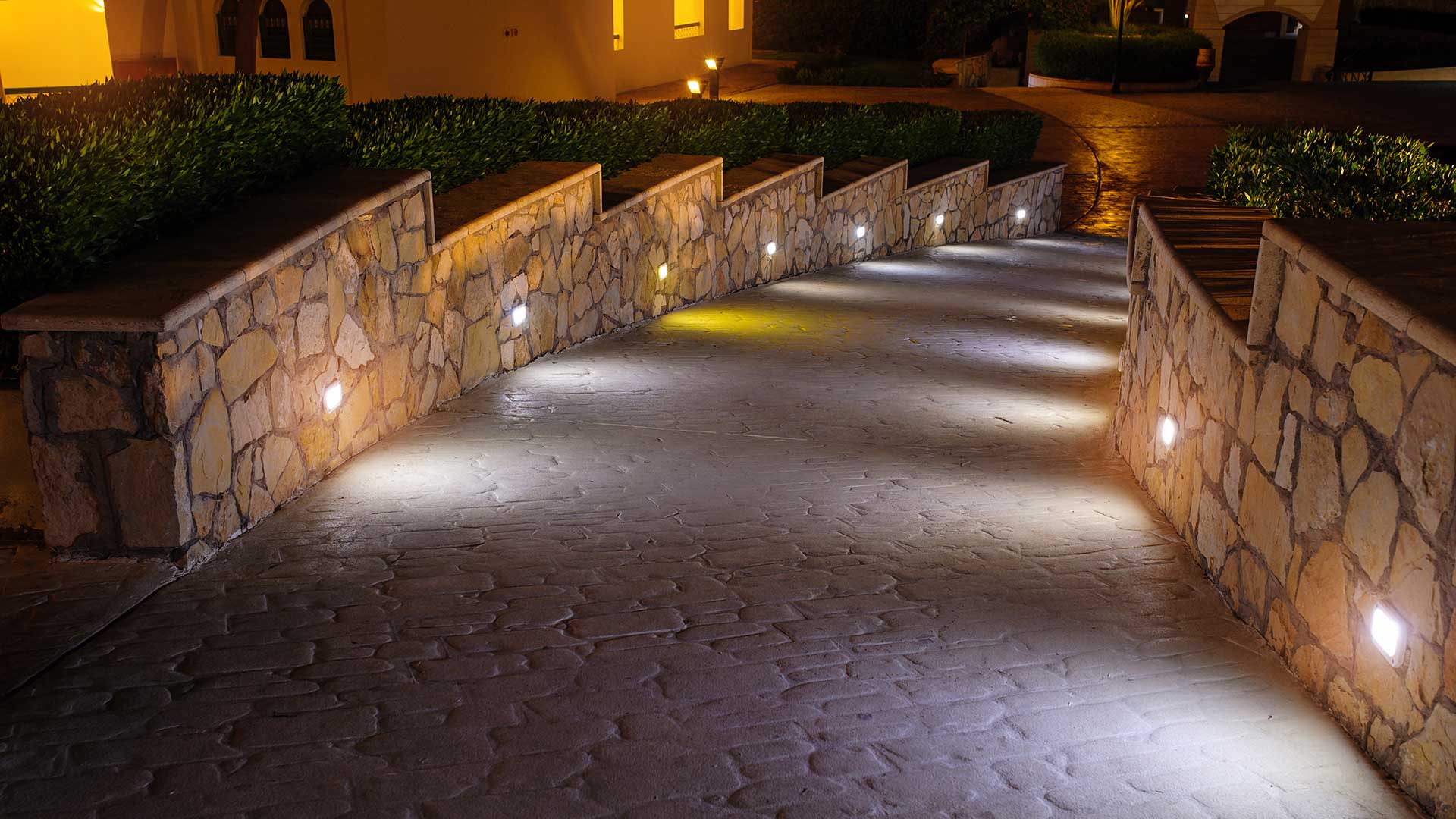

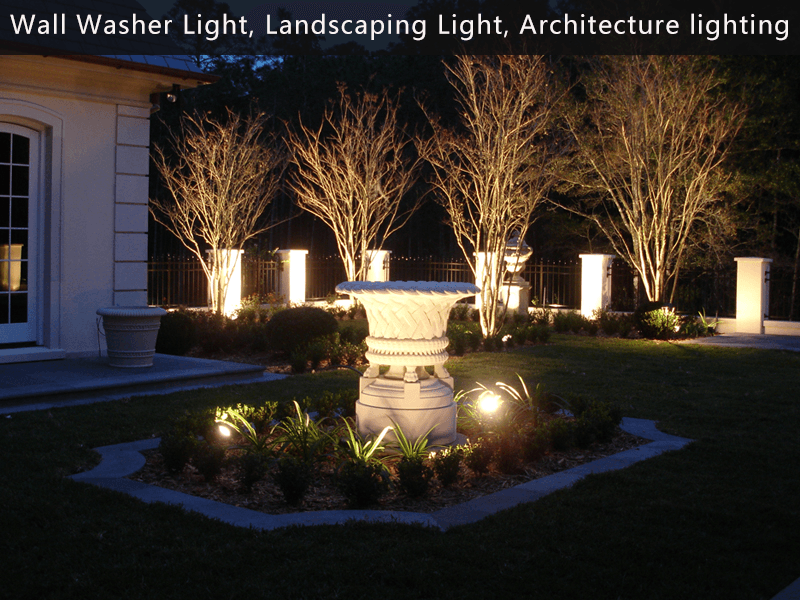

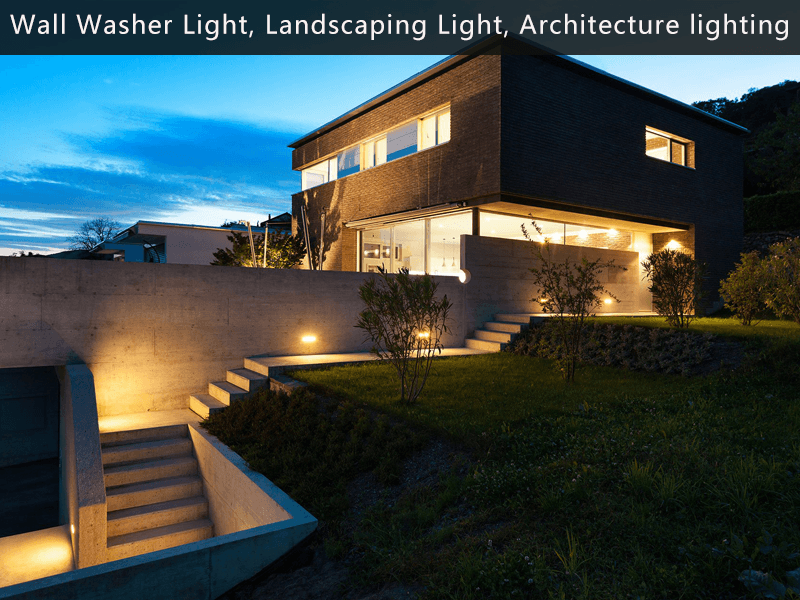

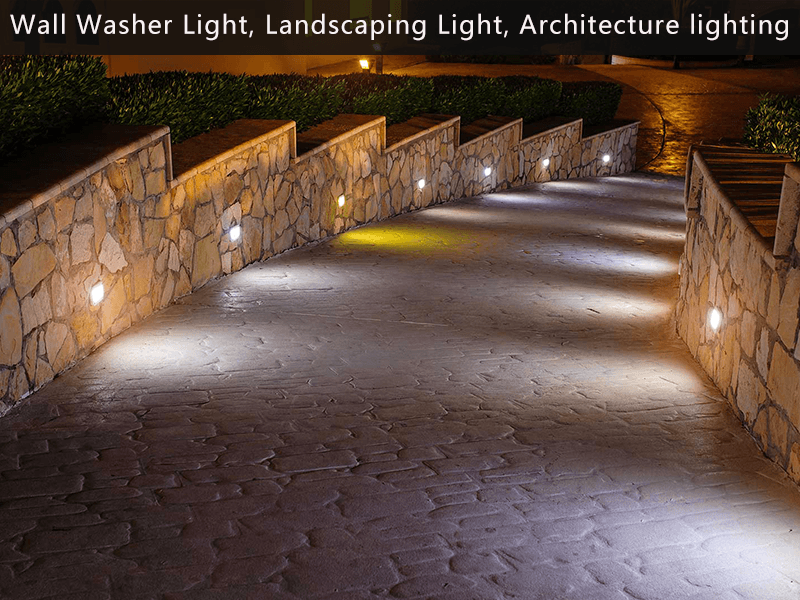

Lighting Applications: wall washer light, landscaping light, Architecture lighting

Model	Angle	Info

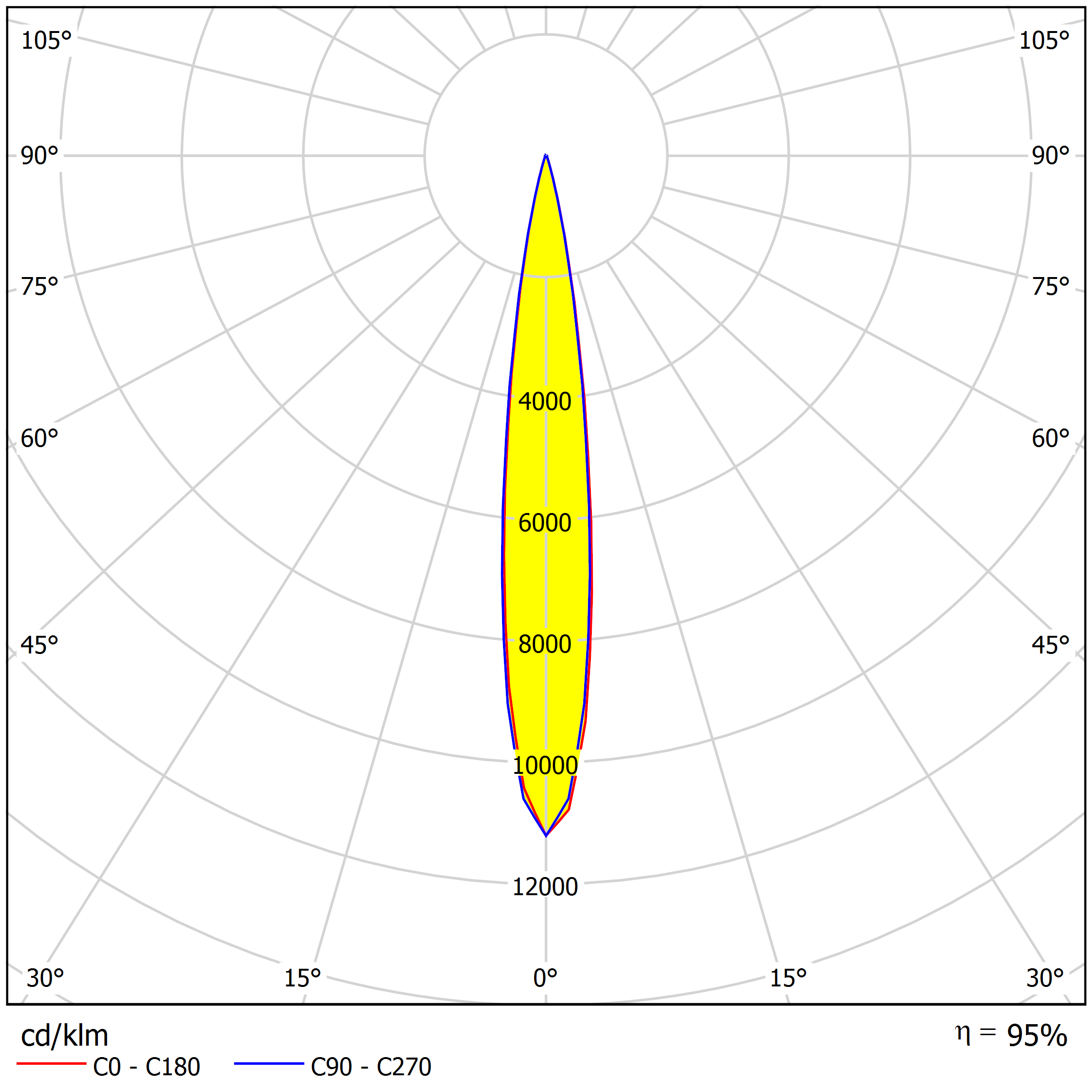

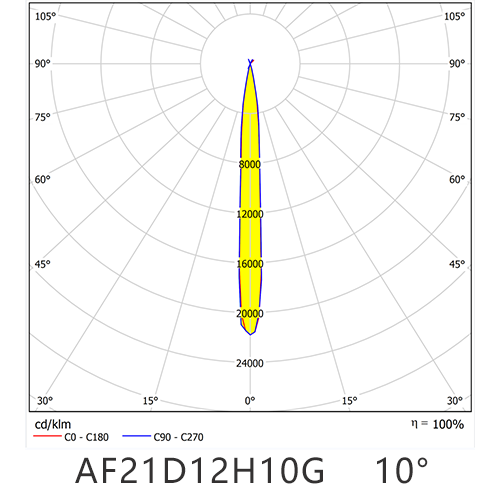

AF21D12H10G	10°	1, 21mm AF Series Led Lighting Lens Beam From 10 To 80 Degree 2, In cases where broader coverage is desired, landscaping lights may use lenses that provide a wider beam angle for floodlighting. 3, These lenses help illuminate larger areas of the landscape, such as expansive lawns or outdoor entertainment spaces

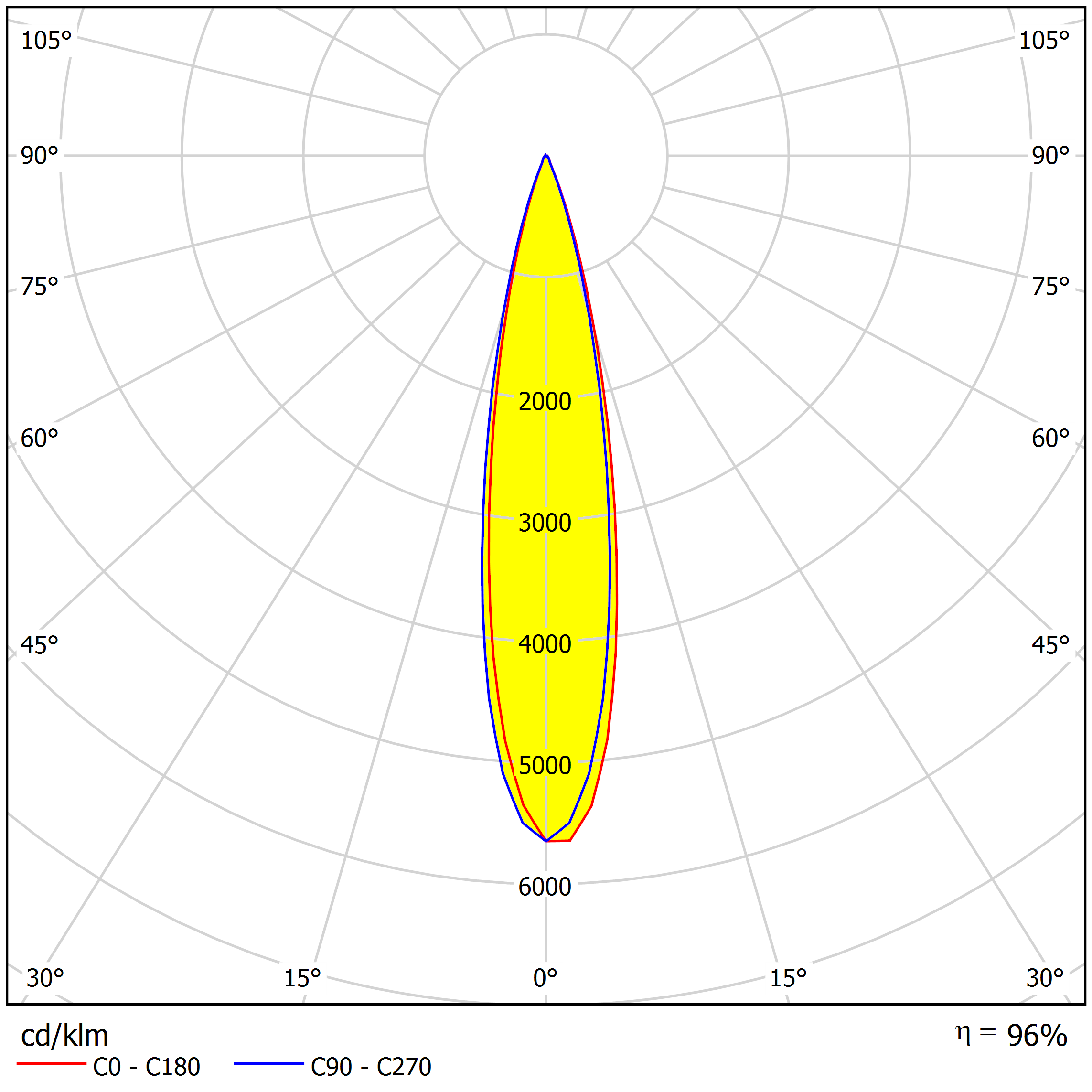

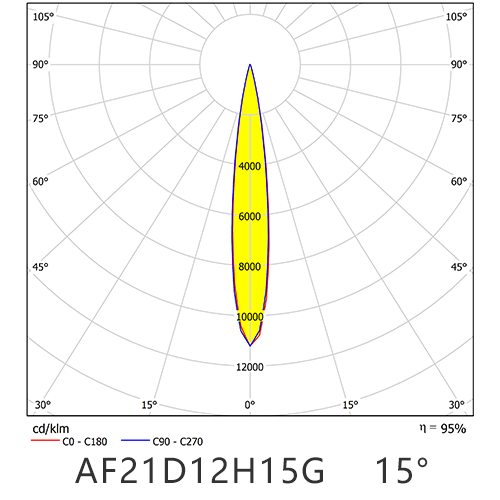

AF21D12H15G	15°	1.Multiple individual AF series lenses are arranged in a matrix or grid pattern. 2.They can be used to create specific lighting patterns, such as wall washing, wall grazing, or accent lighting. 3.Lens arrays can control the beam angle and directionality of light, allowing for precise control over the illuminated surfaces.

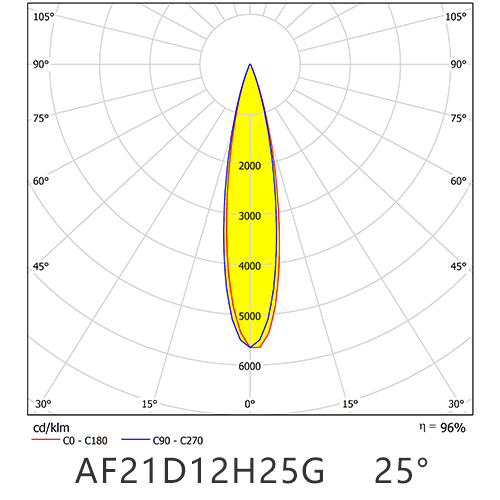

AF21D12H25G	25°	1.In residential settings, architectural lighting lenses can be used to enhance the aesthetics and functionality of interior spaces. 2.They can be employed in recessed fixtures, pendant lights, and track lighting to create specific lighting effects, highlight artwork or architectural features, and provide task lighting.

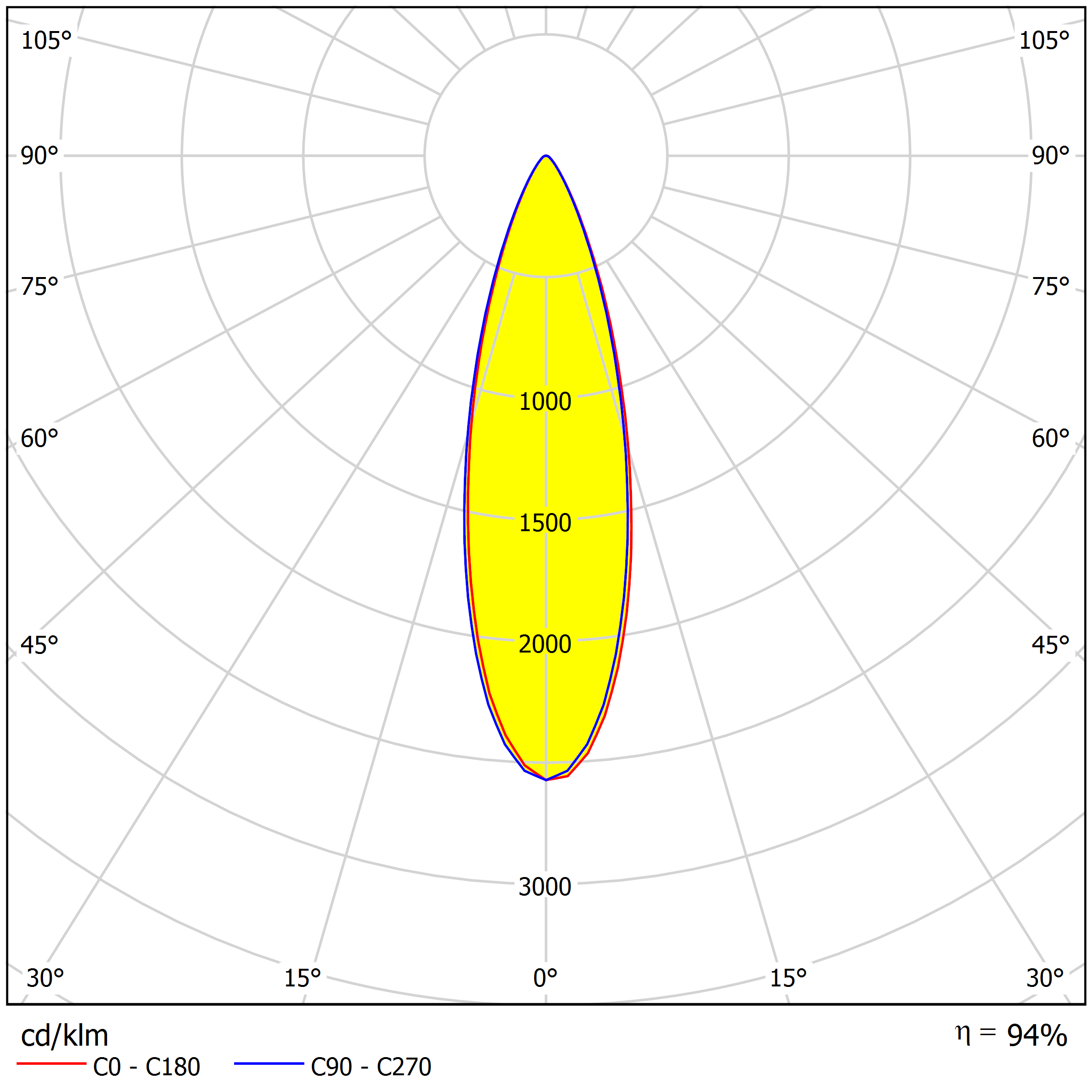

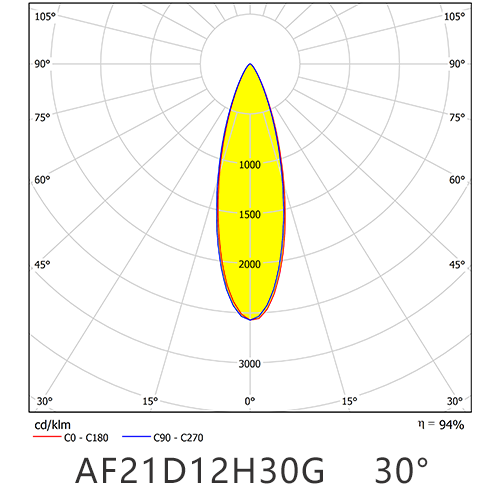

AF21D12H30G	30°	1, 21mm AF Series Led Lighting Lens Beam From 10 To 80 Degree 2, In cases where broader coverage is desired, landscaping lights may use lenses that provide a wider beam angle for floodlighting. 3, These lenses help illuminate larger areas of the landscape, such as expansive lawns or outdoor entertainment spaces.

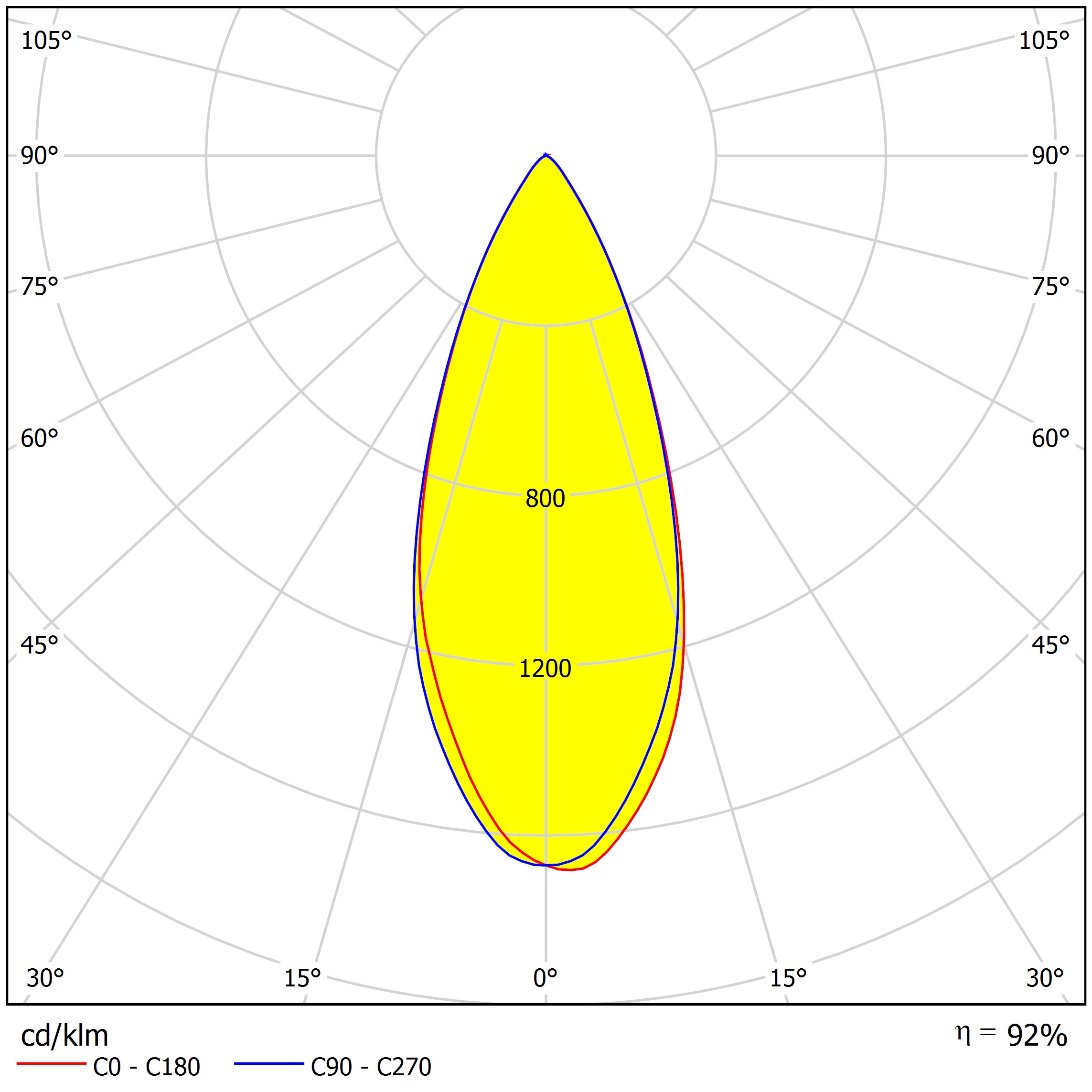

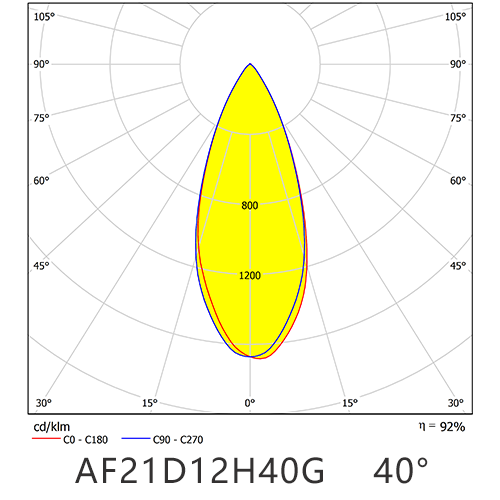

AF21D12H40G	40°	1.Architectural light lenses are designed to control the beam angle of the light, determining how wide or narrow the light spreads. 2.This allows for precise illumination of specific areas or objects in the landscape, such as trees, pathways, or architectural features.

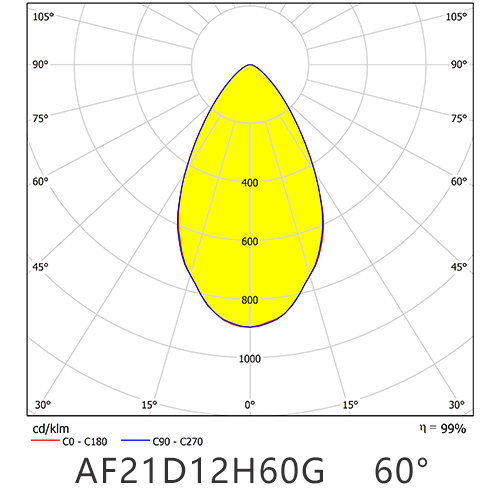

AF21D12H60G	60°	1, 21mm AF Series Led Lighting Lens Beam From 10 To 80 Degree 2, In cases where broader coverage is desired, landscaping lights may use lenses that provide a wider beam angle for floodlighting. 3, These lenses help illuminate larger areas of the landscape, such as expansive lawns or outdoor entertainment spaces.

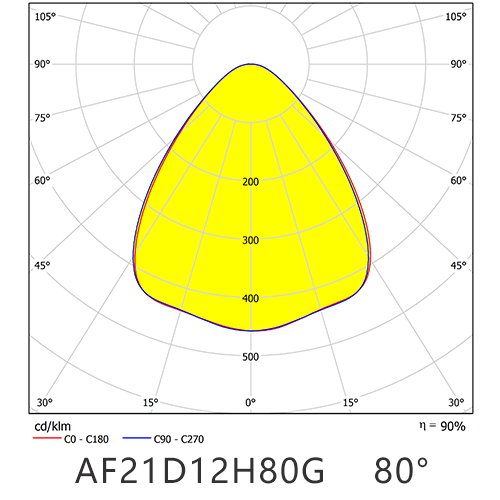

AF21D12H80G	80°	1.Led lenses used in architectural lights offer adjustable or rotatable components that allow users to direct the light in a specific direction. 2.This feature enables flexibility in highlighting different elements of the landscape and adjusting the lighting focus as needed.

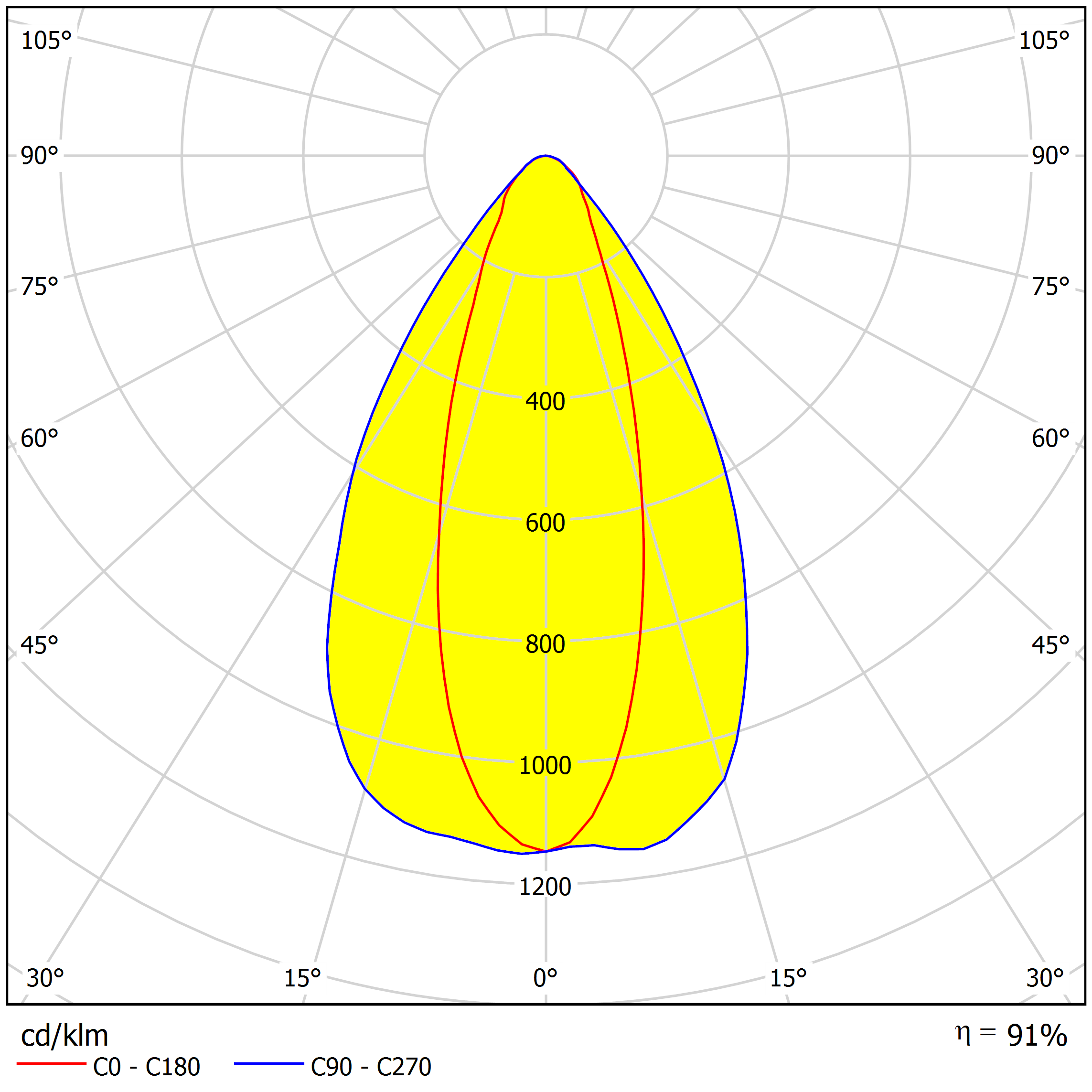

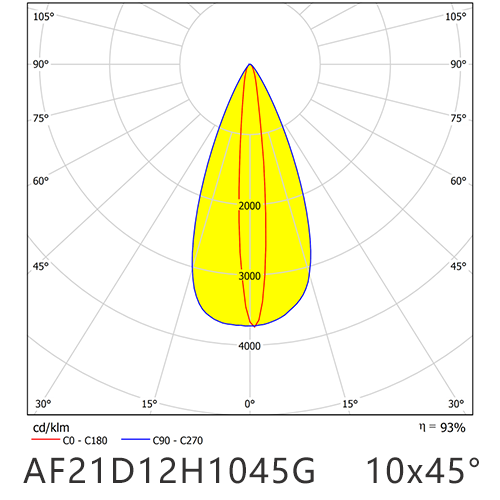

AF21D12H1045G	10x45°	1.The lenses used in architectural lights are designed to ensure even light distribution across the landscape. 2.They help minimize hotspots and dark areas, providing a balanced and consistent illumination.

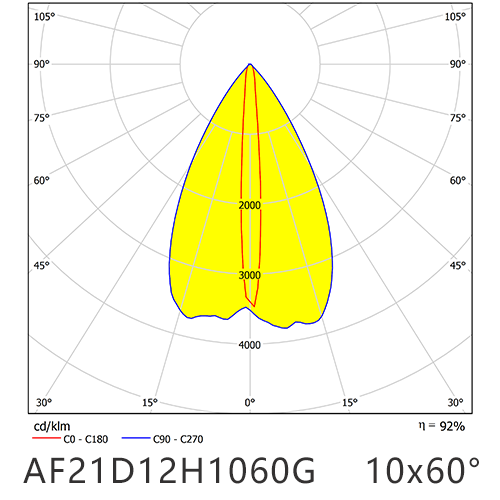

AF21D12H1060G	10x60°	1.Architectural lighting lenses may incorporate light diffusion properties to create a softer and more diffused lighting effect. 2.This can help create a gentle and ambient illumination, particularly for areas such as garden beds or flower arrangements.

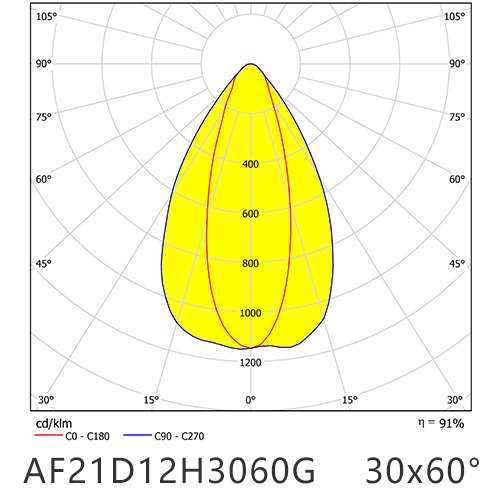

AF21D12H3060G	30x60°	1, 21mm AF Series Led Lighting Lens Beam From 10 To 80 Degree 2, In cases where broader coverage is desired, landscaping lights may use lenses that provide a wider beam angle for floodlighting. 3, These lenses help illuminate larger areas of the landscape, such as expansive lawns or outdoor entertainment spaces.
