Model: ALSP50D4LEDS5050T3VS-C
Diameter: 50x50mm
Height: 14.35mm
Angle: T3VS-C
Material: PC-1250Z
Transmittance: >90%
LED Type: 5050LED
Lighting Applications: Sport Lighting
1.The design of the TYPE III-Very Short sport light lens provides a versatile light distribution, making it suitable for various sports fields and activities.
2.The focused lighting helps reduce glare, contributing to enhanced visual comfort for both players and spectators during sports events.
3. Optimized design maximizes light output and efficiency, enhancing visibility and reducing energy consumption.

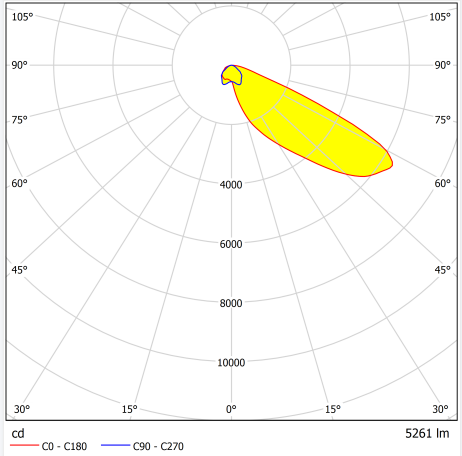

Distribution
Specifications
| Model: | ALSP50D4LEDS5050T3VS-C |
| Diameter: | 50x50mm |
| Height: | 14.35mm |
| Angle: | T3VS-C |
| Material： | PC-1250Z |
| Transmittance： | >90% |
| LED Type | 5050LED |
| Lighting applications | Sport Lighting |
LED Type
JR5005C 6-V E
DURIS S 8
LUXEON 5050 Square
NVAW144AR
NVAW144AM
Xl5050LED
EMC5050LED
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.

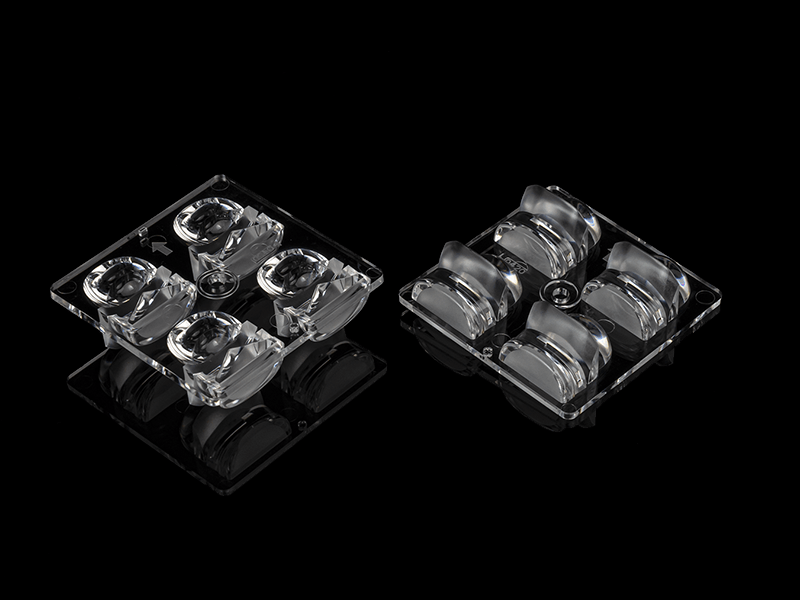

The 2x2 T3VS (very short) narrow forward throw beam is typically used for area lighting such as sports stadium lighting, tunnel light, parking lot etc.
1.The design of the TYPE III-Very Short sport light lens provides a versatile light distribution, making it suitable for various sports fields and activities.
2.The focused lighting helps reduce glare, contributing to enhanced visual comfort for both players and spectators during sports events.
3. Optimized design maximizes light output and efficiency, enhancing visibility and reducing energy consumption.

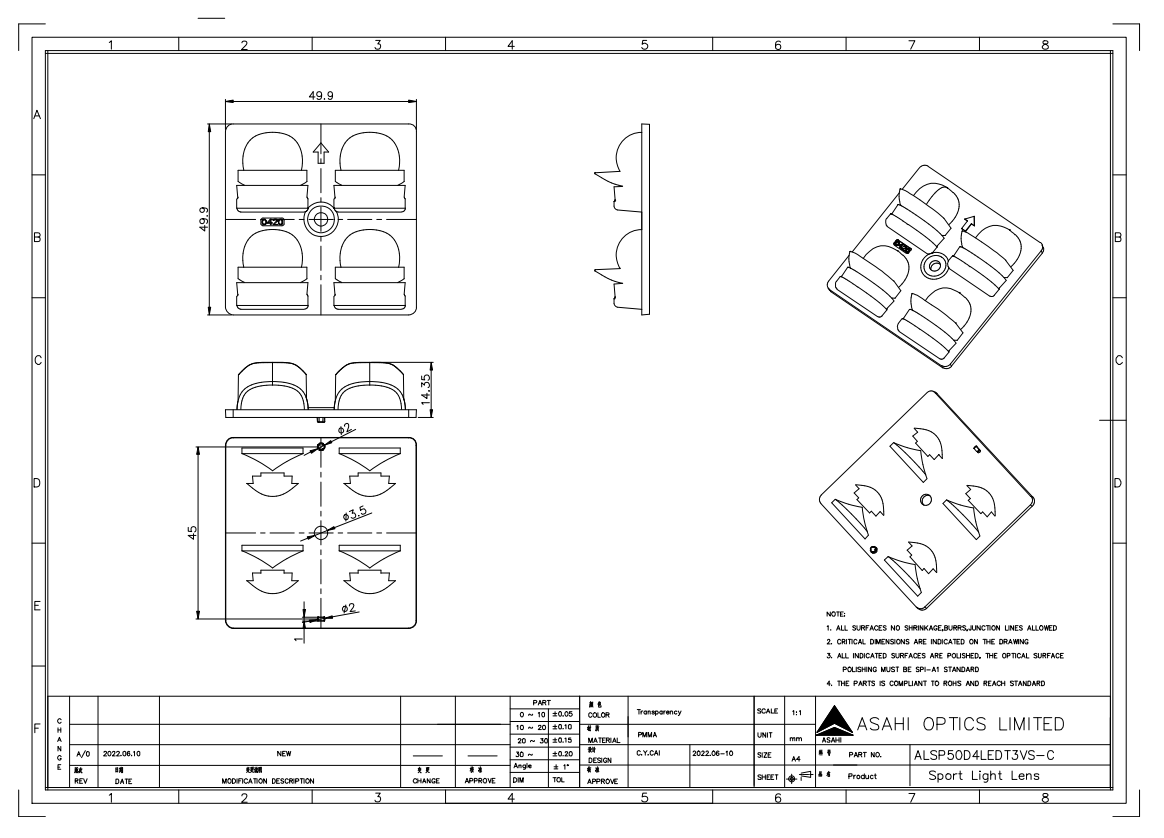

Asahi-Optics-ALSP50D4LEDS5050T3VS-C-Drawing.pdf
Asahi-Optics-ALSP50D4LEDS5050T3VS-C-Drawing.dwg
Asahi-Optics-ALSP50D4LED5050T3VS-C-Lens-PC.ies
