Model: AR4525T

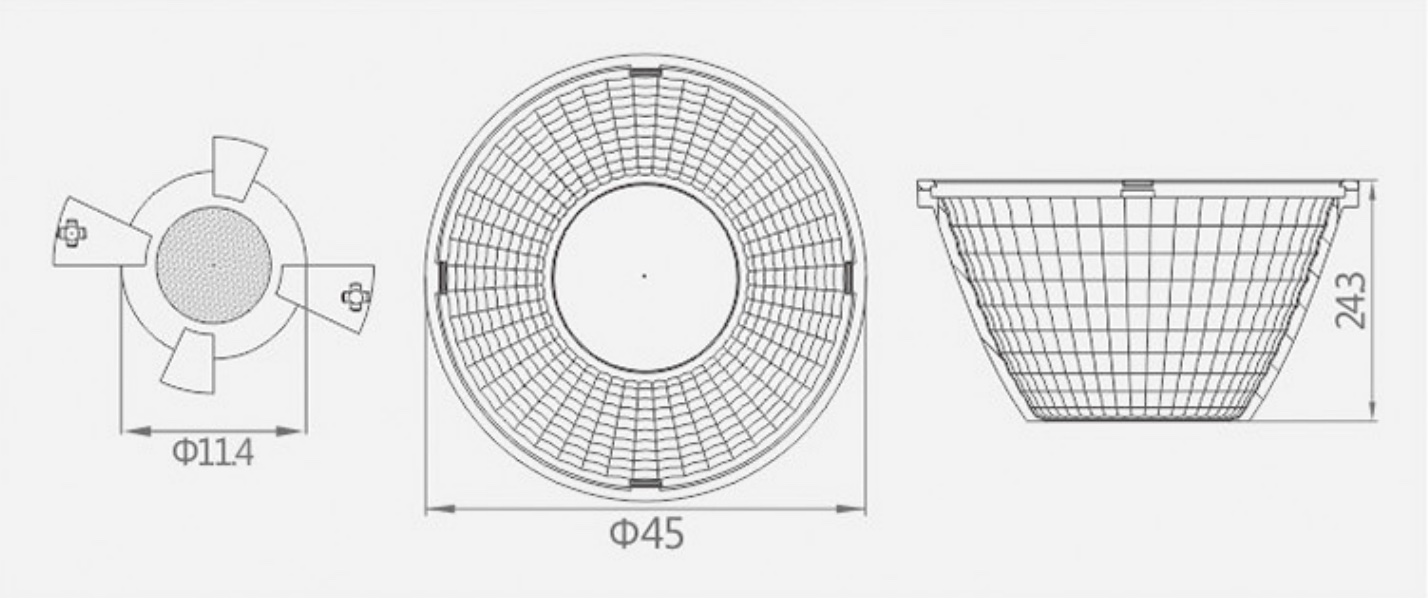

Diameter: 45mm, 18.8mm
Height: 24.3mm

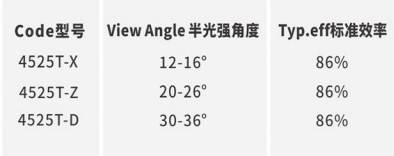

Angle: 15°, 25°, 38°
Material: PC+Aluminum Coating
Transmittance: >88%
LED Type: COB LED
Lighting Applications: PAR lighting,Spot Light,Down Light

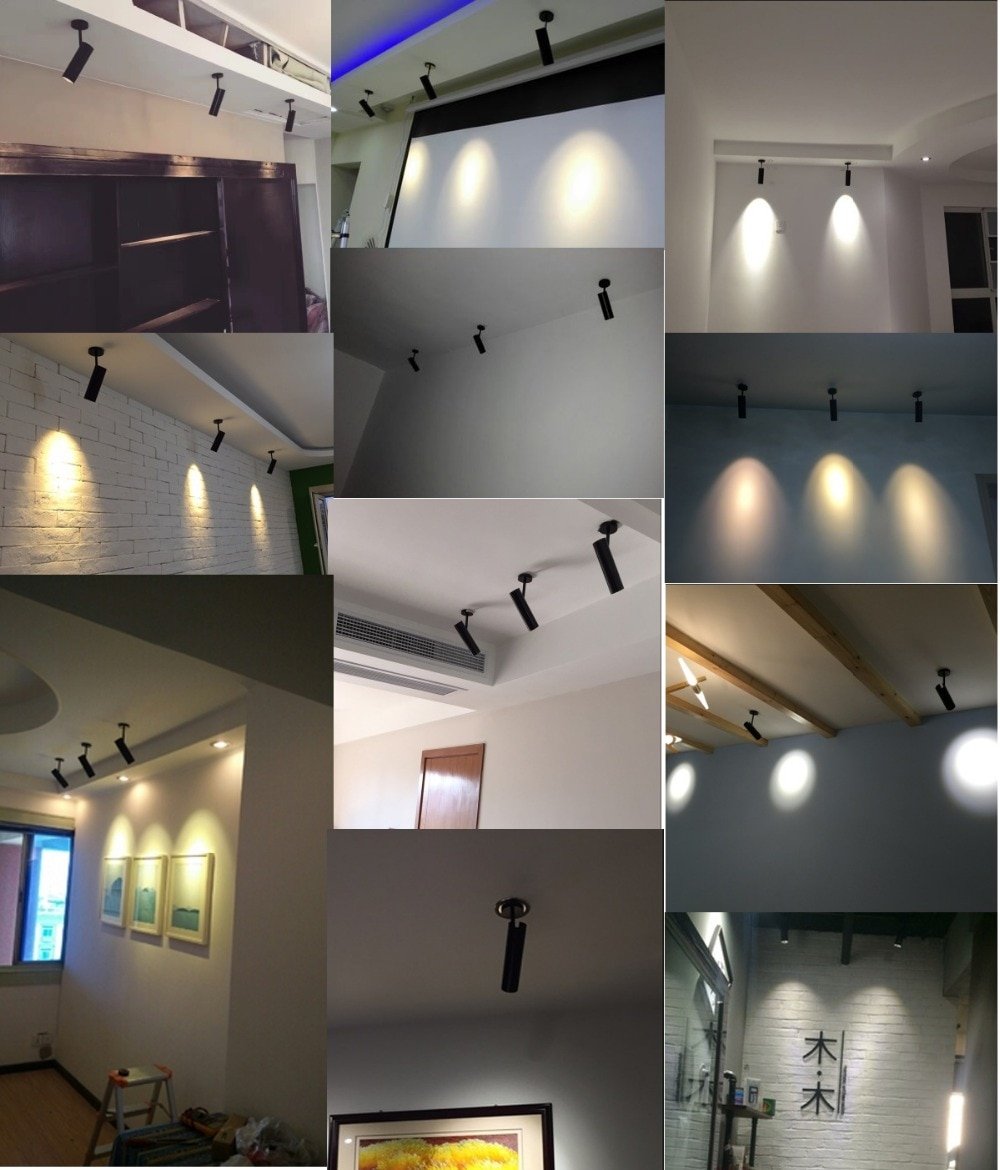

1, 45mm Optical Led Reflector For Commercial Lighting, the reflector's ability to shape the light beam allows for precise and controlled illumination of the displayed items, enhancing their visibility and attractiveness.
2, COB LED reflectors are commonly used in spotlights to create a concentrated beam of light. The reflector helps to focus the light output and direct it towards a specific area, making it ideal for highlighting objects or creating a visual focal point.

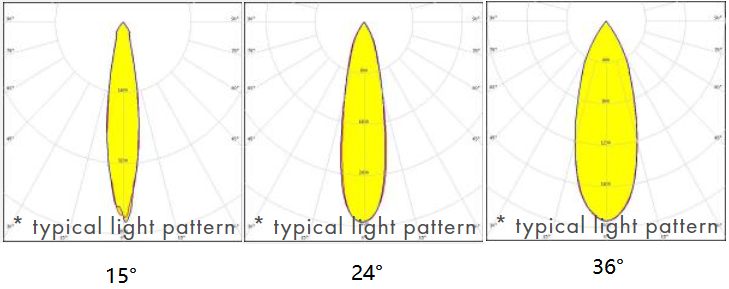

Distribution
Specifications
| Model: | AR4525T |
| Diameter: | 45mm, 18.8mm |
| Height: | 24.3mm |
| Angle: | 15°, 25°, 38° |
| Material： | PC+Aluminum Coating |
| Transmittance： | >88% |
| LED Applications | COB LED |
| Lighting applications | PAR lighting, Spot Light, Down Light |

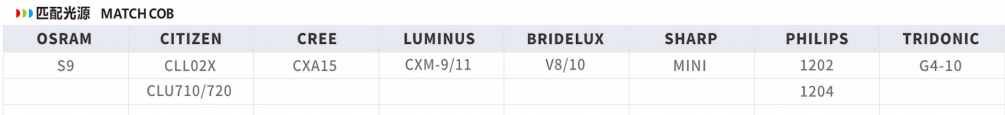

LED Type
CXA1304/1512
CCL010/020
LHC1-1202/3
036A
066A
CXM6/7
VERO13/10
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
