Model: AJST270D75H28LED130G
Diameter: 270mm
Height: 75mm
Angle: 130°
Material: PC-1250Z
Transmittance: >90%
LED Type: 4x3030/ 5050LED
Lighting Applications: area lighting
1.The 130-degree beam angle ensures wide coverage and even lighting distribution, making it ideal for high-ceiling spaces such as warehouses, factories, gymnasiums, and retail spaces.
2.With IP66 protection rating,the lens array is fully protected against dust ingress and powerful water jets, making it suitable for outdoor use in harsh environmental conditions.

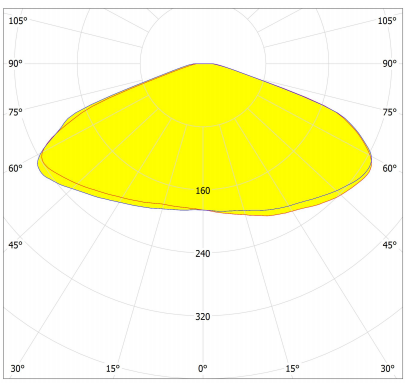

Distribution
Specifications
| Model: | AJST270D75H28LED130G |
| Diameter: | 270mm |
| Height: | 75mm |
| Angle: | 130° |
| Material： | PC-1250Z |
| Transmittance： | >90% |
| LED Applications | 4x3030/ 5050LED |
| Lighting applications | Area Lighting |
LED Type
JR5005C 6-V E
DURIS S 8
LUXEON 5050 Square
NVAW144AR
NVAW144AM
Xl5050LED
EMC5050LED
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.

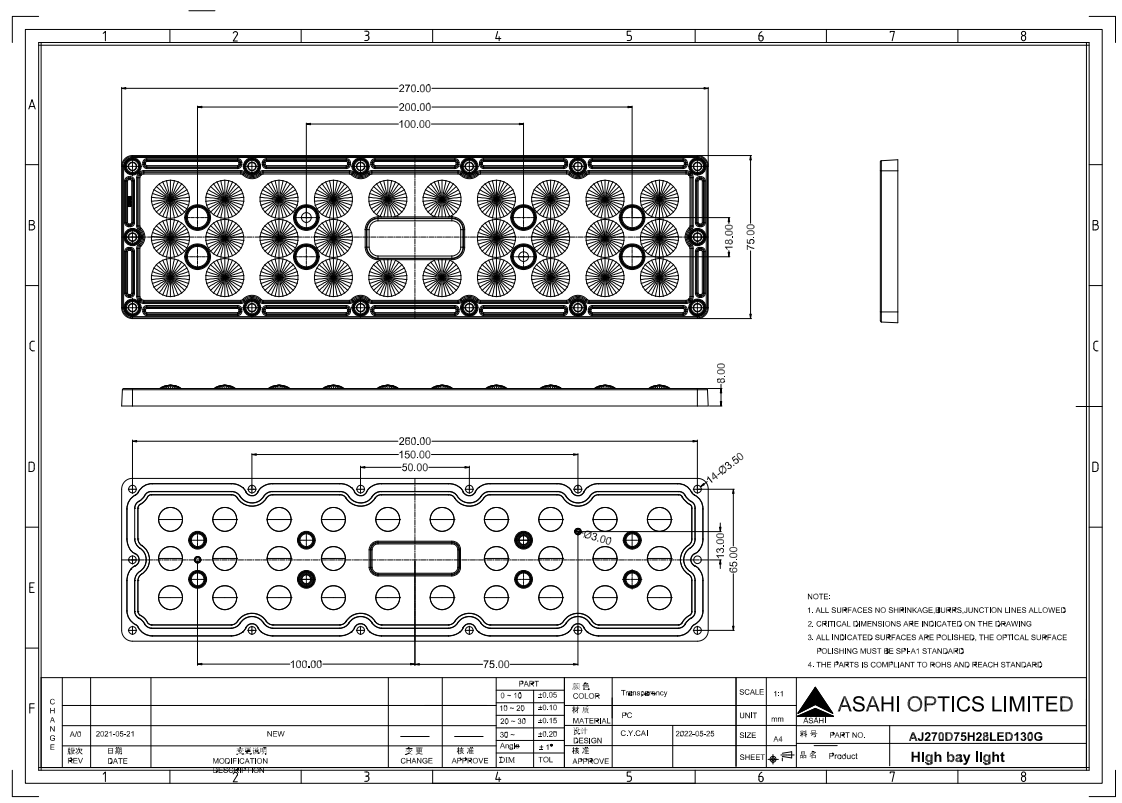

ASAHI OPTICS AJST270D75H28LED130G Drawing.dwg
ASAHI OPTICS AJST270D75H28LED130G Drawing.pdf
ASAHI OPTICS AJST270D75H28LED130G ies
