Model: AJHB208D4RT90G-SENSOR
Diameter: 208mm
Height: 7.1mm
Angle: 60°,90°
Material: PC-1250Z
Transmittance: 88%
LED Type: 2835/ 3030LED

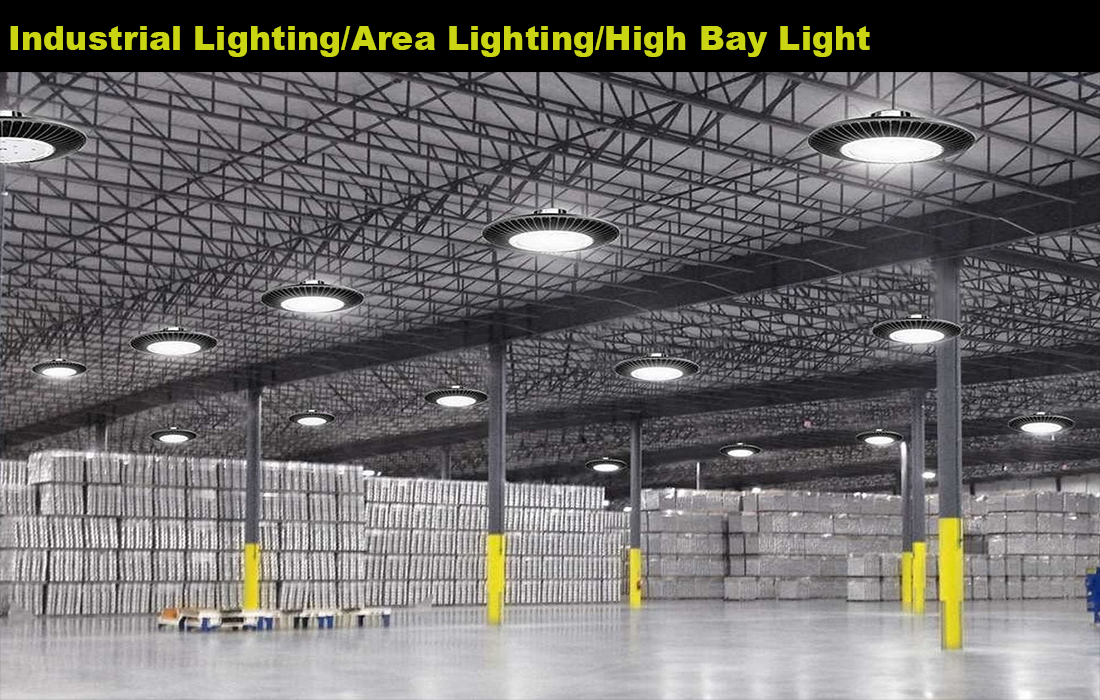

Lighting Applications: High Bay Lighting, Area Lighting
1.The 208mm industrial light UFO optical lens is specifically designed for industrial lighting applications, such as high bay lights used in warehouses, factories, and large indoor spaces.
2.This lens is optimized to provide efficient light distribution and maximize illumination coverage.

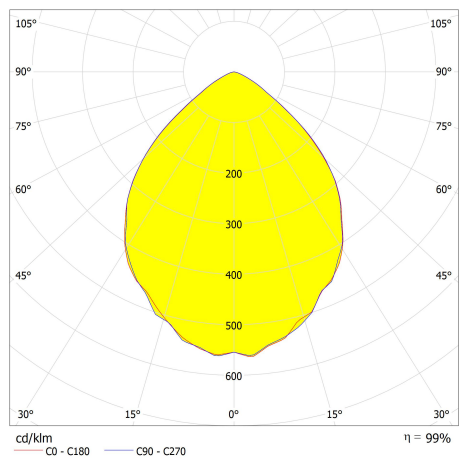

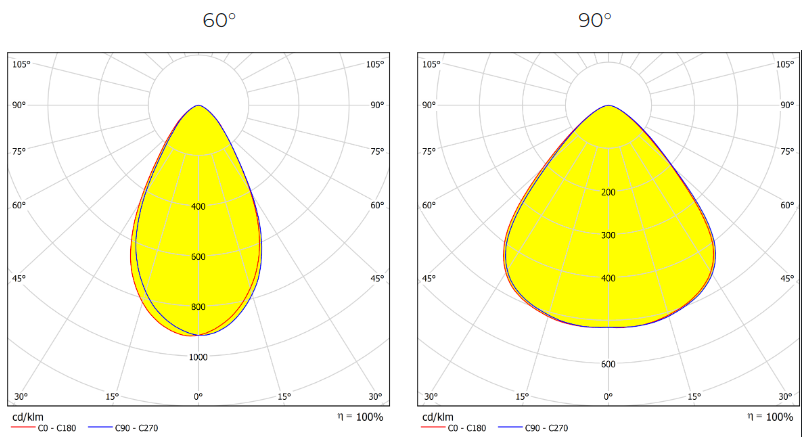

Distribution
Specifications
| Model: | AJHB208D4RT90G-SENSOR |
| Diameter: | 206.4mm |
| Height: | 7.1mm |
| Angle: | 60°,90° |
| Material： | PC-1250Z |
| Transmittance： | >88% |
| LED Applications | 2835/ 3030LED |
| Lighting applications | warehouse Lighting |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.

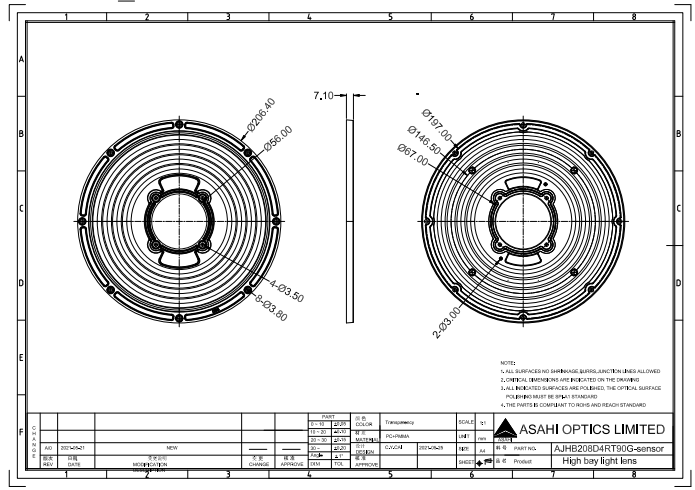

Asahi Optics AJHB208D4RT90G-SENSOR 2d drawing.dwg
Asahi Optics AJHB208D4RT90G-SENSOR 2d drawing.pdf
Asahi Optics AJHB208D4RT90G-SENSOR.IES
