Model: ALHB173D24LED3090G
Diameter: 173mm
Height: 11.09mm
Angle: 30x90°
Material: PC
Transmittance: >90%
LED Type: 2835/ 3030/ 5050LED
Lighting Applications: High Bay lighting

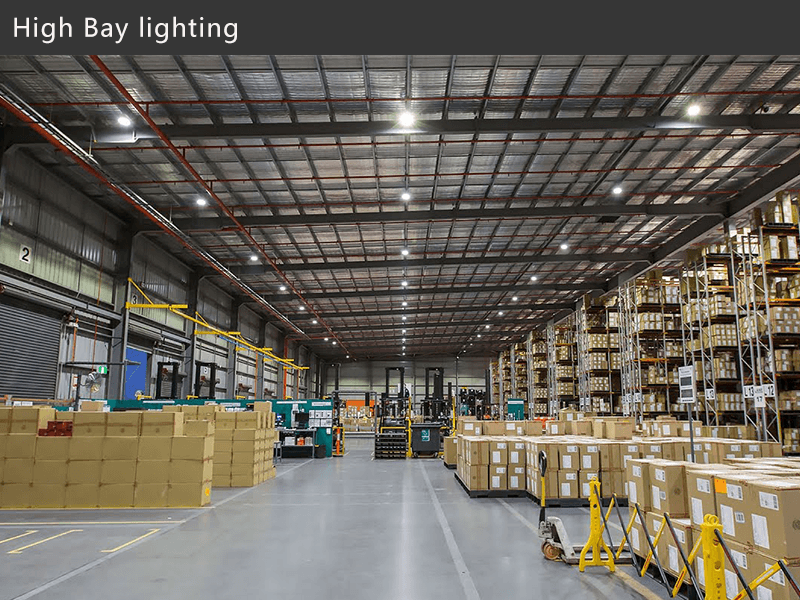

1. It features a compact design with three rows of eight optical surface.The application is on corridors off logistics warehouses and supermarkets.etc.
2. IP66 rated for dust and water resistance, making it suitable for use in indoor and outdoor environments.
3. With a power output of 100W, this LED light offers high energy efficiency and cost savings compared to traditional lighting sources.

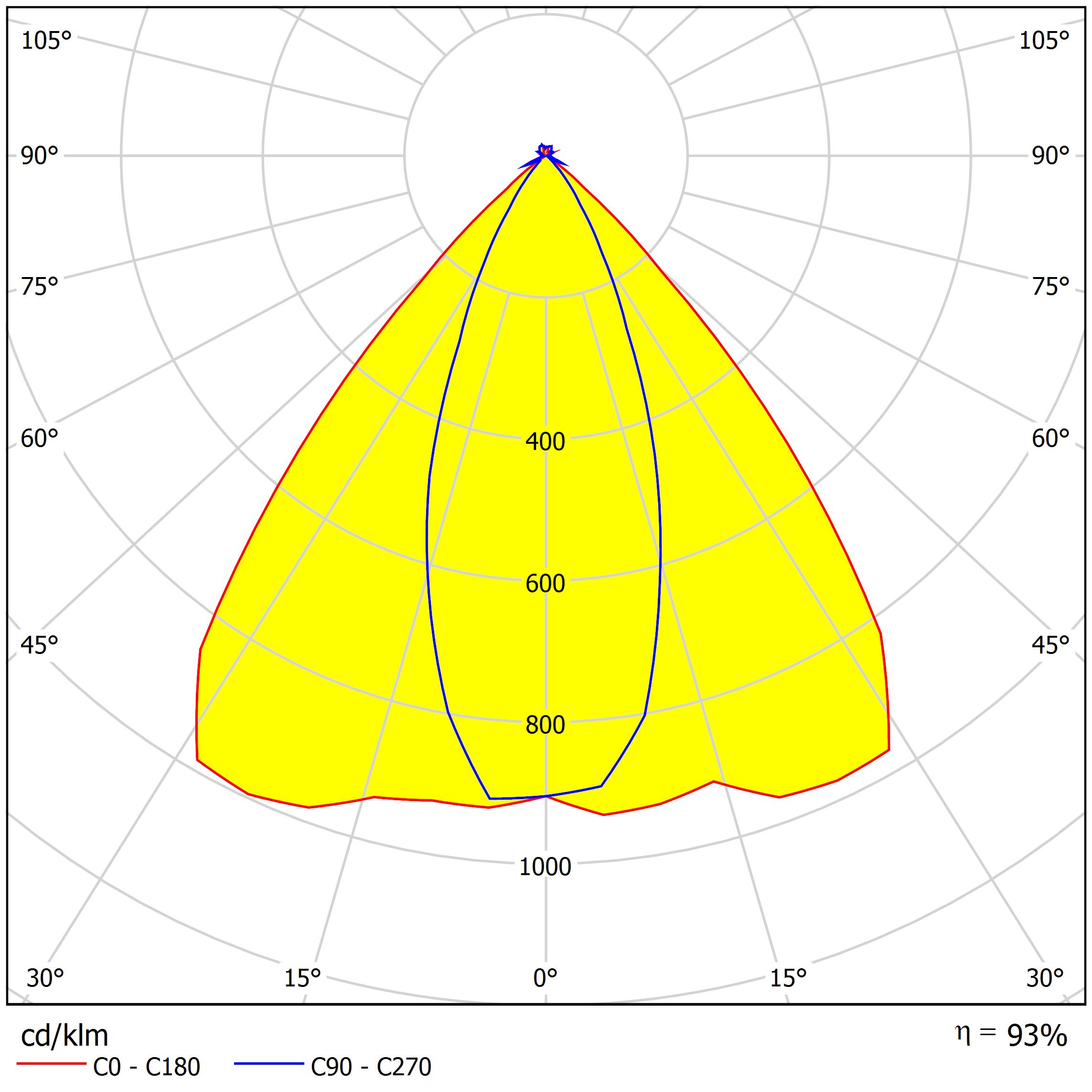

Distribution
Specifications
| Model: | ALHB173D24LED3090G |
| Diameter: | 173.0mm |
| Height: | 11.09mm |
| Angle: | 30x90° |
| Material： | PC |
| Transmittance： | >90% |
| LED Applications | 2835/ 3030/ 5050LED |
| Lighting applications | High Bay Lighting |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.

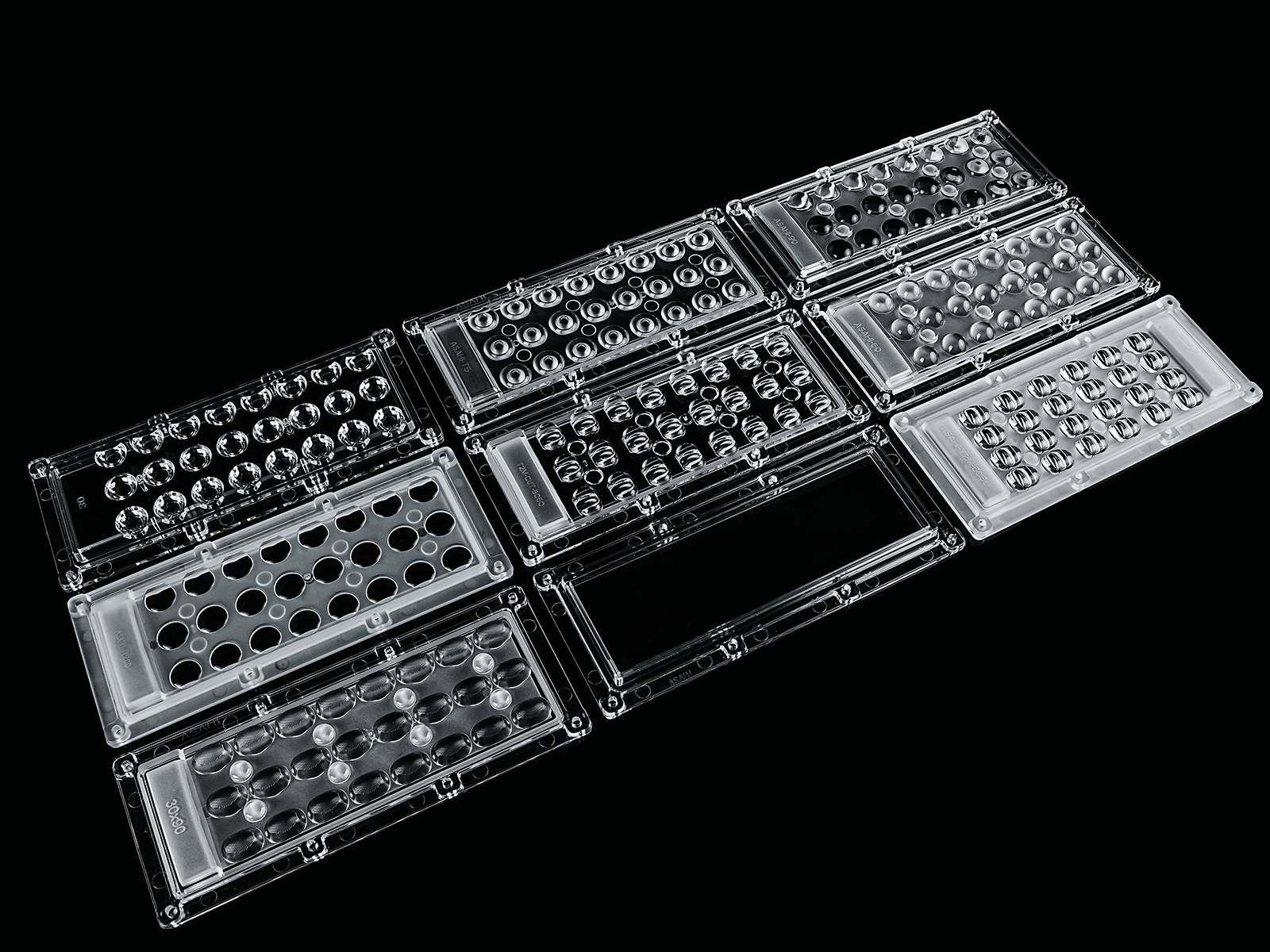

It shares the same profile 173mmx71.4mm as the 2x6 lens does,
which is specially desgined for the application on corridors, such as logistics warehouses and supermarkets.
The beam angle is available for street light T2M, T5, and high bay lighting 30°, 60°，90°, 120°, 30x90°
The high efficiency and powerful lumen output to meet customers’ required power
It can be compatible with different sizes and quantities of LED chips such as 2*2835/2*3030, 3*2835/3*3030, 4*2835/4*3030, and 5050LED

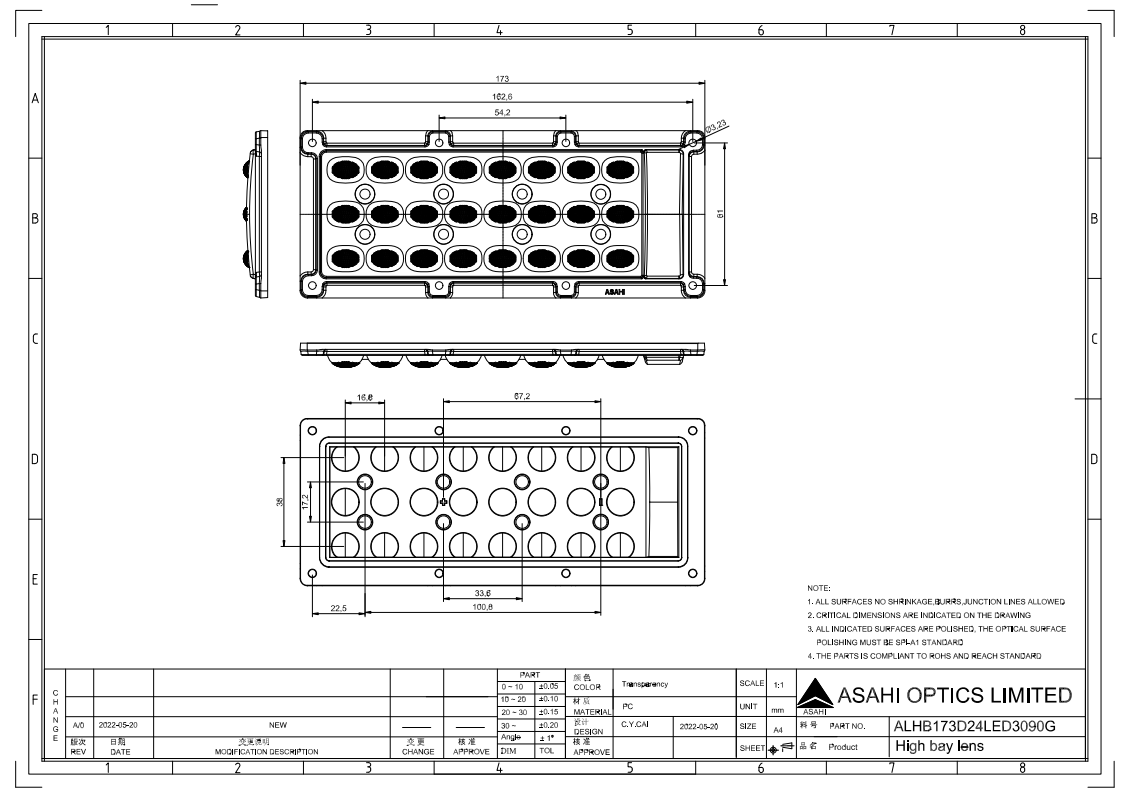

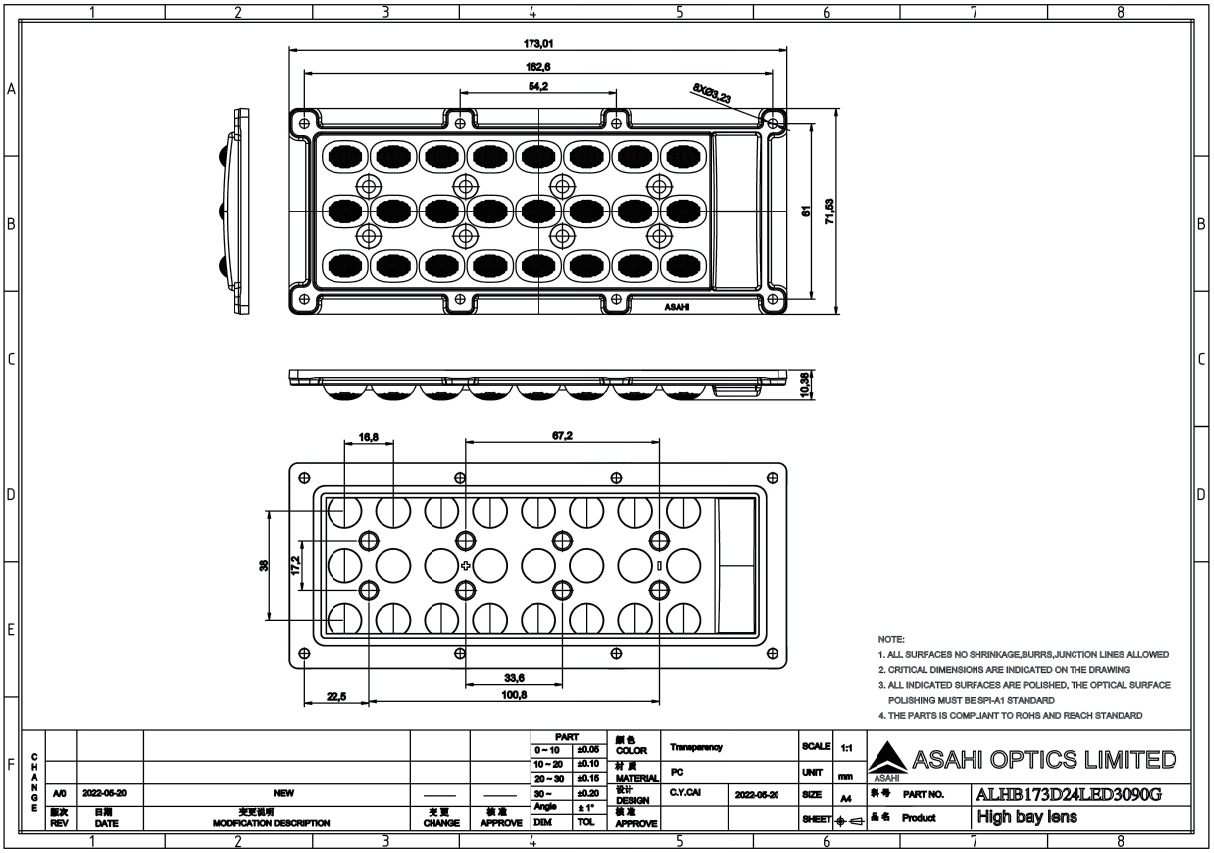

ASAHI OPTICS ALHB173D24LED3090G Drawing.dwg
ASAHI OPTICS ALHB173D24LED3090G Drawing.pdf
ASAHI OPTICS ALHB173D24LED PCB Drawing
ASAHI OPTICS 3X8 LENS LED BOARD.jpg
ASAHI OPTICS ALHB173D24LED3090G-1x5050LED lens IES.ies
