173mm IP66 Asymmetric 60 Degree Sports Field Lens

Model: ALSP173DXXLEDP60G

Diameter: 173mm+71.4mm

Height: 10.38mm

Angle: 60°

Material: PC-1250Z

Transmittance: >90%

LED Type: "2835""3030""5050"LED

Lighting Applications: high bay lighting

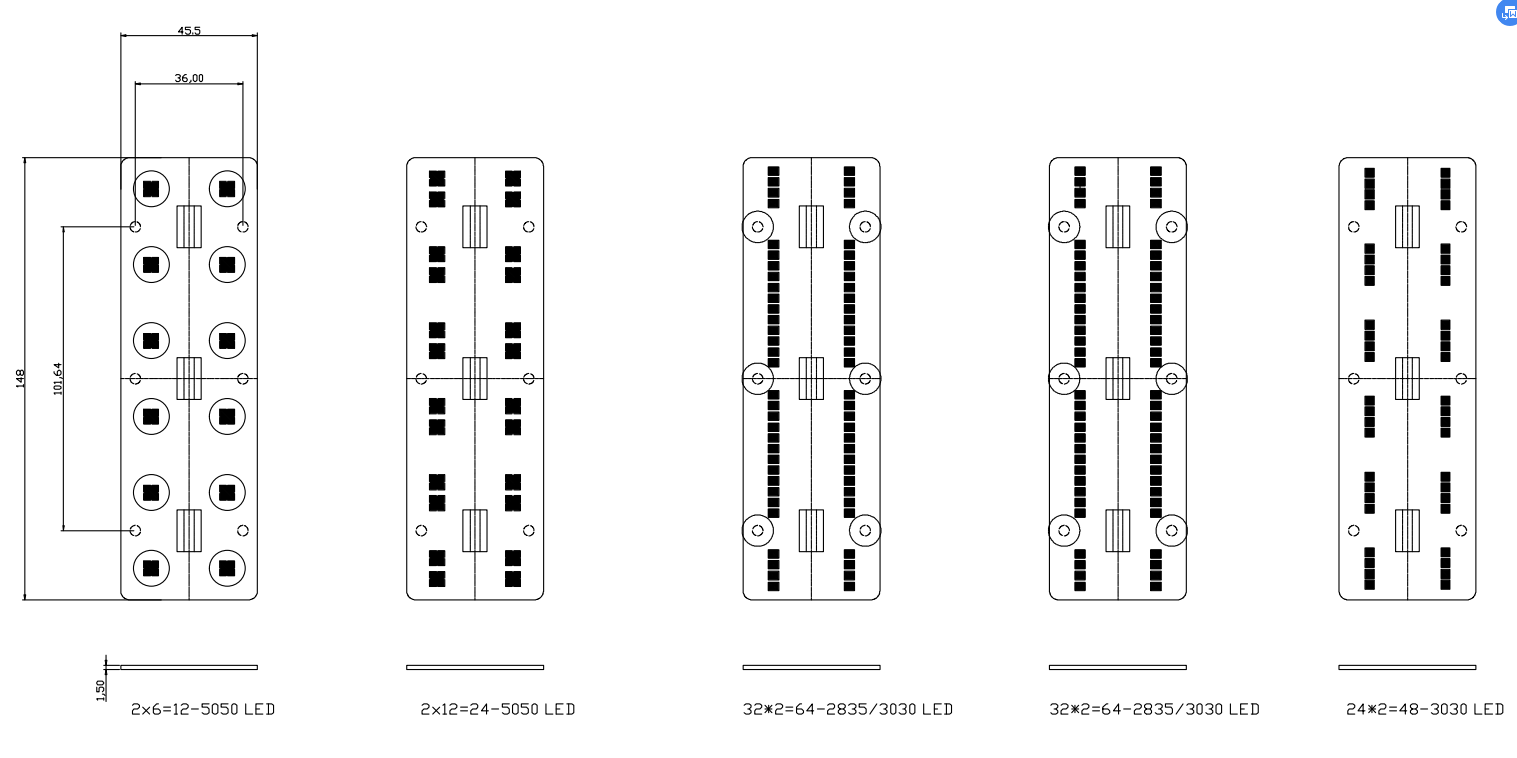

1. NEW ARRIVAL-173mm Mx Family Asymmtric 60 degree Stadium lighting lens Compatible with 2x6 ZHAGA Standard

2. 173mm MX series can simultaneously adapt to different types of LEDs, including 5050, 2835, and 3030 LEDs. This capability caters to diverse budget and performance requirements, providing greater flexibility and choice.

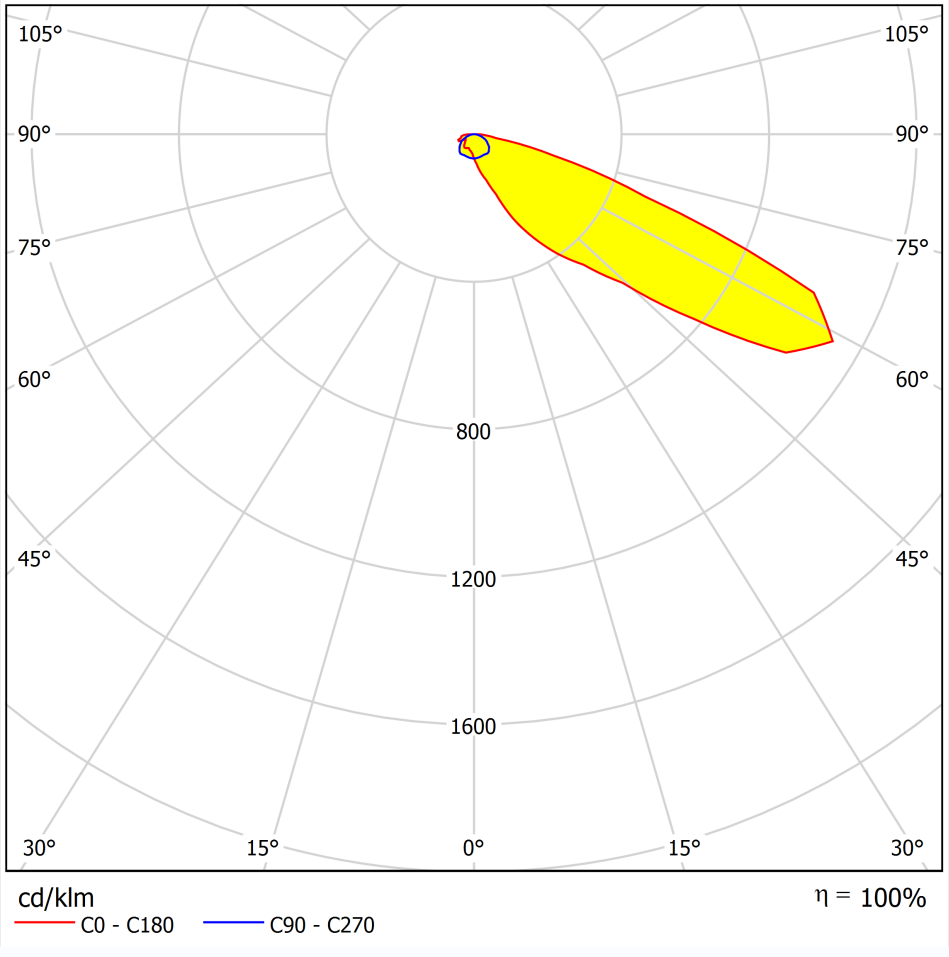

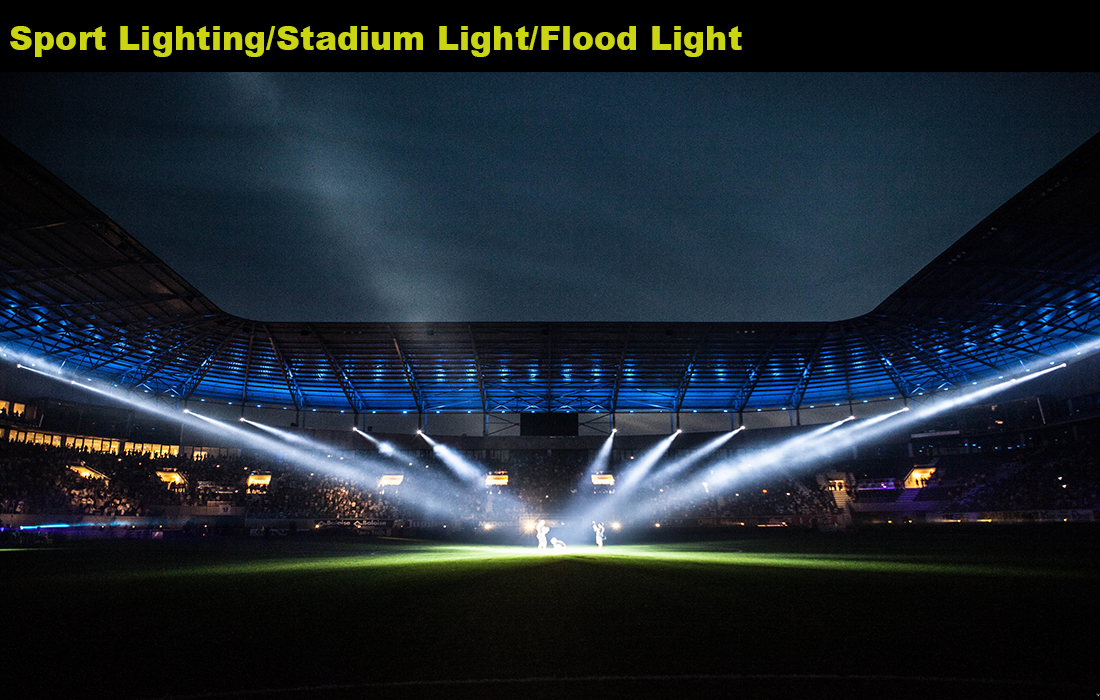

3. Coupled with the Asymmetric 60°， making it particularly suitable for stadium lighting. This design aids in precisely controlling the direction of the beam, ensuring uniform and effective illumination on the sports field, thereby enhancing visibility and the overall game experience.

Specifications

Model:	ALSP173DXXLEDP60G
Diameter:	173*71.4mm
Height:	10.38mm
Angle:	60°
Material：	PC-1250Z
Transmittance：	>90%
LED Applications	2835 3030 5050LED
Lighting applications	Stadium Lighting
