2x6 Lens T3M 5050LED Horizontal Direction PC Material

Model: ALST173D12LED5050T3M-H

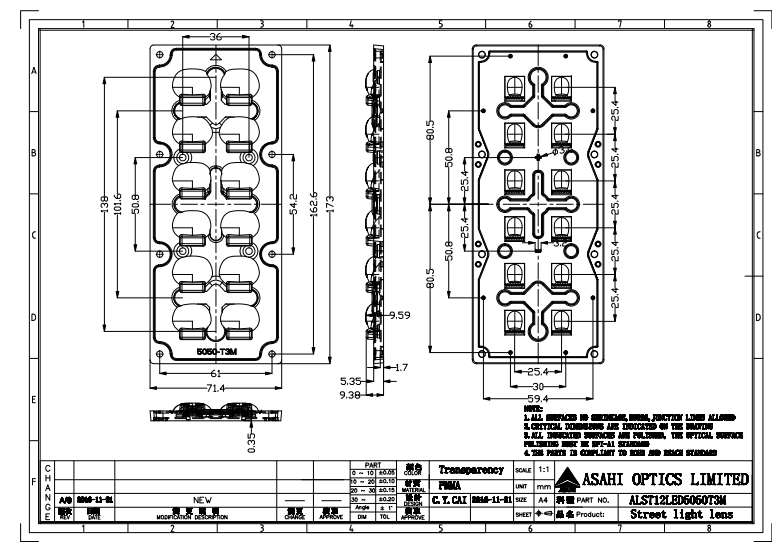

Diameter: 173.0mm+71.4mm

Height: 9.38mm

Angle: T3M Asymmetric

Material: PMMA

Transmittance: >93%

LED Type: 5050 LED

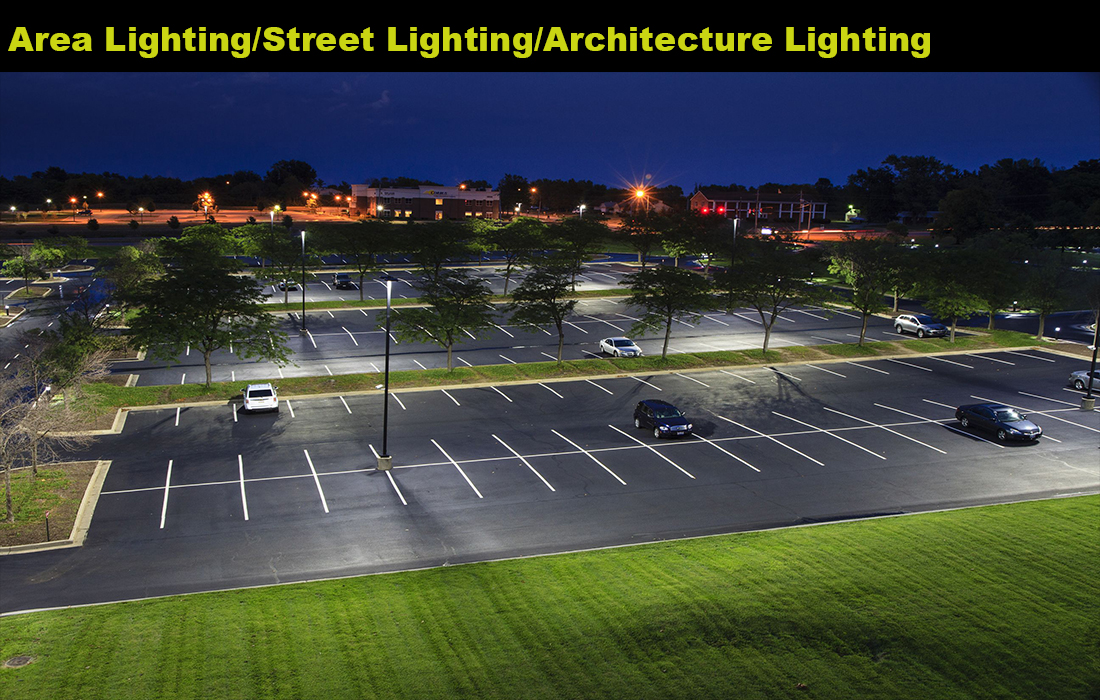

Lighting Applications: Street lighting,Architecture lighting,High Bay lighting

1. The design of the 2x6 Type III-Medium lens provides wide horizontal illumination, suitable for streetlight applications that require even light distribution on wider roads or squares,ensuring effective lighting coverage across the entire region.

2. 2x6 TypeIII-Medium boasts two lens options for both horizontal and vertical installations, catering to diverse preferences among customers for luminaire installation.

Specifications

Model:	ALST173D12LED5050T3M-H
Diameter:	173*71.4mm
Height:	9.38mm
Angle:	T3M Asymmetric
Material：	PMMA
Transmittance：	>93%
LED Applications	5050 LED
Lighting applications	Street lighting

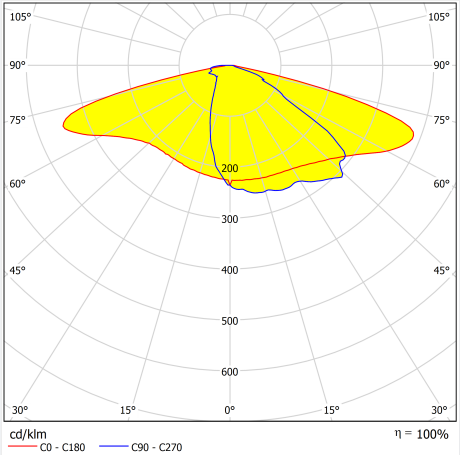

Light Distribution Curve

LED LENS Maintenance Instruction

1) If necessary, clean lenses with mild soap, water, and softening cloth.
2) Never use any industrial solvent to clean lens, such as cleaning Solvent, Alcohol Sulfuric acid, Ammonia, Urea, Mineral oil, Petrol
3) The lens operating Temperature range -40°to+120°C
4) Alternatively the following environment is recommended: Storage temperature: -40°C to +70°C, Humidity:30% to 95% HR mar.
5) The lens has concentrated function, and it’s made from transparent material, The functions will be affected once they were polluted, so please do not open the packages until you use them, in case of dust and other pollution.
6) Please handle or install lens with wearing gloves, skin oils may damage lens optical characteristic.
