Model: ALHB50D14LED30G
Size: 50x50(mm)
Height: 7.18mm
Angle: 30°
Material: PC
Transmittance: >88%
LED Type: 2835/ 3030LED
Lighting Applications: Street lighting, High Bay light
1. A 50×50mm square lens panel integrating 14 lens units, with a 30° narrow angle for precise spot concentration and efficient long‑distance projection.
2. Made of PC material with >88% transmittance, compatible with 2835/3030 LEDs.
3. With a height of only 7.18mm, its ultra‑thin structure facilitates modular integration, making it suitable for street lighting, industrial high bays, and other scenarios requiring concentrated light distribution.

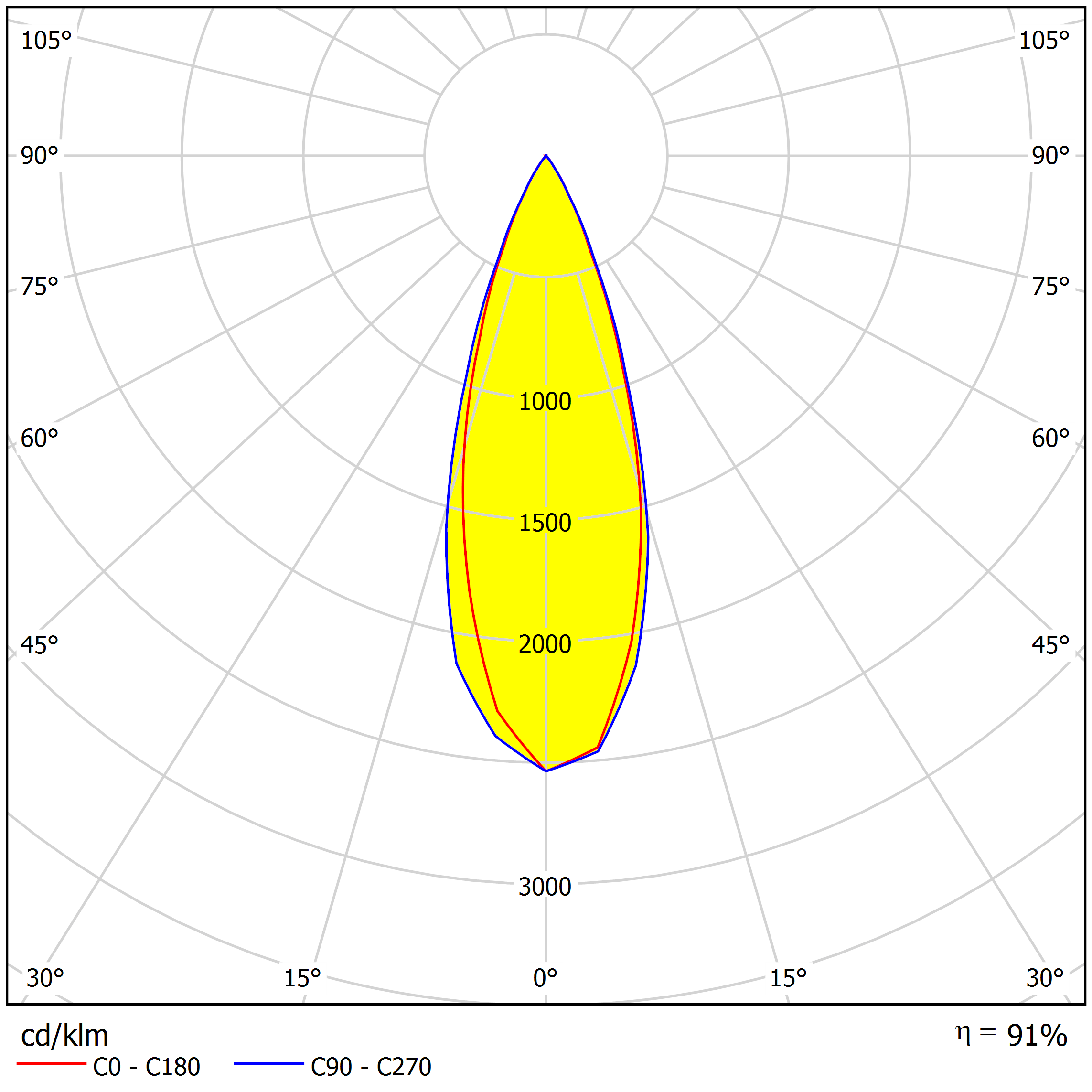

Distribution
Specifications
| Model: | ALHB50D14LED30G |
| Size: | 50x50(mm) |
| Height: | 7.18mm |
| Angle: | 30° |
| Material： | PC |
| Transmittance： | >88% |
| LED Applications | 2835/ 3030LED |
| Lighting applications | Street lighting, High Bay light |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
