Model: ALHB50D16LED60G
Diameter: 50x50mm
Height: 7.8mm
Angle: 60°
Material: PC-1250Z TEIJIN
Transmittance: >93%
LED Type: 3030LED

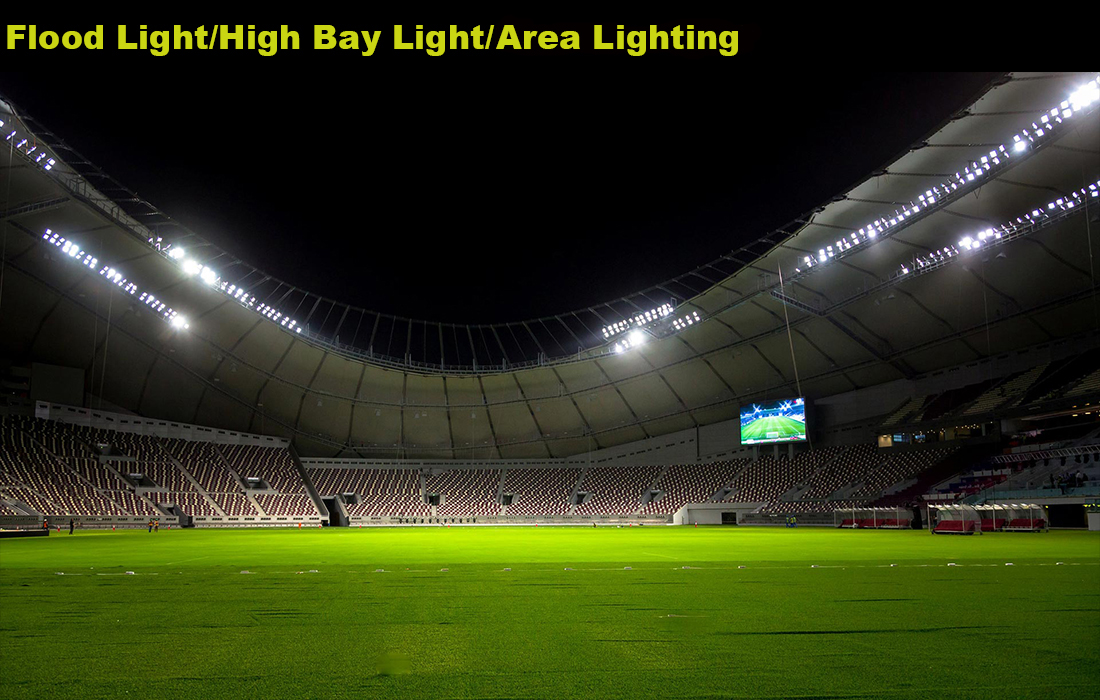

Lighting Applications: Architecture lighting,High Bay lighting,Stadium lighting

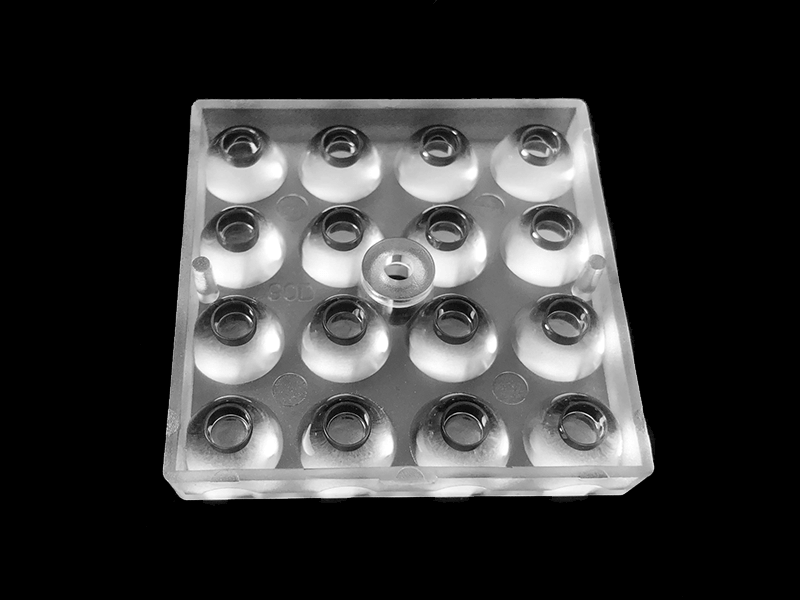

1. The 4x4 lens with 16 LEDs is typically used for creating a concentrated beam of light with a 60° spread.
2. This type of lens is commonly used in applications where a focused and uniform light output is required, such as in outdoor lighting, automotive headlights, and stage lighting.
3. LED lens are an essential component of any high bay lighting system, helping to enhance productivity and safety in a wide range of industrial and commercial settings.

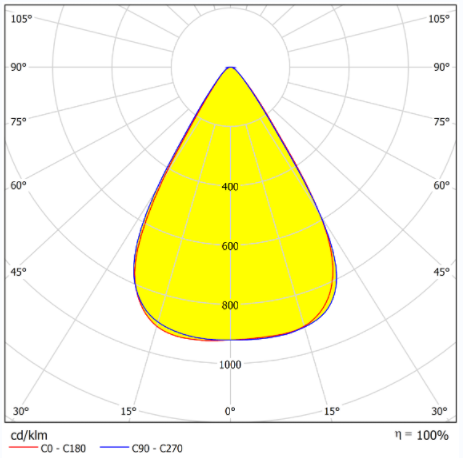

Distribution
Specifications
| Model: | ALHB50D16LED60G |
| Diameter: | 50x50mm |
| Height: | 7.8mm |
| Angle: | 60° |
| Material： | PC-1250Z TEIJIN |
| Transmittance： | >90% |
| LED Applications | 3030LED |
| Lighting applications | Architecture lighting,High Bay lighting,Stadium lighting |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
