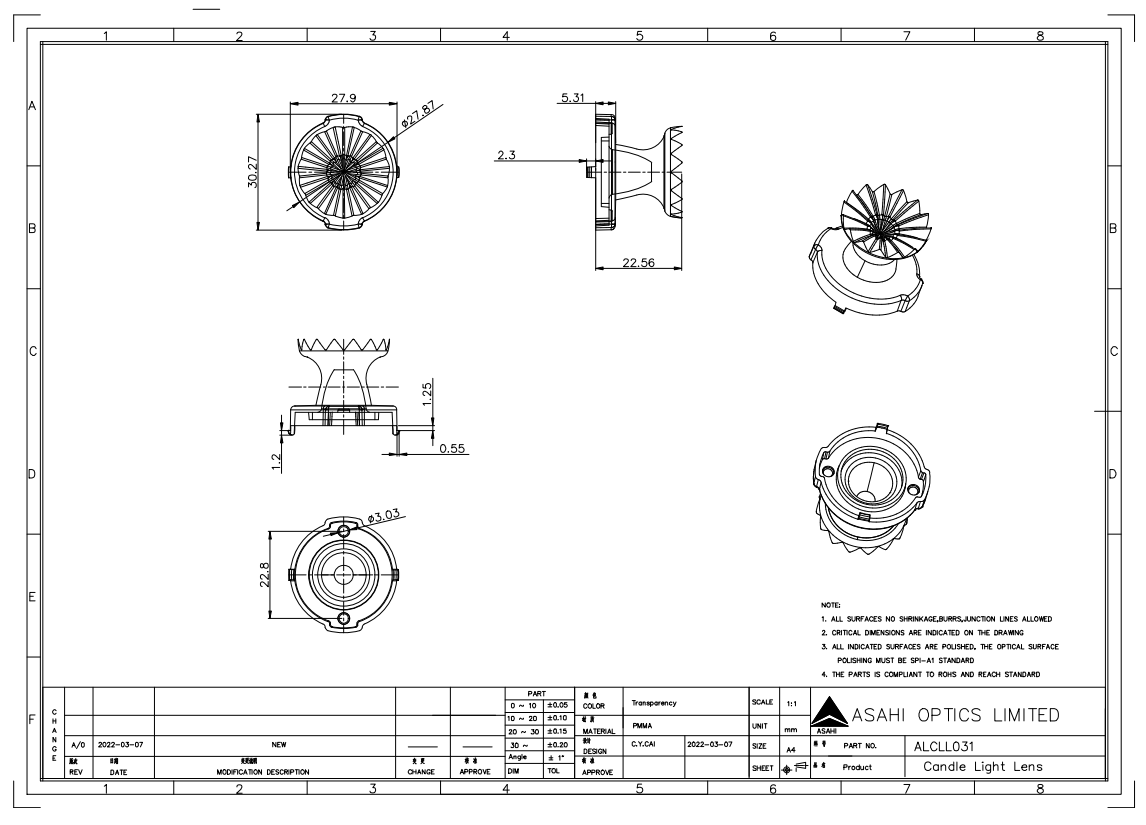

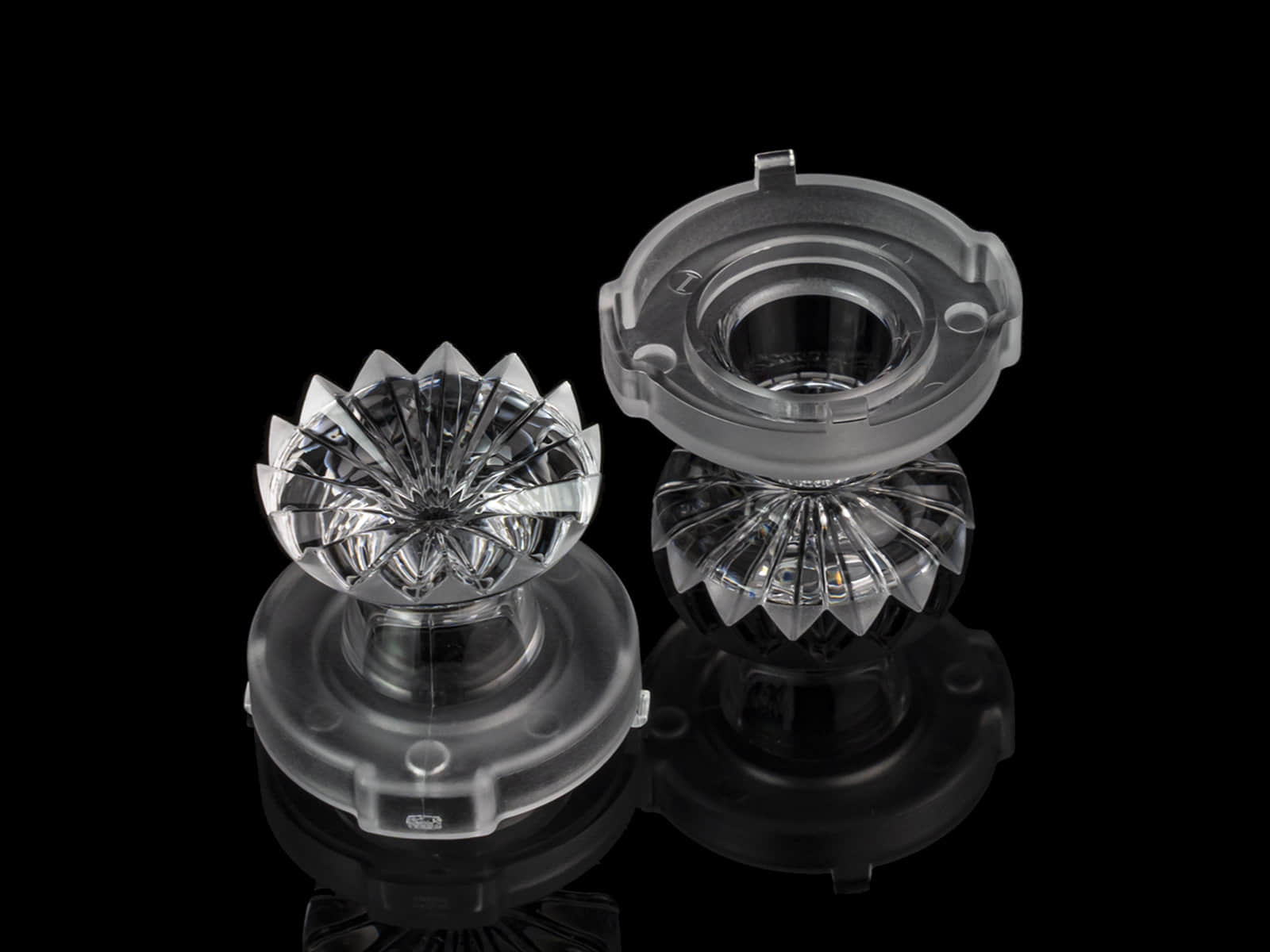

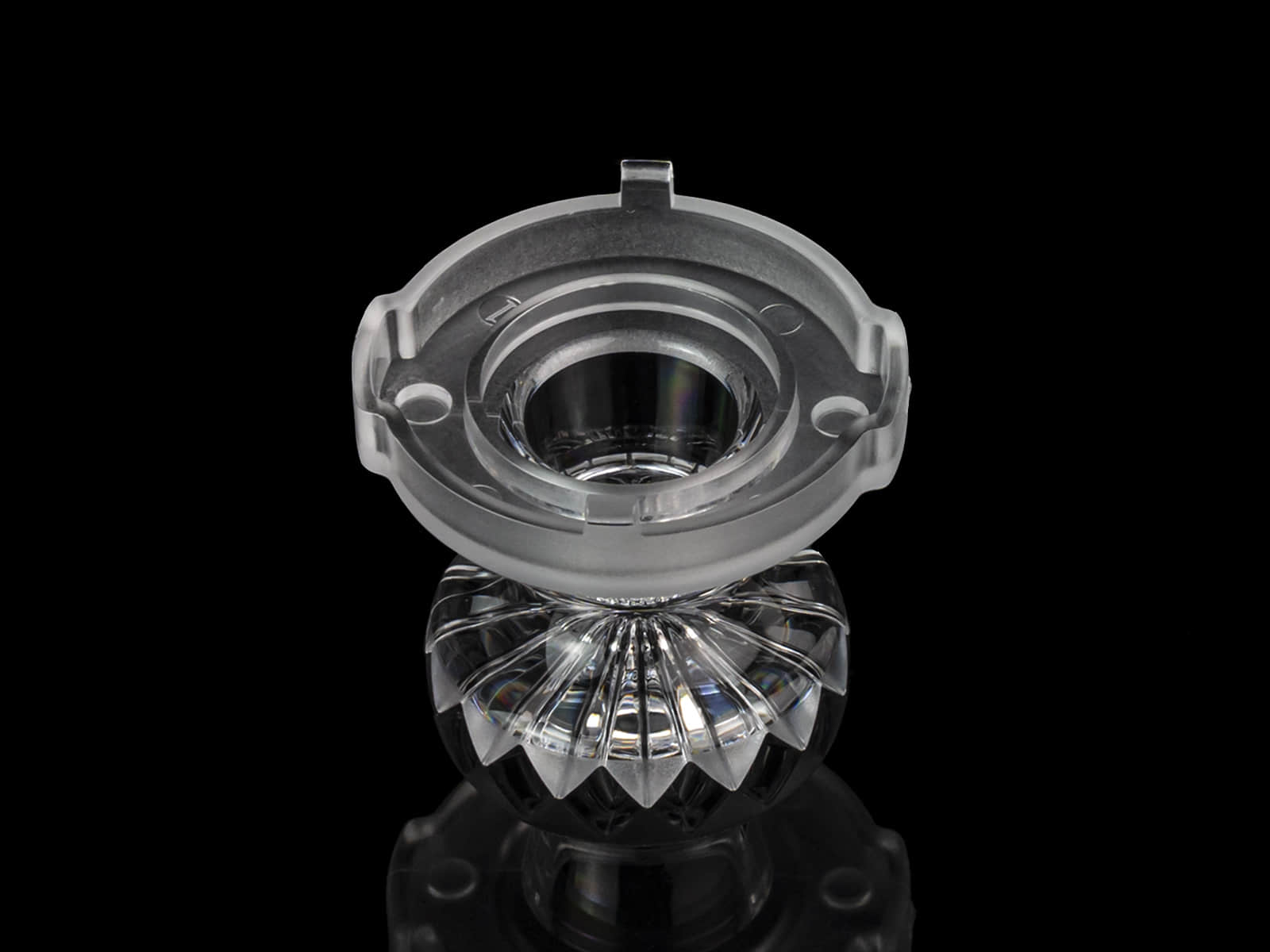

Model: ALCLL031
Diameter: 30.27mm
Height: 22.56mm
Angle: 300°
Material: PMMA
Transmittance:
LED Type: 3030 2835
Lighting Applications: Indoor lighting
1.30x22mm diameter compatible with 3030/2835 LED package.

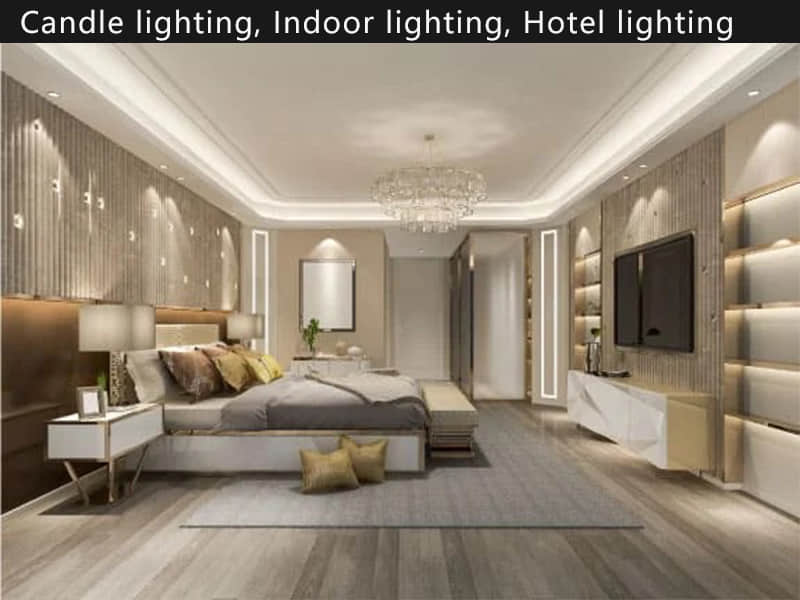

2.Pefect suitable for candle lighting, indoor lighting,hotel lighting.
Distribution
Specifications
| Model: | ALCLL031 |
| Diameter: | 30.27mm |
| Height: | 22.56mm |
| Angle: | 300° |
| Material： | PMMA |
| Transmittance： | >88% |
| LED Applications | 3030/ 2835LED |
| Lighting applications | Indoor lighting |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
Asahi Optics welcomes your questions, inquires and feedback. Please use the form below or contact us at any of the addresses below. Our sales team will get back to you shortly.
