Model: ALST50D8LED3535T2M
Diameter: 50x50mm
Height: 8.42mm
Angle: T2M Asymmetric
Material: PMMA
Transmittance: >93%
LED Type: 3535LED

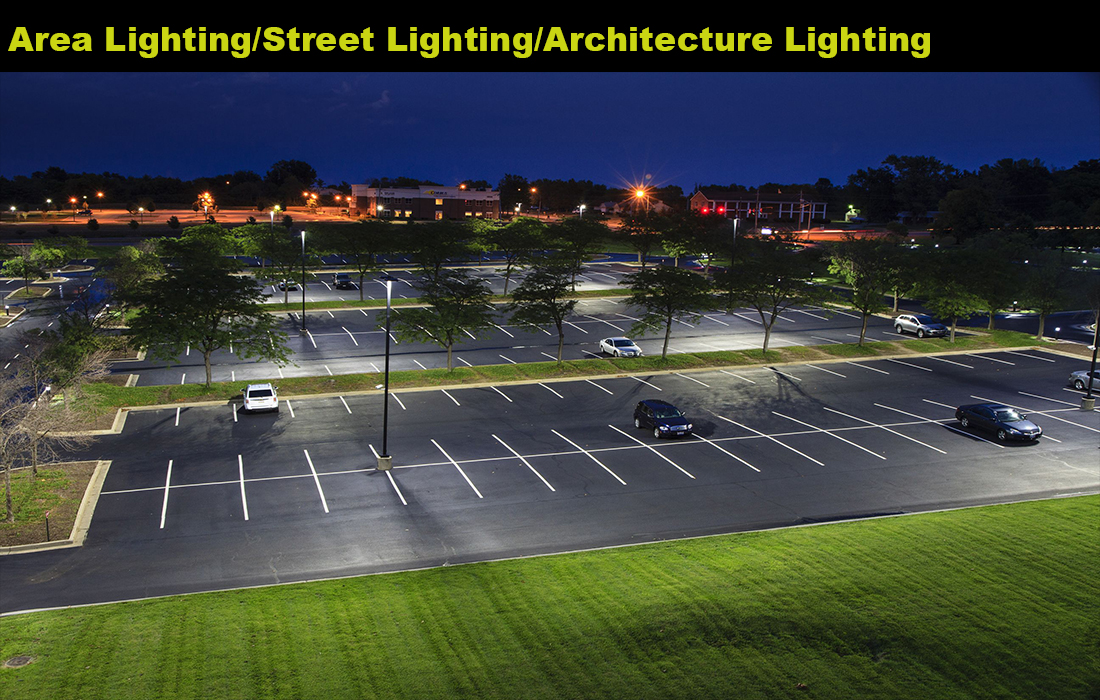

Lighting Applications: Street lighting,Architecture lighting,High Bay lighting
1. 8x1 TypeII-Medium street lens compatible with 3535LEDs.Suitable for various outdoor lighting applications, including street lighting, parking lots, highways, and residential areas.
2. Through specialized optical design, the Type II-Medium lens can reduce upward or surrounding light scatter, helping to minimize light pollution levels and concentrating light where it's needed.
3. Designed to minimize light spill and skyglow, helping to preserve the night sky's natural darkness and reduce light pollution.

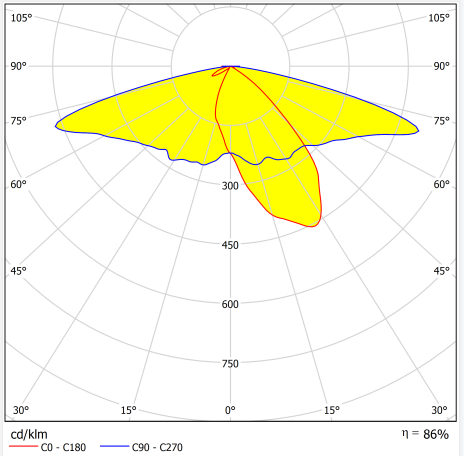

Distribution
Specifications
| Model: | ALST50D8LED3535T2M |
| Diameter: | 50x50mm |
| Height: | 8.42mm |
| Angle: | TypeII-Medium |
| Material： | PMMA |
| Transmittance： | >93% |
| LED Type | 3535 LED |
| Lighting applications | Street lighting,Architecture lighting,High Bay lighting |
LED Type
XPE
XPE2
XP-G2
XP-G3
OSLON SSL80
SQUARE
LUXEON HL4Z
NVSW219GL
PK2E-2LVE-B2R8N
PK2N-4LVE-SBVR8
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
1. 8x1 TypeII-Medium street lens compatible with 3535LEDs.Suitable for various outdoor lighting applications, including street lighting, parking lots, highways, and residential areas.
2. Through specialized optical design, the Type II-Medium lens can reduce upward or surrounding light scatter, helping to minimize light pollution levels and concentrating light where it's needed.
3. Designed to minimize light spill and skyglow, helping to preserve the night sky's natural darkness and reduce light pollution.
ASAHI OPTICS ALST50D8LED3535T2M lens 3D drawing.stp

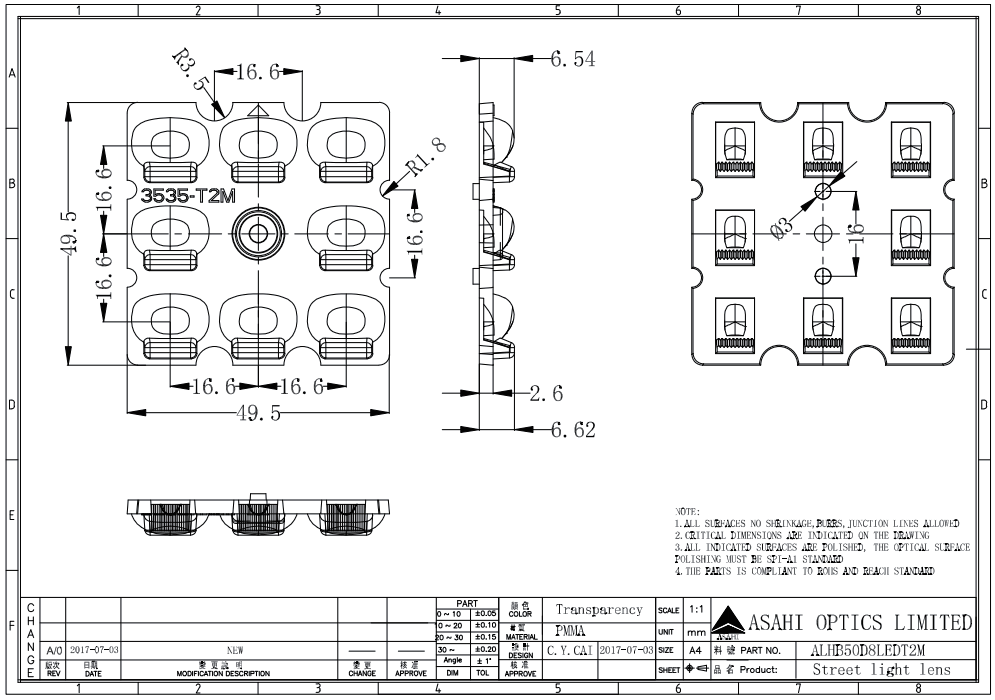

ASAHI OPTICS ALST50D8LED3535T2M Drawing.dwg
ASAHI OPTICS ALST50D8LED3535T2M Drawing.pdf
ASAHI OPTICS ALST50D8LED3535T2M Dialux.pdf
