Model: ALHB173D12LED30110G
Diameter: 173x71.4mm
Height: 12.8mm
Angle: 30x110°
Material: PMMA
Transmittance: >93%
LED Type: 5050 LED
Lighting Applications: High Bay Lighting

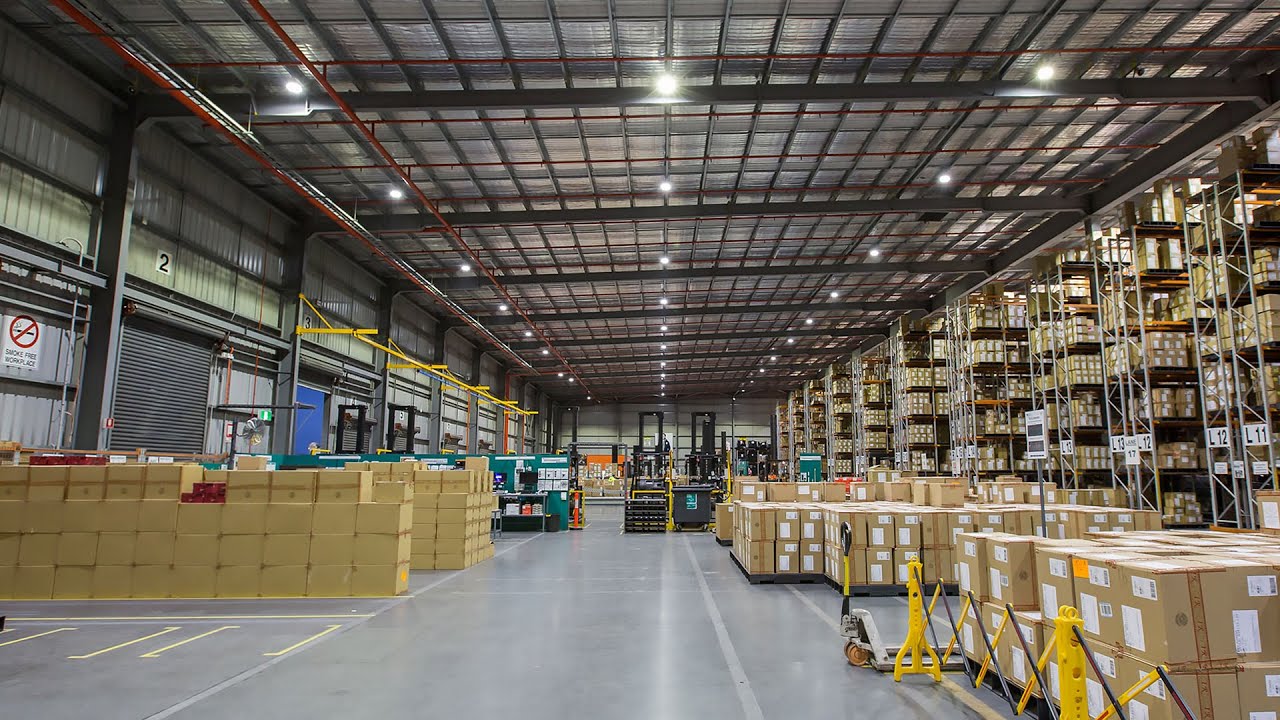

1. 2x6 lens with 30x110° beam angle is designed for high bay lights, which are typically used in industrial or commercial settings with high ceilings.
2.The 30x110° beam angle indicates the spread of the light, with a narrower beam angle in one direction 30° and a wider beam angle in the other direction 110°. This lens configuration helps focus the light in a specific direction, which is beneficial for High Bay lighting applications.
3. This type of beam angle is ideal for providing focused task lighting in a specific area while also providing general illumination over a wider area.

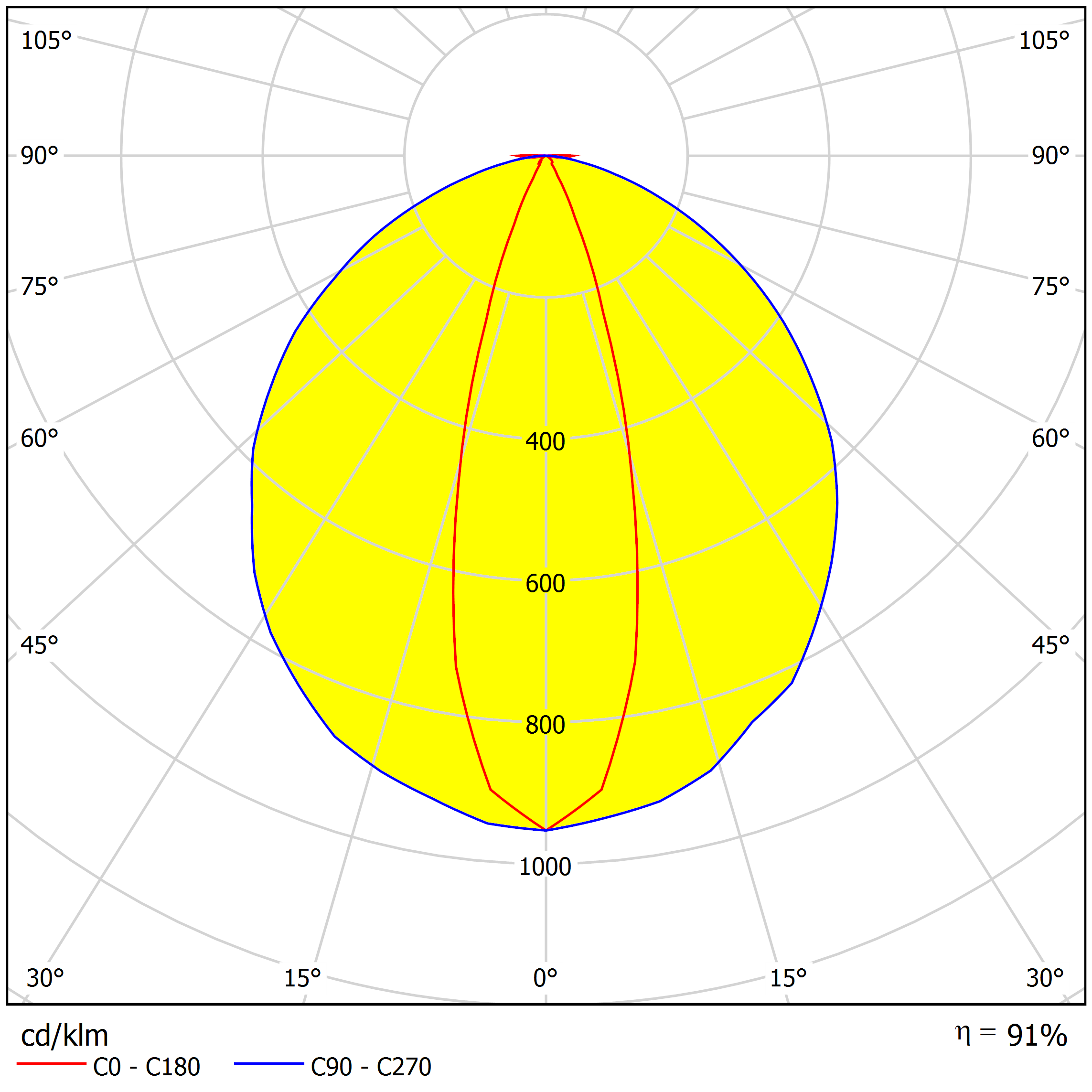

Distribution
Specifications
| Model: | ALHB173D12LED30110G |
| Diameter: | 173x71.4mm |
| Height: | 12.8mm |
| Angle: | 30x110° |
| Material： | PMMA |
| Transmittance： | >93% |
| LED Applications | 5050 LED |
| Lighting applications | High Bay Lighting |
LED Type
JR5005C 6-V E
DURIS S 8
LUXEON 5050 Square
NVAW144AR
NVAW144AM
Xl5050LED
EMC5050LED
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
Asahi Optics ALHB173D12LED30110G 3D Drawing.stp

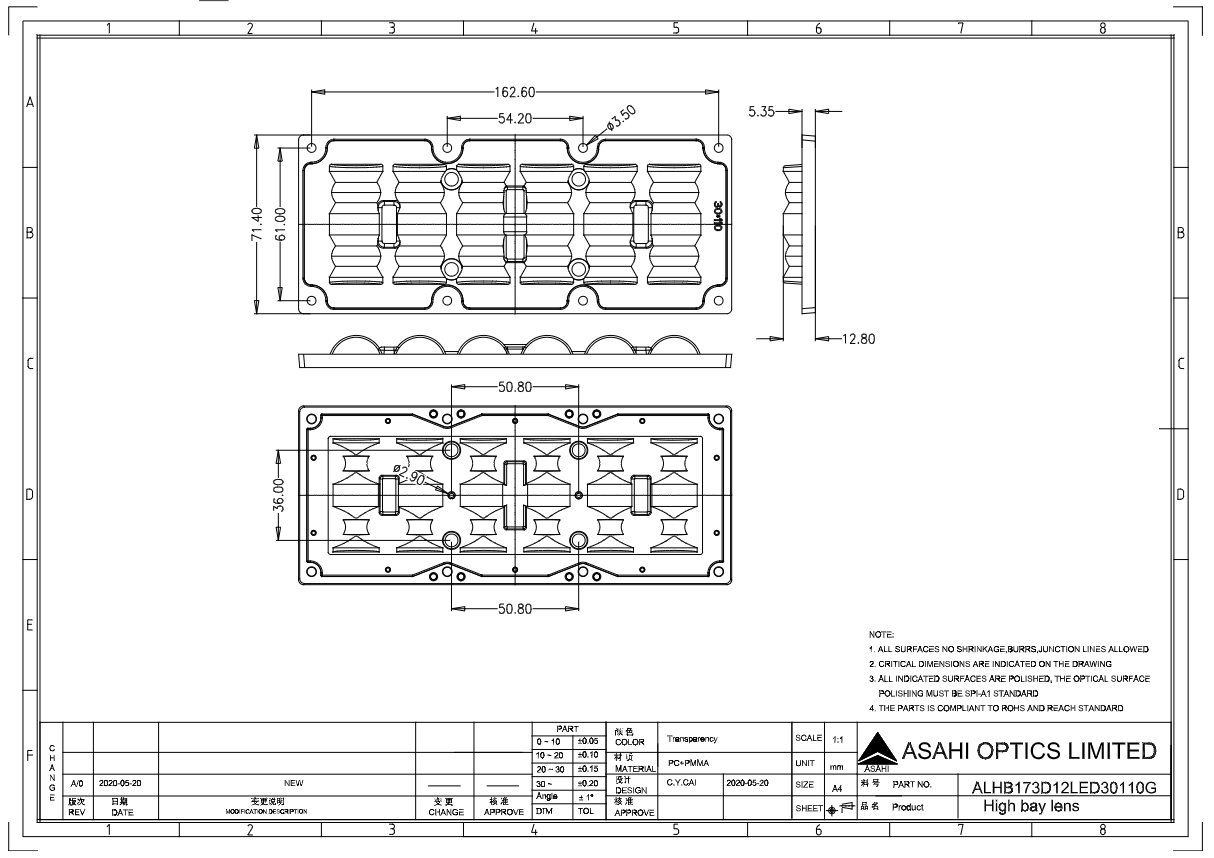

Asahi Optics ALHB173D12LED30110G Drawing.dwg
Asahi Optics ALHB173D12LED30110G Drawing.pdf
Asahi Optics ALHB173D12LED30110G.ies
Asahi Optics ALHB173D12LED30110G Spec.pdf
