[contentbrief] => 2x6 TypeII-Medium lens design with a baffle structure.
The baffle helps prevent direct glare by limiting light from shining directly into the line of sight.
This is particularly useful in applications like vehicle lighting and outdoor illumination where avoiding intense glare is essential.
[metatitle] => 2x6 Arrays 5050LED TYPE II Medium Car Parking Zone Lens - Asahi Optics
[metakeywords] =>
[metadescription] =>
[othermetas] =>
[otherinfo1] =>
[otherinfo2] =>
[otherinfo3] =>
[otherinfo4] =>
[otherinfo5] =>
[otherinfo6] =>
[otherinfo7] =>
[otherinfo8] =>
[otherinfo9] =>
[otherinfo10] =>
[morecatids] => 321,250,350
[customcss] =>
[customjs] =>
[content] => Specifications
| Model: | ALD173D12LEDT2M |
| Diameter: | 173*71.4mm |
| Height: | 10.85mm |
| Angle: | TypeII-Medium |
| Material： | PC-1250Z |
| Transmittance： | >90% |
| LED Applications | "5050" LED |
| Lighting applications | Street lighting,Architecture lighting,High Bay lighting |
Light Distribution Curve
LED LENS Maintenance Instruction
1) If necessary, clean lenses with mild soap, water, and softening cloth.
2) Never use any industrial solvent to clean lens, such as cleaning Solvent, Alcohol Sulfuric acid, Ammonia, Urea, Mineral oil, Petrol
3) The lens operating Temperature range -40°to+120°C
4) Alternatively the following environment is recommended: Storage temperature: -40°C to +70°C, Humidity:30% to 95% HR mar.
5) The lens has concentrated function, and it’s made from transparent material, The functions will be affected once they were polluted, so please do not open the packages until you use them, in case of dust and other pollution.
6) Please handle or install lens with wearing gloves, skin oils may damage lens optical characteristic.
[downloadfiles] =>
ASAHI OPTICS ALD173D12LEDT2M Drawing.dwg
ASAHI OPTICS ALD173D12LEDT2M Drawing.pdf
ASAHI OPTICS ALD173D12LEDT2M lens - PC material. ies
[catattr] => [producttab1] =>
[attrs] => Array
(
[contentid] => 496
[beamangle] => T2M Asymmetric
[beamsize] => 173.0mm+71.4mm
[attrmodel] => ALD173D12LEDT2M
[attrheight] => 10.85mm
[attrmaterial] => PC-1250Z
[attrtransmittance] => >90%
[attrapplications] => "5050" LED
[attrlightapplications] => Street lighting,Architecture lighting,High Bay lighting
[attrname] => 2x6 Arrays 5050LED TYPE II Medium Car Parking Zone Lens
[applicationids] =>
[relateprodids] =>
)
)
Model: ALD173D12LEDT2M
Diameter: 173.0mm+71.4mm
Height: 10.85mm
Angle: T2M Asymmetric
Material: PC-1250Z
Transmittance: >90%
LED Type: "5050" LED
Lighting Applications: Street lighting,Architecture lighting,High Bay lighting

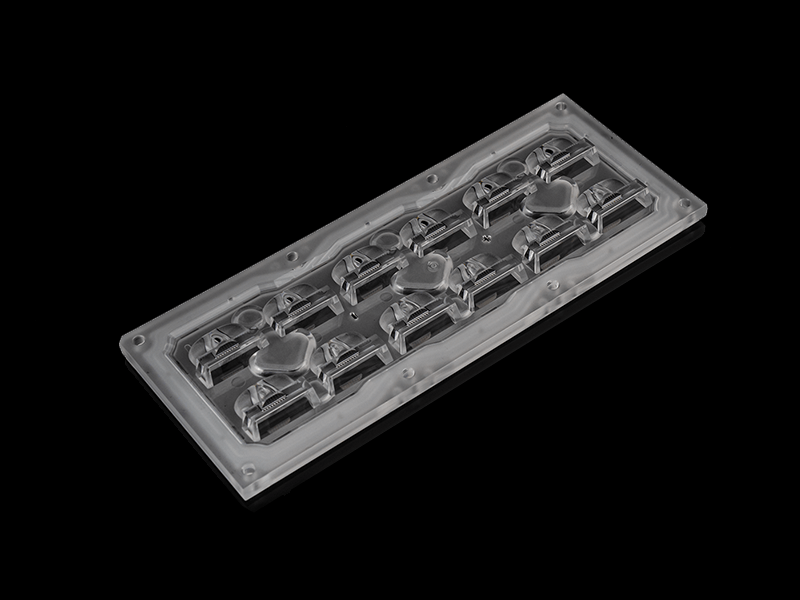

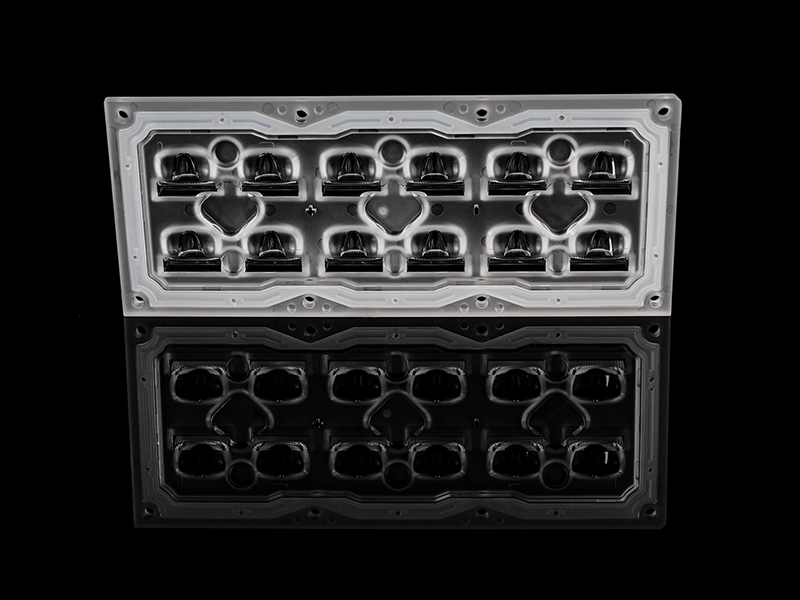

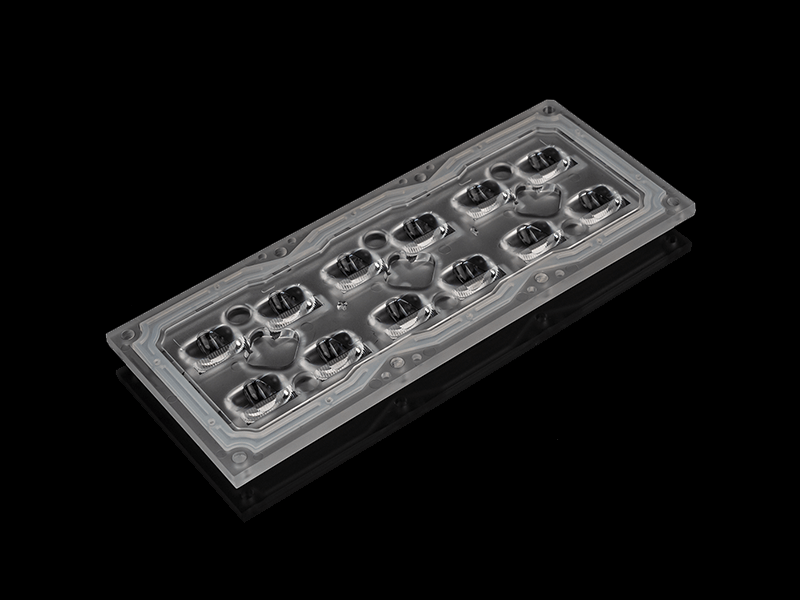

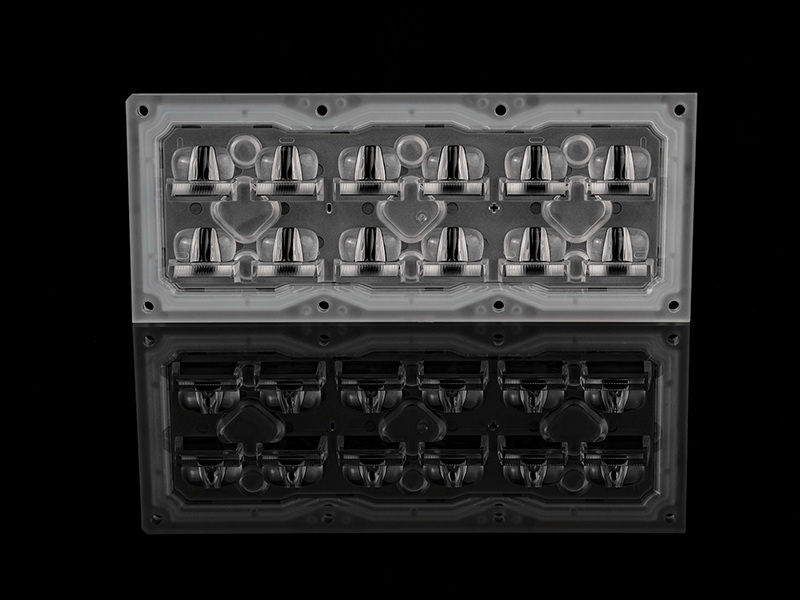

2x6 TypeII-Medium lens design with a baffle structure.
The baffle helps prevent direct glare by limiting light from shining directly into the line of sight.
This is particularly useful in applications like vehicle lighting and outdoor illumination where avoiding intense glare is essential.
Specifications
| Model: | ALD173D12LEDT2M |
| Diameter: | 173*71.4mm |
| Height: | 10.85mm |
| Angle: | TypeII-Medium |
| Material： | PC-1250Z |
| Transmittance： | >90% |
| LED Applications | "5050" LED |
| Lighting applications | Street lighting,Architecture lighting,High Bay lighting |

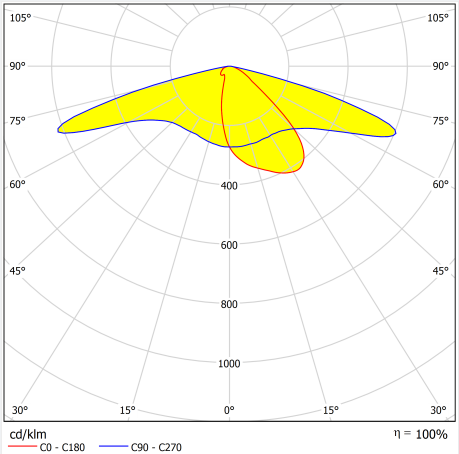

Light Distribution Curve
LED LENS Maintenance Instruction
1) If necessary, clean lenses with mild soap, water, and softening cloth.
2) Never use any industrial solvent to clean lens, such as cleaning Solvent, Alcohol Sulfuric acid, Ammonia, Urea, Mineral oil, Petrol
3) The lens operating Temperature range -40°to+120°C
4) Alternatively the following environment is recommended: Storage temperature: -40°C to +70°C, Humidity:30% to 95% HR mar.
5) The lens has concentrated function, and it’s made from transparent material, The functions will be affected once they were polluted, so please do not open the packages until you use them, in case of dust and other pollution.
6) Please handle or install lens with wearing gloves, skin oils may damage lens optical characteristic.
