Model: AJST304D22LEDT5
Diameter: 304mm
Height: 8.6mm
Angle: Type V
Material: PC
Transmittance: >88%
LED Type: 7070LED

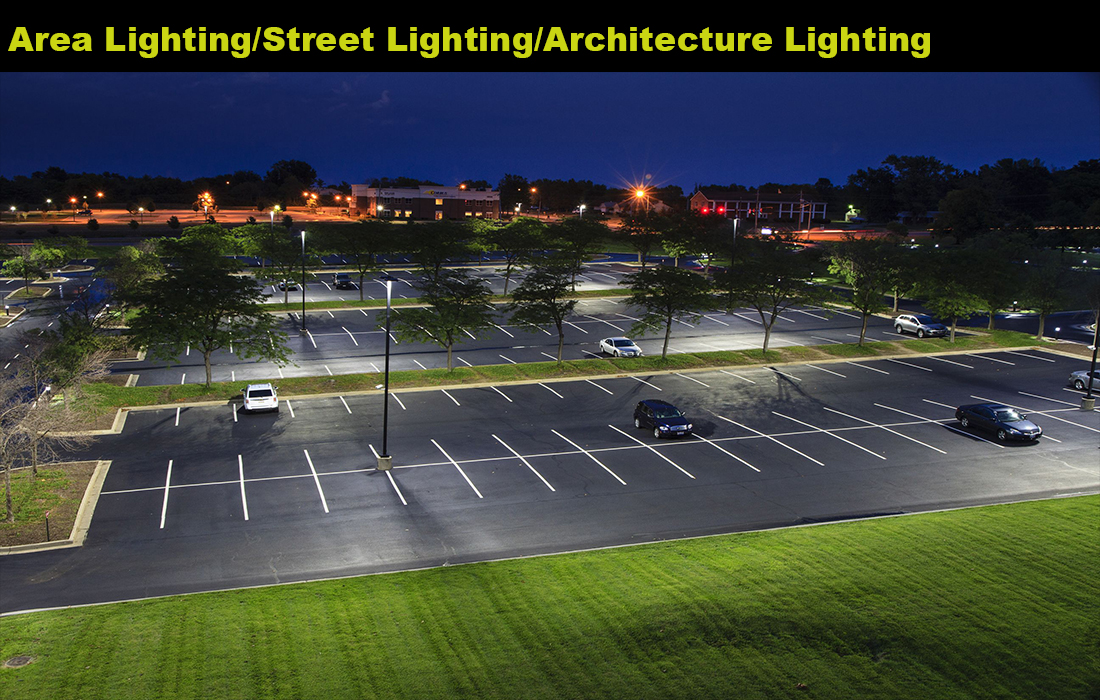

Lighting Applications: Street lighting
Size & Angle: diameter 305mm, height 8.6mm, beam angle TYPE V, suitable for a variety of road lighting scenarios.
Material & Transmittance: Made of optical grade PC material, the light transmittance is over 88%, ensuring efficient light transmission.
COMPATIBILITY: Suitable for 7070 LEDs, can be seamlessly integrated with a wide range of LED luminaires.
Distribution
Specifications
| Model: | AJST304D22LEDT5 |
| Diameter: | 304mm |
| Height: | 8.6mm |
| Angle: | Type V |
| Material： | PC |
| Transmittance： | >88% |
| LED Applications | 7070LED |
| Lighting applications | Street Lighting |
LED Type
XHP70.3
OSCONIQ™ P 7070
LUXEON 7070 HE
149 Series
EMC7070LED
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.

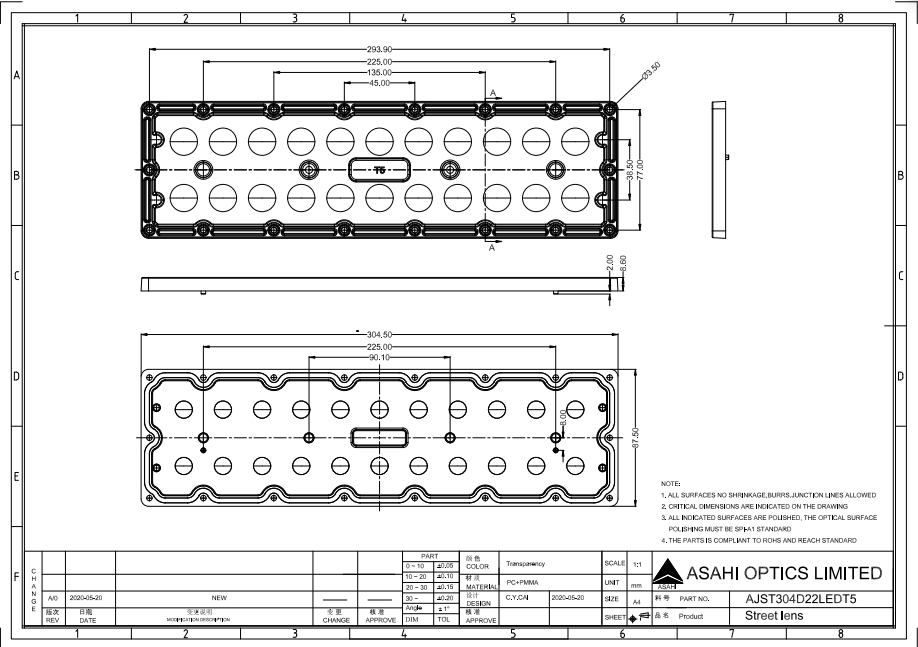

Asahi Optics AJST304D22LEDT5 Drawing.dwg
Asahi Optics AJST304D22LEDT5 Drawing.pdf
Asahi Optics AJST304D22LEDT5.IES
